Specifications:
Frequency: 24.125GHz (adjustable frequency available)
Output Power: 18dBm (Typical)
Modulation Type: CW
Antenna Gain: Emission 16dBi / Reception 18.4dBi
Measuring Range: 1–240km/h
Accuracy: ±1km/h
Detection Angle: Horizontal 40° / Vertical 16°
Detection Distance: >180m
Output Rate (EIRP): 20dBm
Operating Voltage: 9-24V / <50mA at 12V
Dimensions: 69 x 53mm
Operating Temperature: -20°C to +85°C
Storage Temperature: -40°C to +125°C
Communication Ports: RS485 / TTL
Features:
1. Wide Speed Range Measurement: Covers vehicle speeds from 1 km/h to 240 km/h with high accuracy.
2. Long-Range Capability: Detects objects beyond 180 meters, offering extended coverage for road applications.
3. Compact Design: Small size (69 x 53mm), suitable for flexible installation in limited spaces.
4. Stable Performance: Operates reliably in extreme conditions (-20°C to +85°C).
5. Smooth Integration: RS485 and TTL communication ports ensure easy connectivity with various systems.
Package Included:
Set 1:

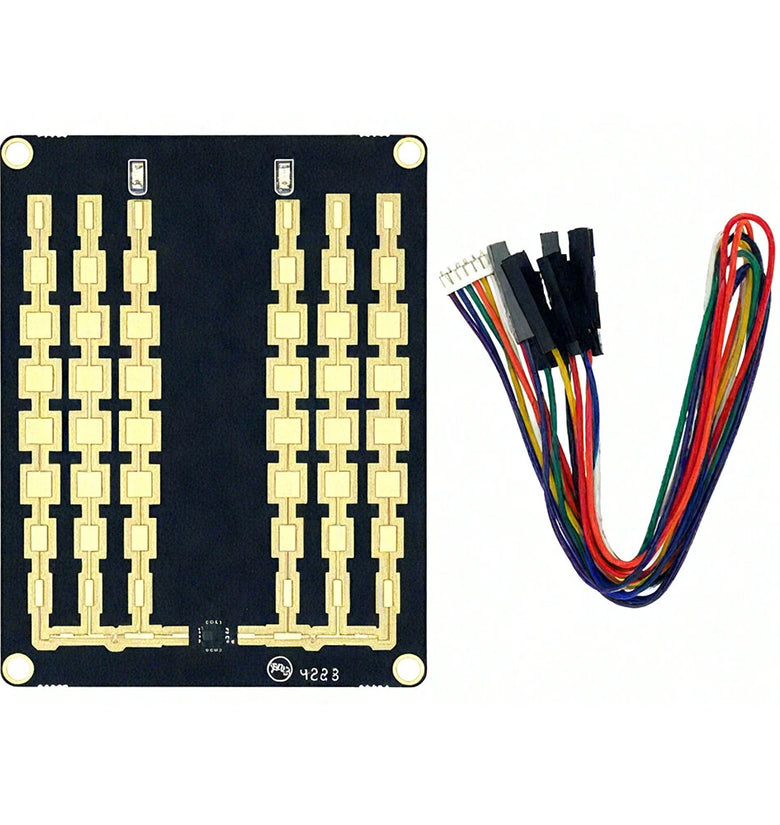

1 x LD2410H Single-Module
1 x 1.25mm to 2.54mm 8-Pin Dupont Cables
or
Set 2:

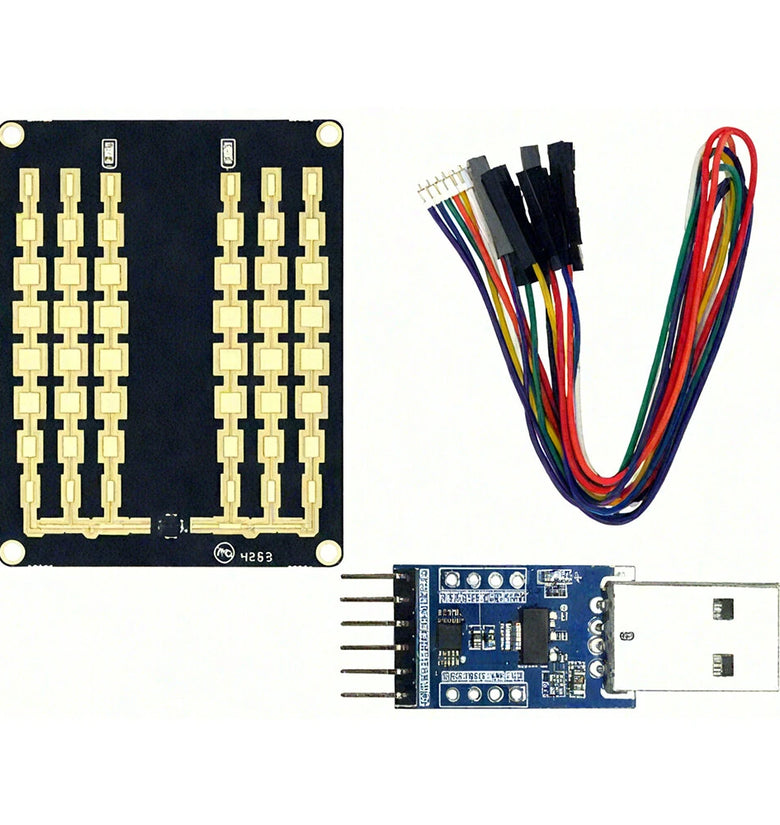

1 x LD2410H Single-Module
1 x 1.25mm to 2.54mm 8-Pin Dupont Cables
1 x CH340 Serial Interface Board
