Parameters:

Power supply: TYPE-C line;
Module frequency range: 10M-6GHz;
Noise figure: NF=5dB (refer to the measured curve for
different frequencies);
Gain: 20dB / 30dB (refer to the measured curve for different
frequencies);
Volume: 4.5*3*1.4cm (without protruding SMA)
Weight: 66g (including host + TYPE-C cable)
Current: <80mA
P1dB=10dBm@2GHz;2dBm@2GHz
Output interface: SMA female, input and output impedance: 50 ohms

Application scenarios:

1. Beidou/GPS receiver

2. Receiver system (FM radio reception, radar reception,
etc.)
3. Electromagnetic compatibility receiving system
4. Software radio receiver

Package Include:

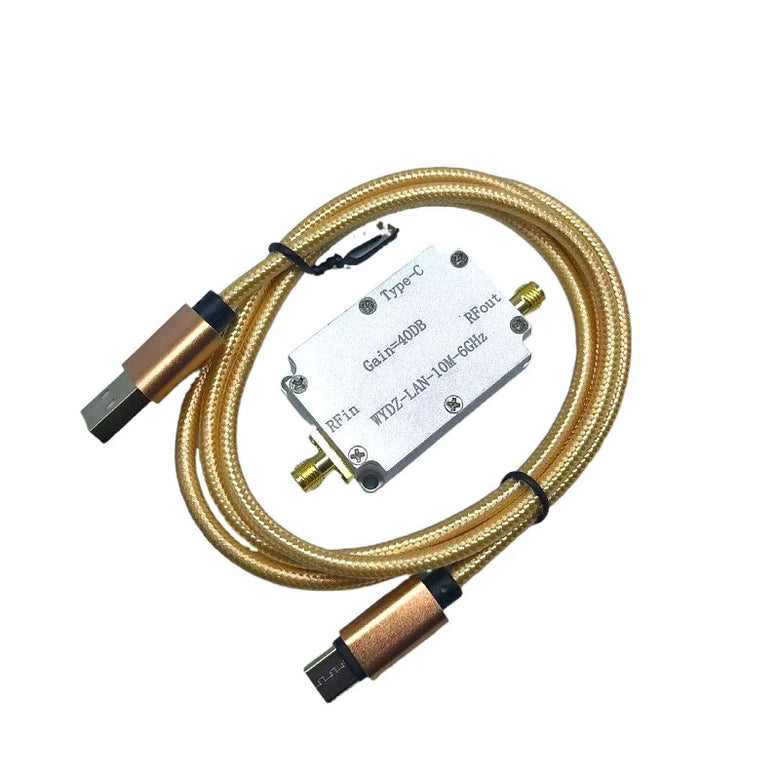

1× High Flatness Amplifier

1× Type-C Cable
