Product Overview:

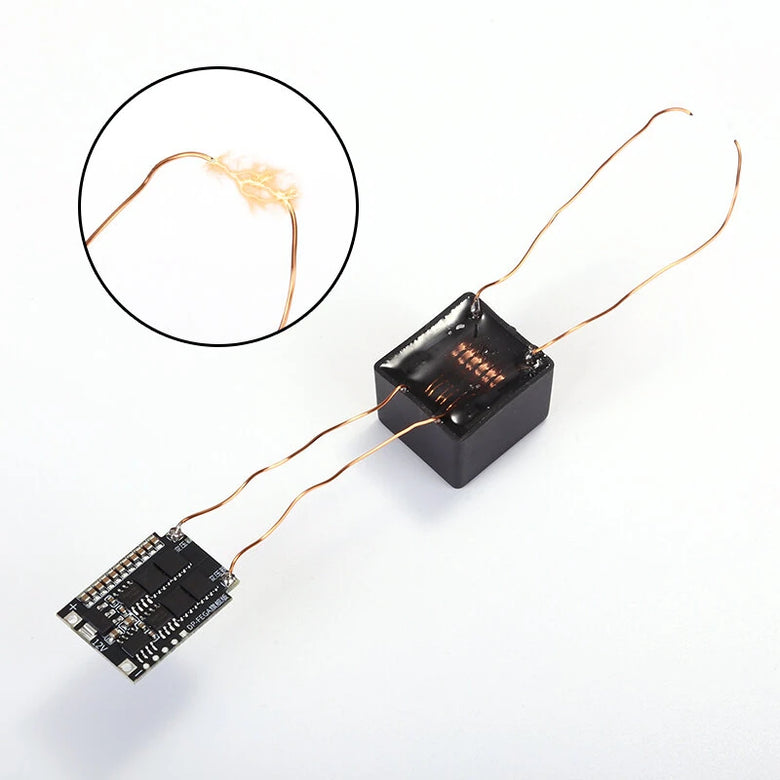

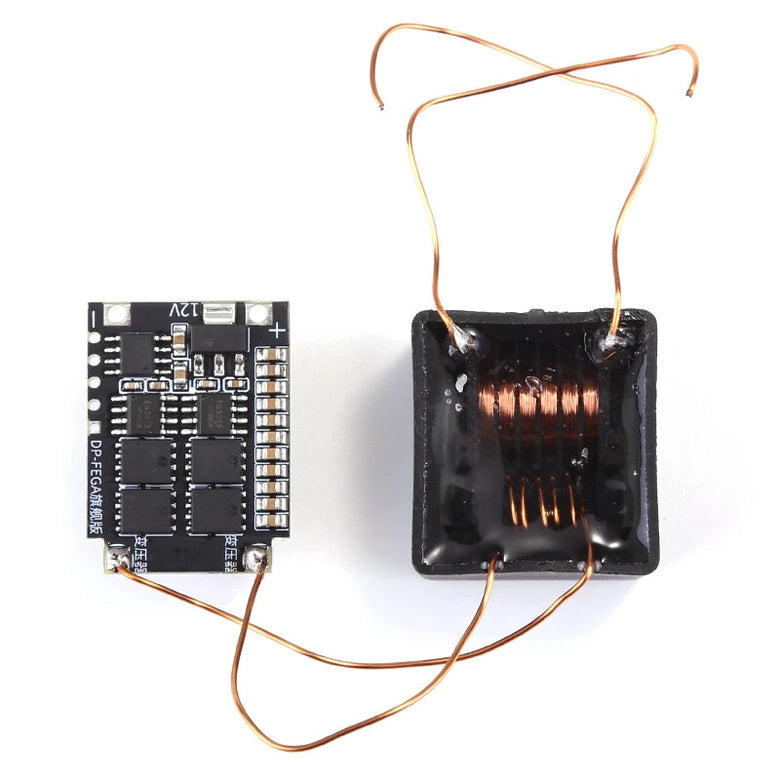

This product is a high-voltage ignition module specifically designed for diesel boilers. It adopts high-frequency AC boost technology, supports a wide input voltage range of DC 4V-12V, and outputs up to AC 20KV high voltage. It provides stable and reliable ignition and is designed for industrial and domestic diesel boilers, suitable for various open flame ignition scenarios.
Specifications:
Input Voltage: DC 4V-12V (Recommended: 12V)
Input Current: 6A-7A (at 12V)
Output Power: 70W-80W
Output Voltage: ~20KV AC
High-Frequency Output Current: ~40mA
Circuit Board Dimensions: 2.3 x 3.1 x 0.3cm
High-Voltage Module Dimensions: 2.9 x 2.7 x 2.2cm
Features:
1. High-Frequency AC Technology: Advanced high-frequency boost technology ensures stable arc generation for efficient ignition with consistent performance.
2. Wide Voltage Compatibility: Input voltage range of DC 4V-12V, suitable for a variety of power sources and flexible operation conditions.
3. Powerful Arc Strength: Outputs ~20KV AC and ~40mA current, providing a robust and intense electric arc for reliable ignition.
4. Compact Design: Sleek design with a small footprint; circuit board measures only 2.3 x 3.1cm for easy installation in limited spaces.
5. Optimized for Diesel Boilers: Tailored design specifically for industrial and household diesel boilers to enhance ignition performance in diverse applications.
Package Included:

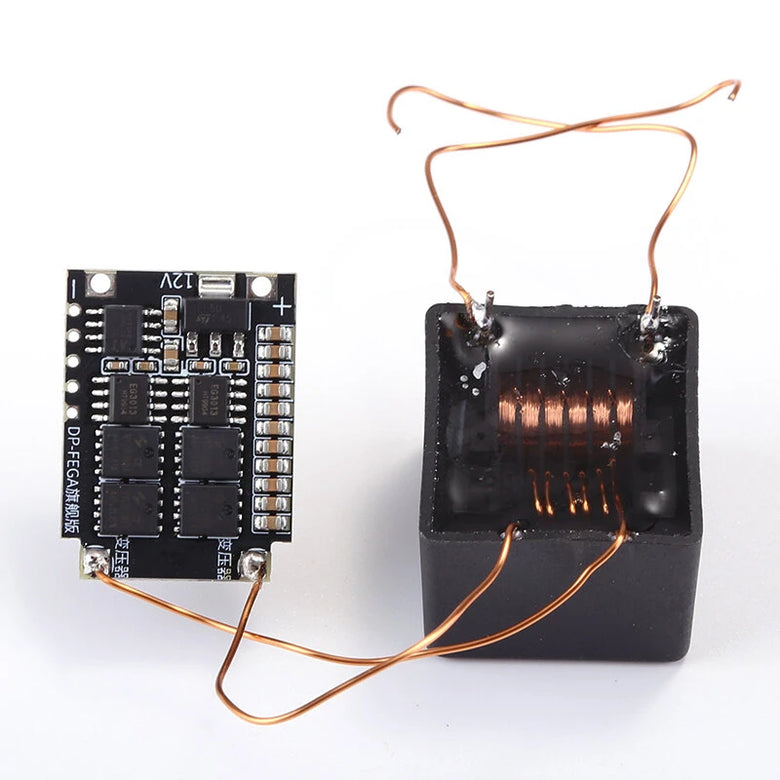

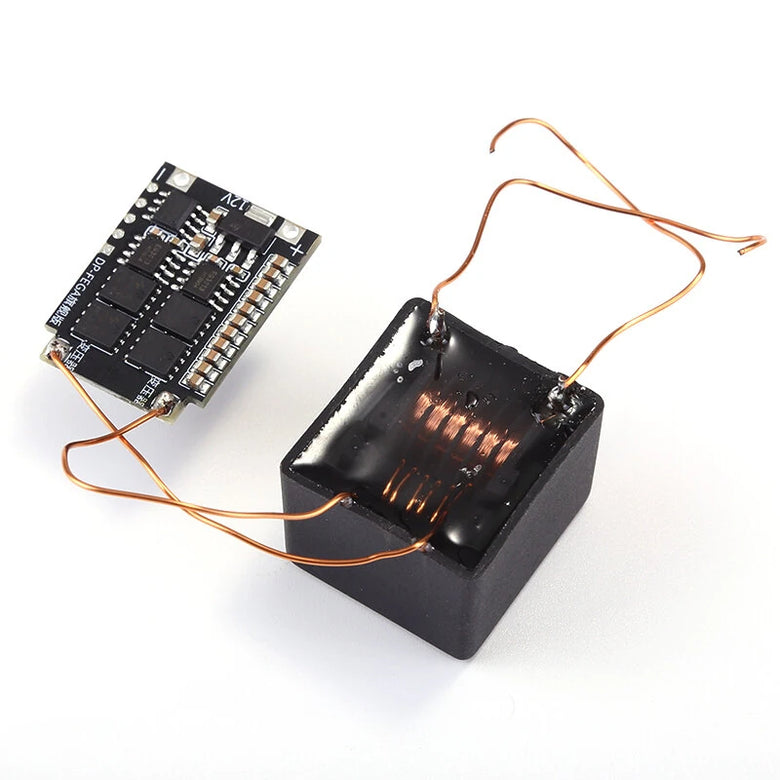

1 x High-Voltage Ignition Module
1 x Circuit Board
Instructions for Use:
A 12V DC power supply is recommended to ensure maximum output performance.

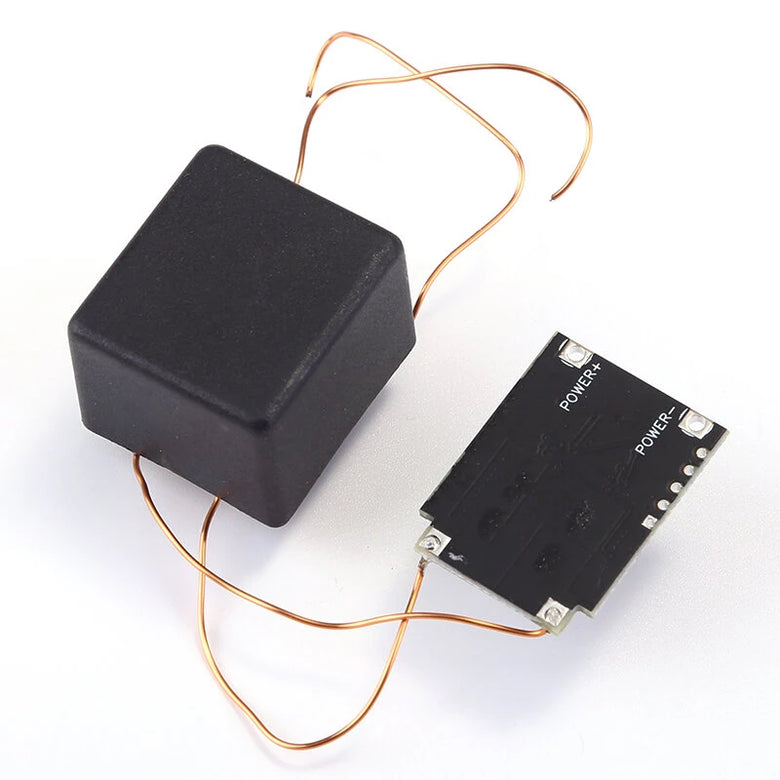

Pay attention to the positive and negative terminals when wiring to avoid damaging the module.
Keep the high-voltage output terminal dry and clean to prevent leakage or short circuits.
During installation, ensure the high-voltage arc is at a proper distance from the fuel to improve ignition efficiency.
Warm Reminder:
High voltage output. Do not come into direct contact with the electric arc to avoid the risk of electric shock.
Do not overload the device. Ensure the power supply voltage is within the DC 4V-12V range.
