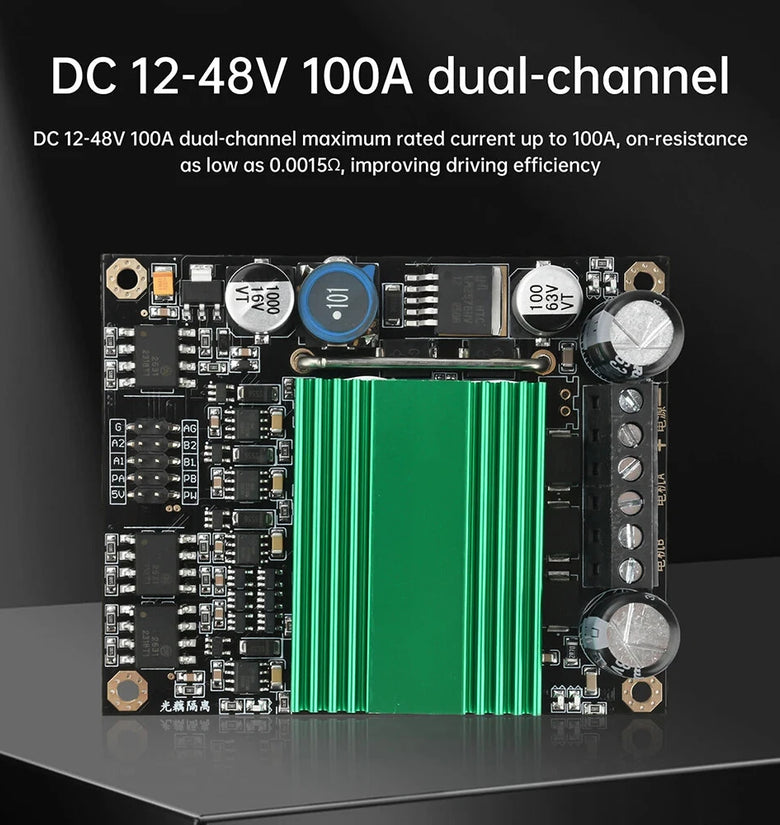

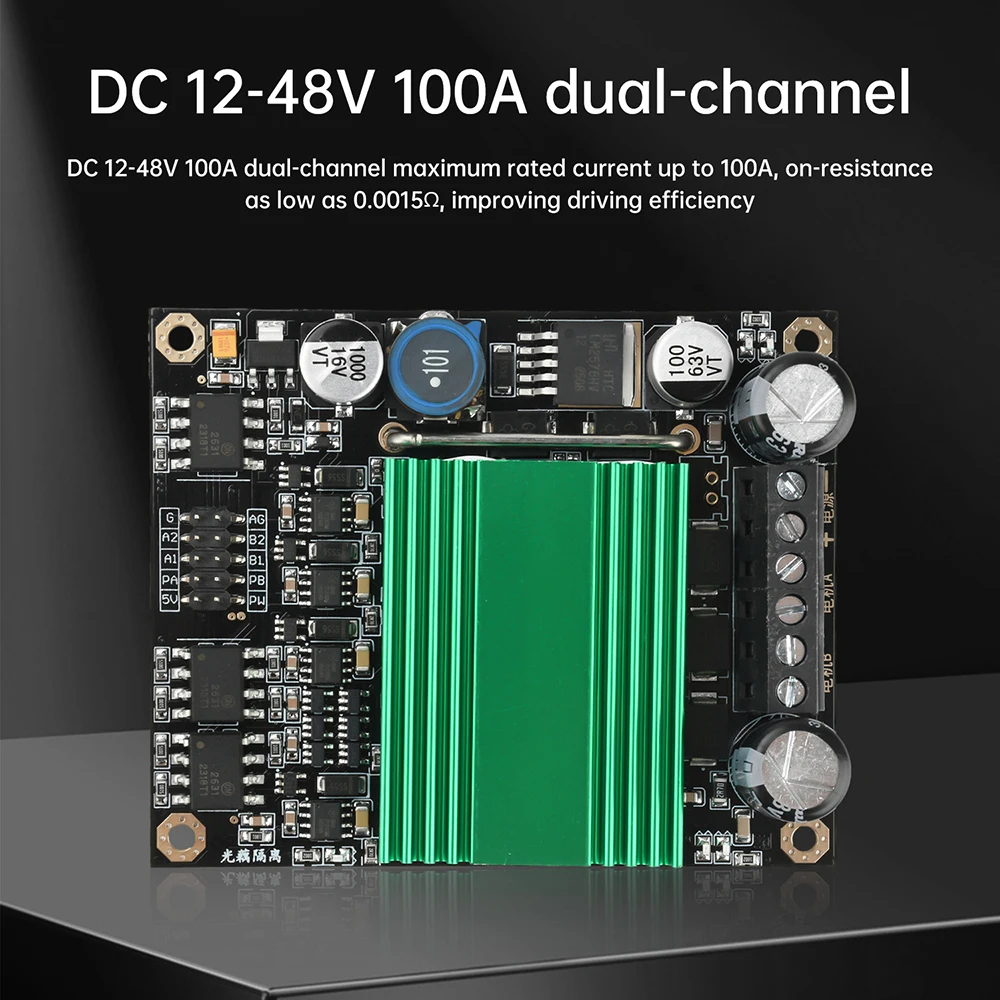

Specifications:
Input Voltage: DC 12V-48V
Maximum Current: 100A
Switching Frequency: Up to 60kHz
Signal Isolation: 10M high-speed optocoupler
On Resistance: As low as 0.0015 Ω
Compatibility: Compatible with 3.3V and 5V microcontrollers

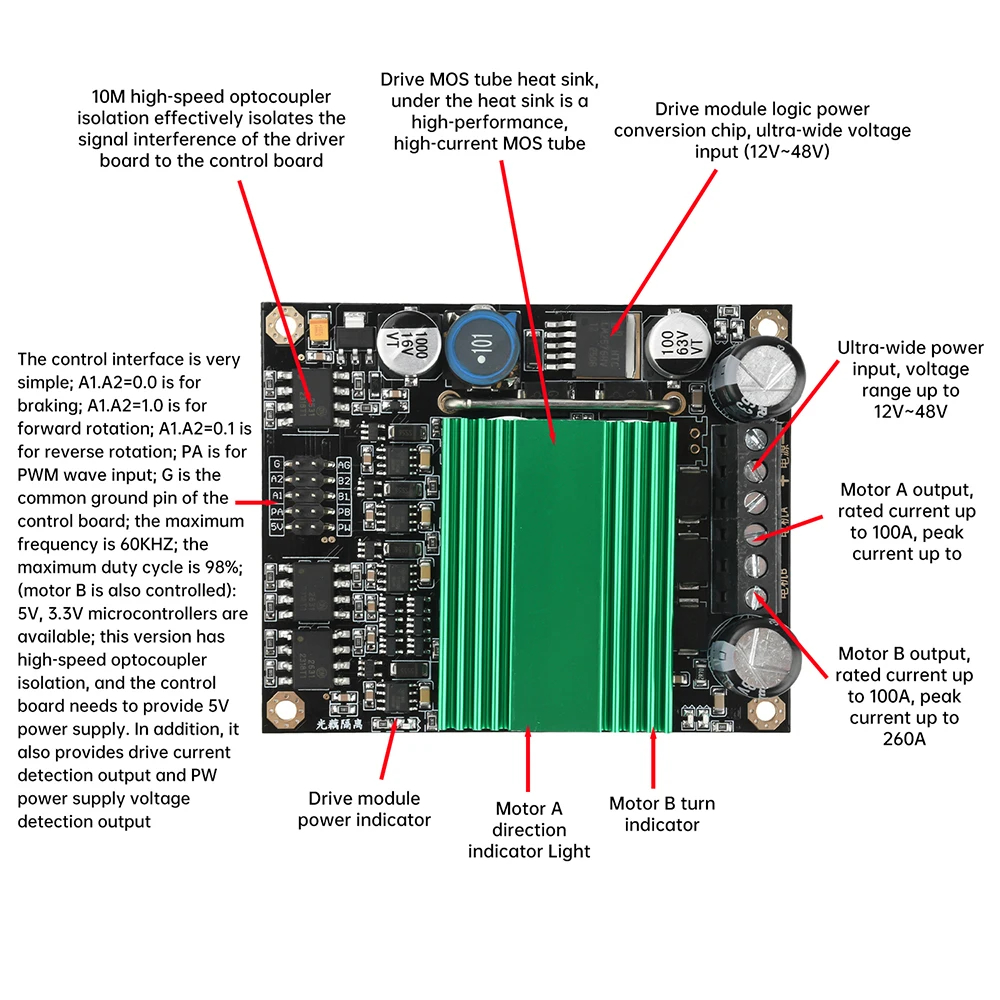

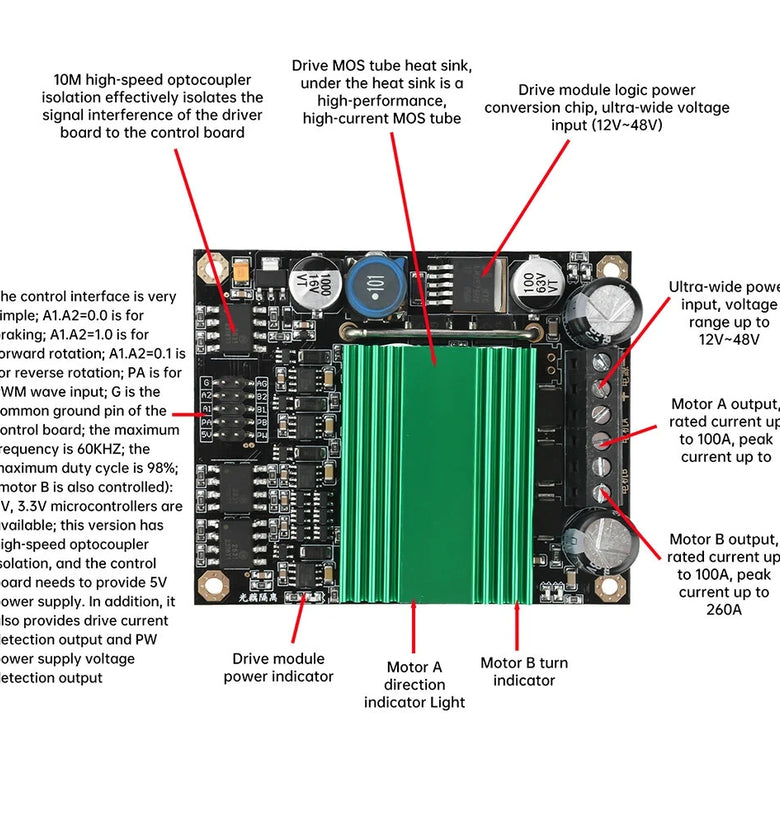

Control interface:
When A1.A2=0.0, it is the brake
When A1 and A2 are equal to 1.0, it is a forward rotation
When A1 and A2=0.1, it is reversed
PA is PWM wave input (motor speed regulation)
G is the common ground pin with the control board (B is the same control)
Features:
1. High Power Output: Capable of handling a maximum current of 100A, this module ensures reliable performance for high-power DC motors in demanding applications.
2. Wide Voltage Range: Supports input voltages from 12V to 48V, meeting various power needs for different setups.
3. Optimized Heat Dissipation: Equipped with large heat sinks to efficiently control temperatures during high-current operations, maintaining stable performance.
4. Advanced Signal Isolation: Features 10M high-speed optocoupler isolation to reduce interference and enhance control system reliability.
5. High Switching Frequency: Operates at up to 60kHz for precise motor control, avoiding noise and improving functionality in key motor control tasks.
Package Included:
1 x High Power H-Bridge Motor Driver Module
