Product Overview:
This product is a high-voltage pulse arc generator specifically designed for single-cell 18650 lithium batteries. The input voltage is strictly limited to 3V-4.5V, and the peak output voltage can reach 15KV. It generates a low-temperature white arc and is suitable for scientific research experiments, special effects demonstrations, and other scenarios. Overvoltage use is strictly prohibited, as it may lead to serious consequences such as module explosion or combustion!
Specifications:
Input Voltage: 3V-4.5V (recommended 4.2V)
Input Current: 1.5A-3A (depending on load variation)
Output Voltage: 5KV-20KV (voltage increases with input rise)
Pulse Capacitor: 20KV/102/1000pF
Pulse Frequency: 3-20 times/second
Arc Distance: 1cm-1.5cm
Arc Characteristics: White, low temperature
Features:
1. Precise Output Performance
Accurate and verified specifications delivering up to 15KV peak voltage output, with stable arc production ranging between 3-20 pulses per second. Ensures consistency during scientific experiments or display demonstrations.
2. Single Battery Design
Optimized for single-cell 18650 lithium battery, ensuring efficient operation while maintaining a compact design. Strictly limited to voltage input below 4.5V for safe use.
3. Safety Measures and Warnings
Designed with user safety in mind: Prohibited for over-voltage, short-circuit, or open-load operation. Requires insulation sealing to prevent damage during extended use or damp environments (ideal for short-term testing otherwise).
4. Ideal for Educational and Scientific Use
Practical application in high-voltage discharge experiments, interactive exhibits, and academic demonstrations. Delivers clean and visible arcs suitable for visual effects without excessive heat.
5. Premium Component and Construction Standards
Built with high-quality capacitors (20KV/102/1000pF) to ensure consistent pulse frequency and output voltage. Compact module design providing reliable performance for professional environments.
Package Included:

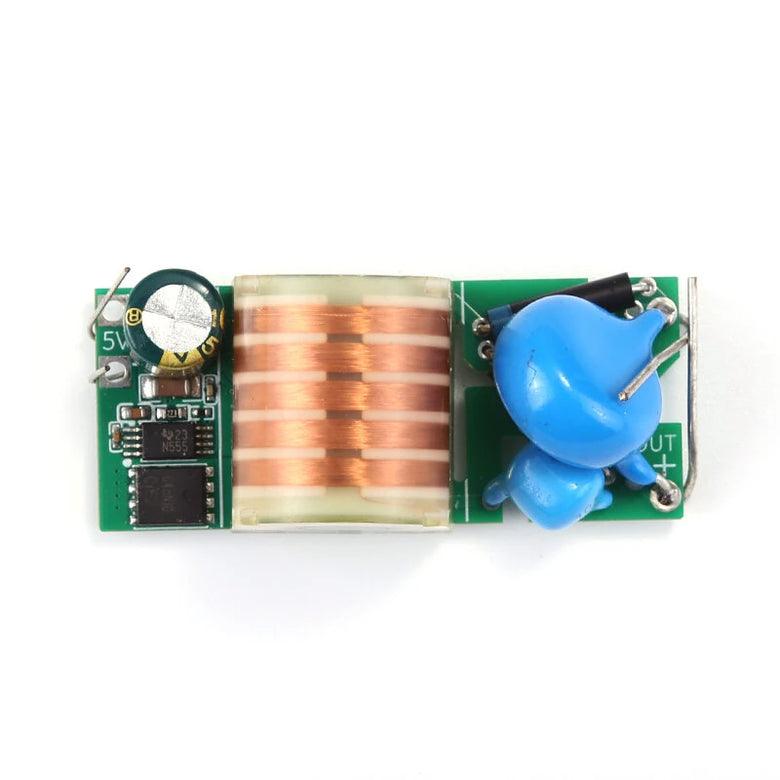

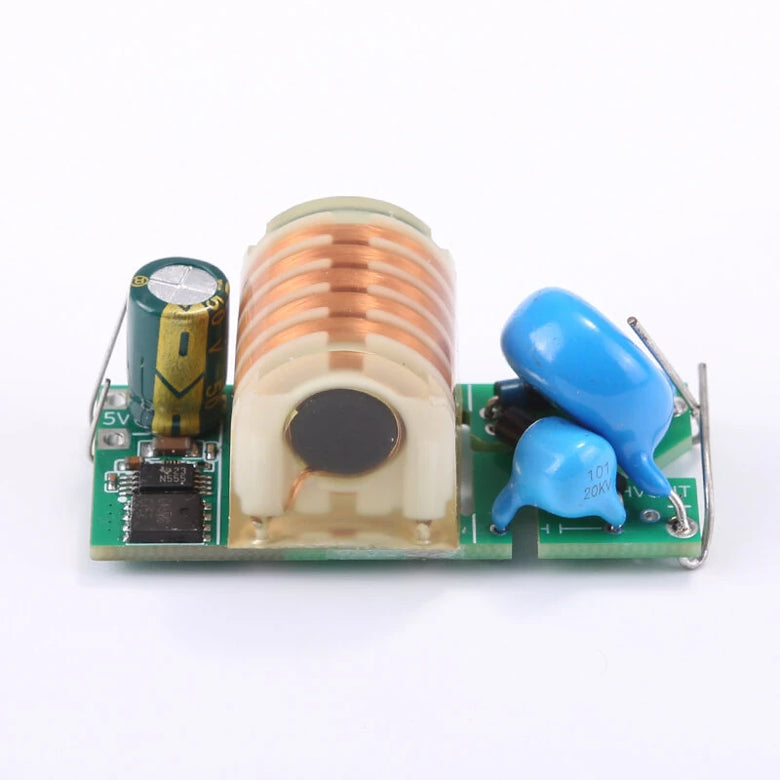

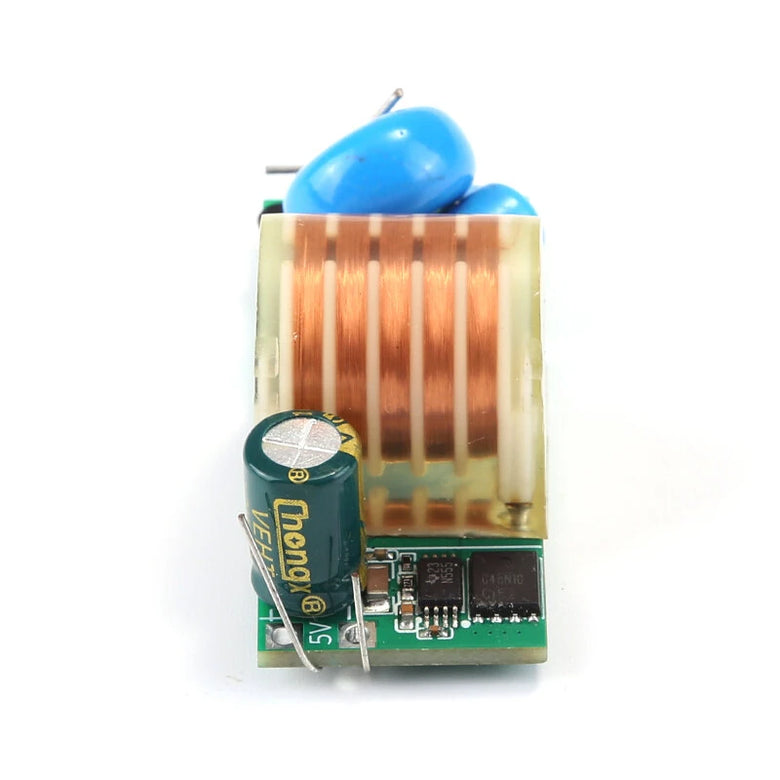

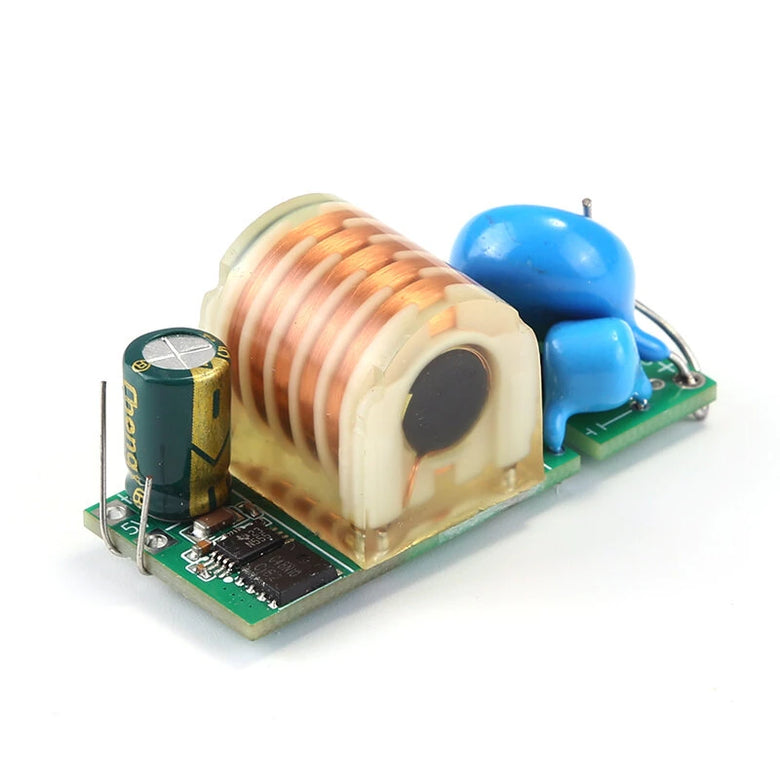

1 x High Voltage Boost Module
Precautions:
Input voltage exceeding 4.5V is strictly prohibited!
No unloaded operation or output short circuit!
Not waterproof design; potting protection is required!
