Specifications:

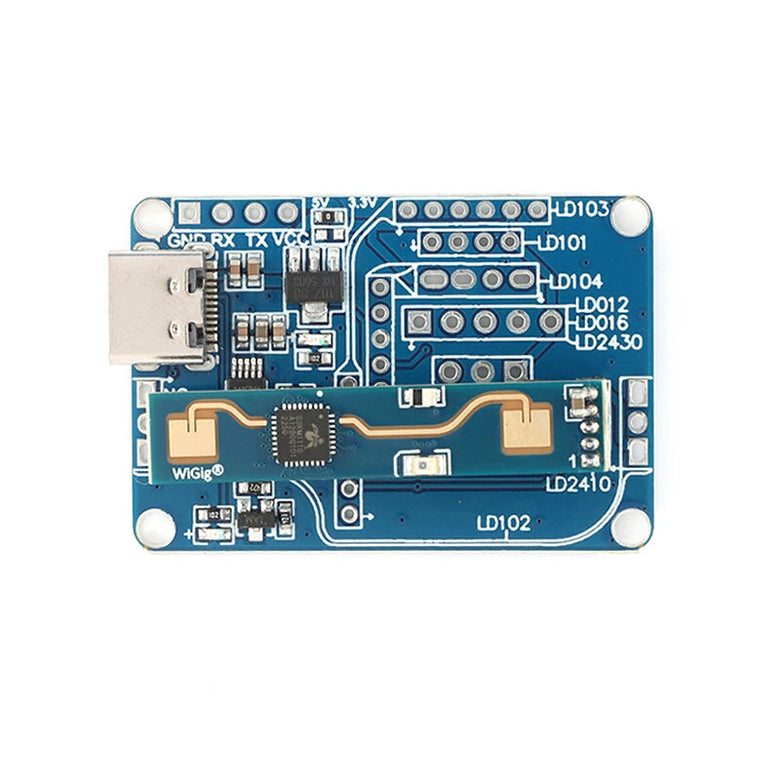

Model: HLK-LD2410B
Sensing Technology: Radar-based human presence detection
Installation: Plug-and-play, easy assembly
Sensing Range: Up to 5 meters
Detection Angle: +60 degrees coverage
Adjustable Sensitivity: Supports range partitioning and interference blocking
Configuration: bluetooth or serial interface for multi-level intelligent parameter adjustment
Visual Debugging and Configuration Tool
Size: Compact size of 42mm x 28mm
Installation Options: Supports various mounting options such as ceiling or wall
Frequency: 24GHz ISM band
Certification: Compliant with FCC and CE frequency spectrum regulations

Features:

1. Comprehensive Detection: The sensor module can sensitively detect and recognize moving, stationary, micro-movements, and various body positions such as sitting or lying down, providing versatility in human presence detection.
2. Environmental Adaptability: The sensing performance remains consistent regardless of temperature, brightness, humidity, or light fluctuations in the surroundings.
3. Hidden Installation: With excellent shell penetration, the module can work hidden inside enclosures without the need for surface openings, enhancing product aesthetics.
4. Flexible Configuration: The module allows for flexible and fine-grained customization of the sensing range and sensitivity for each distance gate, enabling personalized and precise configuration.
5. bluetooth Connectivity: With built-in bluetooth functionality, the module can be configured and adjusted directly through an app, eliminating the need for a serial interface.

Package Include:

1× Module Board
