Specifications:

>>>Manual: Click here to open<<<

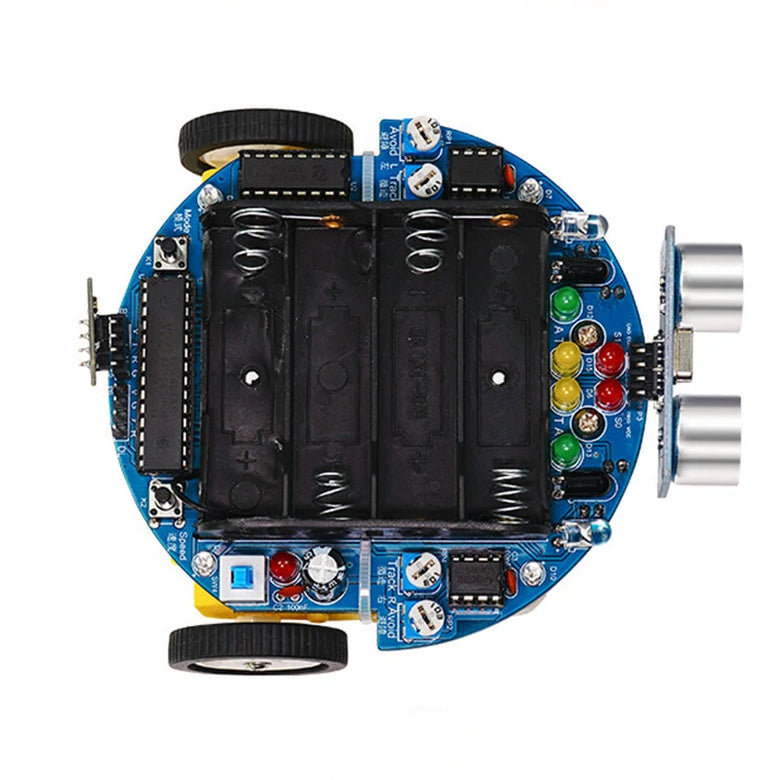

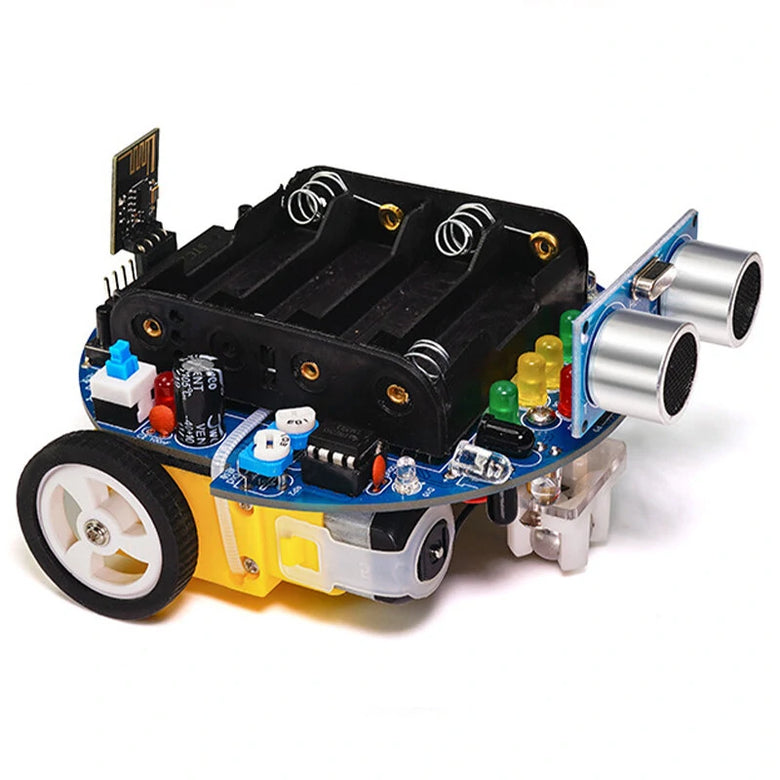

Kit Name: HU-063 Graphical Programming 51 Smart Car Kit
Working voltage: four AA batteries (6V) (Package not includes)
Maximum working current: under the condition of 6V voltage and no-load motor, it is about 230mA.
Static working current (motor does not rotate): about 30mA.
PCB size: 98mm*98mm

Features:
1. Control with mobile Phone APP and bluetooth.
2. Four modes can be switched by pressing the key.
3. Speed can be adjusted by pressing the key.
4. Multiple LEDs display the status of the car.
5. Learn programming with graphical programming software.

More details:

1. Mode key: Switch mode keys to infrared tracking (two red lights are on)- Bluetooth remote control (two red lights are flashing), ultrasonic obstacle avoidance (right red light is on), infrared obstacle avoidance-(left red light is on).
2. Speed button: 30% in the first gear-50% in the second gear -80% in the third gear-100% in the fourth gear.
3. Bluetooth module: Bluetooth remote control is realized, and the car is controlled by mobile phone core storm intelligent platform APP.

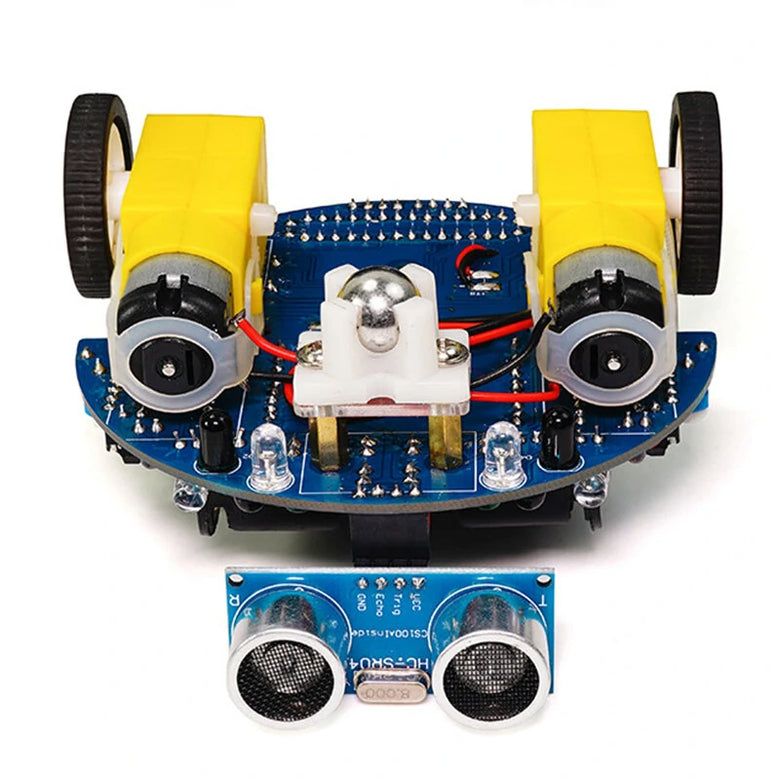

4. Ultrasonic obstacle avoidance module: ultrasonic wave detects whether there are obstacles in front, and automatically avoids obstacles when there are obstacles. The obstacle avoidance distance can be modified by graphical programming software.
5. Download interface: use our graphical programming software for nuclear storm to program, get started quickly, easily program the car and download the programmed content to the car.
6. Colorful light emitting diode: Show different states of the trolley. The two colorful LEDs in front of the car will flash.
  Two colorful light-emitting diodes will flash when the car retreats.
  Two colorful LEDs will flash before and after the car stops.

Package Include:

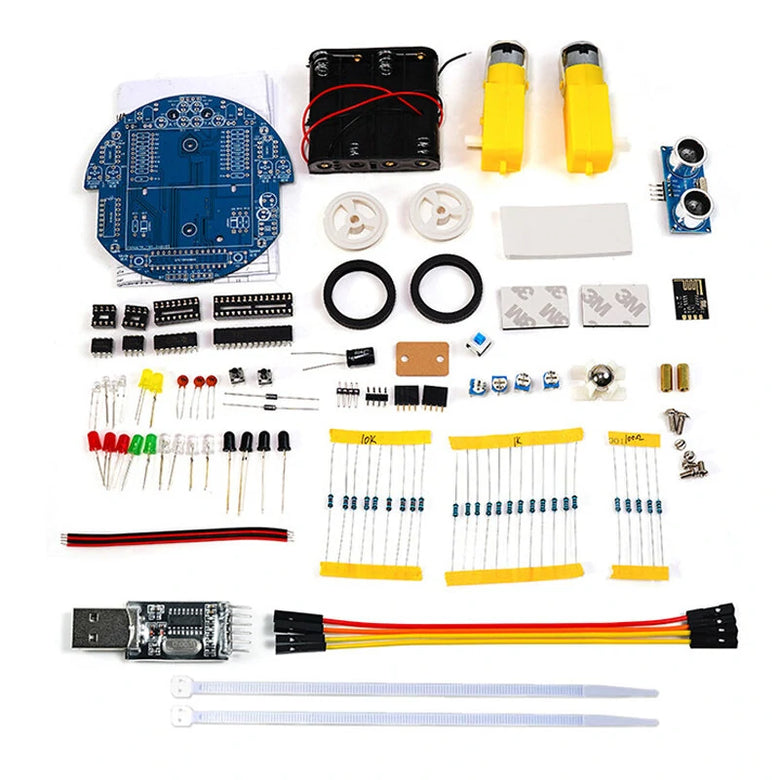

1x Full Parts Kit of Smart Car
