Software Expiration Problem:
Provide the ID number to the online customer service, and we would give it to the supplier that they would extend the account usage period(100years)
NOTICE:A string of numbers starting with 720
https://www.banggood.com/Contact-Us_hi111
Provide the ID number to the online customer service, and we would give it to the supplier that they would extend the account usage period(100years)
NOTICE:A string of numbers starting with 720
https://www.banggood.com/Contact-Us_hi111
Description:
GPS and Russian GLONASS dual-mode positioning
◆ Real-time tracking ◆against pseudo base-station&detect
◆ Vibration/Displacement/Low battery/Power off/over speed alert
◆ Main power cut off alert ◆ Geo-fence
◆ History Route ◆ Cut and resume Fuel Pump remotely ◆ AGPS locating

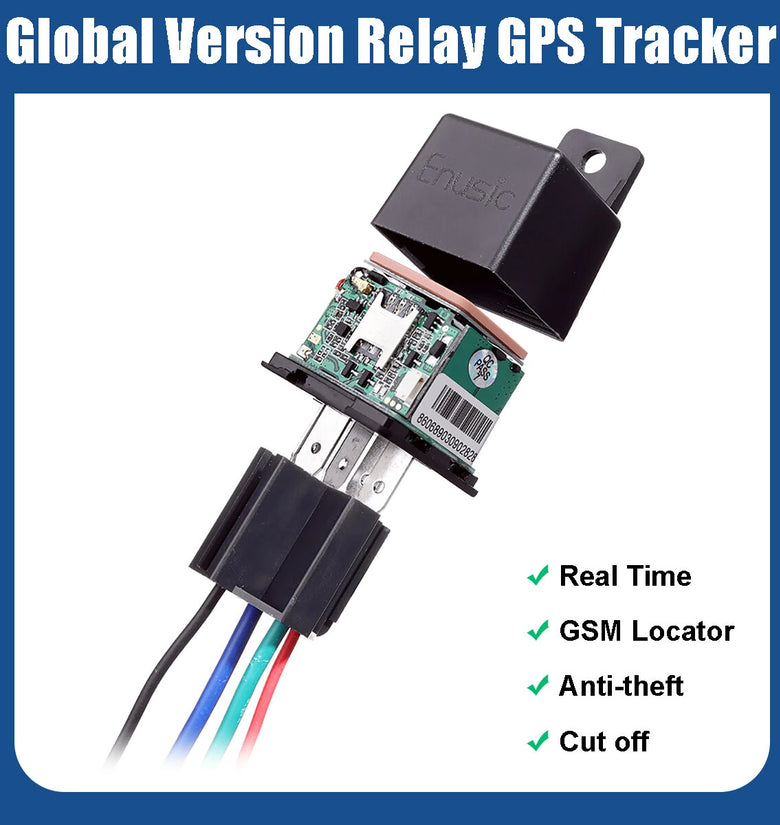

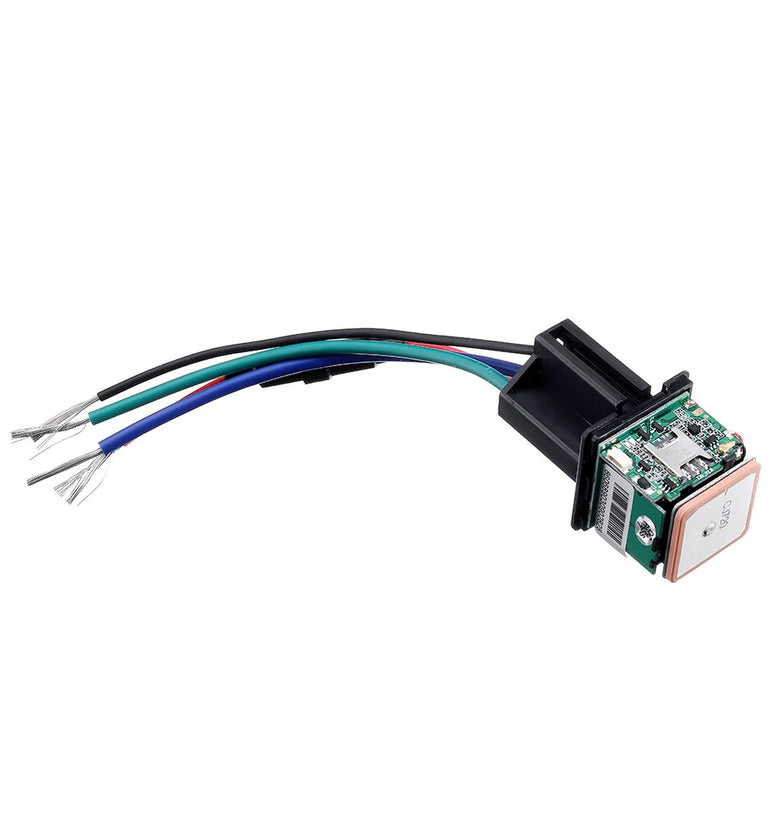

Functions and Product parameters (Relay GPS Tracker CJ720/ Off petrol and electricity)
Specifciation:
| Terminal size |
31x 31x 57mm |
| System Language |
Chinese/English |
| Net Weight |
50g |
| Backup Battery |
3.7V 100mAh |
| Network |
GSM/GPRS, |
| Network Band |
850/900/1800/1900Mhz |
| Support |
4-frequency GSM 850/900/1800/1900 MHz which can work worldwide |
| GPS module |
MTK2503 |
| GPS sensitivity |
-159dBm |
| GPS position accuracy |
10m |
| First positioning time |
Cold start 45-120 seconds |
| Warm start |
35 seconds |
| Hot start |
1 second |
| Operating voltage |
10-50V input |
| Oil-cutting function |
Voltage is 5-15V, Current <10A |
| Battery |
Built-in lithium battery 3.7V 110mAh |
| Storage temperature |
-40°C to +85°C |
| Operating temperature |
-20°C to +55°C |
| Humidity |
5% - 95% Non-solidified |
| Power Consumption |
The power consumption is about 40 mA at work, and 1 mA at sleep. The instantaneous current of the fuel and electricity part is up to 45A. |
Special Note:
FUEL Pump line search
Need professionals.
Or auto mechanic repair shop to help find.

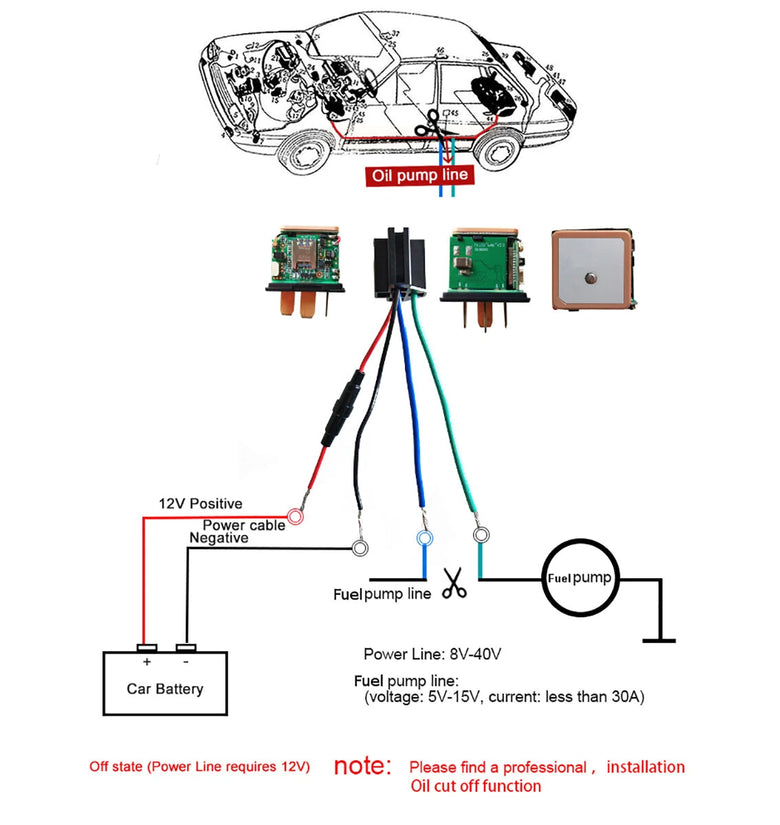

Power supply, Fuel Pump cut control line
(1) The standard power supply of this equipment is 10V-50VDC, the red wire is the positive pole of the power supply,
and the yellow (black) is the negative pole of the power supply;
when installing the negative pole of the power supply, please select the grounding or grounding separately,
and do not share with other ground lines;
and the yellow (black) is the negative pole of the power supply;
when installing the negative pole of the power supply, please select the grounding or grounding separately,
and do not share with other ground lines;

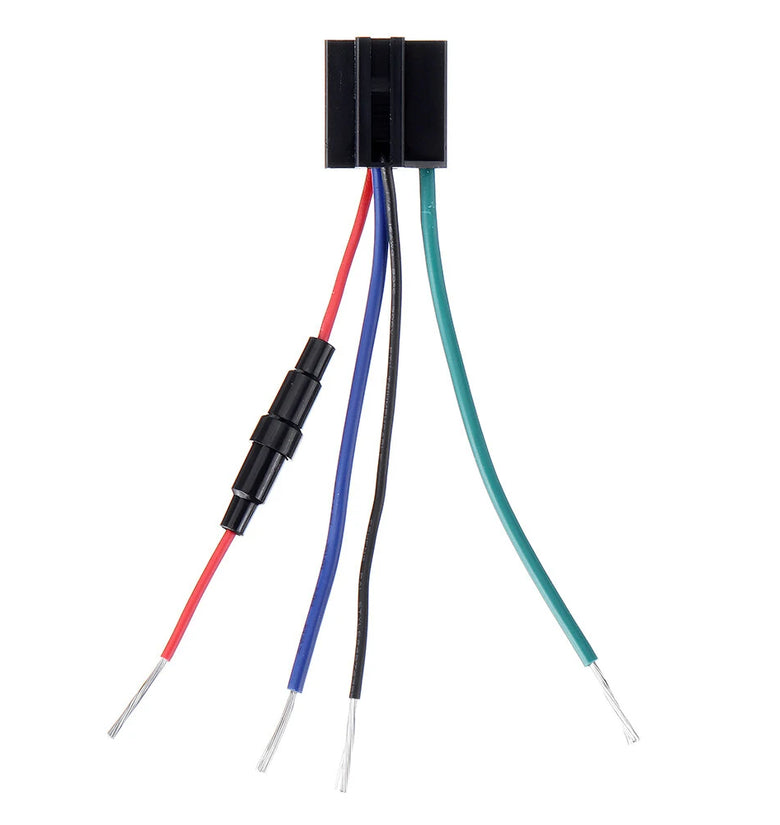

(2) The Fuel Pump cutoff control line (green/blue line) is connected to the Fuel Pump line.
Send Command
How to use:

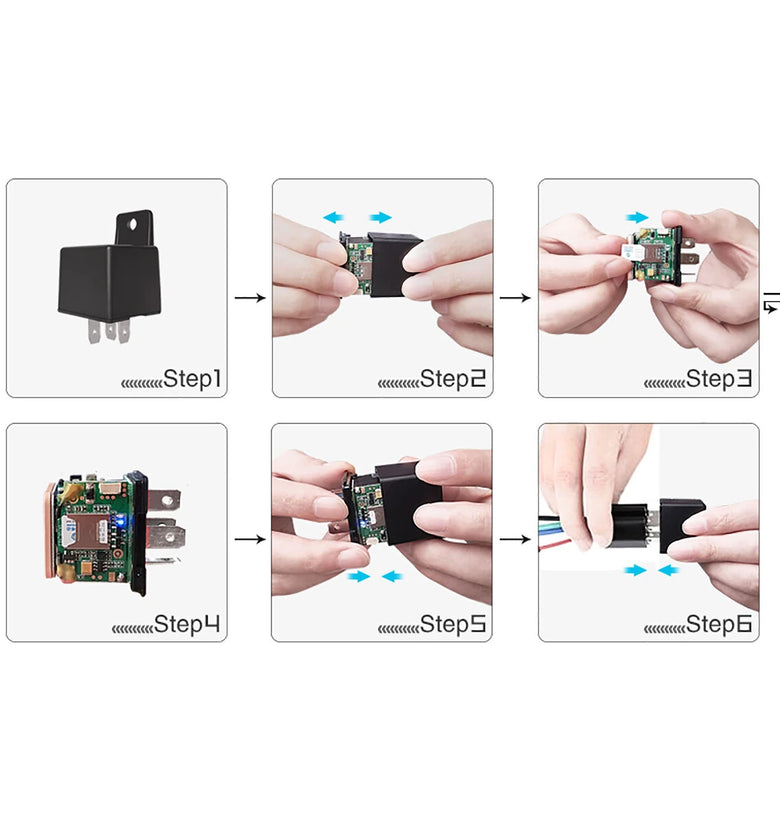

1. opend the cover,Insert a NANO SIM card support GSM/GPRS network into the slot and make sure the chip side is up
(blue light flashes, green light flashes,)
(blue light flashes, green light flashes,)
2.Set APN: APN123456 CMNET
(please use your local APN instead of CMNET,if you do not know the APN content,you should contact your SIM card supplier)
(please use your local APN instead of CMNET,if you do not know the APN content,you should contact your SIM card supplier)
3. Set admin number by sending a SMS command to the SIM card inside device
For example: admin123456+86186******(+86186*****should be youe phone number)
4.Connect cable follow the picture,(Fuel Pump cut test wiring video: https://www.youtube.com/watch?v=FiUN5nbAVMA)
User Manual:
http://myosuploads3.banggood.com/products/20190814/20190814025004SKUD05342.doc
Use Precautions:
1. Open the device case. (Some countries need to use the GPS device to post a 15-digit IMEI number to register the GSM service.
Turkey needs to submit the IMEI number when submitting the order, we will modify it for you)
2. Insert the SIM card (SIM card needs to be compatible with 2G network band: 850/900/1800/1900Mhz,
and open SMS function, Internet traffic fee.)
3. Link 12V power supply: (GPS signal: blue light flashes, GSM signal: green light flashes)
4. Set the APN code: Set APN: APN123456 CMNET (please use your local APN instead of CMNET, if you do not know the APN content,
you should contact your SIM card supplier) The setting in the video is you for the Chilean country.
5. GPS device parameter query SMS command: (s42, 1234).Check the IP address and APN settings of the GPS device.
6. GPS device status query command: status Main view: GPRS signal, GSM signal, GPS signal, main power link.
7. Platform IP address: adminip123456 113.98.254.179:7700
8. Log in to the website or APP to check the status of the GPS device online.
Package Included:
| 1 X |
Relay GPS Tracker |
| 1 X |
Manual |
