Specifications:
Frequency Range: 1 Hz–500 kHz
Frequency Resolution: 1 Hz (1–500 kHz adjustable range)
Frequency Accuracy:
1 kHz–10 kHz: ±0.2%
10 kHz–50 kHz: ±0.4%
50 kHz–500 kHz: ±2%
Duty Cycle Range: 0%–100% (0.1% step)
Phase Range: 0°–359° (1° step)
Input Voltage: DC 5–25 V
Output Voltage: DC 5–24 V
Rise Time: 10 ns

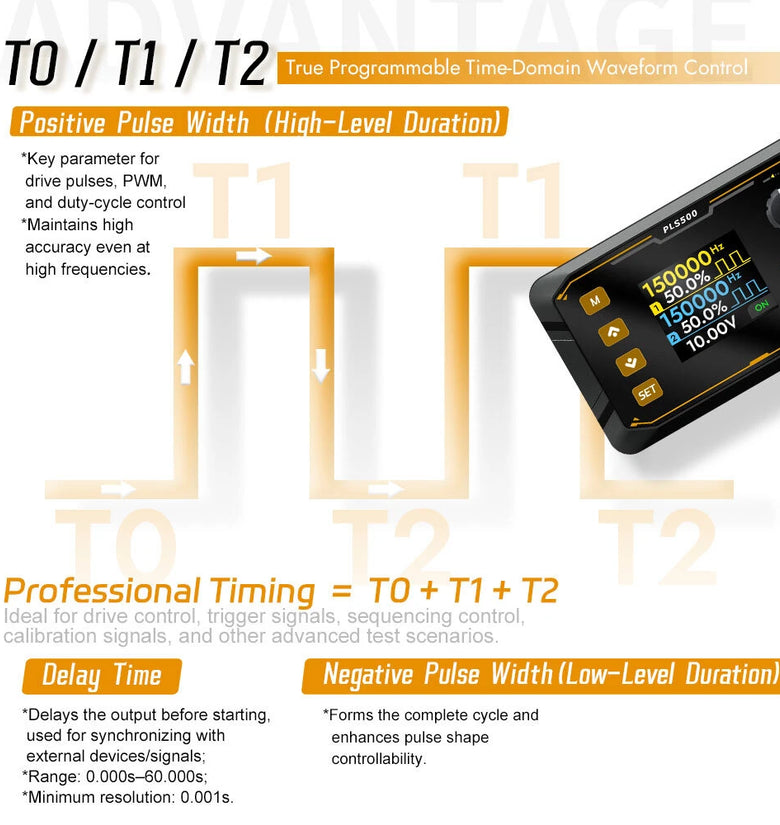

Output Delay Time: 0.000 s–60.000 s (minimum step: 0.001 s)
Positive Pulse Width: 0.000 s–60.000 s (minimum step: 0.001 s)
Negative Pulse Width: 0.000 s–60.000 s (minimum step: 0.001 s)
Pulse Count: 1–60,000 or ∞ (continuous)

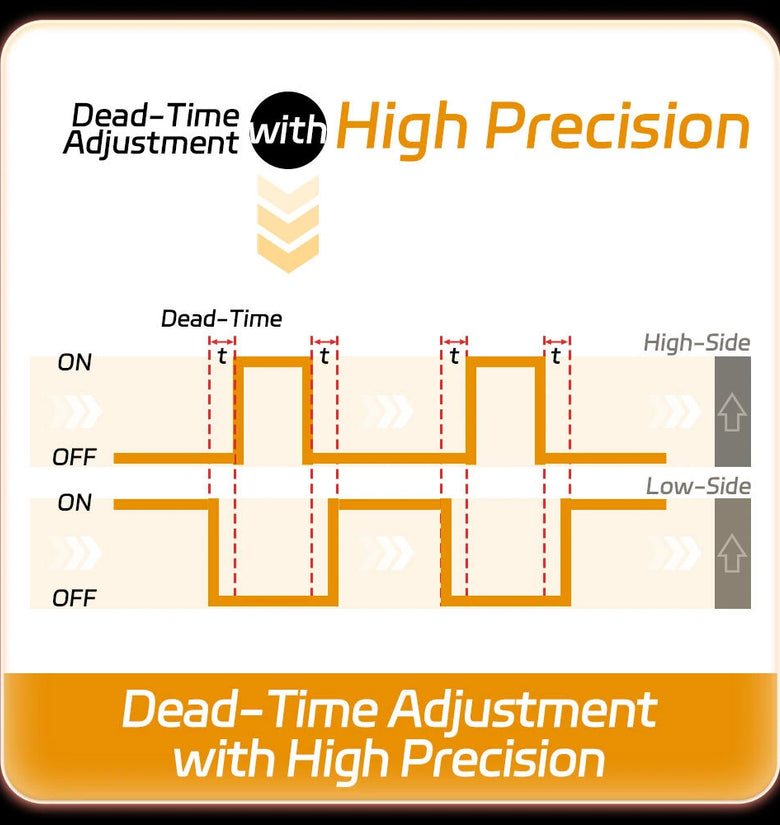

Dead Time: 0–91 ns (7 ns step); 0.1–20.0 µs (0.1 µs step)

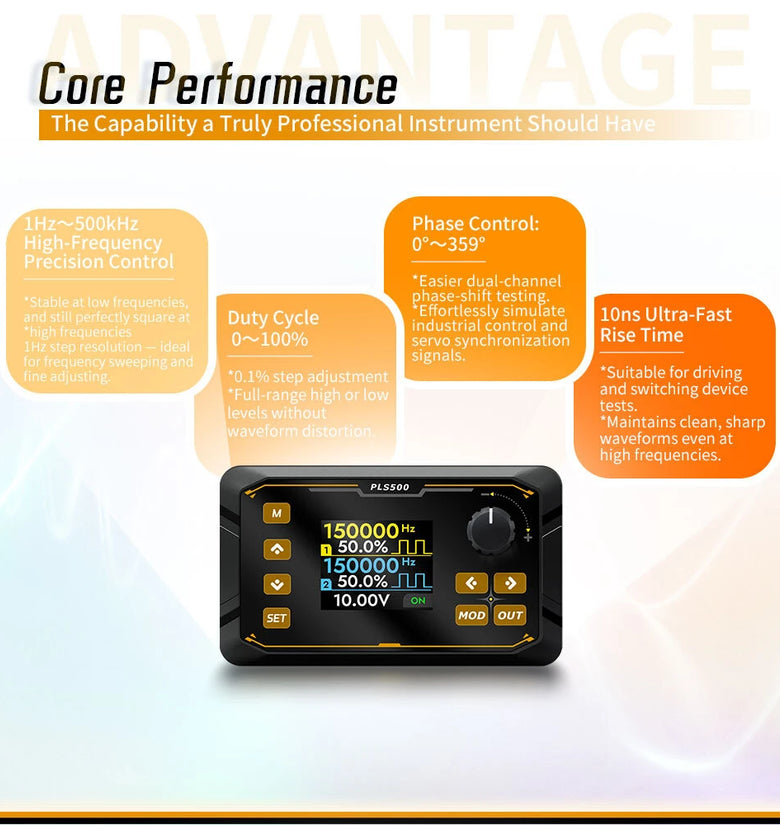

Features:
1.Wide Frequency Range: Offers precision pulse signal generation from 1 Hz to 500 kHz for versatile applications.
2.Dual-Channel Functionality: Supports independent or synchronized dual-channel operation to meet diverse testing needs.
3.Flexible Adjustments: Enables precise control over frequency, duty cycle, phase, and dead time.
4.High Output Accuracy: Delivers pulse signals with accuracy of up to ±0.2% within specific ranges.
5.Compact Design: Optimized for portable use with an intuitive user interface and easy-to-read display.

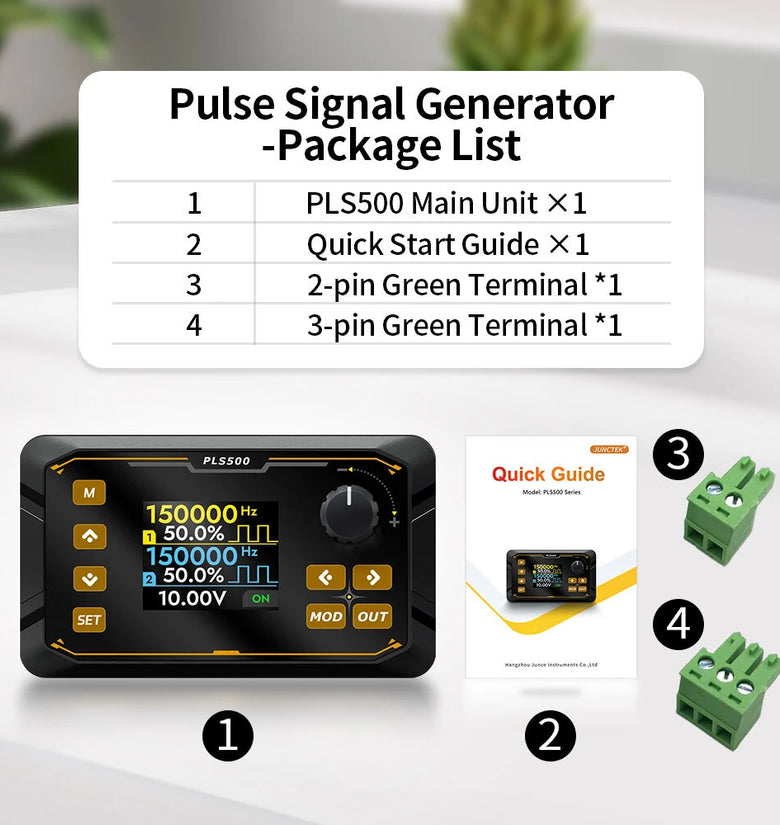

Package Included:
1 × PLS500 Main Unit
1 × Quick Start Guide
1 × 2-Pin Green Terminal
1 × 3-Pin Green Terminal
