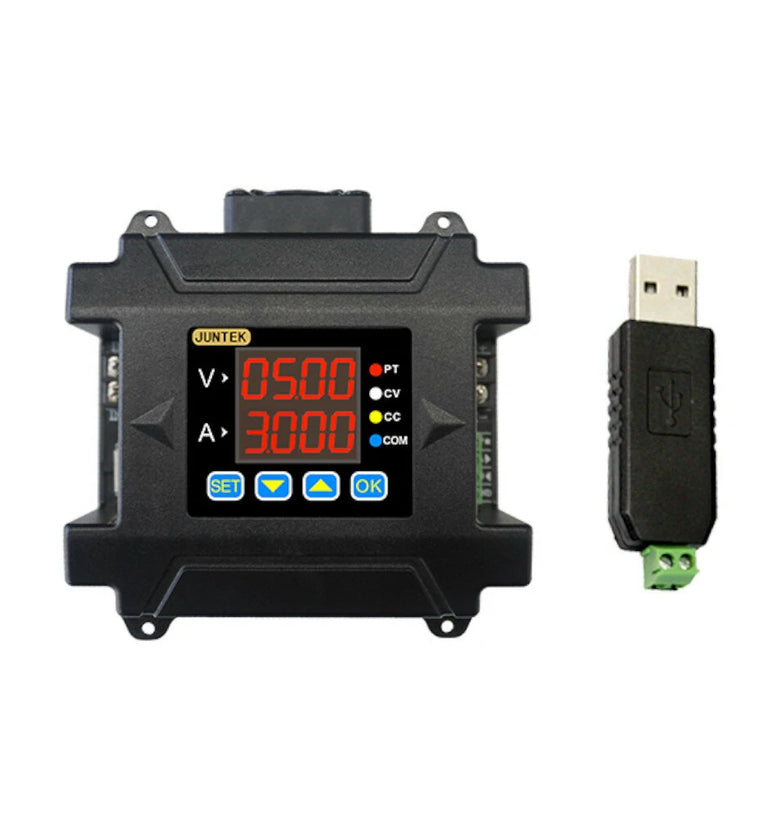

Introduction:DPM8600 series programmable DC power supply can digitally display the output voltage,current,temperature and other parameters.They have two different output status of constant voltage and constant current. They are especially suitable for use in factory equipment power supply, product aging and debugging,solar charging,LED lamp bead driving and battery charging and discharging.Feature:Based on the switching power supply technology of BUCK structureCan automatically stop output when over-temperatureAutomatically save parameters when power is offWith quick discharge function, the voltage response speed is adjusted very fastCommunicationprotocol is divided into a simple communication protocol and a MODBUS-RTU communication protocolProvide PC software and communication protocol to support secondary programming controlStandard “USB to TTL” supports TTL serial communication,it is convenient for everyone to use our PC software to control the power supply
| Model | DPM-8605 | DPM-8608 | DPM-8616 | DPM-8624 | DPM-8650 |
| DPM8605-485 | DPM8608-485 | DPM8616-485 | DPM8624-485 | DPM8650-485 | |
| Input voltage | 10-75V | ||||
| Output voltage | 0-60V | ||||
| Output Current | 0-5A | 0-8A | 0-16A | 0-24A | 0-50A |
| Output power | 0-300W | 0-480W | 0-960W | 0-1440W | 0-3000W |
| Voltage resolution | 10mA | ||||
| Current resolution | 1mA | 10mA | |||
| Output ripple | ＜50mvPP | ||||
| Efficiency | 92% | ||||
| Display accuracy | 10mV, 1mA | 10mV, 10mA | |||
| Output tolerance | Voltage:±2‰＋1digit, Current:±5‰＋2digit | ||||
| Response time | ＜50ms | ||||
| Product Dimension | 120*131*55mm | 150*120*59mm | 180*150*77mm | ||
| Operating Frequency | 150KHZ | ||||
| Applied ambient temperature | -10℃~+45℃ | ||||
| Control Method | Digital Control + LED Display | ||||
| Package Weight | 390g | 625g | 2200g | ||
| Package Dimensions | 131*112*55mm | 150*120*59mm | 255*210*95mm | ||
Package includes:
1 x Machine
1 x Cable
