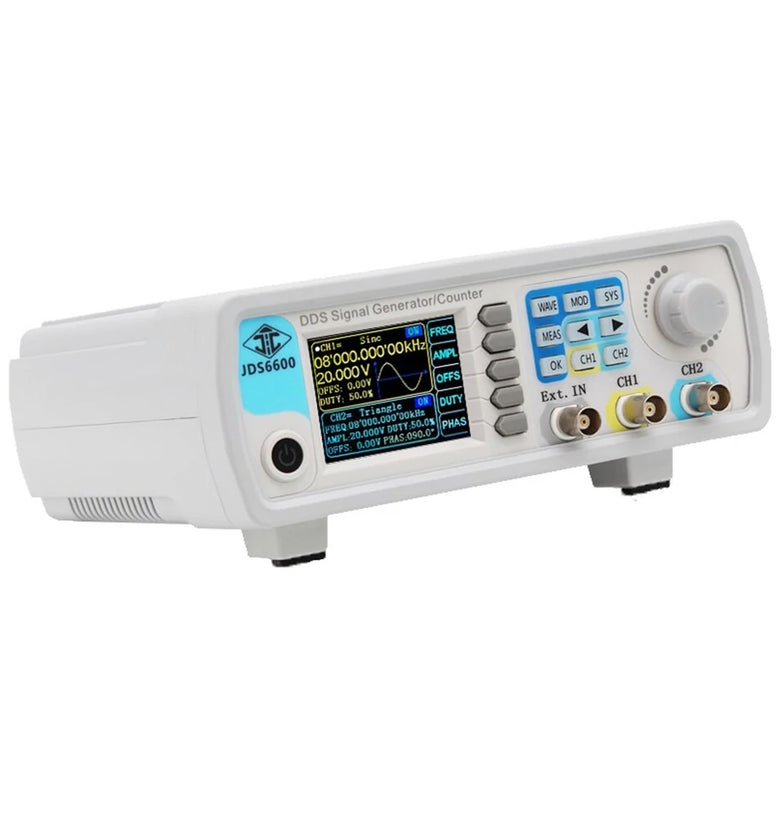

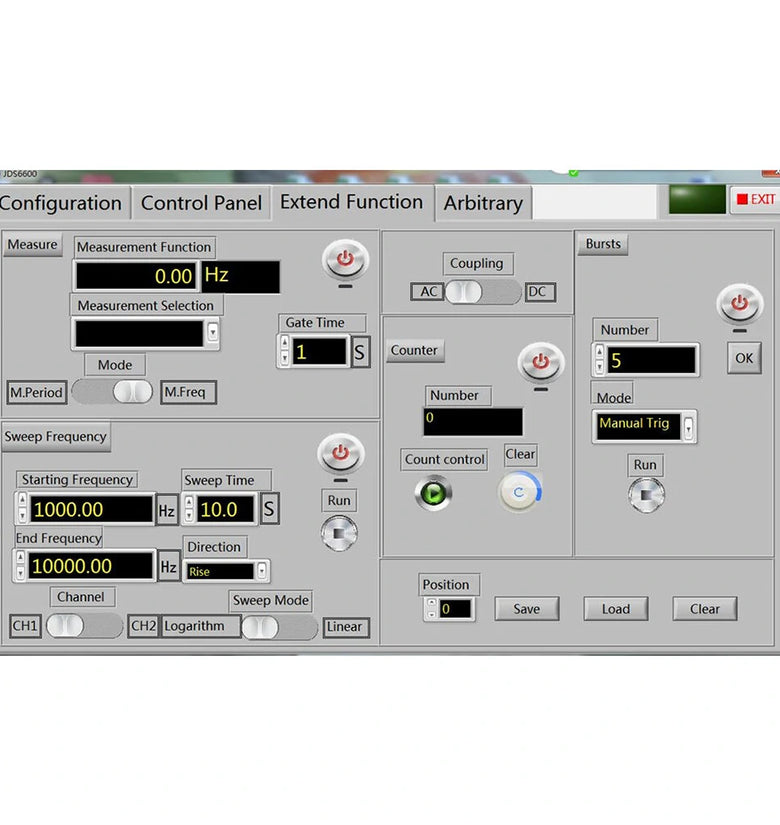

JDS6600 series DDS signal generator can generate sine wave, square waves, triangle wave, pulse wave, and arbitrary wave etc. The frequency will be up to 40MHz. And it has duty-cycle correction, amplitude modulation function and frequency sweep function, etc. It can show output signal, amplitude and frequency in the same time. This series has amplitude frequency characteristics, and the appearance is very delicate and beautiful. It can be applied in factories, schools, research institutes and laboratories. There are 5 models, JDS6600-60M, JDS6600-50M, JDS6600-40M, JDS6600-30M and JDS6600-15M. The main difference is the max output frequency of sin wave.
Manual is here!
Protocol: Click here!
Frequency Characteristics | ||||||||||
|
JDS6600-15M |
JDS6600-30M |
JDS6600-40M |
JDS6600-50M |
JDS6600-60M |
|||||
Sine frequency range |
0~15MHz |
0~30MHz |
0~40MHz |
0~50MHz |
0~60MHz |
|||||
Square frequency range |
0~15MHz |
0~15MHz |
0~15MHz |
0~15MHz |
0~15MHz |
|||||
Triangle frequency range | ||||||||||

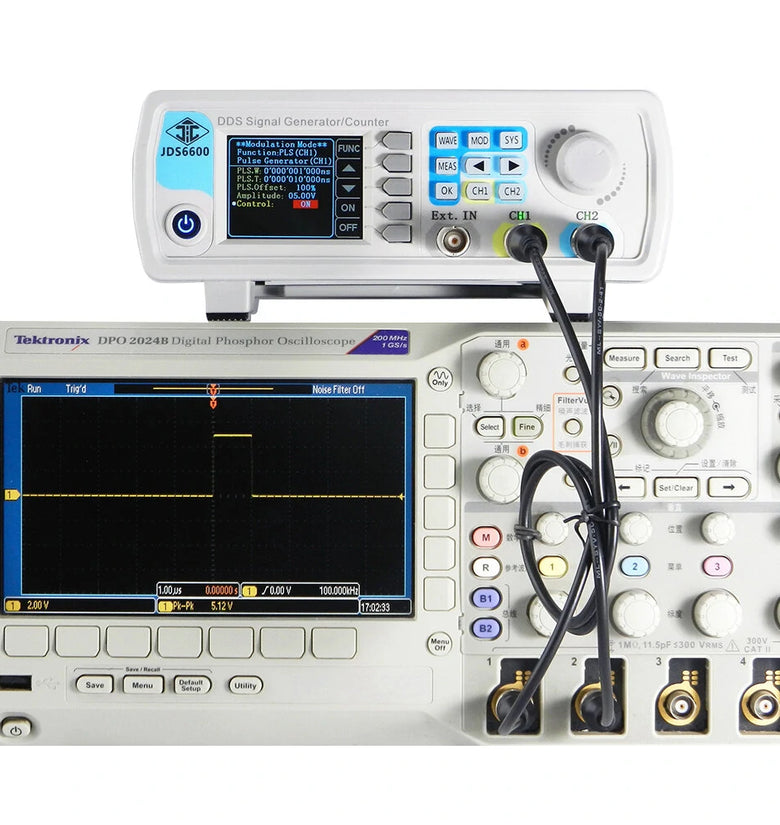

Pulse frequency range |
0~6MHz |
0~6MHz |
0~6MHz |
0~6MHz |
0~6MHz |

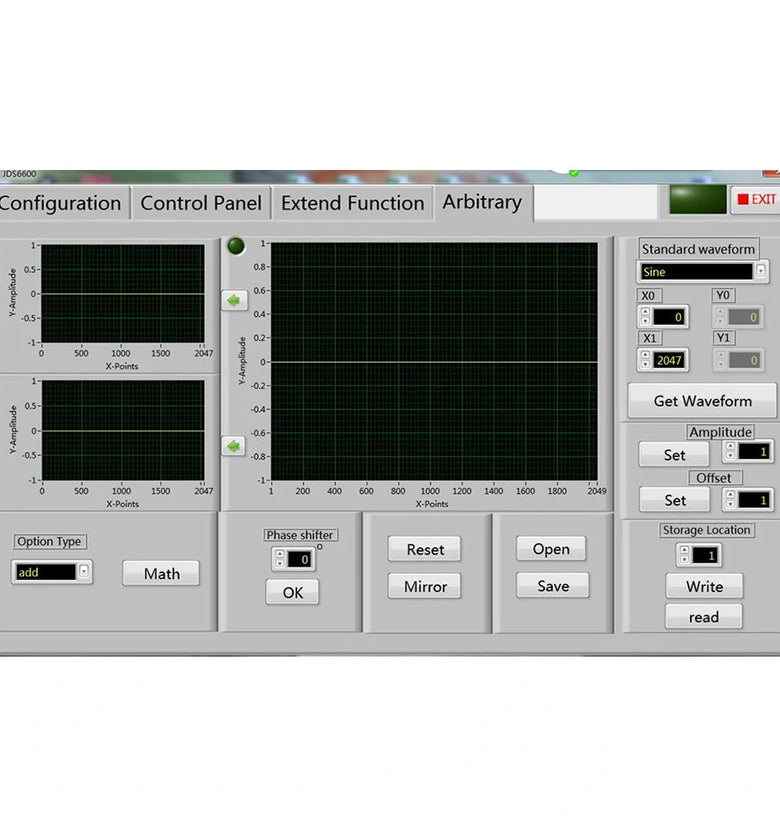

|||||
CMOS/TTL digital frequency range | ||||||||||
Arbitrary wave frequency range | ||||||||||
Square rise time |
≤30nS |
≤25nS |
≤20nS |
≤20nS |
≤20nS |
|||||
Mininum Frequency resolution |
0.01µHz |
|||||||||
Frequency accuracy |
±20ppm |
|||||||||
Frequency stability |
±1ppm/3h |
|||||||||
Waveform Characteristics | ||||||||||
Waveform |
Sine, Square, Triangle, Pulse (duty-cycle correction),Partia Sine, CMOS, DC level, Half-wave, Full-Wave, Pos-Ladder, Ladder, Noise, Exponential Rise, Exponential Fall, Tone, Sinc Pulse, Lorentz Pulse, and 60 kinds user defined waveform. |
|||||||||
Waveform length |
2048 points |
|||||||||
Waveform sampling rate |
JDS6600-15M |
JDS6600-30M |
JDS6600-40M |
JDS6600-50M |
JDS6600-60M |
|||||
200MSa/s |
266MSa/s |
|||||||||
Waveform vertical resolution |
12 bits |
|||||||||
Sine |
Harmonic suppression |
≥45dBc(<1MHz); ≥40dBc(1MHz~20MHz) |
||||||||
Total harmonic distortion |
<0.8%(20Hz~20kHz,0dBm) |
|||||||||
Square and Pulse |
Overshoot (Square) |
≤5% |
||||||||
Duty-cycle range |
0.1%~99.9% |
|||||||||
Ramp wave |
Linearity |
≥98%(0.01Hz~10kHz) |
||||||||
Output Characteristics | ||||||||||
Amplitude range |
JDS6600-15M |
JDS6600-30M |
JDS6600-40M |
JDS6600-50M |
JDS6600-60M |
|||||
|
≤10MHz:2mVpp~20Vpp ≤15MHZ:2mVpp~10Vpp |
≤10MHz:2mVpp~20Vpp ≤30MHZ:2mVpp~10Vpp |
≤10MHz:2mVpp~20Vpp ≤30MHZ:2mVpp~10Vpp ≤60MHZ:2mVpp~5Vpp |
||||||||
Amplitude resolution |
1mV |
|||||||||
Amplitude stability |
±0.5%/5 h |
|||||||||
Amplitude flatness |
±5%(<10MHz); ±10%(>10MHz) |
|||||||||
Waveform Output | ||||||||||
Output impedance |
50Ω±10% |
|||||||||
Protection |
All the signal output termianl can be shorted within 60s |
|||||||||
|
DC counteract | ||||||||||
counteract adjusting range |
Output Amplitude >2V |
0.2V |
0 |
|||||||
-9.99V~9.99V |
-2.5V~2.5V |
-0.25V~0.25V |
||||||||
counteract resolution |
0.01 V |
|||||||||
Phase characteristics | ||||||||||
Phase adjusting range |
0~359.9° |
|||||||||
Phase resolution |
0.1° |
|||||||||

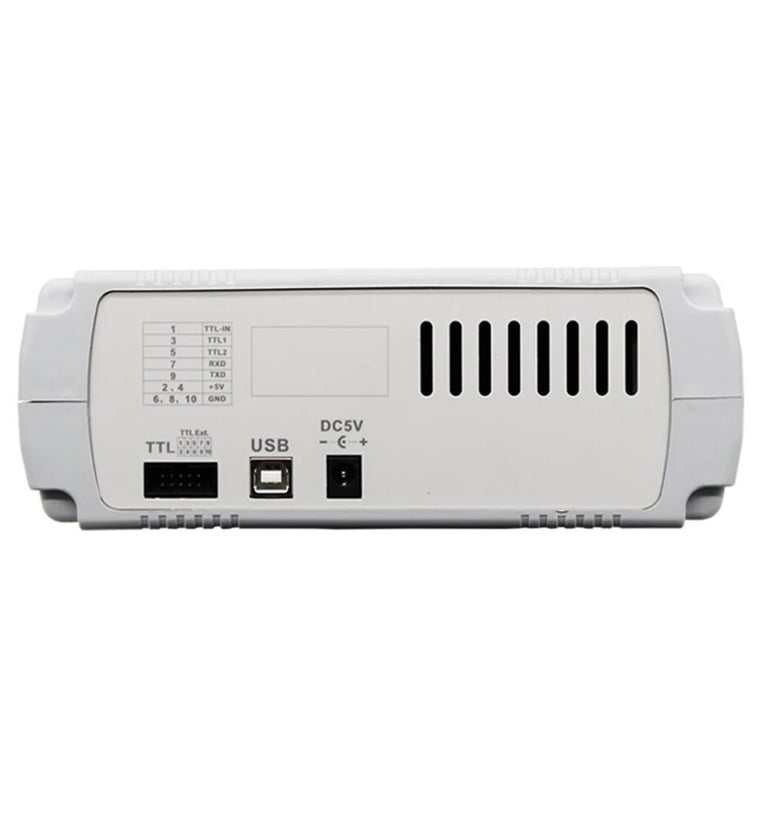

TTL/COMS Output | ||||||||||
Low level |
<0.3V |
|||||||||
High level |
1V~10V |
|||||||||
Level rise/fall time |
≤20ns |
|||||||||
External Measurement Function | ||||||||||
Frequency meter function |
Frequency measurement range |
|||||||||
