Specification:

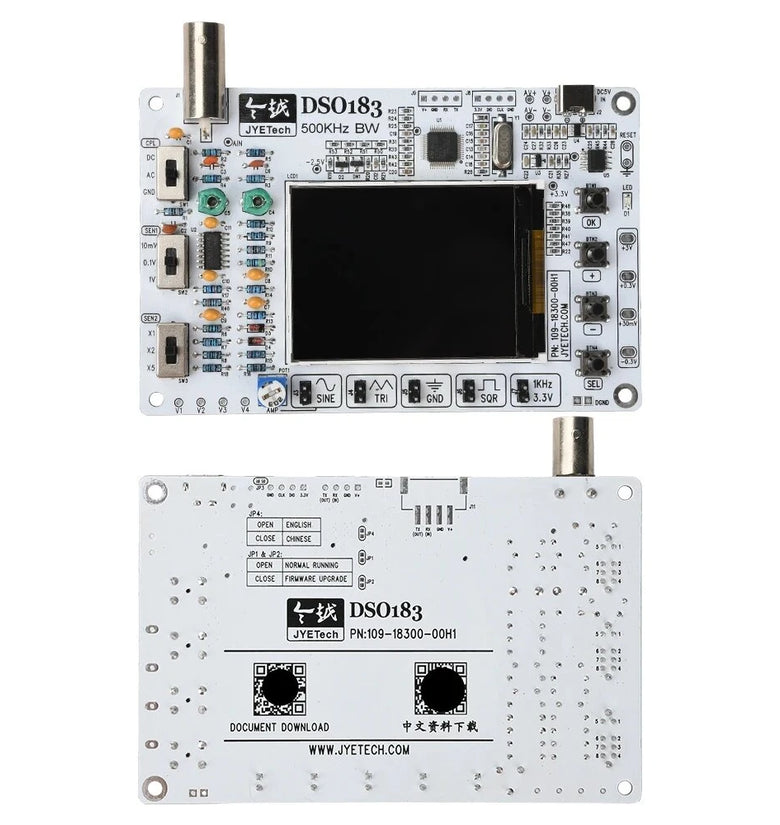

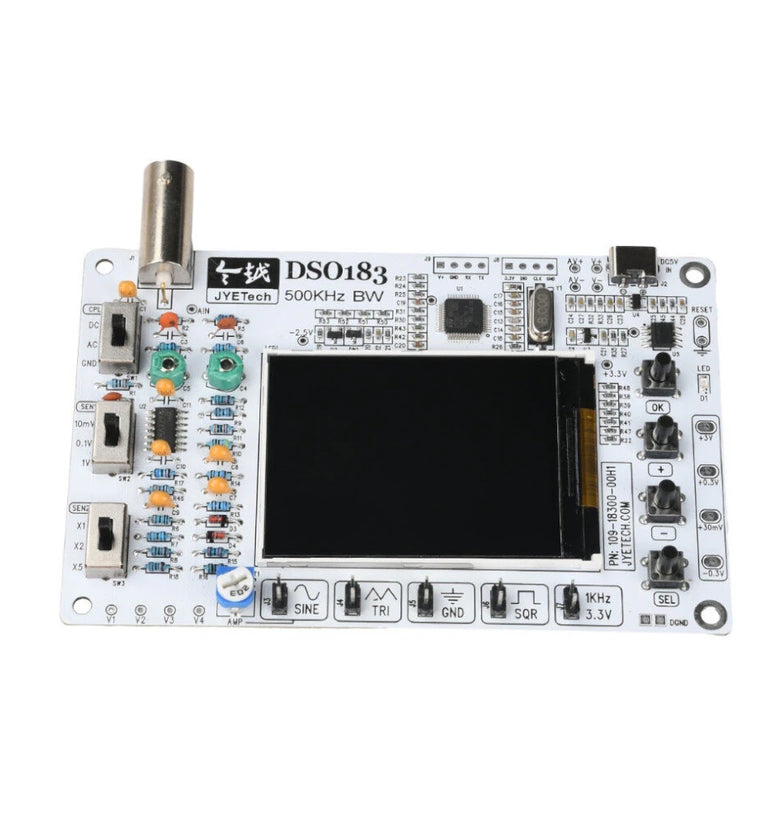

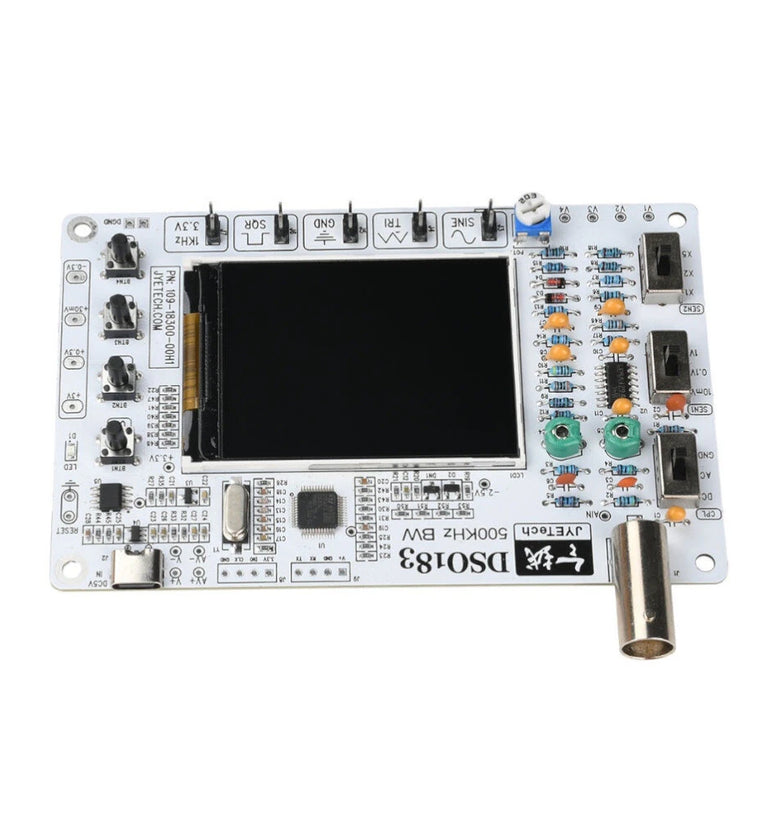

Model: DSO183
Bandwidth: 500KHz
ADC Precision: 12Bit
Real-time Sampling Rate: 1.5Msps
Waveform Memory Depth: 1024 points
Vertical Sensitivity Range: 10mV/div – 5V/div
Input Impedance: 1MΩ
Maximum Input Voltage: 50Vpk
Coupling Modes: DC, AC, GND
Horizontal Base Range: 1us/div – 500s/div
Trigger Modes: Auto, Normal, Single
Trigger Edge: 1us/div – 500s/div
Waveform Retention Function: Yes
1KHz/3.3V Test Signal: Yes
Square Waves Signal Generation: Yes
Sine Wave Signal Generation: Yes
Waveform Storage/Output Function: Yes

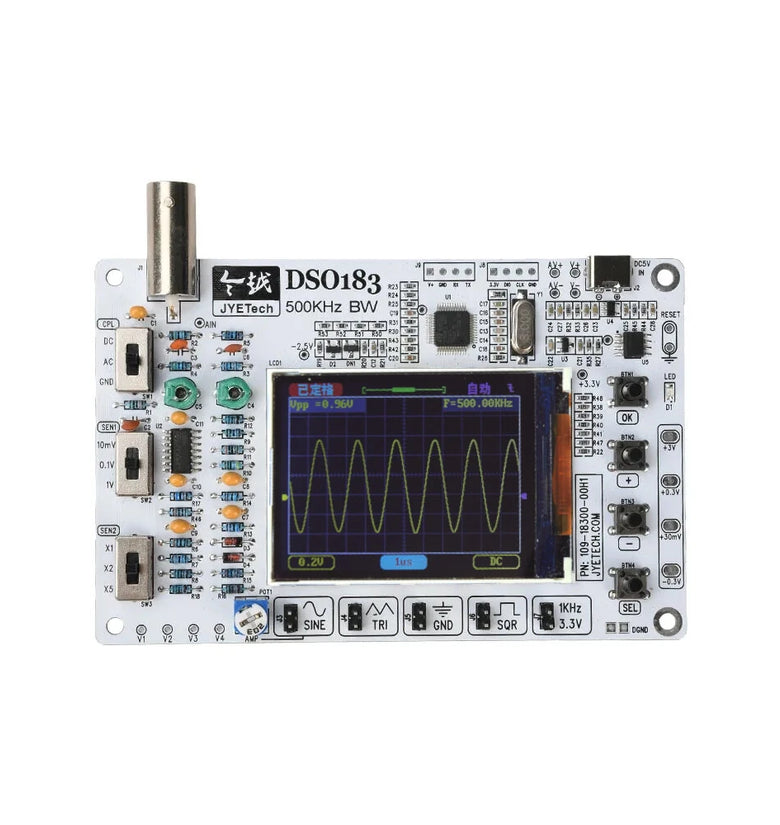

Waveform Parameter Digital Display: Yes, supports display of maximum value, minimum value, peak value, average value, RMS value, frequency, period, and duty cycle
Waveform Retention/Output Function: Yes
Power Supply: DC 5V, USB Type-C interface input
Power Consumption: <100mA

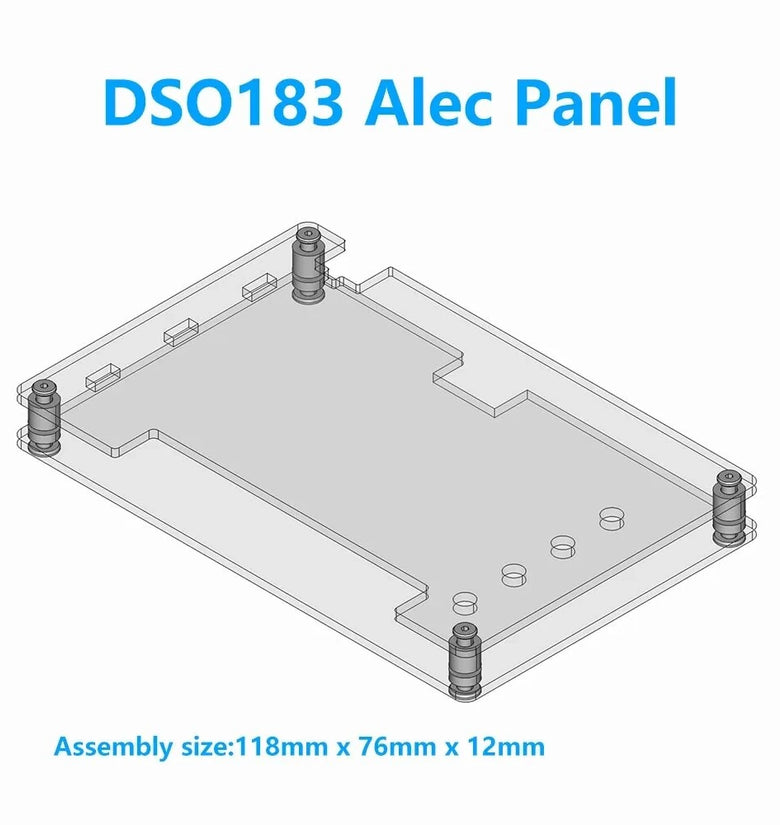

Dimensions: 118 x 76 x 12 mm (excluding front panel)
Weight: 45g (excluding front panel and probe cable)
Display Language: English/Chinese optional

Features:
1. Improved Bandwidth: Enhanced from 200 kHz (previous model DSO138) to 500 kHz for reliable signal capturing.
2. Built-in Signal Generator: Includes functionality to generate sine, triangle, and square waves signals for testing purposes.
3. LCD Display: Supports both English and Chinese menus for enhanced usability across different regions.
4. Power Convenience: Operates via USB Type-C input, eliminating the need for additional adapters.

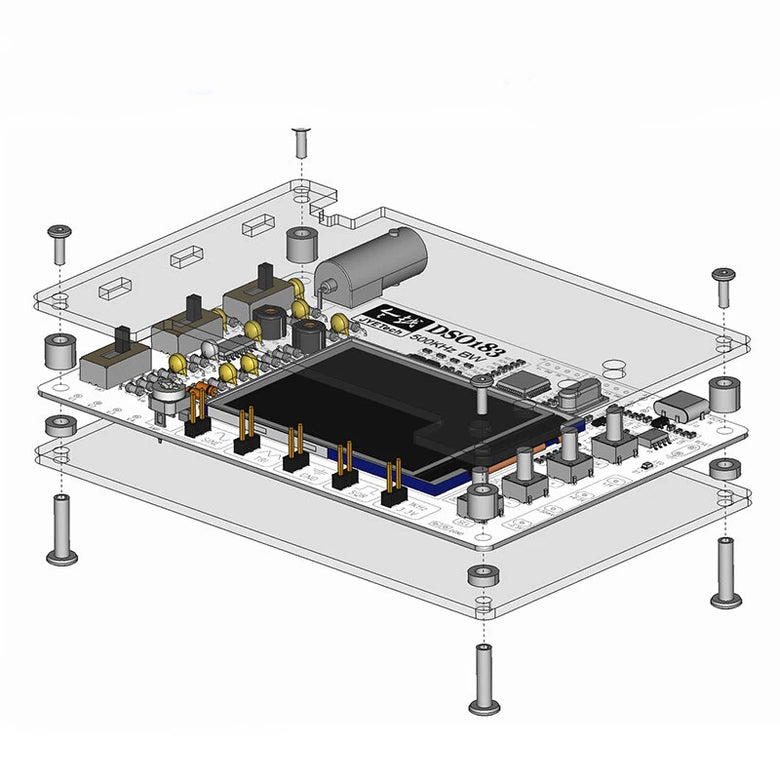

5. Compact and Stable Design: Single-board structure simplifies assembly and reduces the risk of connection issues.

Package Includes:
1x DSO183 Digital Oscilloscope DIY Kit
