Product Overview:

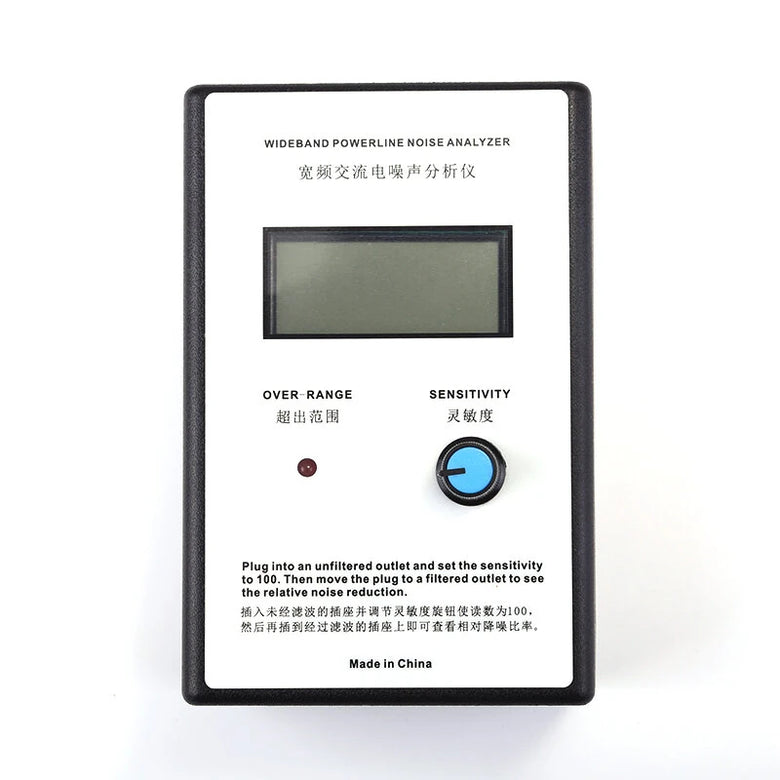

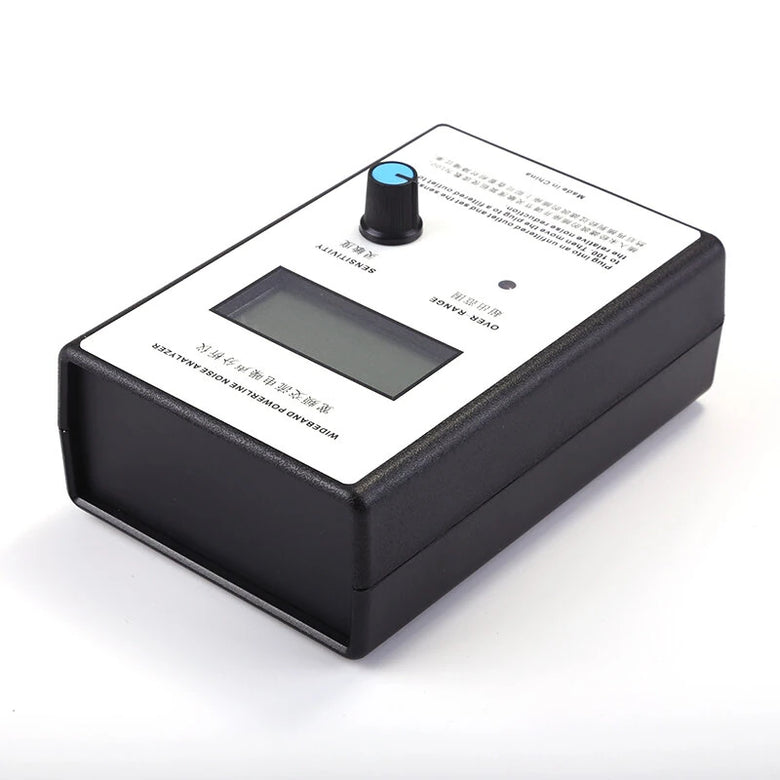

This LCD digital display wide-range AC power supply noise tester is a professional power quality analysis tool, primarily used to check high-frequency noise and ripple interference in mains power (220V or 110V). The instrument uses a 3.5-digit black and white LCD display to clearly and intuitively display measurement results, and has a built-in speaker to play back the checked noise in real time, helping users quickly diagnose power problems. It is widely used in power systems, industrial equipment, laboratories, and home power environments for power quality monitoring.
Features:
1. Wide-Range Measurement Range: Supports noise checked within the 300kHz-700kHz frequency range, accurately capturing high-frequency interference signals in mains power.
2. Dual Voltage Compatibility: Depending on the version, 220Vac~240Vac or 110Vac~120Vac inputs are available to adapt to different regional power standards.

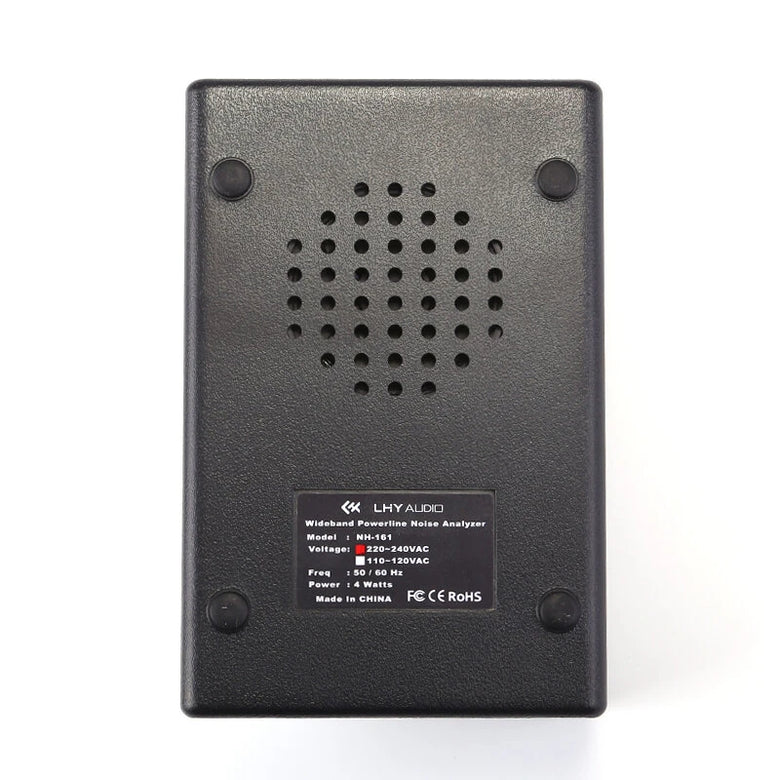

3. Real-time noise playback: Built-in speaker amplifies and plays checked noise, allowing users to intuitively diagnose power problems through hearing.
4. High-precision digital display: 3.5-digit LCD monochrome screen provides clear display and easy data reading.
5. Portable design: Compact size (135mm × 91mm × 45mm), weighing only 310g, easy to carry and suitable for field operations.
6. Wide range of applications: Suitable for power quality analysis and EMI measurement in industrial equipment, laboratories, offices, and home power environments.
Specifications:
Input Voltage: AC 220Vac~240Vac or 110Vac~120Vac (depending on version)
Power Frequency: 50/60Hz
Operating Environment: Ambient temperature 13~33℃; Altitude below 2000 meters
Measurement Frequency: 300KHz-700KHz
Noise Indication: 3.5-digit black and white LCD display
Dimensions: 135mm (L) × 91mm (W) × 45mm (D)
Weight: 310g (excluding power cord)

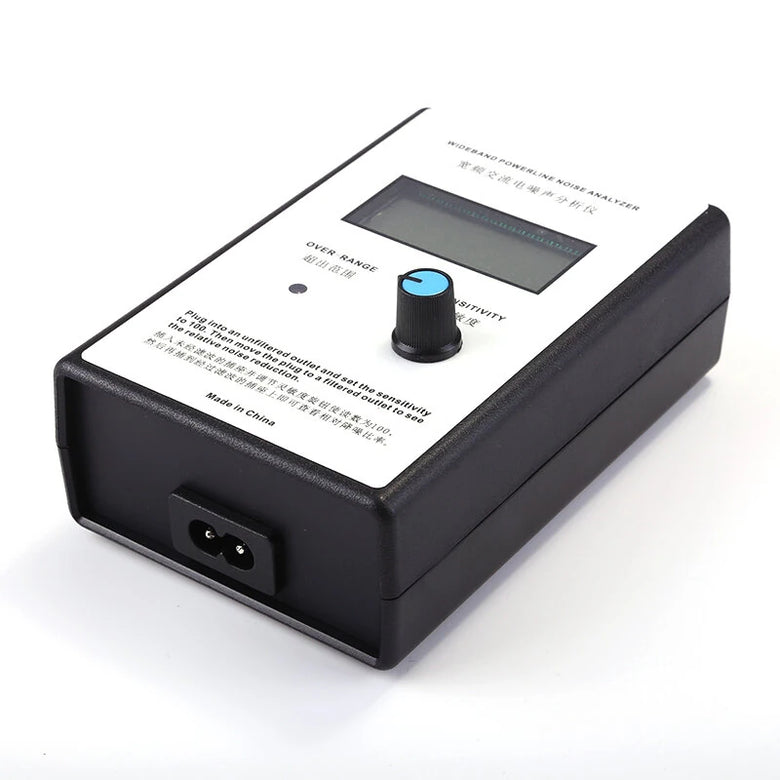

Accessories: Detachable two-core AC power cord (0.8m)
Applications:
Industrial equipment power quality monitoring
Laboratory power interference analysis
Office and home power environment testing
Power system maintenance and troubleshooting
EMI (electromagnetic interference) measurement and diagnosis
Instructions for Use:
Select the appropriate version of the tester according to your local voltage.
Connect the included AC power cord and plug it into a power outlet.
Turn on the instrument; the LCD screen will display the current power noise ratio.
The built-in speaker allows for real-time monitoring of power supply noise, aiding in troubleshooting power problems.
Precautions:
Please ensure the operating environment is within the specified temperature and altitude range to guarantee measurement accuracy.
Before use, confirm that the instrument's voltage version is compatible with the local mains voltage.
This product is a precision measuring tool; avoid use in environments with severe vibration or high humidity.
Package Included:
1 x Main unit
