Specifications:

Model: LCR-MF9

Material: Plastic

Power Mode: USB Charging

Measurement Accuracy: 0.01

Operating Voltage: ≤36V

Laser Type: None

Battery Type: 300mAh 4.2V Lithium Polymer

Display: 1.8' TFT LCD

Features:

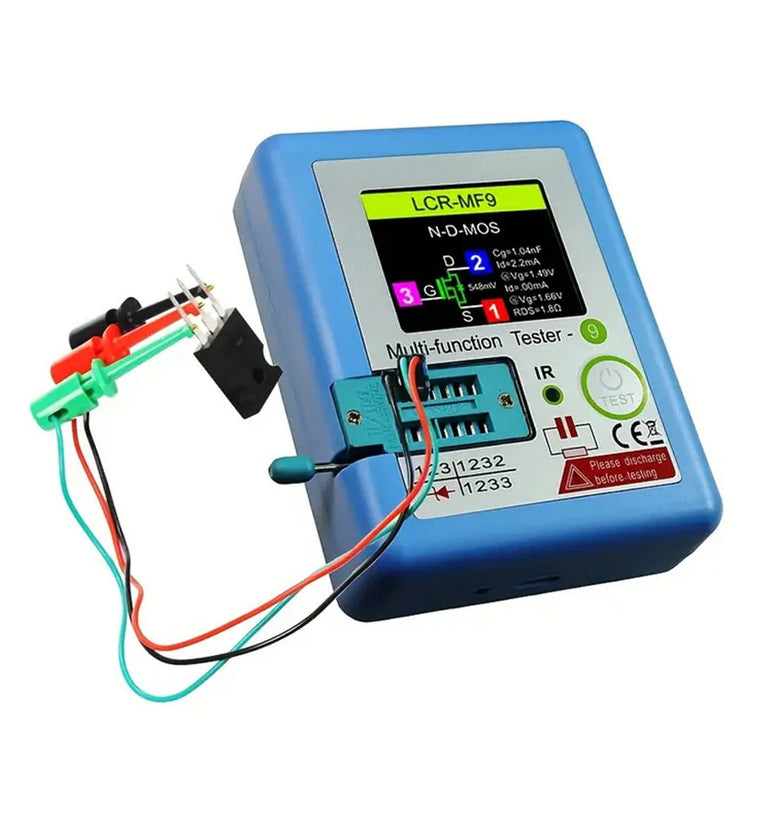

Advanced Component Detection: Automatically identifies various components including NPN/PNP transistors, MOSFETs, IGBTs, diodes, thyristors, resistors, and capacitors, displaying pin configurations graphically.

High Precision Measurement: Achieves a measurement accuracy of 0.01, with the ability to measure VOSS and ESR for capacitors over 10UF, inductance for resistors under 2100 ohms, and DC resistance for inductors under 10UH.

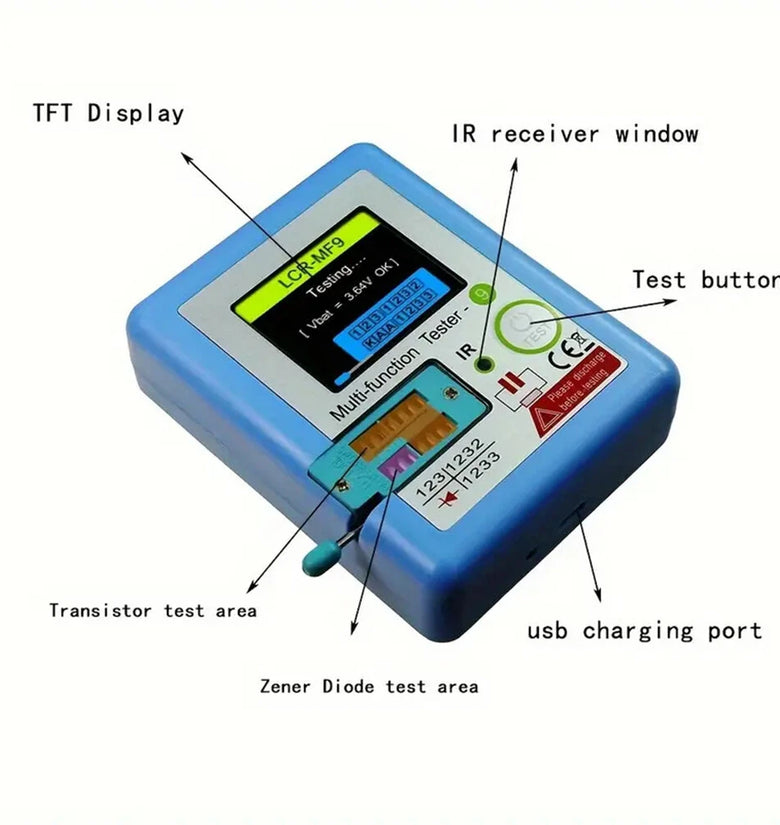

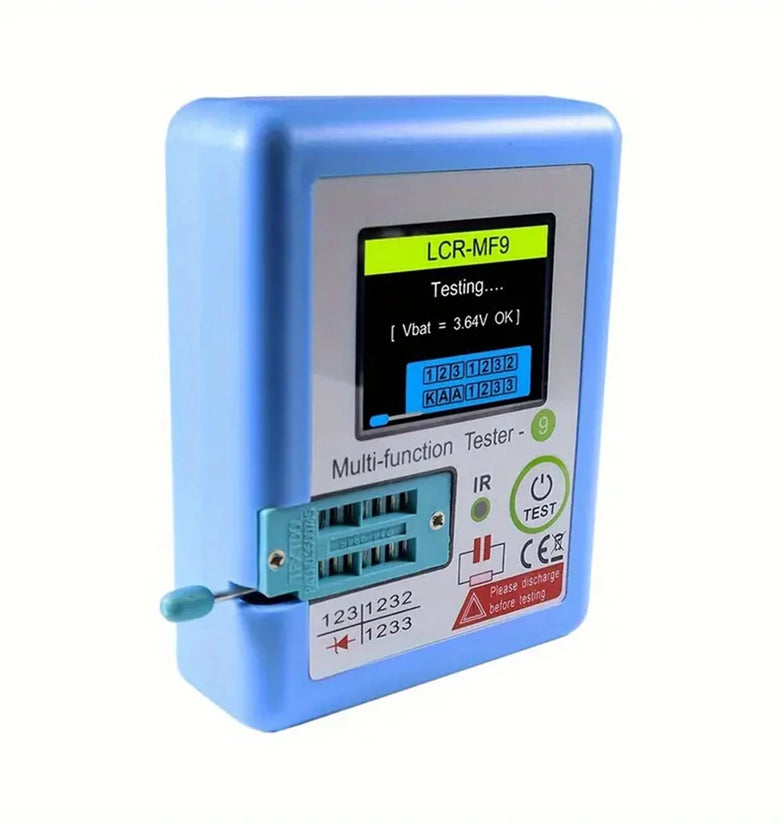

User-Friendly Interface: Features a 1.8' TFT color screen displaying parameters clearly, and a single-button operation for easy power-on testing.

Extended Battery Life: Built-in 300mAh rechargeable lithium polymer battery with USB charging, featuring ultra-low standby power usage below 20 nA and an automatic shutdown function to conserve battery.

Enhanced Features: New 2024 model includes an extended shutdown timer, KAA zone activation to minimize instrument damage, and optimized measurement parameters for improved accuracy.

Package Included:

1 x Main Unit Tester

3 x Test Cables

1 x USB Cable
