Note: The light meter is an instrument used to accurately determine the amount of exposure required by the subject.
Features:
Light weight and portable for convenient and easy carrying.
Suitable for equipment with insufficient space on the left side of cold shoe or hot shoe.
Designed with fine quality material for long service life.
Four-button operation.
A minute without operation, it will automatically shut down.
Specifications:
Color&Material: Black&Metal
Metering angle: 32° (reflective)
ISO: 6-6400
Shutter: 8S-1/2000
Aperture: F1-F64
Metering range: 2-18EV
Exposure compensation: ±3 files
Battery: 3.7V, 120mAh
Item size: 30 * 27 * 18mm
Item weight: 12g / 0.4ounce
Package size: 85 * 85 * 40mm / 3.3 * 3.3 * 1.6in
Package weight: 70g / 2.5ounce
Parameter range:
ISO: 6,12,25,50,64,80,100,125,160,200,250,320,400,500,600,800,1600,3200,6400
Aperture priority mode:
F:1, 1.2, 1.4, 1.8, 2, 2.4, 2.8, 3, 3.2, 3.5, 4, 4.5, 5, 5.6, 6.3, 7.1, 8, 9, 10, 11,13, 14, 16, 18, 20, 22, 26, 28, 32, 36, 40, 45, 52, 56, 64
T:1, 2, 3, 4, 5, 6, 8, 10, 13, 15, 20, 25, 30, 40, 50, 60, 80, 100, 125, 160, 200, 250, 320, 400, 500, 640, 800, 1000, 1250, 1600, 2000
Shutter priority mode:
T: 1,2,4,8,15,30,60,125,250,500,1000,2000
F:1.0,1.2,1.4,1.8,2.0,2.4,2.8,3,3.2,3.5,4.0,4.5,5,5.6,6 ,6.3,7.1,8.0,9,10,11,13,16,18,20,22,25
How to use:
1. It is recommended to charge before use.
2. The metering button can wake up the screen and perform a single metering, and the flashing cursor indicates that the metering result is updated
3. Pointing the cursor on the metering interface to the aperture means aperture priority, and pointing to the shutter means shutter priority
At this time, press the plus and minus keys to adjust the parameters of the corresponding mode. The metering result will follow. If needed
To meter again, press the metering key again.
4. The setting button can switch the interface of ISO, metering mode and exposure compensation, and the metering button returns.
5. When the metering data display exceeds the parameter range, it will prompt E.u.

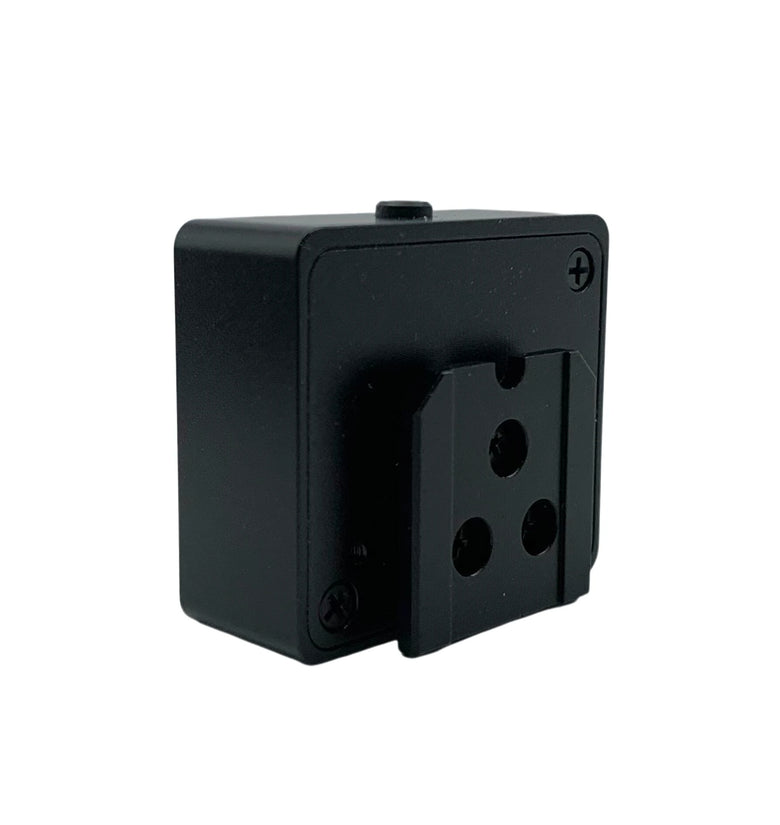

6. The position of the cold shoe of the bottom cover is adjustable, but it is recommended to use it after adjustment. So as not to loosen.
Package Included:
1 x Light Meter
