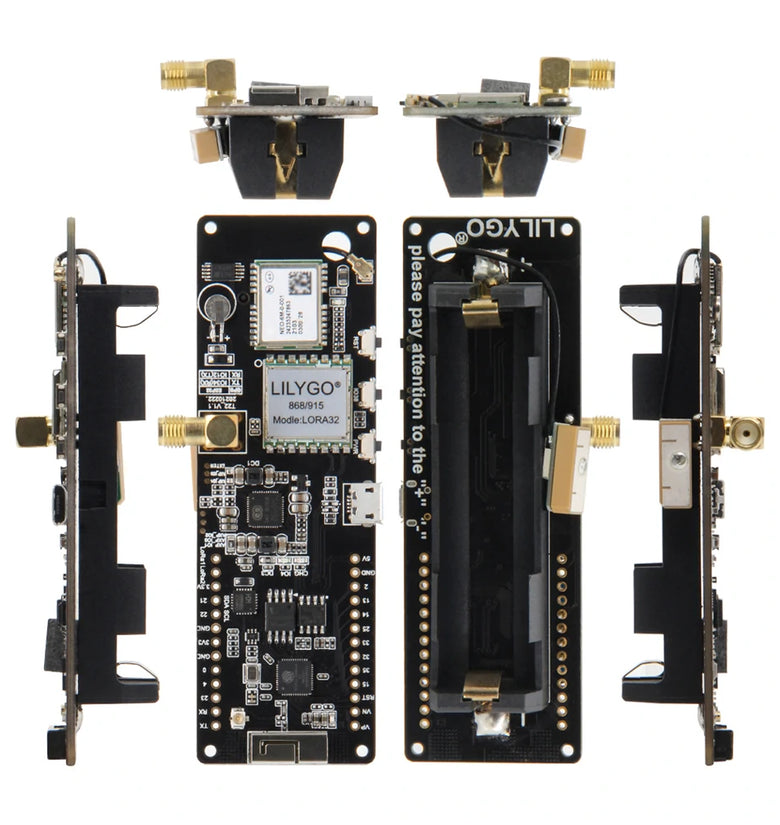

LILYGO Meshtastic AXP2101 T-Beam V1.2 ESP32 LoRa Development Board WiFi Bluetooth OLED Display

R 1,039.75



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Feature:


    T-Beam V1.2 Meshtastic
    MCU ESP32
    Flash 4MB
    Serial Chip CH9102
    PMU AXP2101
    Wireless protocol Wi-Fi+Bluetooth 4.2
    Onboard functions 3 Buttons(Power+IO38+Reset)
    Power Supply Mode Support USB / 18650battery
    NEO6M Global Positioning System Modules Support Global Positioning System protocol
    Onboard RTC crystal
    Support interrupt/wakeup
    High sensitivity -148 dBm
    Transceive rate 300 kbps
    Optional Version SX1278 / SX1276
    Frequency model comparison
    Hardware SX1278,SX1276
    Software SX1278: Meshtastic 433Mhz Version
    SX1276: Meshtastic 868/915/923 Mhz Version
    0.96 Inch OLED Parameters
    Size 0.96 inch
    High resolution 128 * 64
    Driver IC SSD1306
    Color White


    T-Beam LoRa Compare
    Chip SX1278 SX1276 NEW SX1268 SX1262
    Frequency 433MHz 868/915/923MHz 433/470MHz 868/915/923MHz
    Power Amplifiers +14dBm +14dBm +22dBm +22dBm
    TX Current 120mA 120mA 110mA 110mA
    RX Current 9.9mA 9.9mA 4.6mA 4.6mA
    Programmable Bit 300 kbps 300 kbps LoRa 62.5kbps
    FSK   300 kbps    		 LoRa 62.5kbps
    FSK   300 kbps
    Oscillator TCXO TCXO TCXO TCXO


    Package includes:


    1 X T-Beam V1.1 CH91021 X 433MHz or 868MHz Antenna1 X 0.96 inch 128X64 OLED (soldered)2 X Pin
