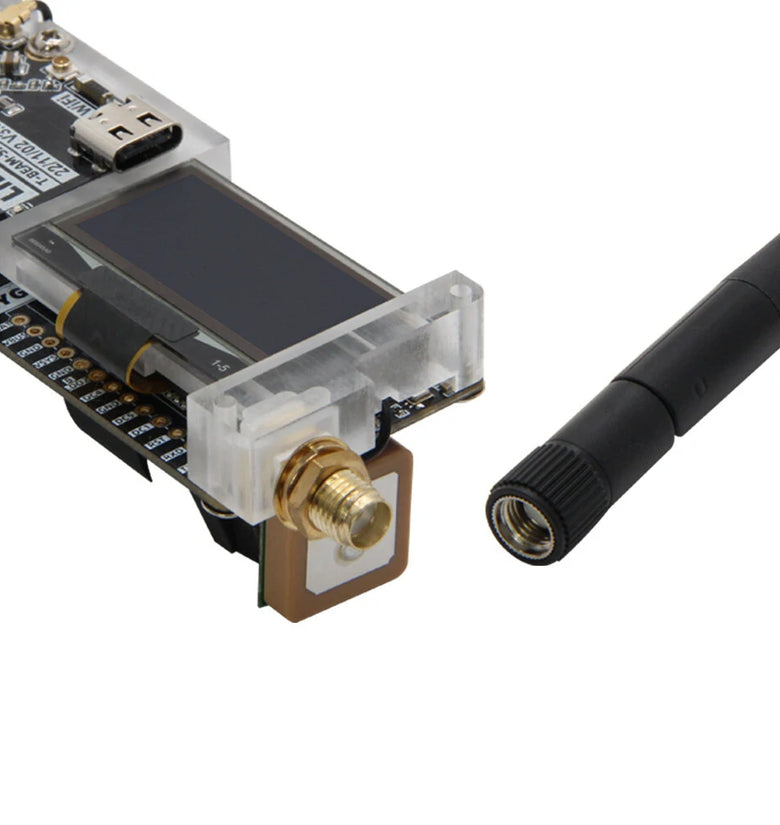

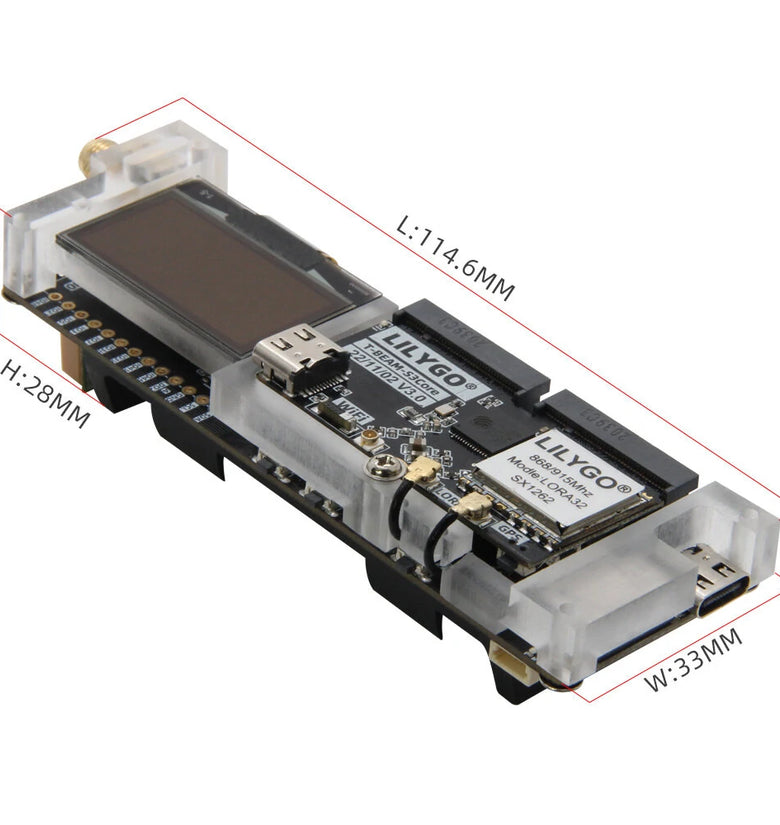

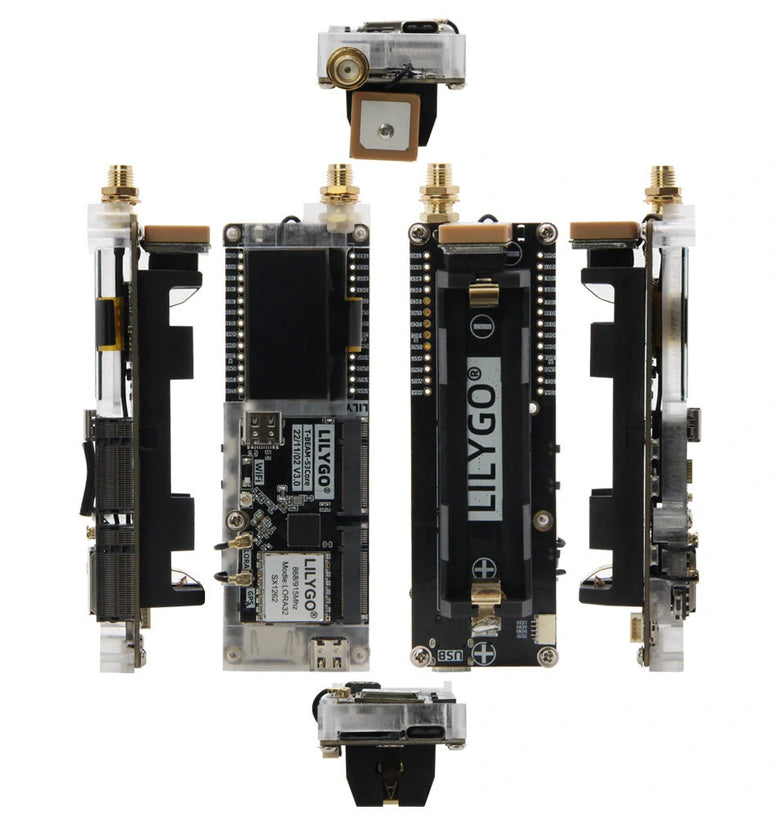

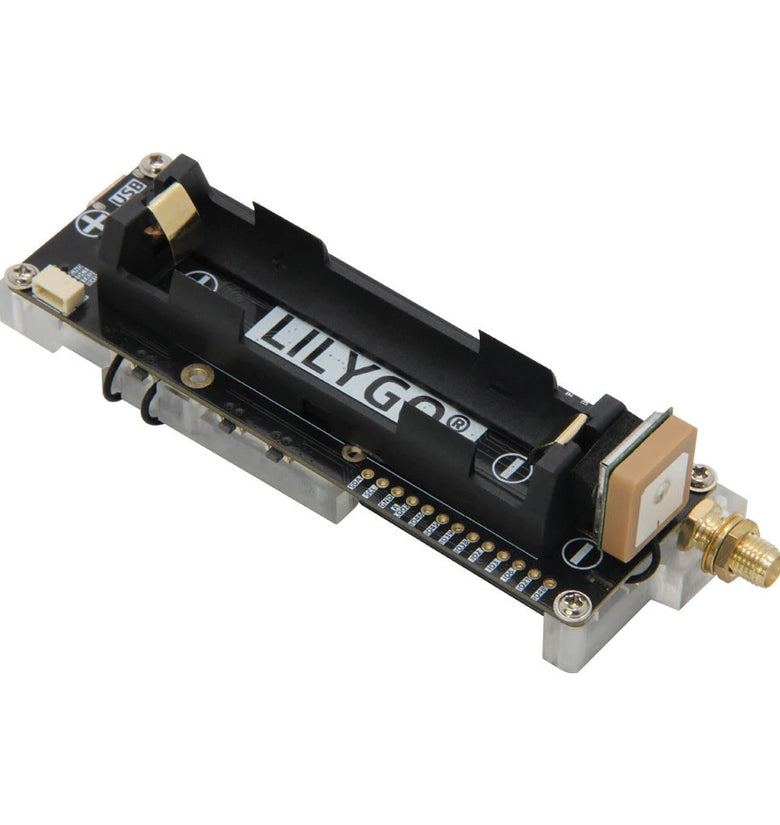

T-BEAMSUPREME-V3
MCU: ESP32-S3FN8 Dual-core LX7 microprocessor
Wireless Connectivity: 2.4GHz Wi-Fi & Bluetooth 5 (LE)
Development: ArduinoPLatformIO-IDE, Micropython
Onboard functions: Boot (IO00) + Reset + Power Button
Flash: 8MB PSRAM: 8MB Six-axis IMU QMI8658
1.3 inch SH1106 OLED
Interface: I2C
Resolution: 128*64
SDA: IO12 SCL: IO13
LoRa SX1262 Module
Low power consumption
LoRa receiving & sending
433/868/915 Mhz (Optional)
| Model VS | L76K | MAX-M10S-00B (Ublox) |
| Properties | Compact GNSS Module | Professional Ultra-low-power high-performance GNSS Module |
| Positioning Support | Global Positioning System,Beidou,GLONASS | Global Positioning System,Beidou,GLONASS,Galileo |
| GNSS Parallelism | Support 2 groups running simultaneously | Support 4 groups running simultaneously |
| Update Rate | 1Hz (Default) up to 10Hz | Up to 5 Hz (4 Groups GNSS) Up to 18 Hz (single GNSS) |
| Oscillator | None | Temperature Compensated Crystal Oscillators(TCXO) |
Note:
This product is intended for verification test experiments as a development board module.
Please make sure that you comply with local wireless management regulations when purchasing and select a frequency that meets local laws and regulations.
How to use:
https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series

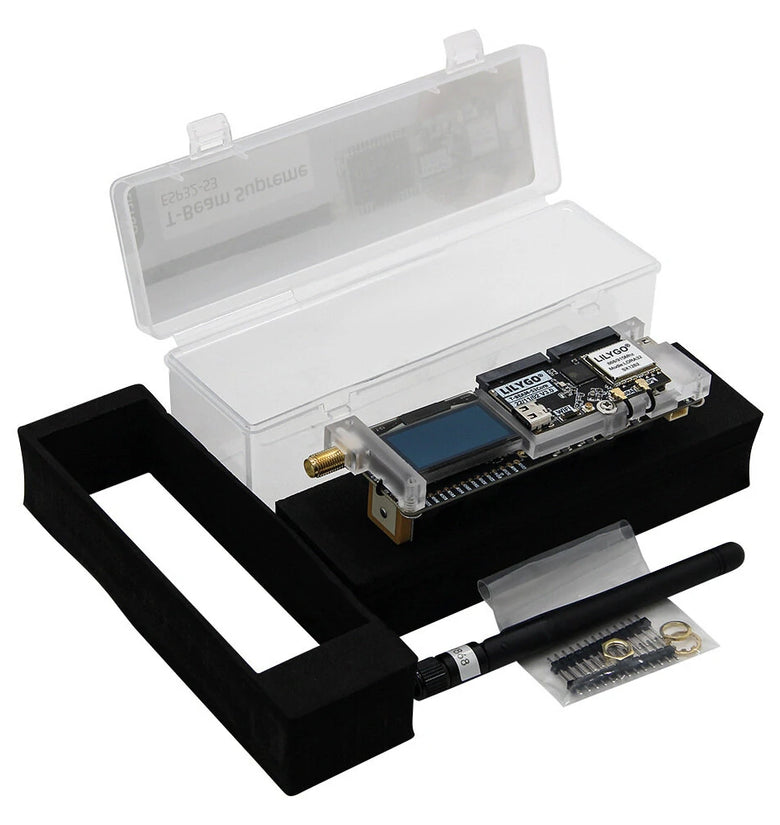

Package includes:
1 x Development Board
