Feature:
| LoRa32 Specifications | ||
| MCU | ESP32 | |
| Flash | 4MB | |
| PSRAM | 8MB | |
| Wireless Connectivity |
Wi-Fi 802.11
Bluetooth V4.2 + Bluetooth LE
| |
| Programming Platform | ArduinoIDE, Micropython | |
| Onboard Functions |
TF Card Slot
USB or 3.7V Lipo Battery Power Supply
Battery Switch
| |
| Onboard Button | Reset + Boot | |
| Screen Specifications | ||
| Type | OLED | |
| Drive | SSD1306 | |
| Interface | I2C | |
| Text Color | White | |
| Resolution | 128 x 64 | |
| Size | 0.96-inch Diagonal | |
| I2C Interface | SDA--IO21, SCL--IO22 | |
| Background Color | Blue | |
| Low Power LoRa Transceiver | ||
| LoRa Module | SX1276 | SX1278 |
| Frequency Bands | 868/915/923MHz | 433MHz |
| High-efficiency PA | +14dBm | +14dBm |
| Low RX Current | 9.9mA | 9.9mA |
More information: Github: LILYGO-LoRa-Series-Github Cooperate-Paxcounter-Github Cooperate-Disaster Radio-Official Cooperate-Disaster Radio-Github Cooperate-Disaster Radio V0.2.0-GithubNotice: The shipping list does not include battery and SD card.Note:The Meshtastic firmware is not adapted to the TCXO version yet.You can add the below sentences in the source codes to make it work. https://github.com/Xinyuan-LilyGO/LilyGo-LoRa-Series
Or you can ask in the github or community of Meshtastic:

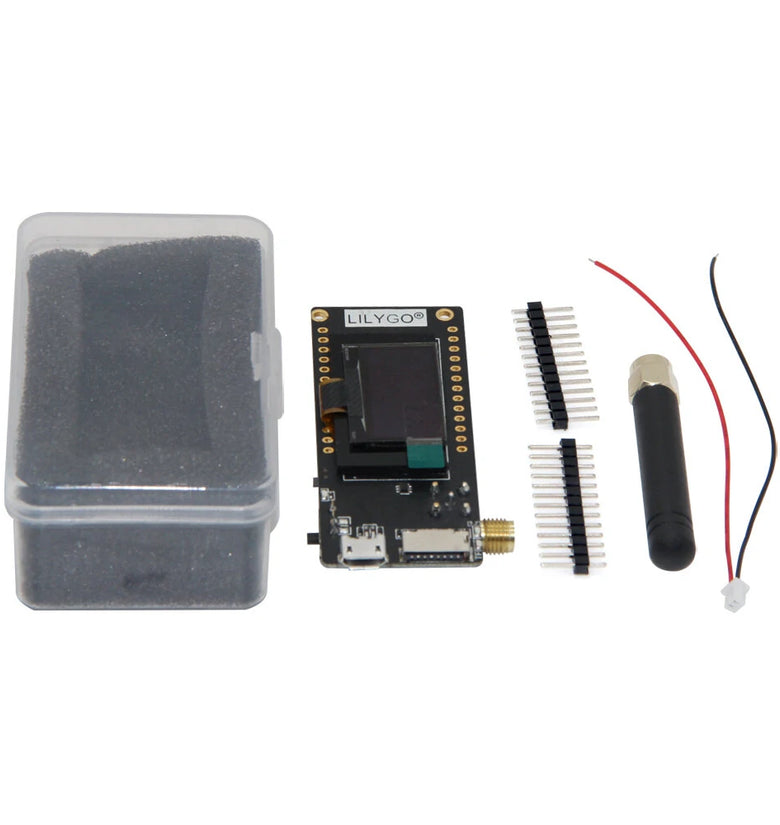

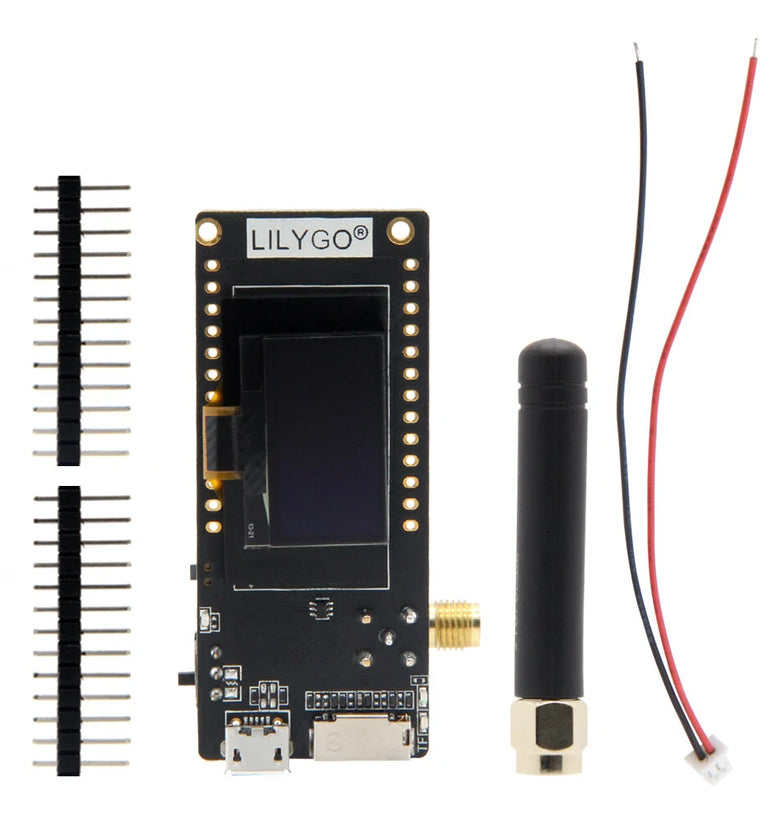

Package includes:
1 X LoRa32 Module1 X LoRa Antenna2 X Pin1 X Power Cable(Jst 2pin 1.25mm)
