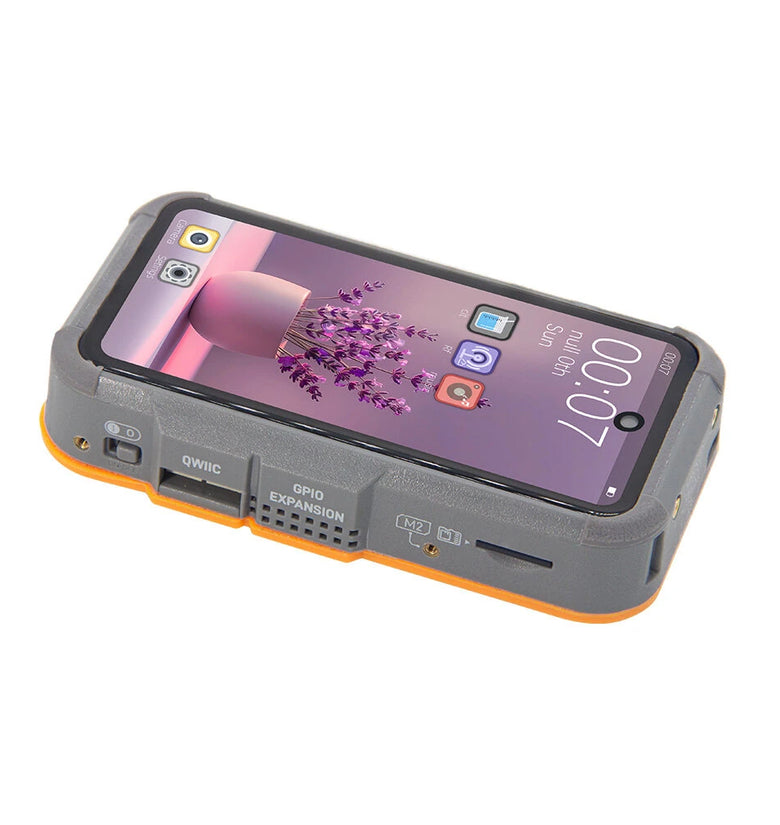

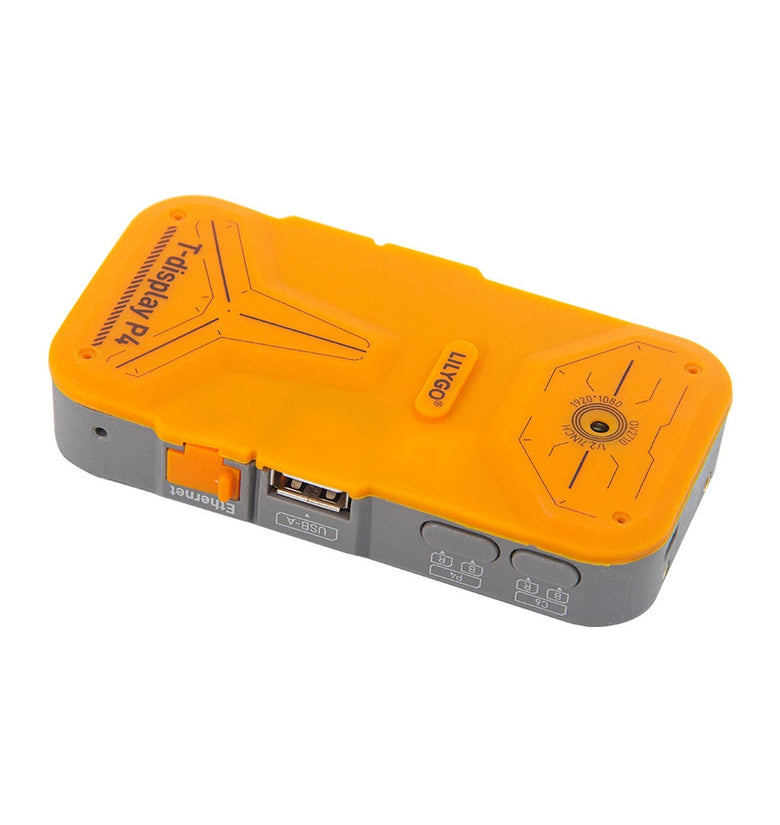

  • LILYGO T-Display-P4 ESP32 Development Board Dual MCU ESP32-P4 ESP32-C6 AMOLED/TFT Touch Screen GPS WiFi BLE LoRa SX1262 2MP Camera IMU+RTC/TF

SKU:

LILYGO T-Display-P4 ESP32 Development Board Dual MCU ESP32-P4 ESP32-C6 AMOLED/TFT Touch Screen GPS WiFi BLE LoRa SX1262 2MP Camera IMU+RTC/TF

R 4,209.70



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy





    Specifications:

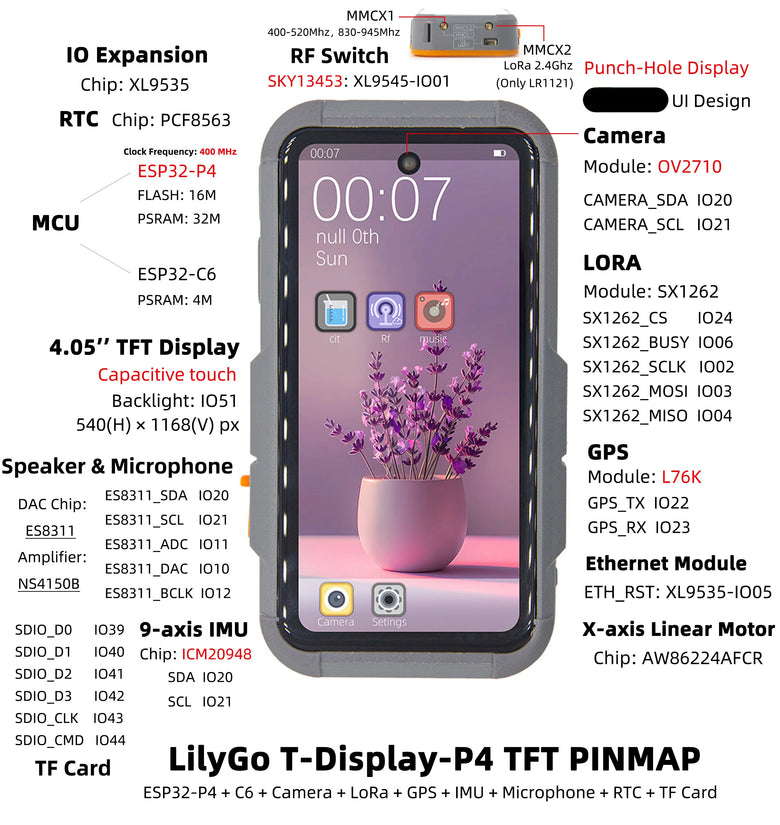

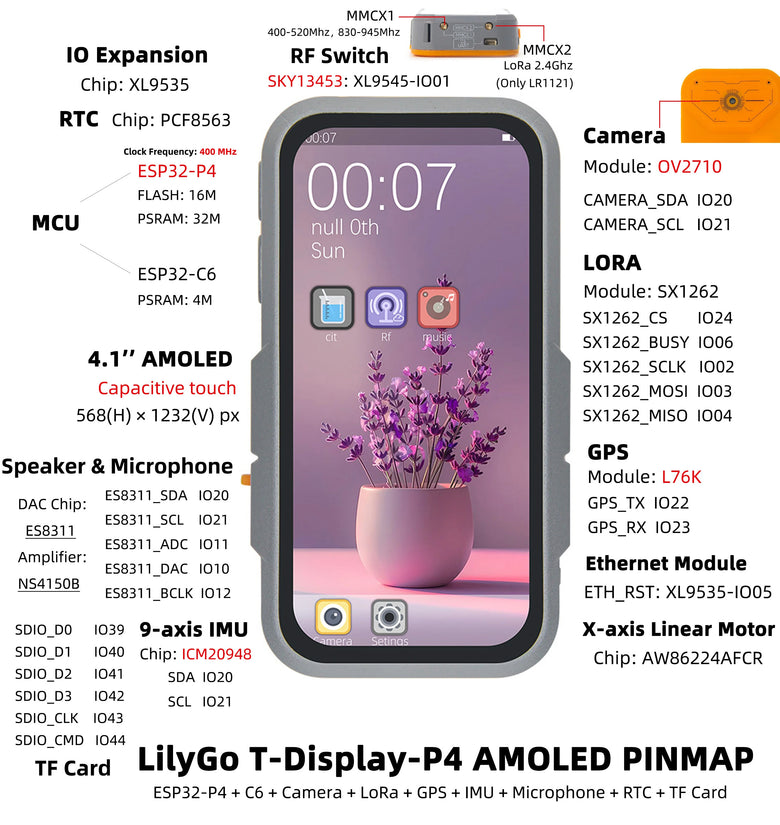

    Model: LILYGO T-Display-P4 (two versions: 4.1' AMOLED or 4.05' TFT optional)
    Main MCU: ESP32‑P4, RISC‑V dual‑core up to 360 MHz + single 40 MHz
    Co‑MCU: ESP32‑C6 with 2.4 GHz Wi‑Fi 6 (802.11ax) and Bluetooth 5 LE
    Memory: 16 MB Flash, 32 MB PSRAM
    Display: Capacitive touch; AMOLED 4.1' (ultra‑high contrast) or TFT 4.05' punch‑hole
    Camera: 2 MP MIPI (OV2710), 1080p@30 fps or 720p@60 fps; AMOLED version uses rear camera, TFT version uses front camera
    Media engine: JPEG codec, ISP, PPA, H.264 encoder; MIPI CSI/DSI

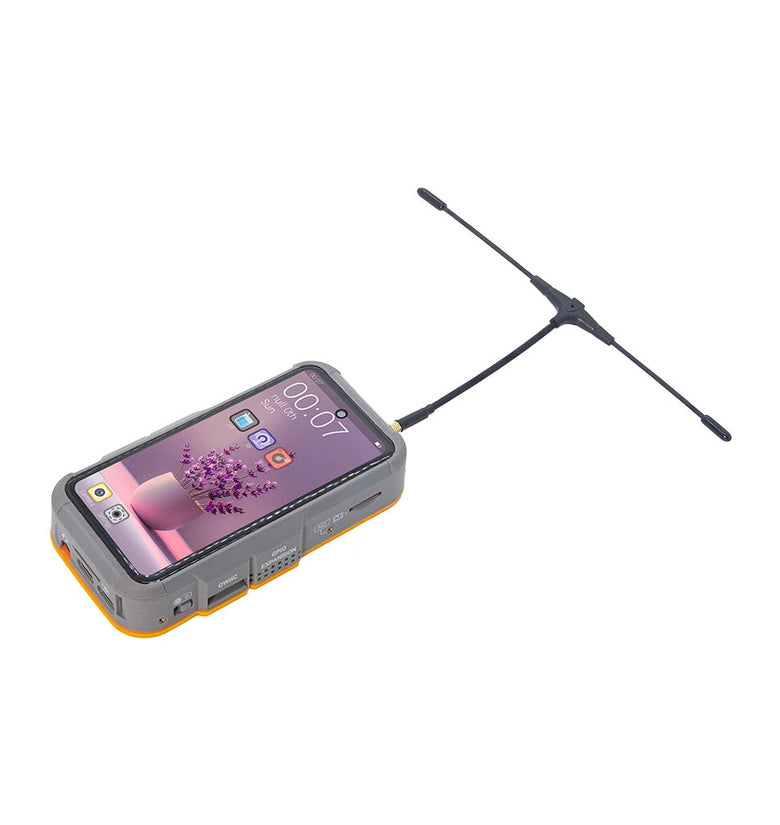

    Wireless long‑range: LoRa SX1262, bands 400–520 MHz and 830–945 MHz; MMCX antenna port; optional 2.4 GHz LoRa (LR1121)
    Audio: I2S speaker and microphone, audio jack
    Sensors: 9‑axis IMU (ICM20948) with DMP
    I/O & storage: microSD (TF) card slot; SPI and GPIO expansion; XL9535 16‑bit GPIO expander; external keyboard connector
    Other onboard: RTC, vibration motor, Ethernet interface, battery switch
    Power & charging: USB charging 5 V, 500 mA; charge IC LGS4056H; battery gauge BQ27220
    USB & ports: High‑speed USB‑A plus basic USB (dual USB), MMCX antenna connectors

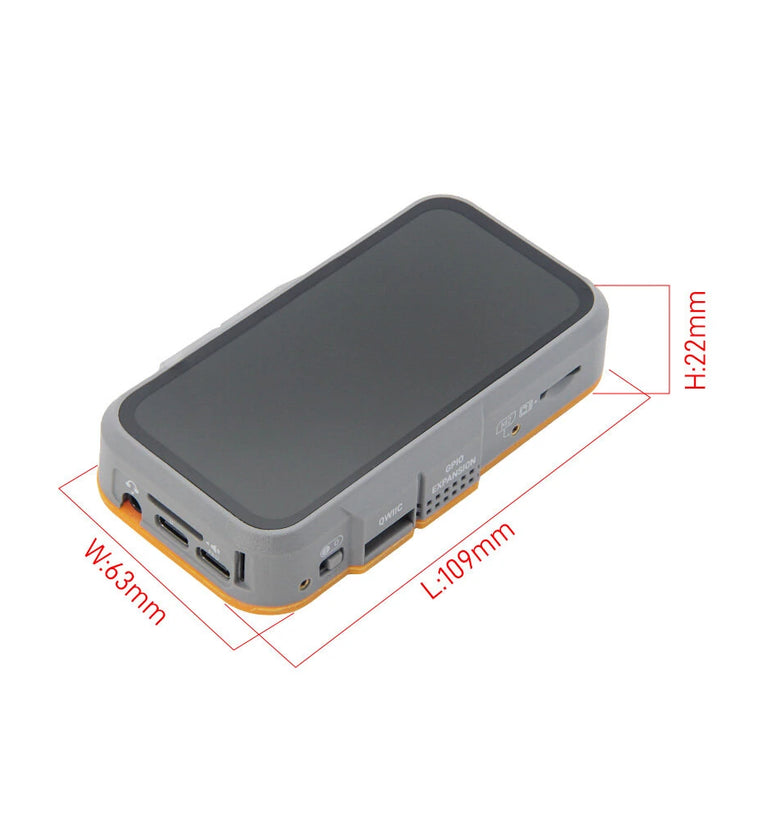

    Size: 63 x 109 x 22 mm
    Software support: ESP‑IDF, VS Code

    Features:
    1. Dual‑MCU architecture: ESP32‑P4 for imaging and audio, plus ESP32‑C6 for Wi‑Fi 6 and BLE—built for responsive, connected projects.

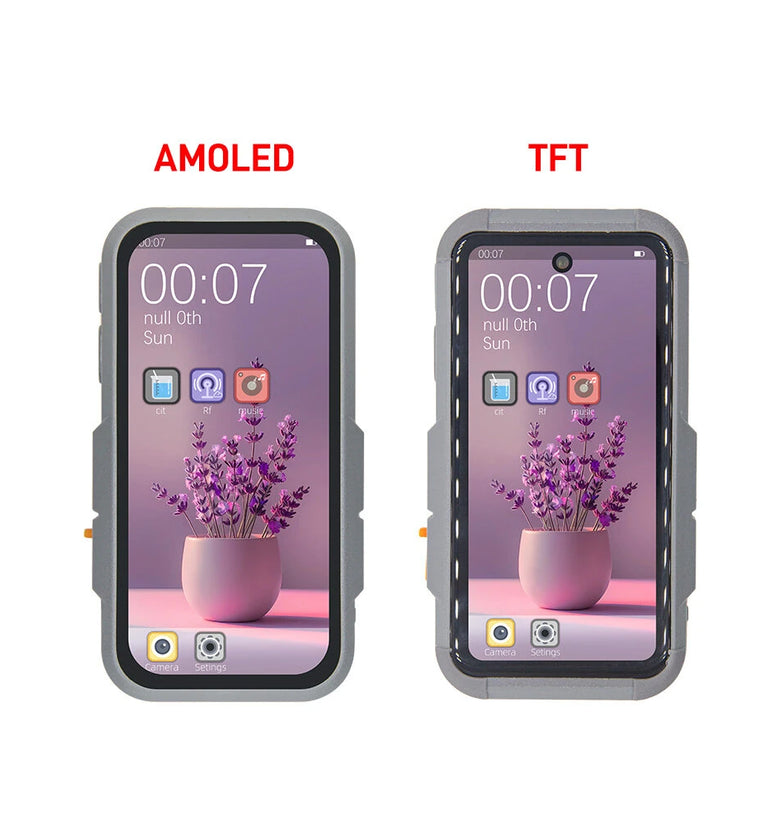

    2. Two display choices: 4.1' AMOLED with rear camera or 4.05' punch‑hole TFT with front camera; both are capacitive touch.
    3. Video‑ready: OV2710 2 MP MIPI camera, hardware JPEG and H.264 encode, and MIPI CSI/DSI for smooth image and video applications.
    4. Connectivity built in: Multi‑band LoRa SX1262, optional 2.4 GHz LoRa, Wi‑Fi 6, BLE, Ethernet, microSD, dual USB, and audio jack.
    5. Rich peripherals: I2S speaker/mic, vibration motor, RTC, 9‑axis IMU, XL9535 GPIO expander, and external keyboard header with 16 MB Flash + 32 MB PSRAM.

    Package Included:
    1 x T-Display-P4
