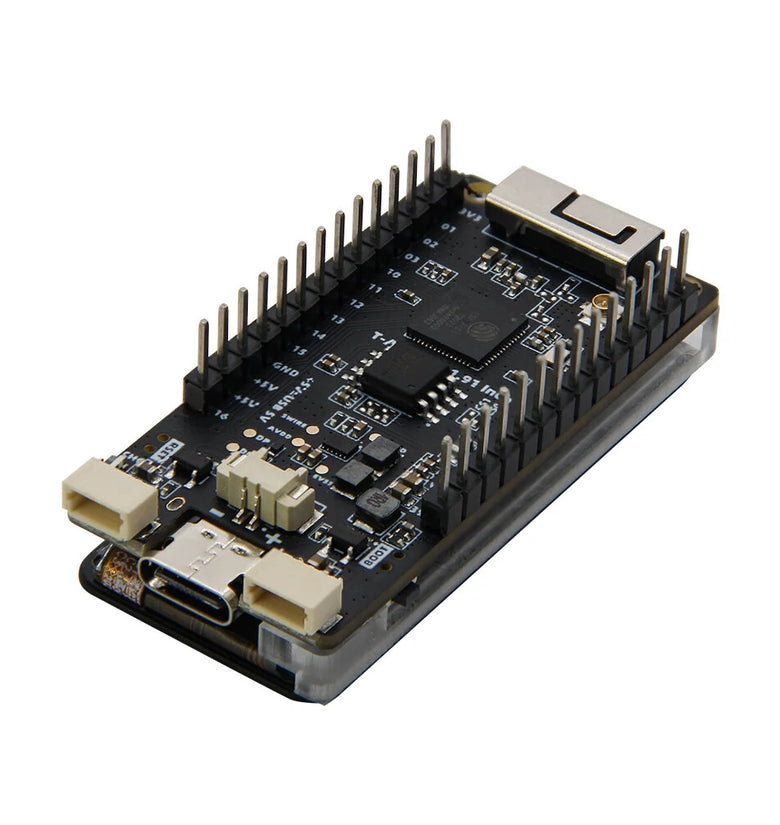

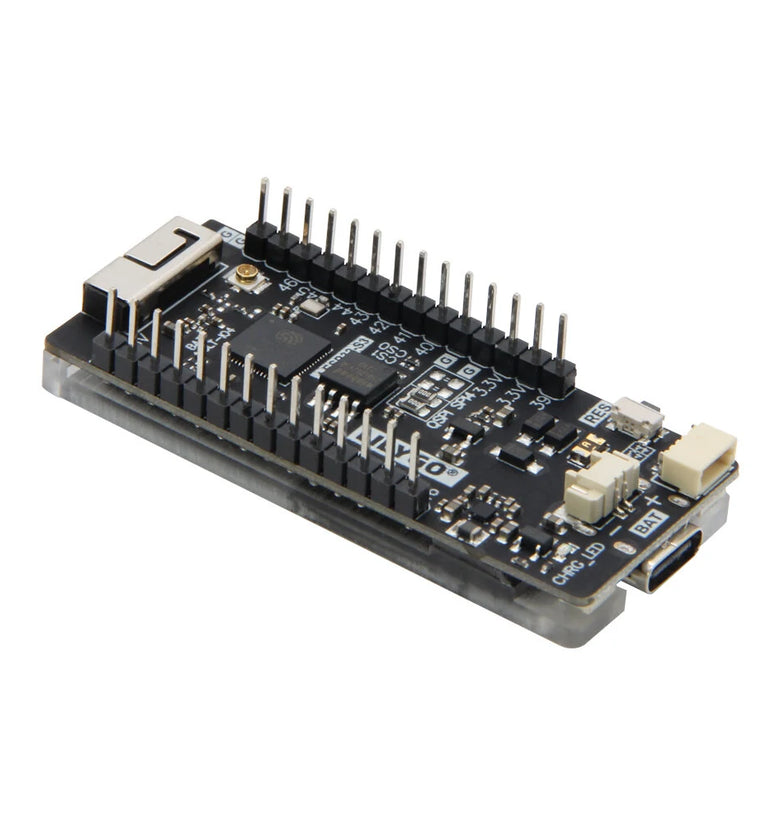

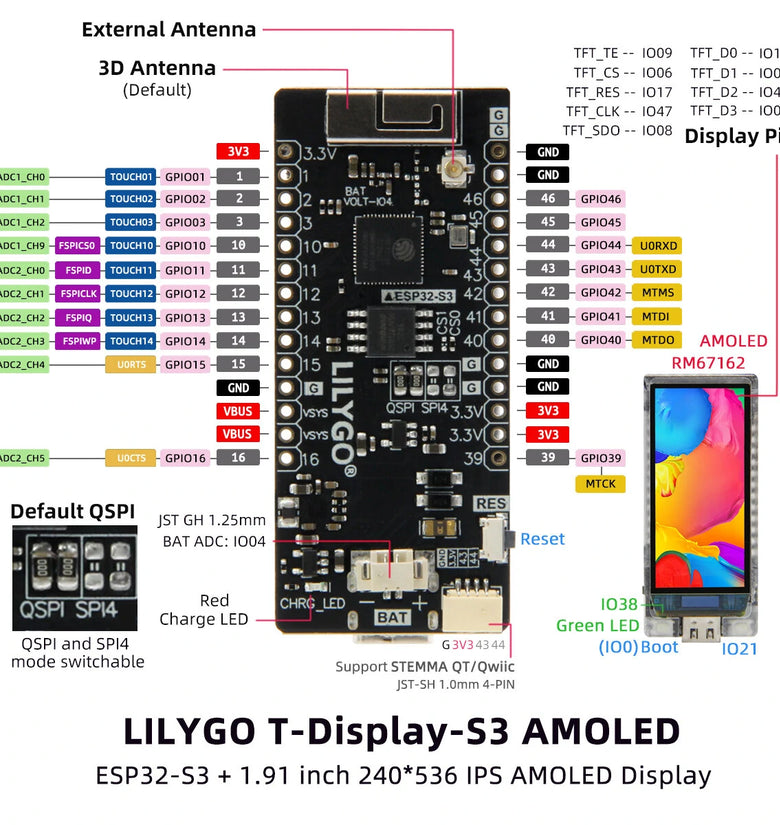

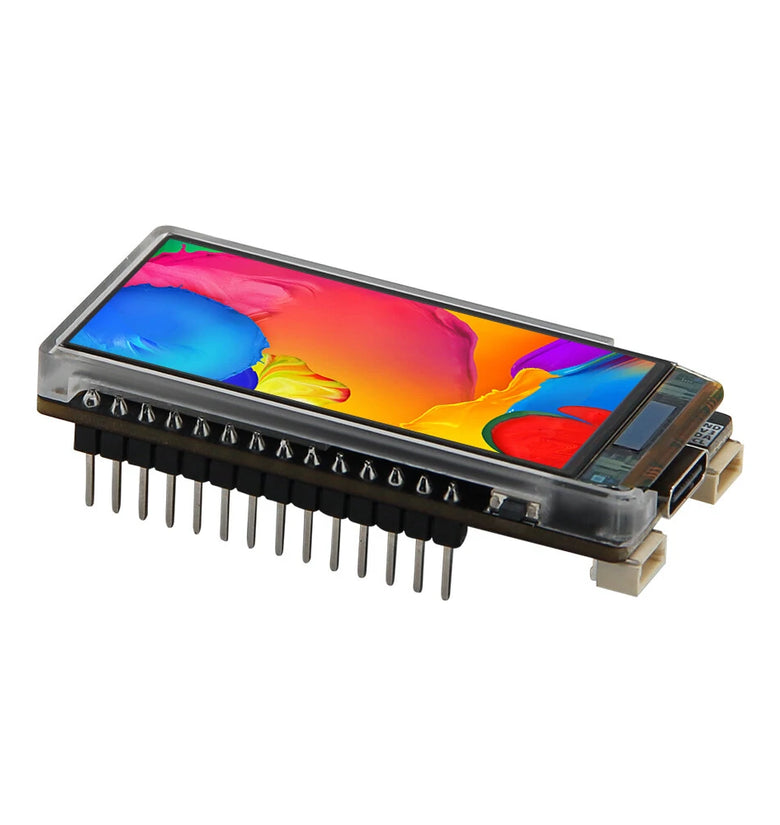

T-Display-S3 AMOLED Introduction:The T-Display-S3 AMOLED is an upgraded development board from the T-Display-S3, featuring the first ESP32-S3+AMOLED combination. It has upgraded from an LCD to an AMOLED display, providing better color display. Additionally, it has upgraded from an SPI to a QSPI interface for faster speed, and from an onboard antenna to a 3D antenna for an improved WiFi and Bluetooth experience.
| T-Display-S3 AMOLED | ||
| MCU | ESP32-S3R8 Dual-core LX7 microprocessor | |
| Flash | 16MB | |
| PSRAM | 8MB | |
| Wireless Connectivity | 2.4 GHz Wi-Fi 802.11 | |
| Bluetooth 5.0 (LE) | ||
| Programming Platform | ArduinoIDE, PlatformlO-IDE, Micropython | |
| Bat voltage detection | IO04 | |
| Onboard Functions | Boot+Reset+IO21 Button | |
| 1.91 inch RM67162 IPS AMOLED | ||
| Drive Chip | RM67162 | |
| Active Area | 19.8x44.22mm | |
| Resolution | 240(W)xRGBx536(H) | |
| Interface | QSPI | |
| SViewing Angle | IPS Full View Angle | |
| Old Version | New Version | |
| Basic Version | Basic Version | Touch Version |
New Version Key Upgrades:Compact Size for Greater Portability, Side-Mounted BOOT, and RESET Button, Touch Version with Central Button.⚠️The performance of the new and old versions is identical. Choose the version that best suits your project.

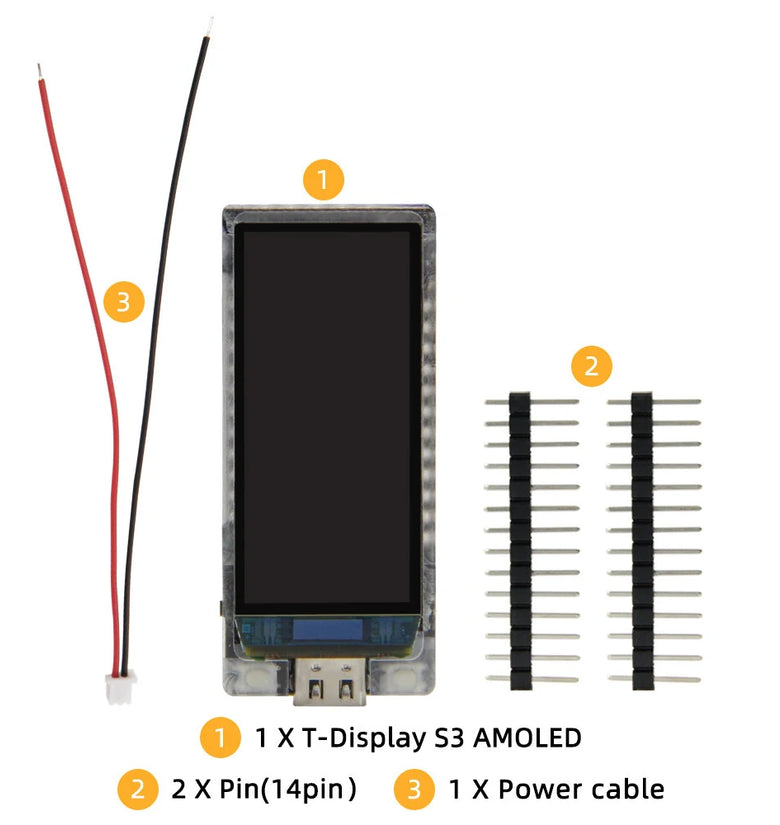

Package includes:
