Specification:
Brand: LILYGO
Model: T-Display-S3 Pro
Microprocessor: Dual-core LX7 ESP32-S3R8
Wireless Connectivity: Wi-Fi 802.11, BLE 5 + BT mesh
Programming Platforms: Arduinos-IDE, VS Code, ESP-IDF
Flash Memory: 16MB
PSRAM: 8MB
Display: 2.33 inch Touch IPS TFT LCD, Resolution 222(H)RGB x 480(V)
Voice Communication Kit: Microphone MP34DT05-A, Vibration PWM Motor, Speaker I2S MAX98357A
External Storage: SD Card Support
Onboard Battery: 3.8V 470mAh@0.2C

Features:
1. High-performance Microprocessor: Utilizes ESP32-S3R8 Dual-core LX7 to enhance processing capabilities.
2. Comprehensive Connectivity: Supports Wi-Fi 802.11, BLE 5 + BT mesh for seamless wireless communication.
3. Capacitive Touch Display: Equipped with a 2.33 inch IPS TFT LCD providing high resolution and touch functionality.
4. Versatile Programming Platforms: Compatible with Arduinos-IDE, VS Code, and ESP-IDF for flexible programming options.
5. Voice Communication Integration: Includes built-in Microphone, Vibration Motor, and I2S Speaker for efficient voice communication.(valid with MVSR board)
6. Expandable Storage: Features SD Card slot for additional storage capacity.

Package Include(optional):

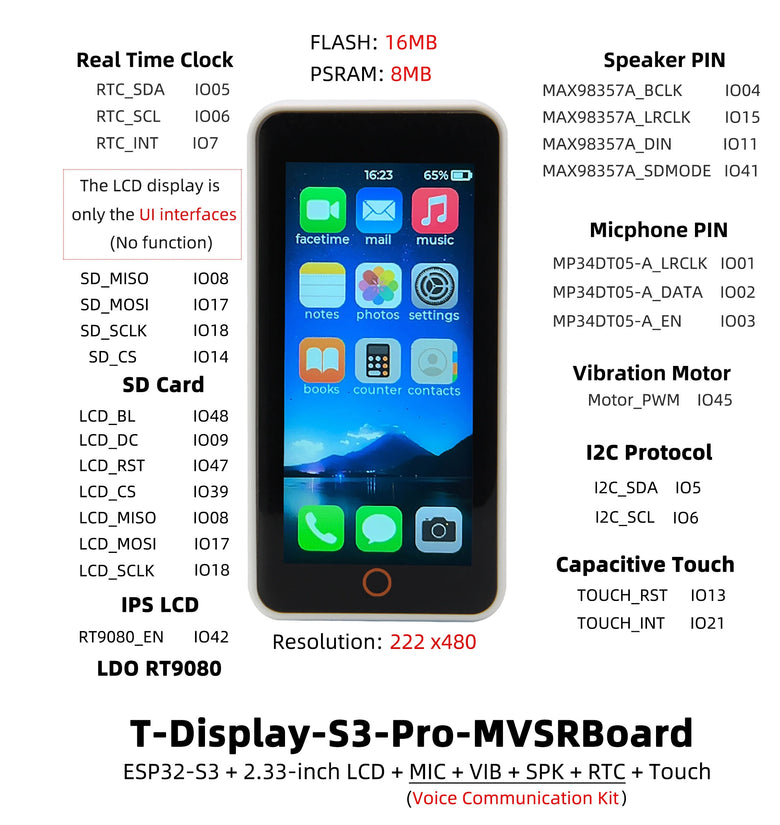

①[Black Motherboard with MVSR]:
1x Motherboard

or
②[White Motherboard with MVSR]:
1x Motherboard

or

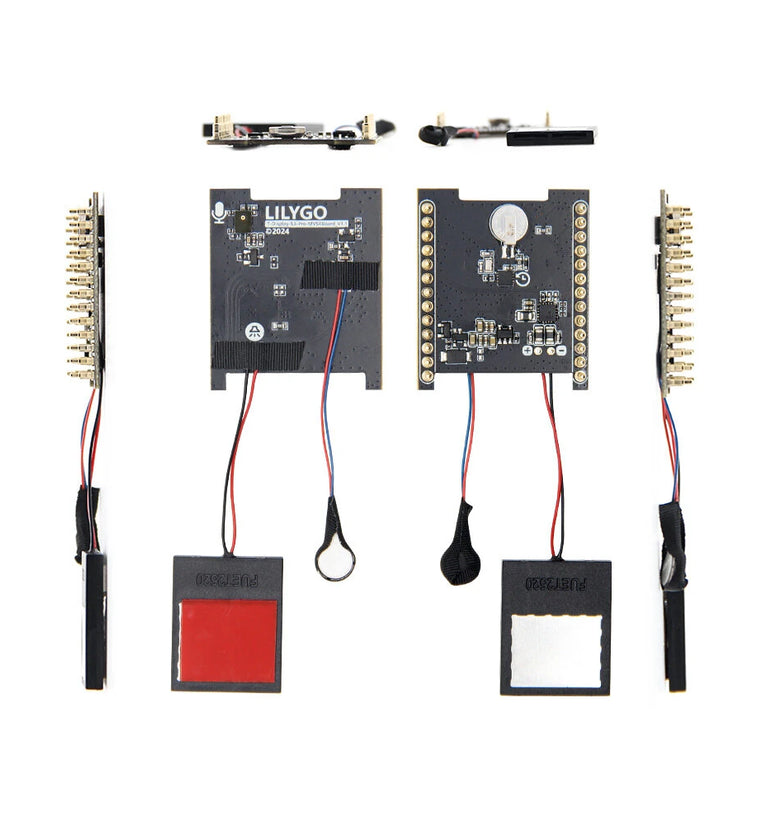

③[MVSR Module]
1x MVSR Module

or

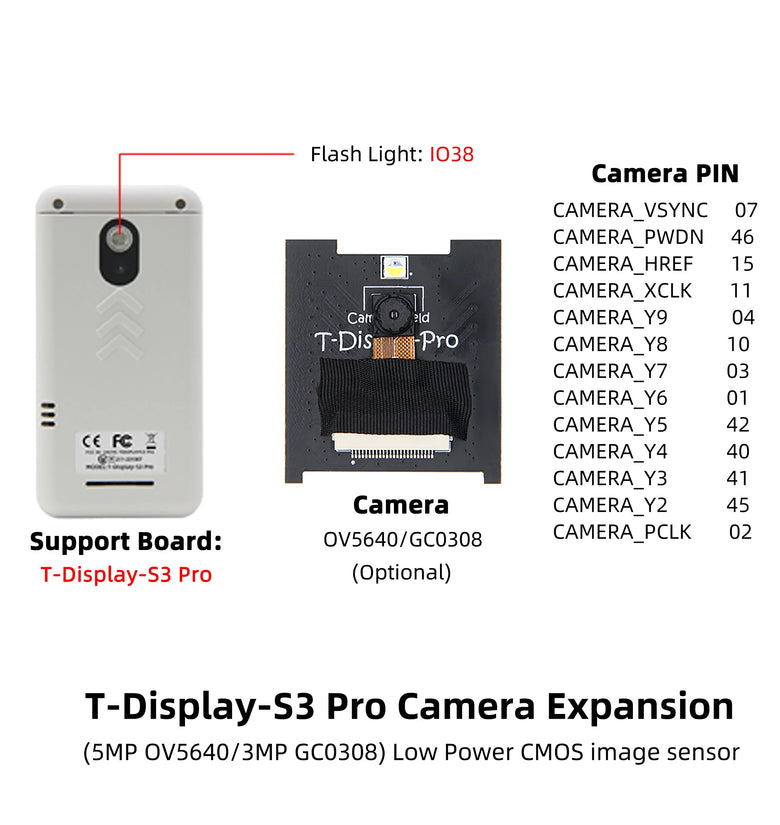

④[GC0308 Camera Module]
1x GC0308 Camera Module

or

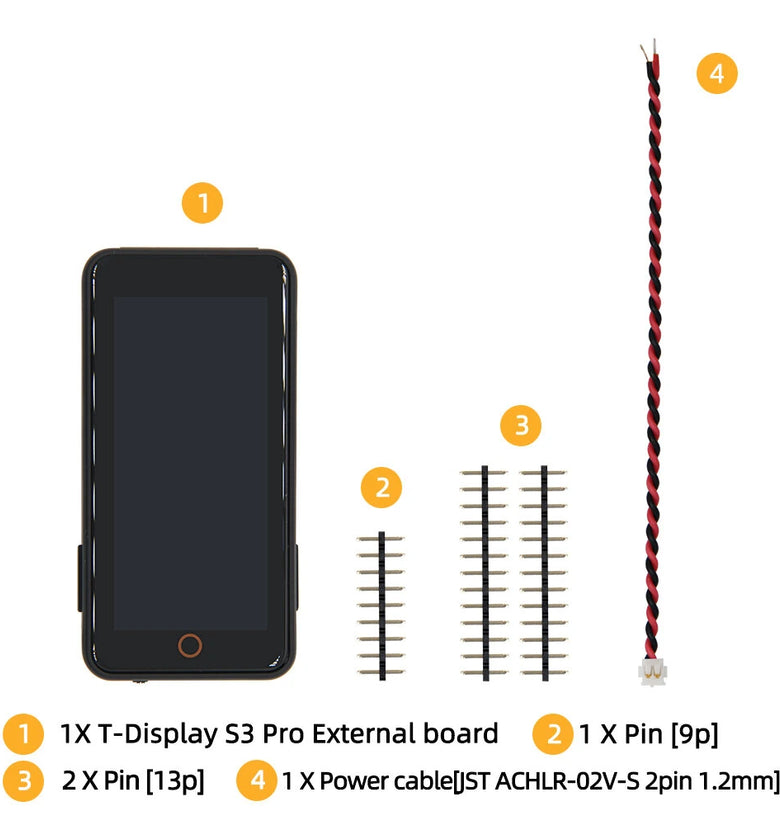

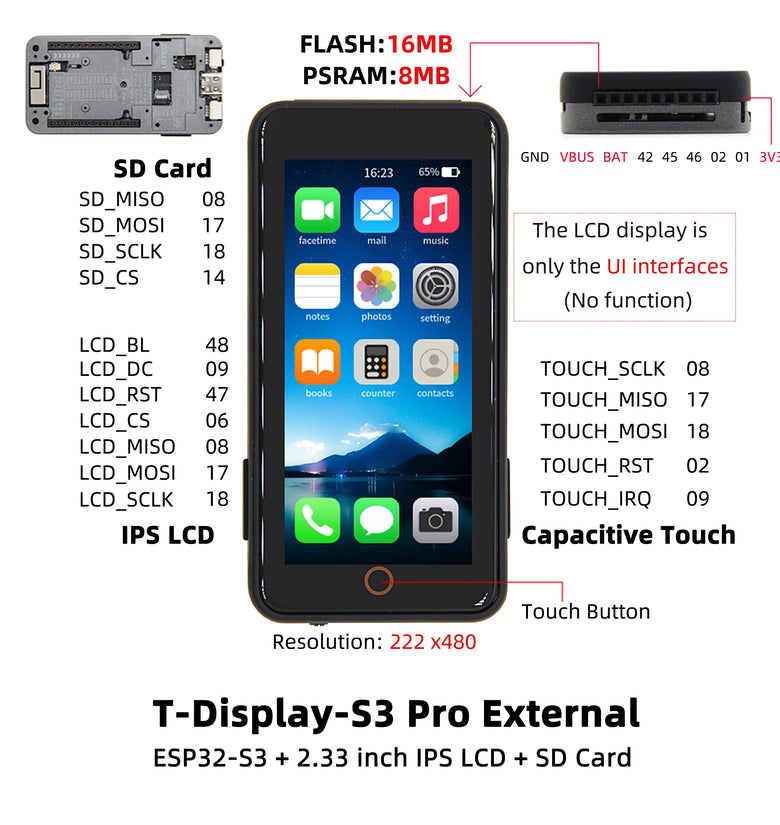

⑤[External Expansion Version]:
1x T-Display S3 Pro External Board
1x Pin[9p]
2x Pin[13p]
1x Power Cable[JST ACHLR-02V-S 2pin 1.2mm]
