Specifications:
MCU: ESP32-S3R8 (dual-core LX7 microprocessor)
Wireless Protocols: Wi-Fi 802.11, BLE 5, BT Mesh
Programming Platforms: Arduinos IDE, VS Code, MicroPython
Board Functions: Boot + Reset Buttons, IO12 + IO16 Buttons
Display: 2.33-inch IPS TFT SPI LCD with a resolution of 222(H) RGB × 480(V), powered by ST7796 driver
LoRa® Transceiver: LR1121 LoRa/(G)FSK Half-Duplex
Frequency Bands Supported: (1) 150–960MHz (Sub-GHz), (2) 2.4GHz, (3) 2GHz S-Band and 1.55GHz L-Band
Included Modules:
MP34DT05-A (Microphone)
PWM Motor (Vibration motor)
MAX98357A (Speaker module)
BM8563 (RTC module)

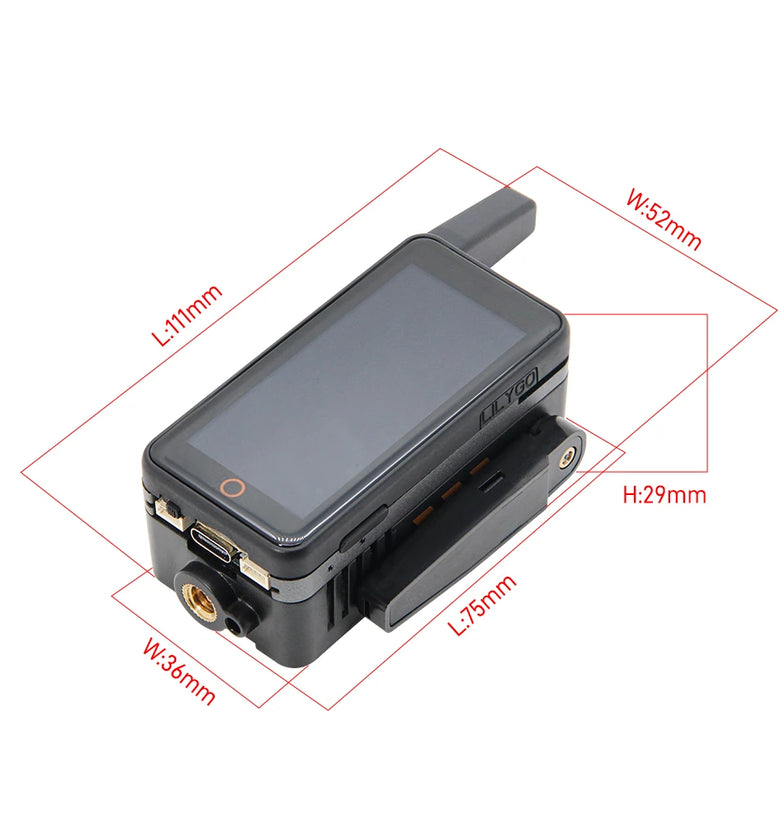

Dimensions: 111 × 36 × 52mm
Power Supply: USB, 5V/500mA
Features:
1. Powerful ESP32-S3R8 MCU Equipped with a highly capable dual-core LX7 processor, perfect for demanding IoT applications requiring enhanced computing capacity.
2. Advanced LoRa® Capabilities Integrated LR1121 chipset enables wide-range wireless communication across multiple frequency bands, ensuring adaptability in diverse environments.
3. High-Quality Display 2.33-inch IPS TFT SPI LCD offers vibrant colors and crisp resolution (222×480), ideal for displaying complex data or graphical interfaces.
4. Versatile Audio Modules Includes a microphone, speaker module, and a vibration motor for multichannel audio input/output capabilities, suitable for innovative projects.
5. Broad Programming Compatibility Supports Arduinos IDE, VS Code, and MicroPython, making it accessible for developers with varying expertise levels.
Package included:

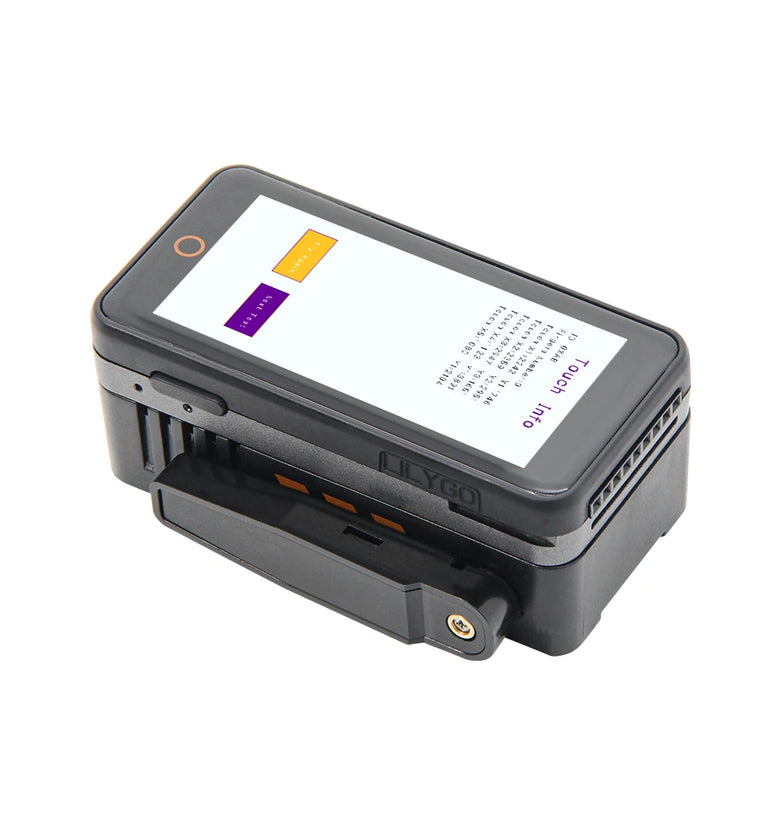

1 x LILYGO® T-Display-S3 Pro LR1121
