Specifications:

MCU: ESP32-S3 dual-core LX7 microprocessor

Wireless Communication: 2.4GHz Wi-Fi, BLE 5

Flash Memory: 16MB

PSRAM: 8MB

Power Pin: IO04

Peripheral Capabilities: Boot button, infrared transmission and reception

RF Transceiver: CC1101 low-power Sub-1 GHz RF transceiver

Frequency Bands: 300-348MHz, 387-464MHz, 779-928MHz

NFC/RFID Transceiver: PN532 NFC/RFID I2C Transceiver

Display: 1.9 inch ST7789V IPS TFT LCD

Resolution: 170(H) x 320(V)

Power Supply: USB/Battery dual-mode

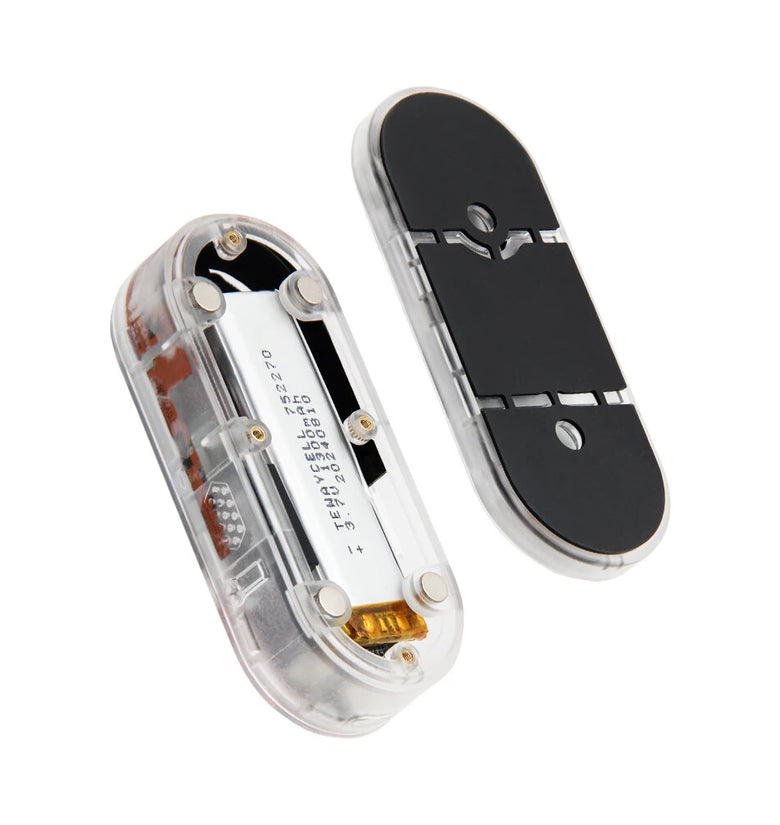

Battery: Built-in 1300mAh LiPo battery

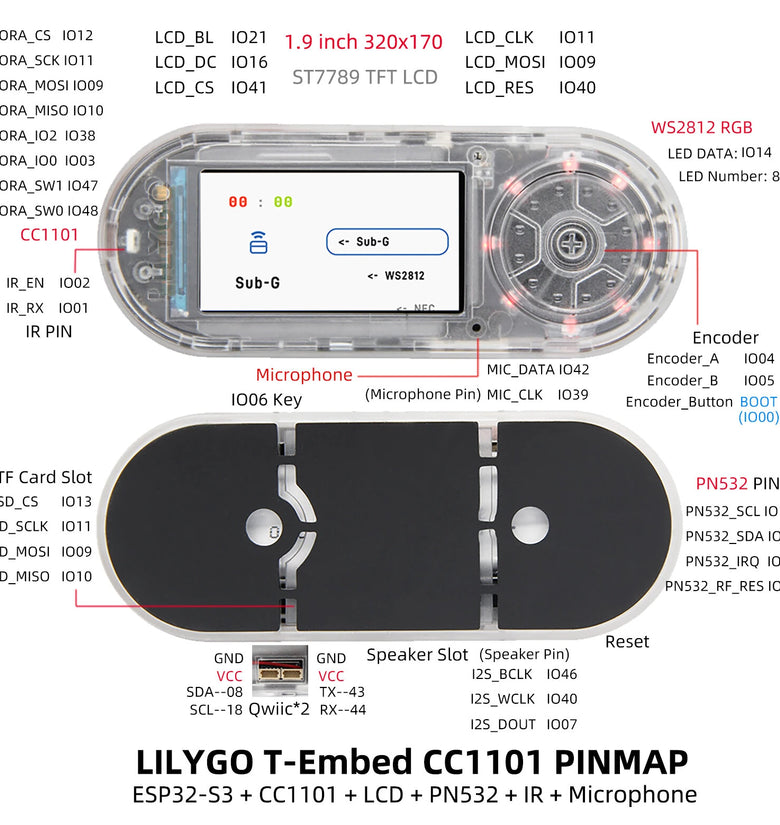

Pinout: Multiple GPIO pins for various peripherals

Microphone Pin: IO06

Infrared Pins: I02 (IR_EN), IO15 (IR_RX)

TF Card Slot Pins: IO13, IO11, IO09, IO10

LCD Pins: IO21, IO16, IO41, IO11, IO09, IO40

Features:

1.Advanced Wireless Capabilities

The T-Embed CC1101 integrates the ESP32-S3 dual-core LX7 microprocessor, featuring robust 2.4GHz Wi-Fi and BLE 5 compatibility. This ensures speedy wireless communication for all your IoT applications.

2.Comprehensive Display Interface

Equipped with a 1.9-inch ST7789V IPS TFT LCD, this module offers a vivid display with a resolution of 170(H) x 320(V). Ideal for real-time status monitor
