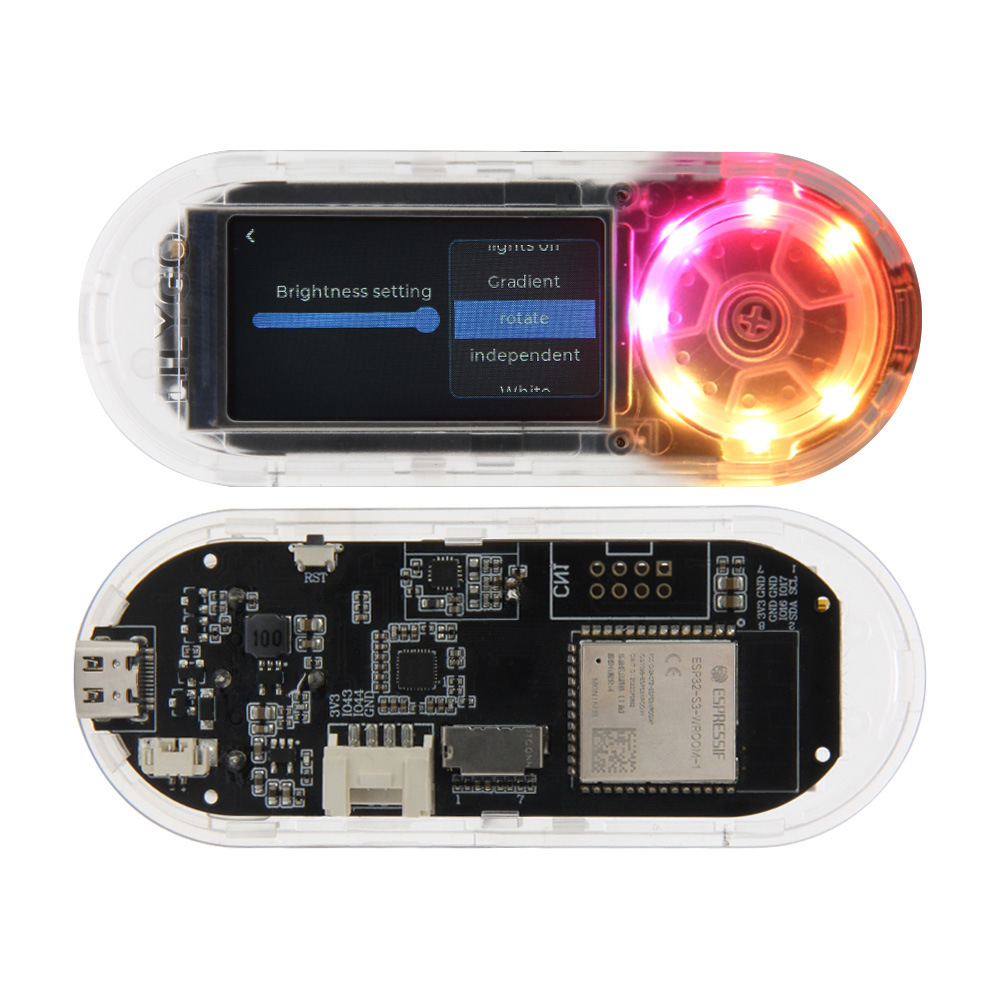

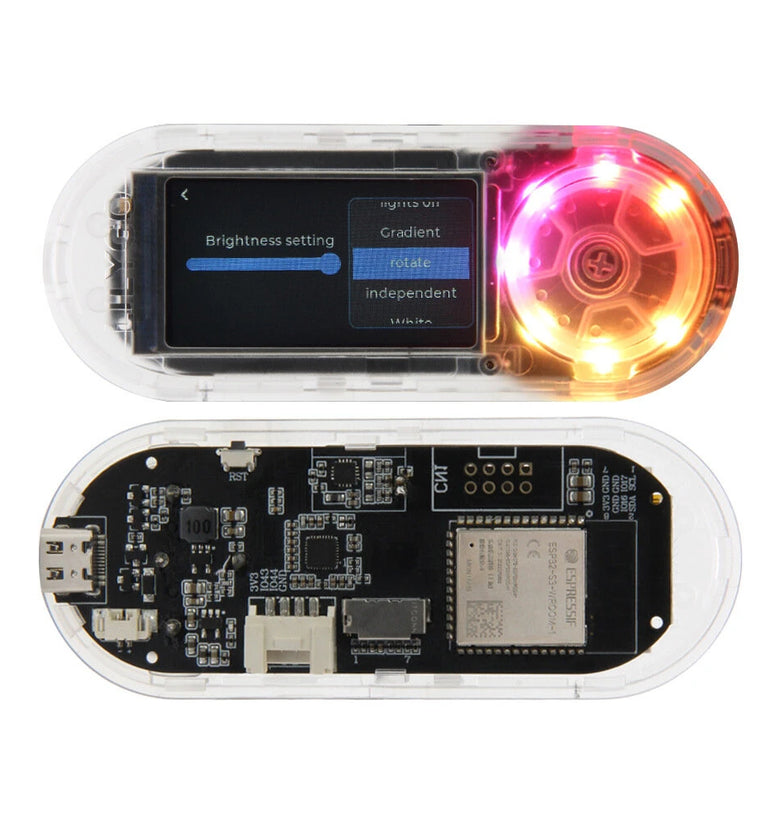

LILYGO T-Embed ESP32-S3 Custom Control Panel Macro Knob Embeddable Development Board With 1.9inch LCD Display Screen 16MB Flash Wi-Fi Bluetooth 5 Mesh
;
;
;
;
;
;

SKU:

LILYGO T-Embed ESP32-S3 Custom Control Panel Macro Knob Embeddable Development Board With 1.9inch LCD Display Screen 16MB Flash Wi-Fi Bluetooth 5 Mesh

R 1,349.70



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
  •
  • In Stock
  •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy





    Github: Click here to open3D printing files

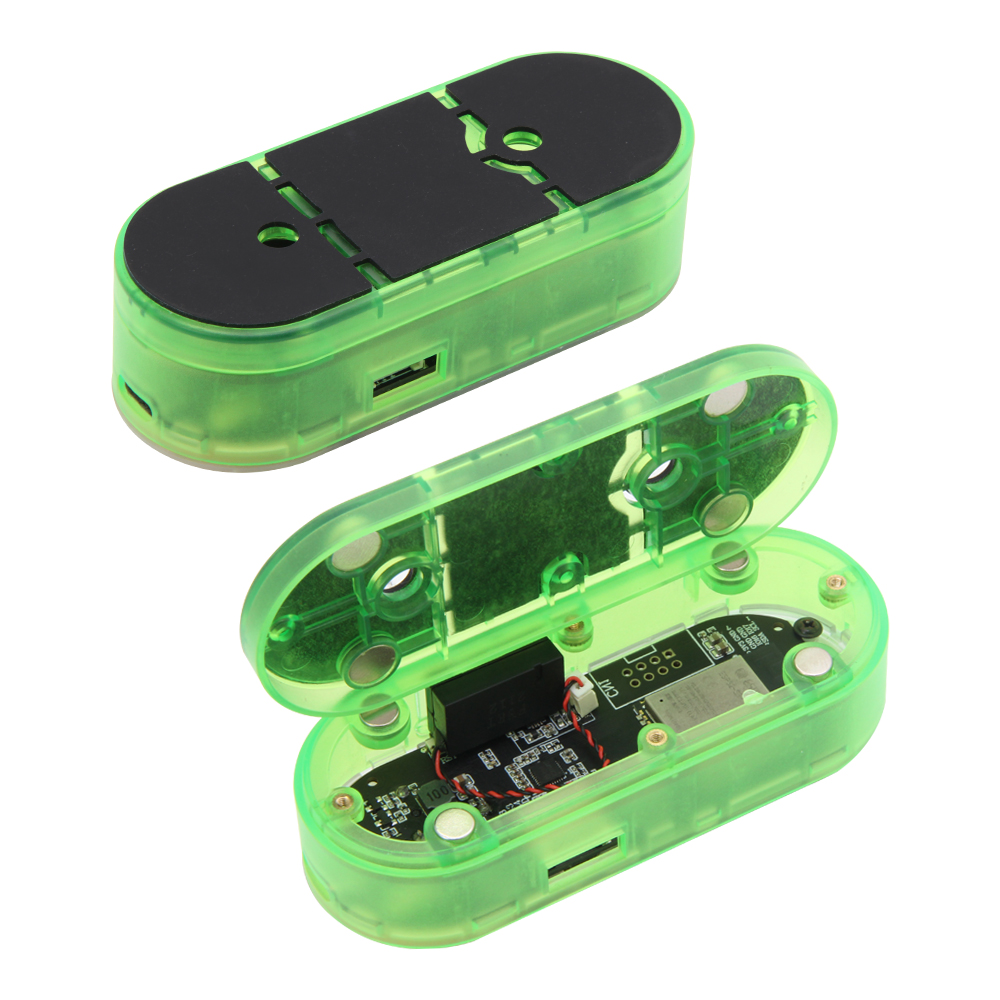

    Note 1: The version 'without base' does not include the 3D printed back cover, if you need please print it yourself.

    Note 2: All versions do not include batteries.

    Note 3: The version 'with base shell' does not include the speaker.

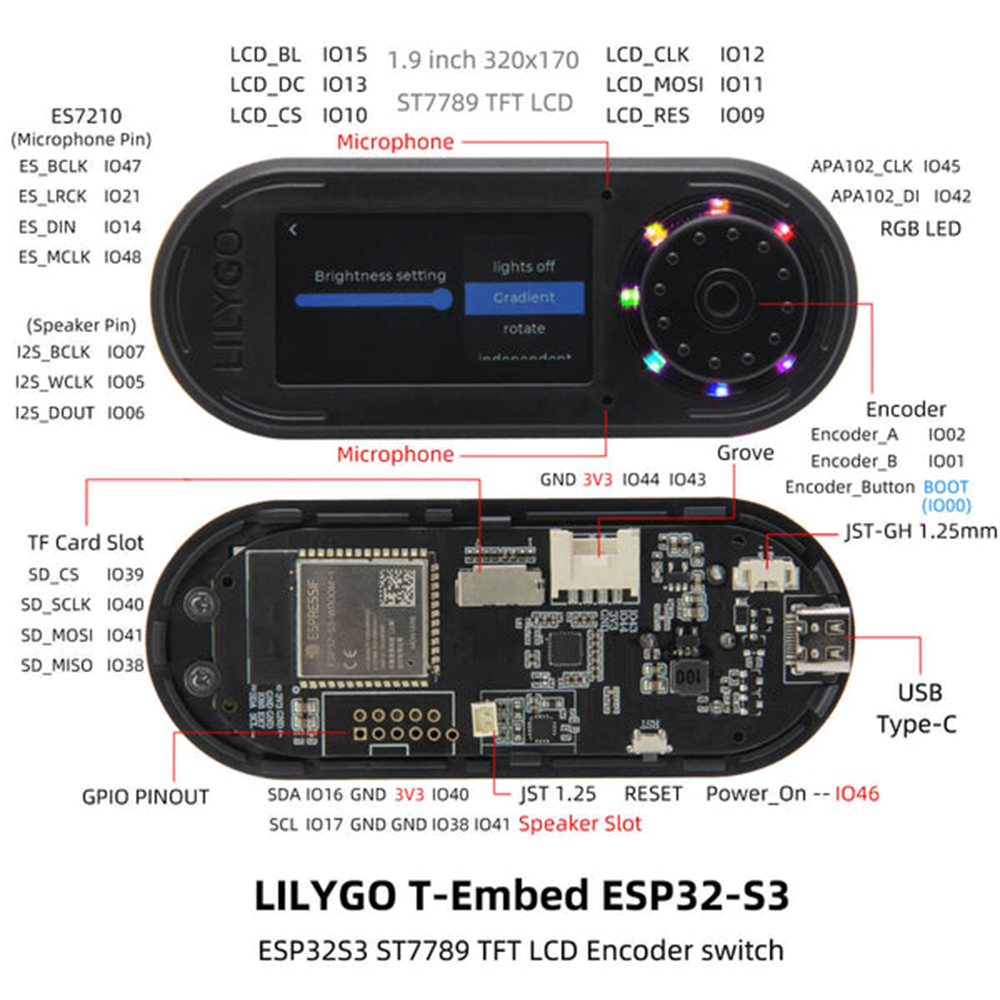

    Specifications:

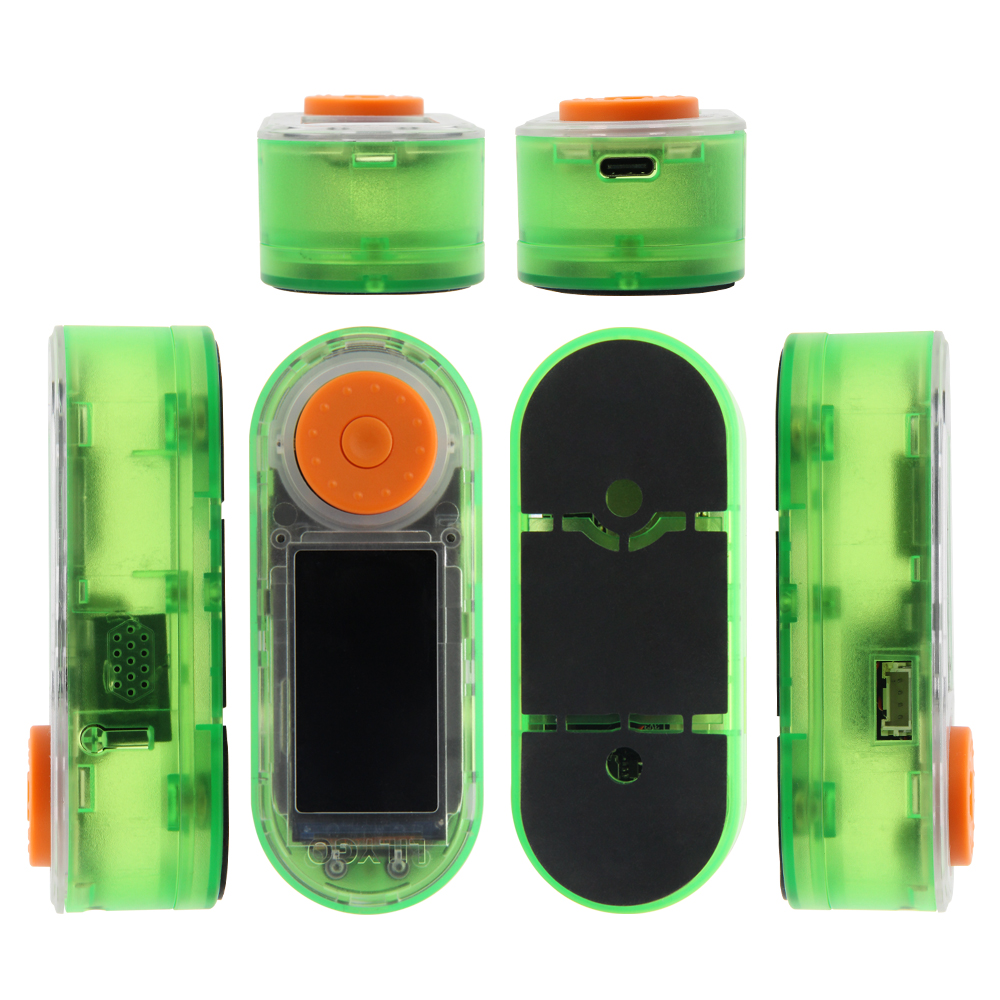

    Type: Without/Wtih Base Shell (optional)

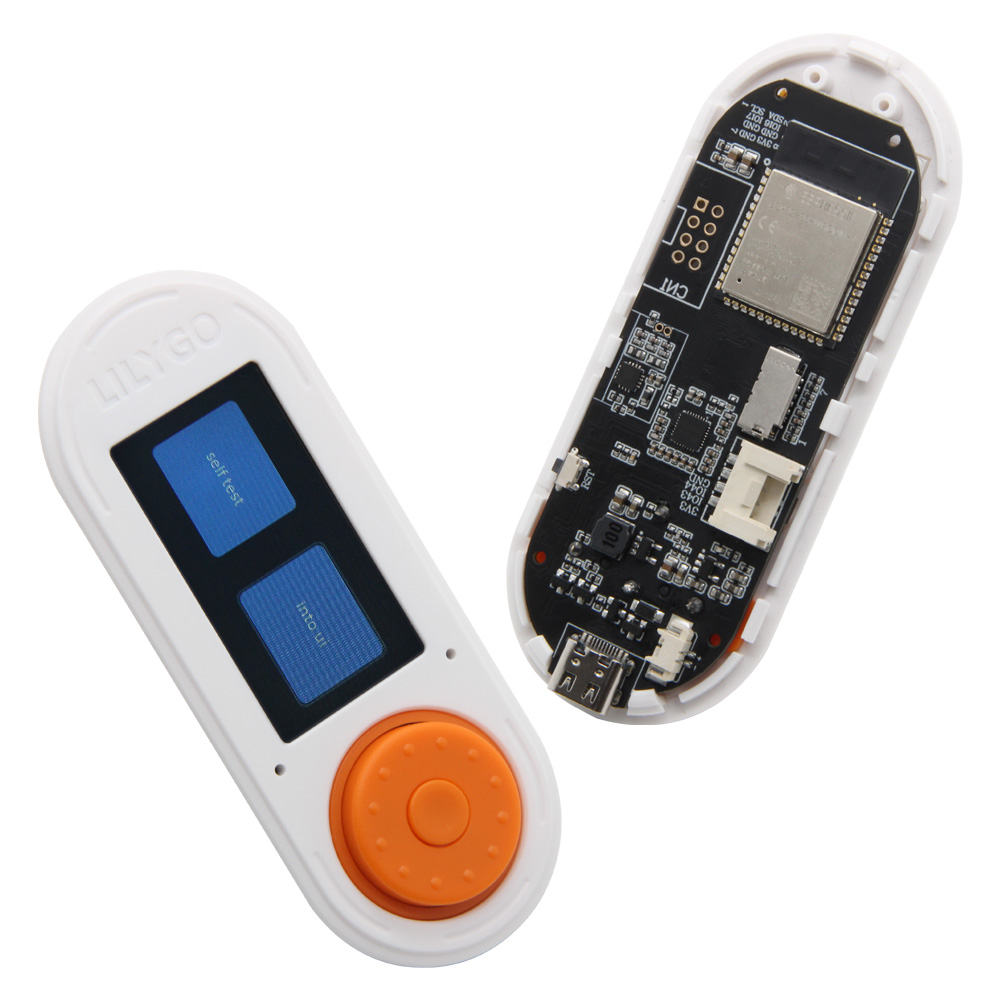

    MCU: ESP32-S3

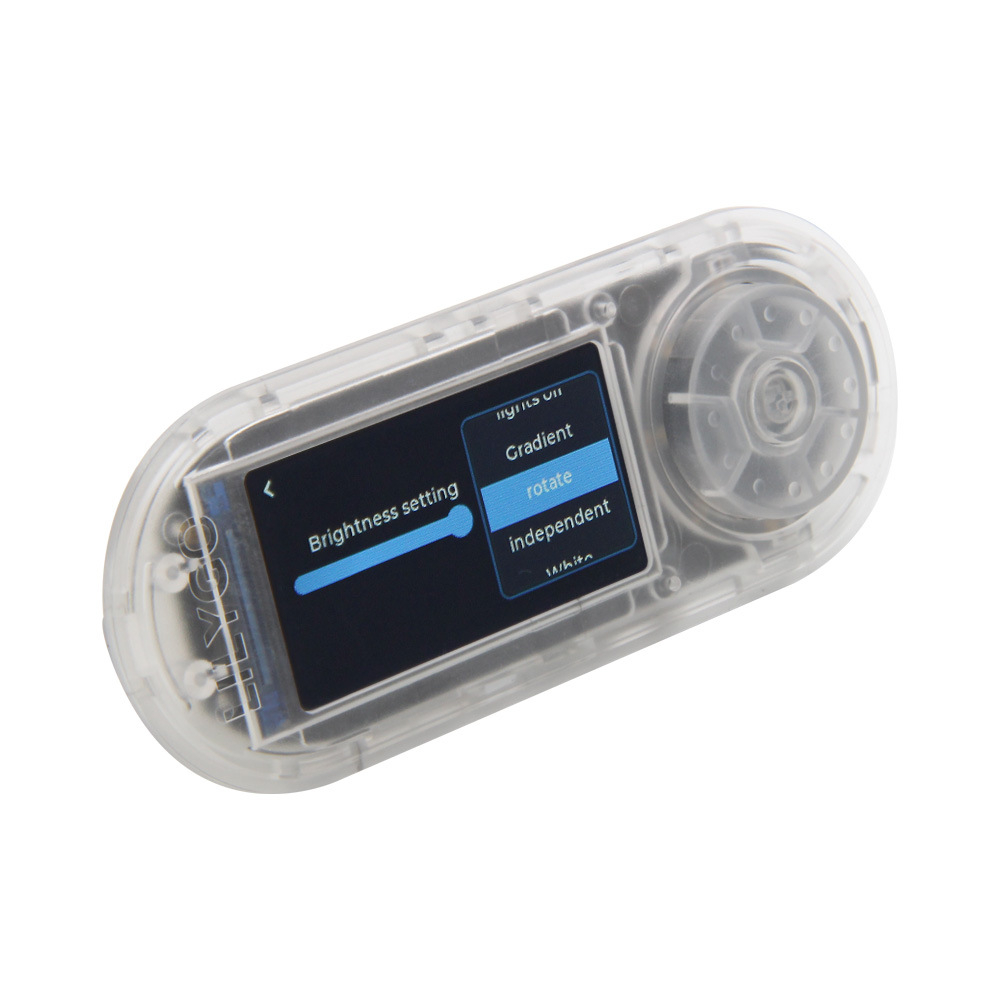

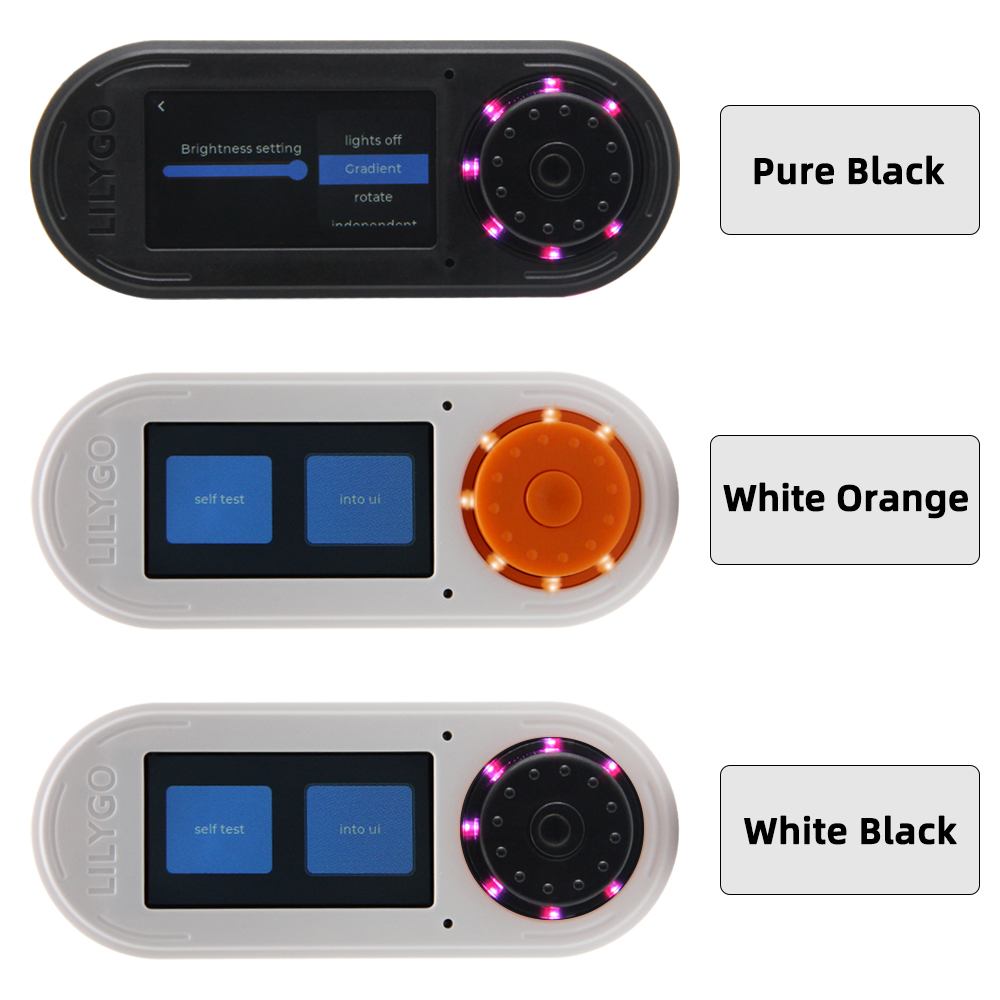

    Material: ABS+PC (optional translucent version)
    Wireless Connectivity: Wi-Fi IEEE 802.11 b/g/n; Bluetooth 5, Bluetooth Mesh
    Display: 1.9-inch IPS color TFT LCD
    Model: ST7789
    Brightness: 350 (typical) Cd/m2
    Resolution: 170(H)RGB x 320(V)
    Rotary Encoder: Integrated encoder and confirmation key with 24 detents and 12 pulses per 360° rotation
    Microphone: Dual microphones (x2)
    Speaker: 8 ohm @ 1W
    Ring RGB Lights: 7 LEDs
    Expansion Port: GROVER x 1
    Interface: 2.54 x 8-pin GPIO
    Storage: TF card holder
    Power Port: Type-C USB
    Battery Circuit: Protection for charge and discharge via 1.25mm battery interface

    Features:
    1. Integrated IoT Panel for Seamless Development: Combining an ESP32-S3 MCU, wireless connectivity, and standardized design, it allows developers to embed IoT functionality directly into their products with ease.
    2. Enhanced User Interaction via Rotary Encoder: The rotary encoder with confirmation key simplifies navigation and control with precise 24-detent feedback and 12 pulses per rotation.
    3. High-Quality Display for Clear Visuals: Equipped with a 1.9-inch IPS TFT LCD boasting a resolution of 170(H)RGB x 320(V) and typical brightness of 350Cd/m2, ensuring sharp and vivid visual outputs.
    4. Built-in Audio and Visual Components: Dual microphones, an 8-ohm speaker, and 7 RGB ring lights provide flexible options for sound and light integration, plus interactive capabilities for smart applications.
    5. Versatile Expansion and Power Interface: Features GROVER port, GPIO interface, TF card holder, and Type-C USB, all packed with robust battery protection for flexible connections and safe energy use.

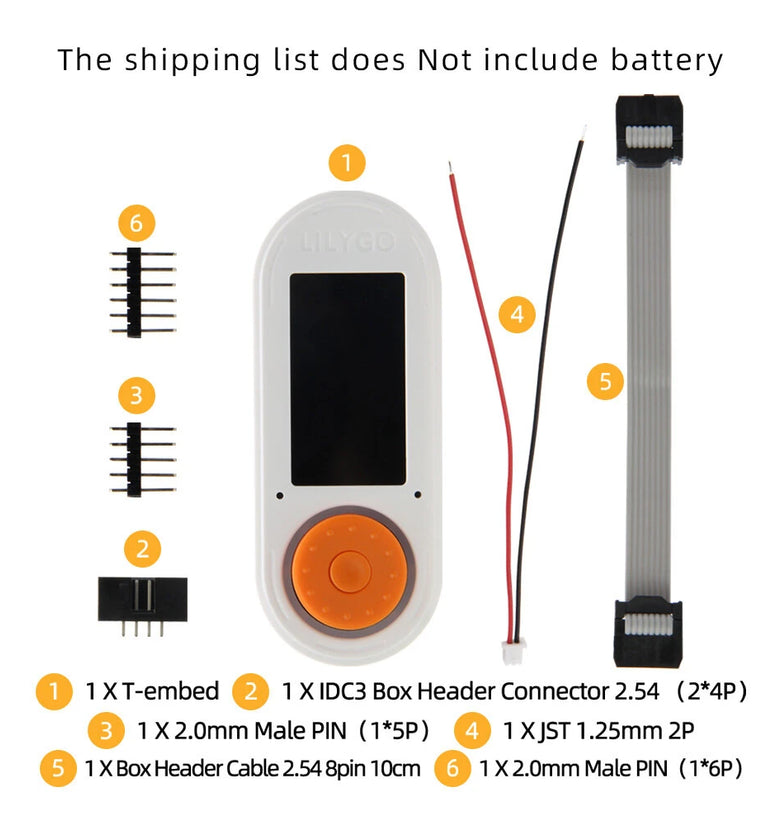

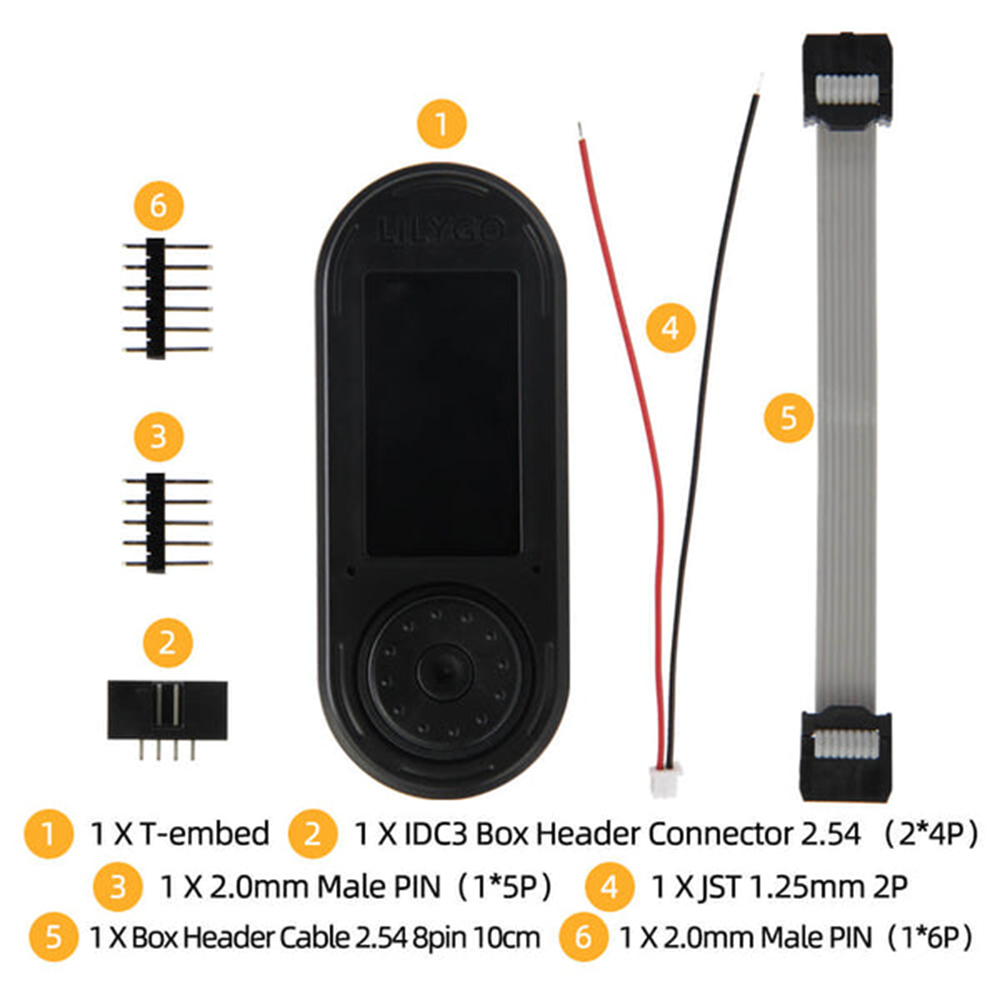

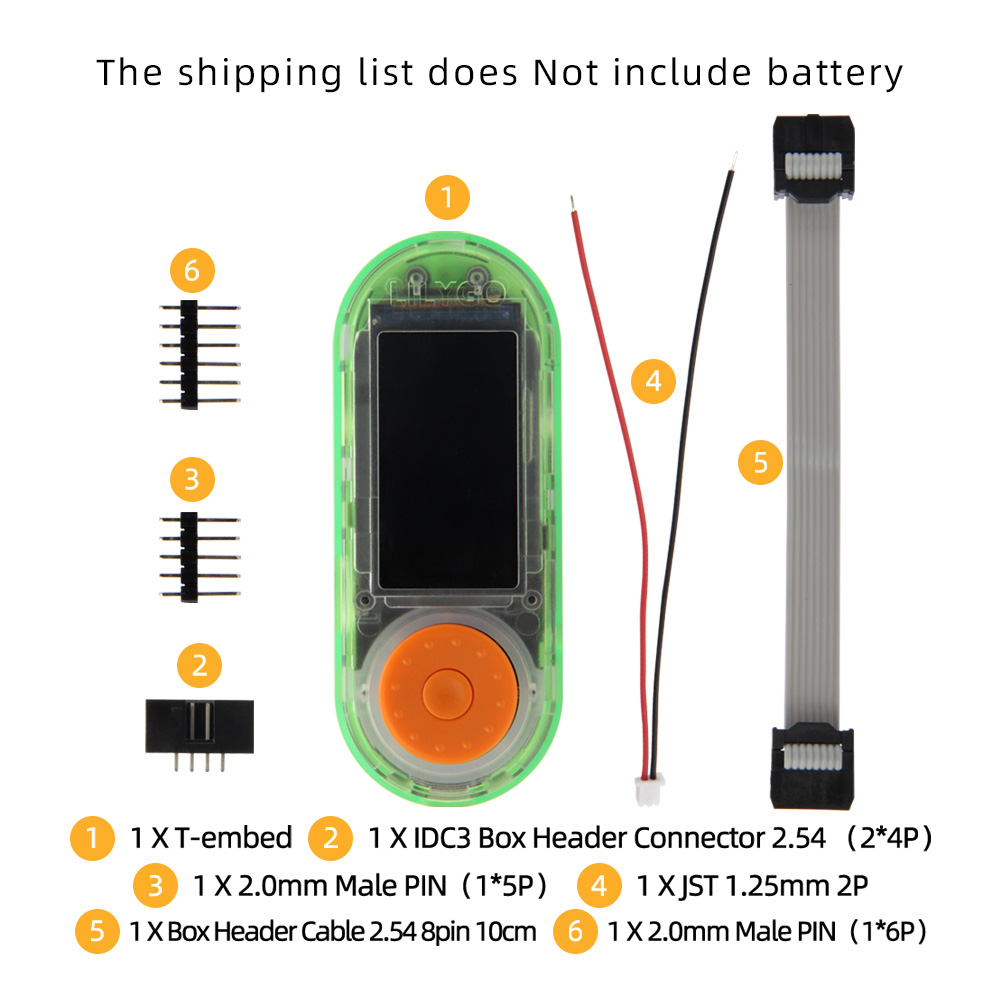

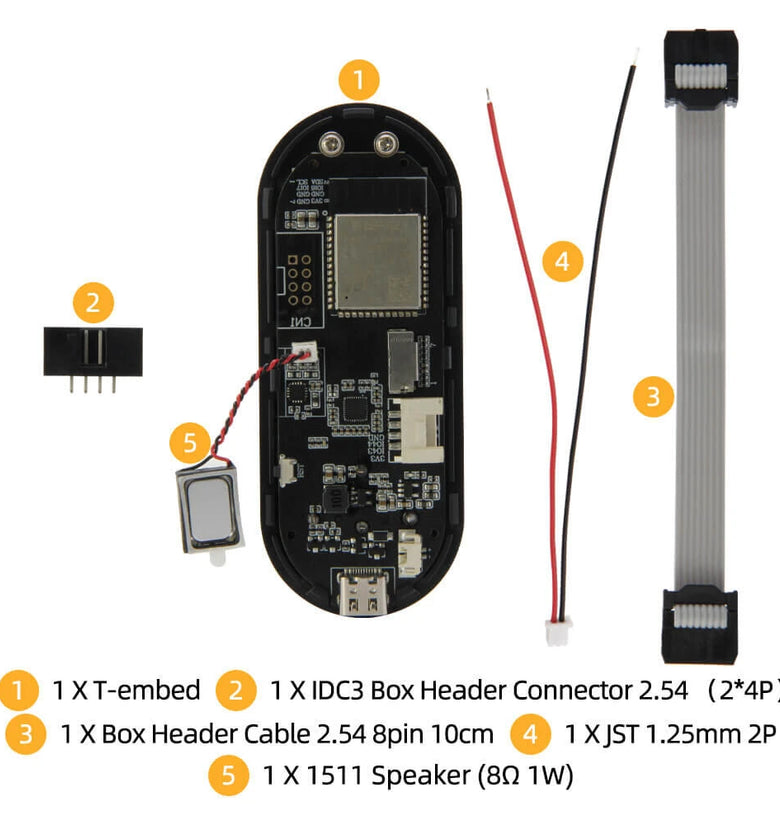

    Package Included:
    1 x Embedded IoT Panel Kit (without base shell)
    or
    1 x Embedded IoT Panel With Shell Kit

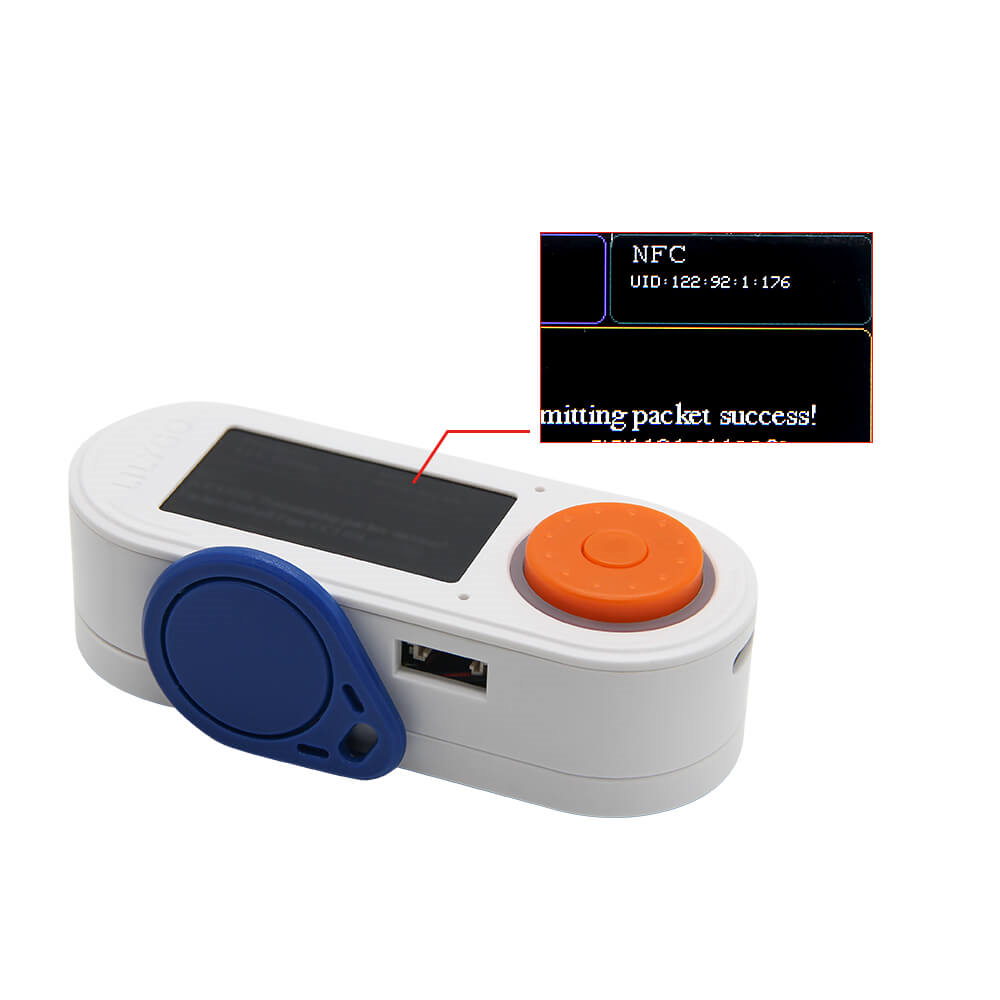

    Note: The NFC card for reference only
