Specification:
>>>github: Click/Copy here to open<<<
| Product | T-SIM7670G |
| MCU | ESP32-S3 |
| LTE&GSM | SIM7670G |
| TF Card | Support |
| ESP32-S3 | |
| Clock Speed | 240Mhz |
| Flash | 16MB |
| PSRAM | 8MB |
| Wireless Connectivity | 2.4 GHz Wi-Fi (802.11 b/g/n) Bluetooth 5 (LE) |
| Peripheral Interfaces | I2C, SPI, UART, SDIO, I2S, CAN |
| SIM7670G | |
| Form Factor | LCC+LGA |
| REGION | G:Global |
| Dimensions | 24.0*24.0*2.4mm |
| Frequency Bands | LTE-FDD: B1/B2/B3/B4/B5/B7/B8/B12/ B13/B18/B19/B20/B25/B26/B28/B66 LTE-TDD: B34/B38/B39/B40/B41 |
| Data Transfer | Download Speed:10Mbps Upload Speed: 5Mbps |
| GNSS | NA |
| Protocol | TCP/IP/IPV4/IPV6/Multi-PDP/FTP FTPS /HTTP/HTTPS/DNS/MQTT |
| Android RIL | Android 5.0/6.0/7.0/8.0/9.0 |
| USB Driver | Windows 7/8/10, Linux, Android |
| Supply Voltage | 3.4-4.2V |
| SIM Card | 1.8V/3.0V |
| Certification | FCC*/GCF*/PTCRB*/UKCA*/CE-RED*/RCM*/IC*/NCC*/ KC*/TELEC*/JATE*/ANATEL*/3C*/CTA*/SRRC*/RoHS*/ REACH* |

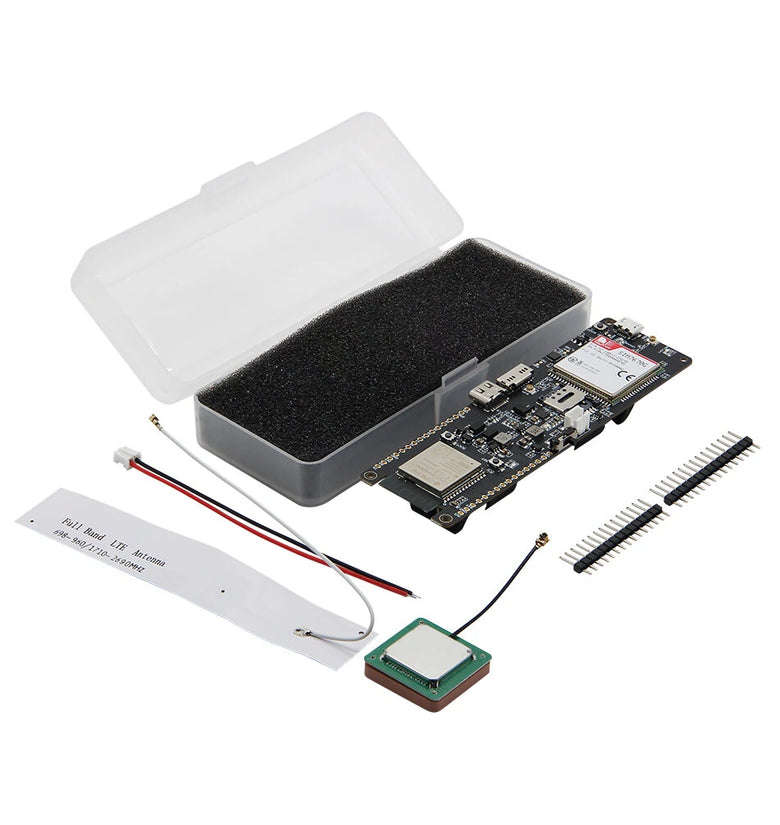

Package includes:
1 x T-SIM7670G-S31 x LTE antenna1 x battery cable1 x Global Positioning System antenna2 x 16-pin headers
