Specifications:

Input Voltage: 2.5-35V

Output Voltage: 1.25-35V

Output Current: 3A/5A (optional)

Conversion Efficiency: >90%

Output Ripple: <30mV

Switching Frequency: 150KHZ

Operating Temperature: -45°C to +85°C

Dimensions: 66 x 36 x 14mm (L x W x H)

Features:

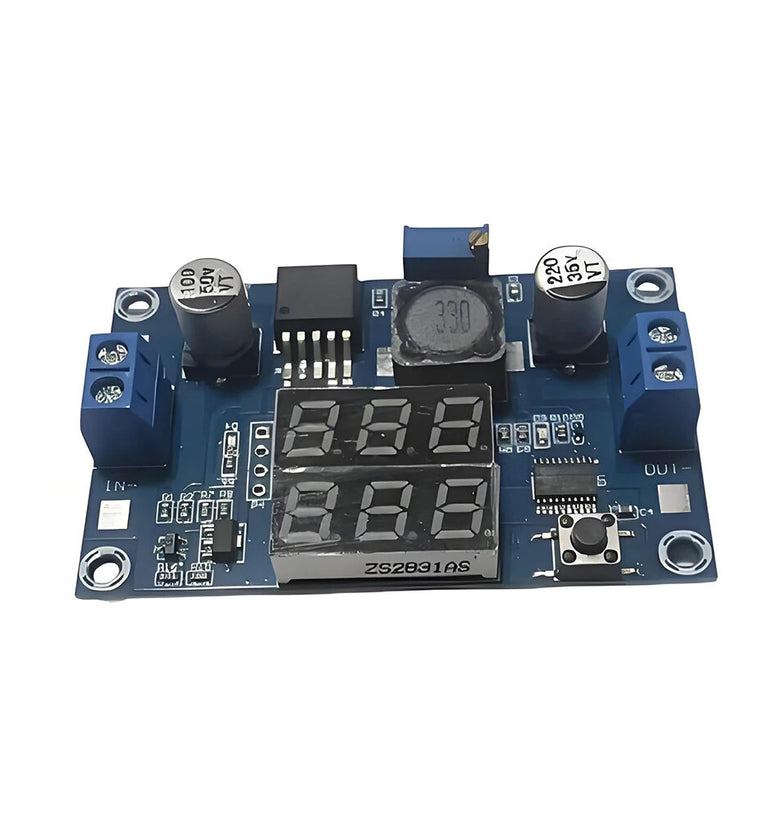

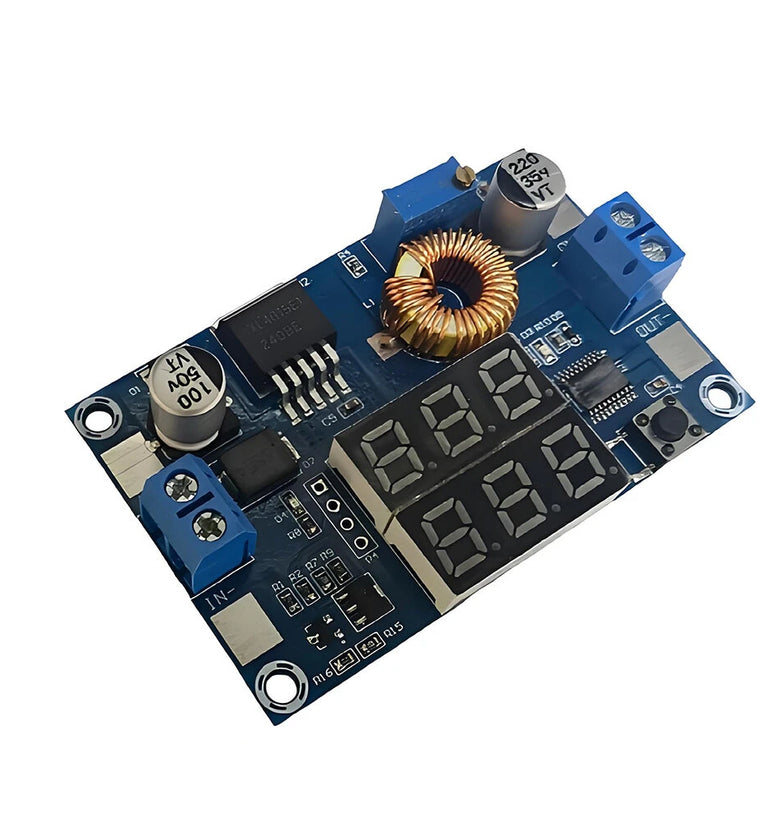

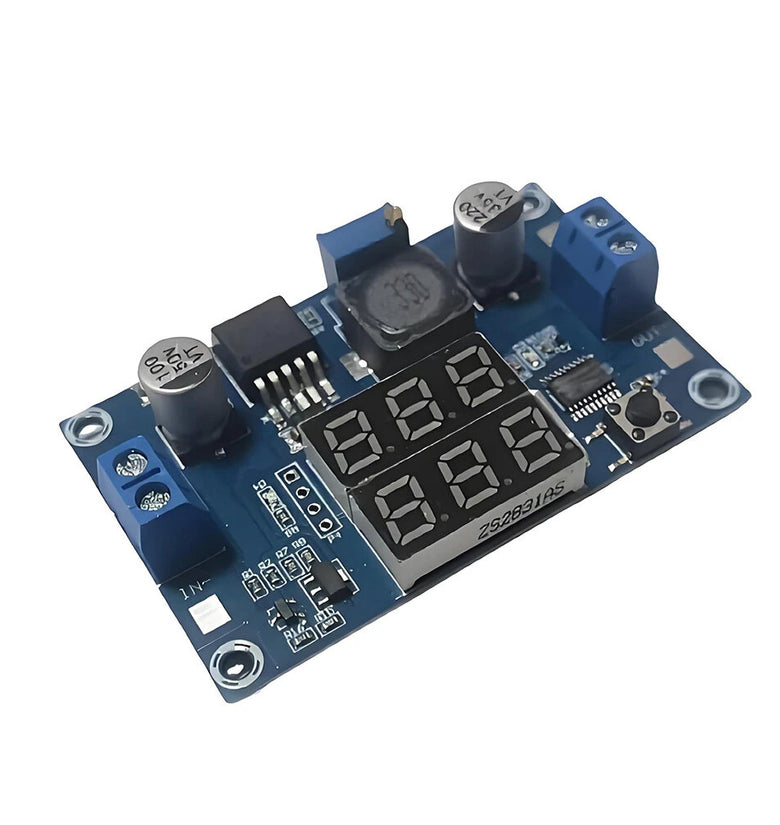

1. Dual Digital Display: The module features dual digital displays that simultaneously show the current output voltage and current. This design allows users to quickly and accurately monitor essential power supply parameters, significantly reducing the need for additional measuring instruments.

2. Easy Switching Between Measurement Modes: With a simple touch button, users can effortlessly switch between measuring input voltage and output voltage. This flexible design enables the power module to adapt to various application scenarios, fulfilling diverse testing requirements efficiently.

3. Wide Input and Output Voltage Range: Supporting an input voltage range of 2.5-35V and an output voltage of 1.25-35V, this power module can cater to numerous electronic devices and project needs, eliminating frequent power module replacements. It's a great convenience for engineers and electronics hobbyists, allowing them to focus on their projects without worrying about compatibility issues.

4. Wide Range of Applications: The adjustable voltage regulation module is suitable for a vast array of testing needs, from basic circuit exp
