Specifications:

Power Supply: TYPE-C line

Frequency Range: 10MHz-6GHz

Noise Coefficient: NF=4-5dB (refer to measured curve for specific frequencies)

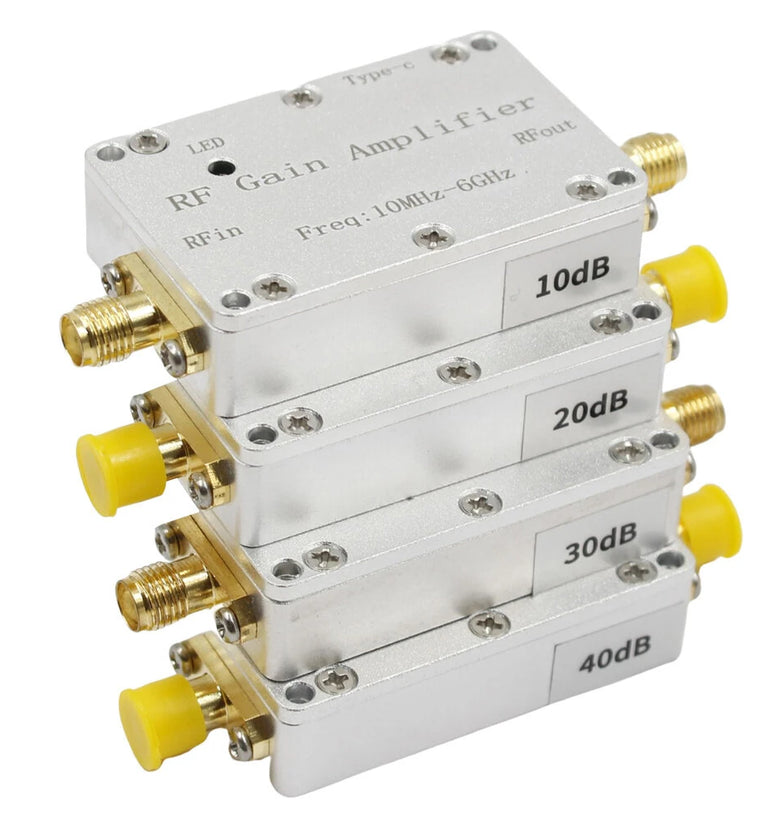

Gain: 10dB-20dB-30dB-40dB (refer to measured curve for different frequencies)

Module Dimensions: 4.5 x 3 x 1.4 cm (excluding protruding SMA)

Weight: 66g (including host and TYPE-C cable)

Current Consumption: <100mA

P1dB: 18dBm@2GHz

Output Interface: SMA female

Input-Output Impedance: 50 ohms

Features:

1.Wide Frequency Range: Spanning from 10MHz to 6GHz, this receiver amplifier is versatile and suitable for numerous applications including Beidou/Global Positioning System, FM radio, radar reception, and electromagnetic compatibility systems, providing comprehensive coverage across a wide range of frequencies.

2.Adjustable Gain: Featuring selectable gain levels of 10dB, 20dB, 30dB, and 40dB, this amplifier offers flexibility in signal strength adjustment. Users can tweak the gain according to their requirements, ensuring optimal reception and performance for various applications.

3.Low Noise Performance: With a noise figure of 4-5dB, this amplifier ensures clear and high-quality signal amplification. The low noise characteristic is critical for maintaining the integrity of the received signals, making it ideal for sensitive applications such as software radio receivers and intermediate frequency signal amplif
