Specifications:
| Specification | Parameter |
| SoC | ESP32-C6FH4@RISC-V single-core, main frequency 160MHz, supports CDC |
| Flash | 4MB |
| Wi-Fi | 2.4 GHz Wi-Fi 6 (802.11ax), backward compatible with 802.11b/g/n |
| Zigbee3.0 | Zigbee3.0 |
| Thread | Thread 1.3 |
| Matter | Supported |
| RGB | WS2812 |
| IR Remote Parameters | IR transmission distance at ∠0°: 632CM |
| IR transmission distance at ∠45°: 83CM | |
| IR transmission distance at ∠90°: 29CM | |
| Grove Maximum Output Current | DC 5V@600mA (Output capability depends on USB power supply capacity) |
| Standby Current (Deep Sleep Mode) | USB Type-C power supply: DC 5V@125.5uA |
| Grove power supply: DC 5V@50uA | |
| Standby Current (ULP Mode) | USB Type-C power supply: DC 5V@252uA |
| Grove power supply: DC 5V@201.5uA | |
| Operating Current | In Wi-Fi mode: DC 5V@106.2mA |
| Wi-Fi Range Test (Antenna facing up, back facing the test) | 54.9m |
| Operating Temperature | 0 ~ 40°C |

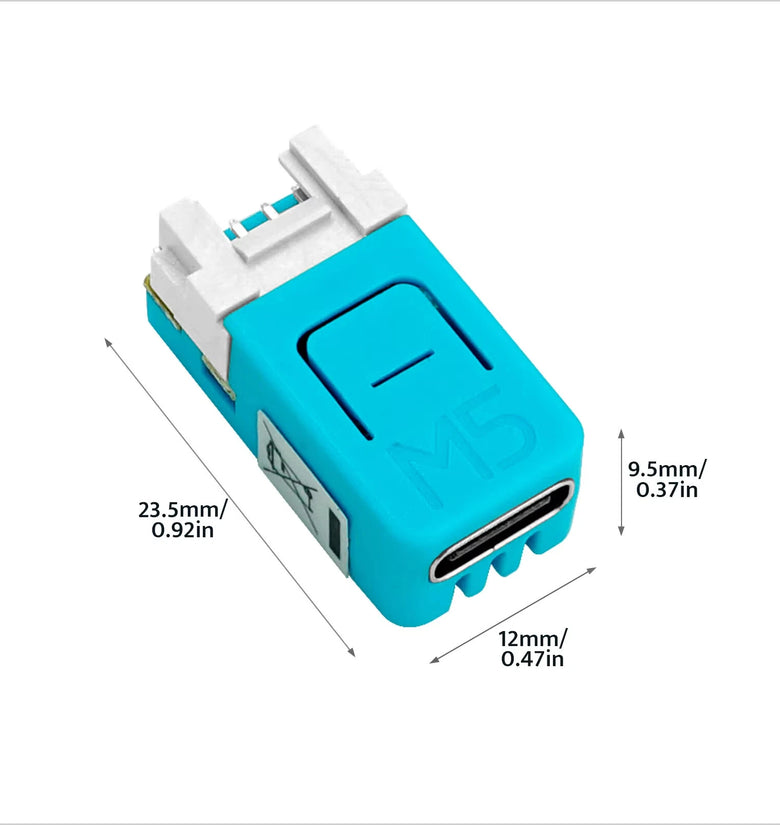

| Product Size | 23.5 x 12.0 x 9.5mm |

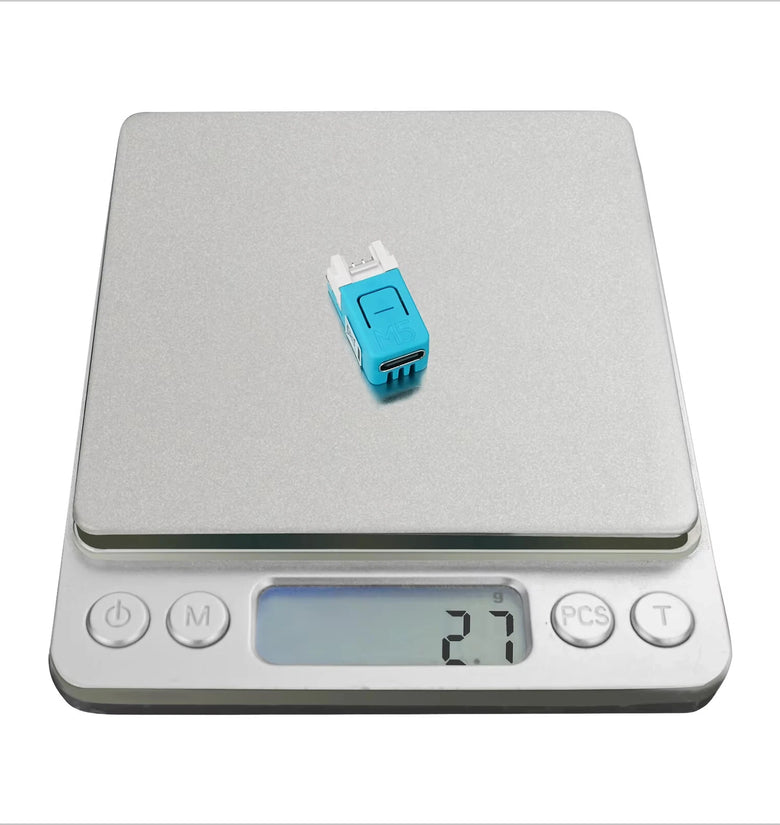

| Product Weight | 2.7g |

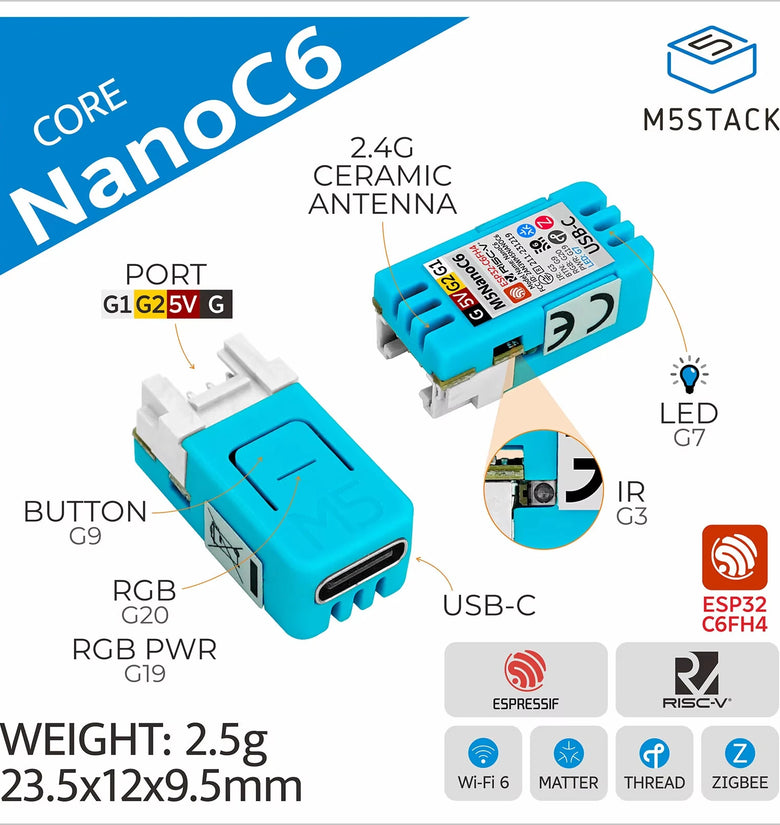

Introduction:NanoC6 is a micro and low-power IoT development board in the M5Stack development kit series. It is equipped with an ESP32-C6FH4 SoC, supporting wireless communication technologies such as Wi-Fi 6 and ZigBee3, and features a built-in infrared transmitter for convenient control of infrared IoT devices. The onboard ceramic antenna ensures a stable wireless communication connection.Additionally, the device is equipped with programmable RGB LEDs, allowing for personalized visual effects in projects. The inclusion of a Grove interface enables flexible expansion with various M5 devices (customizable to connect different types of devices, such as those following UART/I2C communication protocols), providing developers with rich hardware expansion possibilities.This development board is suitable for smart homes, industrial automation, health monitoring, and IoT devices, offering a comprehensive development solution for innovative projects.
WiFi 6:M5NanoC6 is the first core control board to support WiFi 6, supporting the 2.4 GHz Wi-Fi 6 protocol (802.11ax) and backward compatibility with 802.11 b/g/n.WiFi 6 offers higher speeds, greater capacity, lower latency, and enhanced security compared to previous WiFi protocols.
Features:
1. Advanced Connectivity: Integrates Wi-Fi 6, Zigbees3.0, Thread 1.3, and Matter for versatile communication.

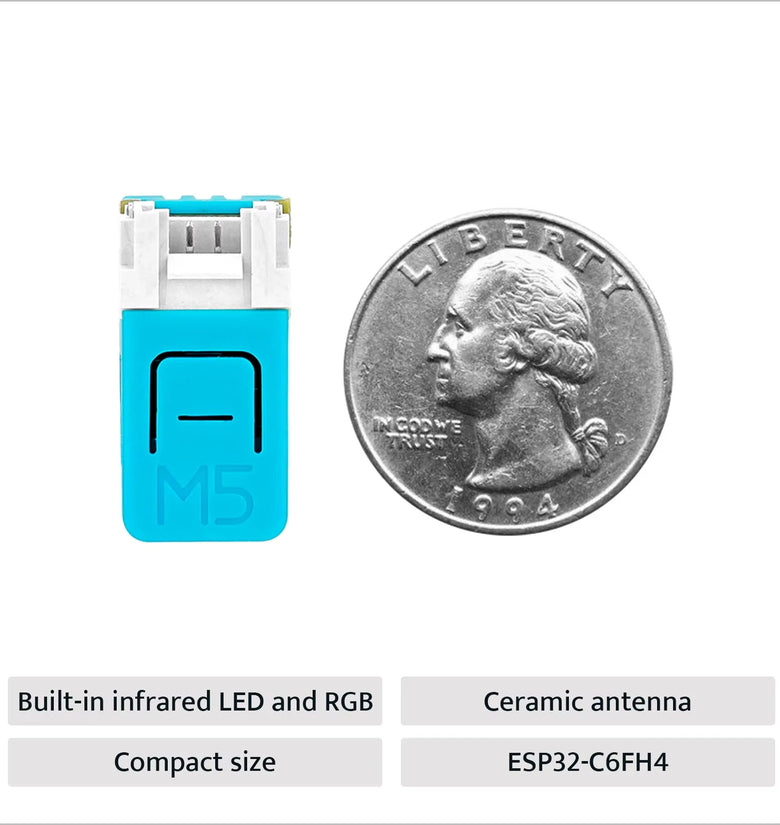

2. Compact Design: Ultra-slim size of 23.5 x 12.0 x 9.5mm fits easily in tight spaces.
3. LED Capability: Features WS2812 RGB to enable colorful and dynamic lighting effects.
4. Efficient Power Support: Operates smoothly under DC 5V@600mA, suitable for varied applications.
5. Lightweight Build: Weighs only 2.7g, enabling hassle-free portability for developers and prototypes.
Package Included:
1 x NanoC6
