SoC: ESP32-P4NRW32 (RISC-V 32-bit high-performance dual-core processor @ 360 MHz + RISC-V 32-bit low-power single-core coprocessor @ 40 MHz)

Flash: 16MB

PSRAM: 32MB

Power Input: DC 5V (USB Type-C) / PoE

Ethernet Controller: IP101GRI

Ethernet Speed: 10/100M adaptive

Ethernet Interface: RJ45

PoE Standard: Compliant with IEEE 802.3at

PoE Power: Maximum power 6W

Display Interface: 24P FPC MIPI DSI 2-Lane + TP + BL

Display Resolution: MIPI DSI display supports up to 1920x1080 (limited by lane count and frame rate)

Camera Interface: 24P FPC MIPI CSI 2-Lane

USB Type-C: 1x USB Type-C Host interface (USB 2.0); 1x USB Type-C firmware download / OTG interface (USB 2.0)

Power Consumption: Operating current: 5V @ 73.82mA; Infrared transmission: 3.3V @ 23.57mA (instantaneous); RGB: 5V @ 75.32mA; Full load (display, camera, IR, RGB, etc.): 277.10mA; Deep sleep: 5V @ 19.85mA

RGB LED: 1 x NH-B2020RGBA-HF

Infrared Transmitter: 1 x MHS153IRCT

Operating Temperature: 0 ~ 40°C

Product Size: 64.0 x 24.0 x 20.2mm

Product Weight: 28.2g

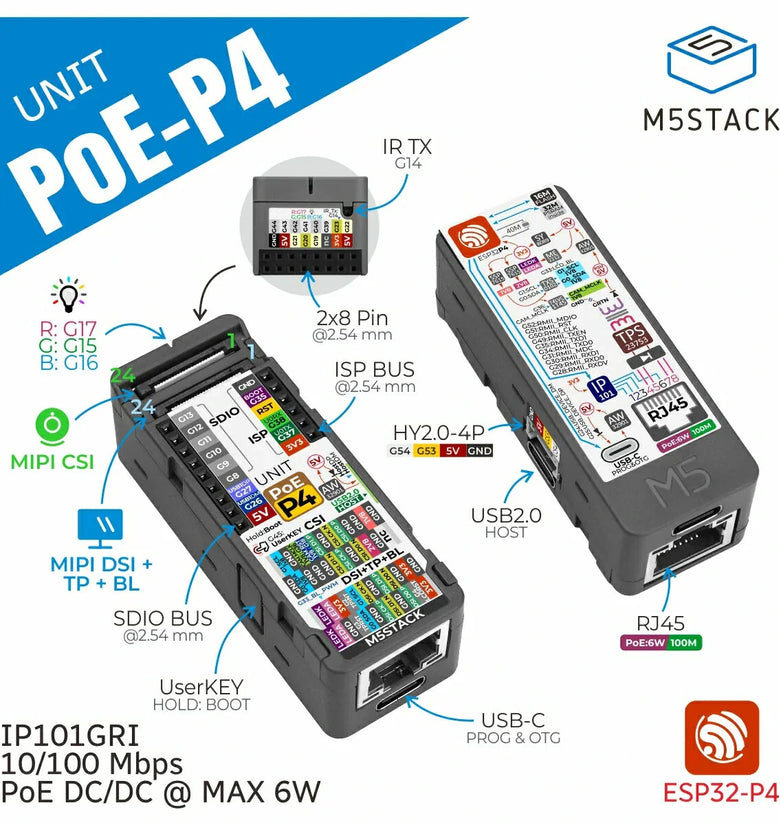

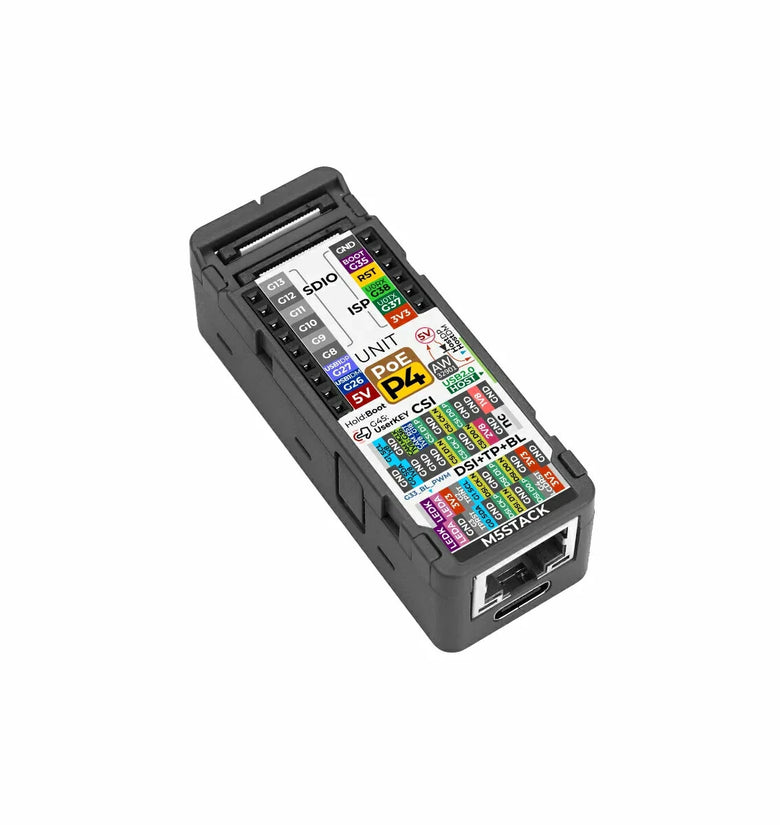

Introduction:Unit PoE‑P4 is a high‑performance PoE Ethernet embedded controller powered by the ESP32‑P4 SoC (RISC‑V 32‑bit dual‑core @ 360MHz + LP single‑core @ 40MHz). It integrates 16MB Flash and 32MB PSRAM, and features the built‑in IP101GRI Ethernet PHY supporting 10/100 Mbps communication. The device also supports PoE power delivery with a maximum output of 6W, and includes an onboard DC‑DC converter to supply system power, greatly simplifying power wiring in practical applications.It is equipped with a 24P FPC display expansion interface (MIPI DSI + TP + BL) and a 24P FPC camera interface (MIPI CSI), supporting high‑resolution display output and image capture. For peripheral expansion, it provides one USB Type‑C Host (USB 2.0) port for connecting U disks, HID devices, and other peripherals, plus one USB Type‑C (USB 2.0) port supporting OTG and firmware download for debugging. In addition, it features a Hat expansion interface, SDIO & ISP IO expansion interfaces, and a Grove interface, enabling flexible connection to a wide range of sensors and peripherals.The device also integrates an RGB indicator LED, an infrared transmitter circuit, and a user button to support status indication, local interaction, and infrared signal transmission. It is ideal for applications such as industrial HMI, PoE smart terminals, vision acquisition nodes, smart home controllers, and edge computing devices.

1. Powered by the ESP32-P4NRW32 with a RISC-V 32-bit dual-core processor at 360 MHz and a low-power single-core coprocessor at 40 MHz, plus 16MB Flash and 32MB PSRAM.

2. Supports PoE power supply and 10/100M adaptive Ethernet through the integrated IP101GRI PHY, enabling power delivery and data communication over a single Ethernet cable.

3. Equipped with a 24P FPC MIPI DSI 2-Lane display interface with TP + BL, supporting display output up to 1920x1080.

4. Includes a 24P FPC MIPI CSI 2-Lane camera interface, suitable for image capture applications.

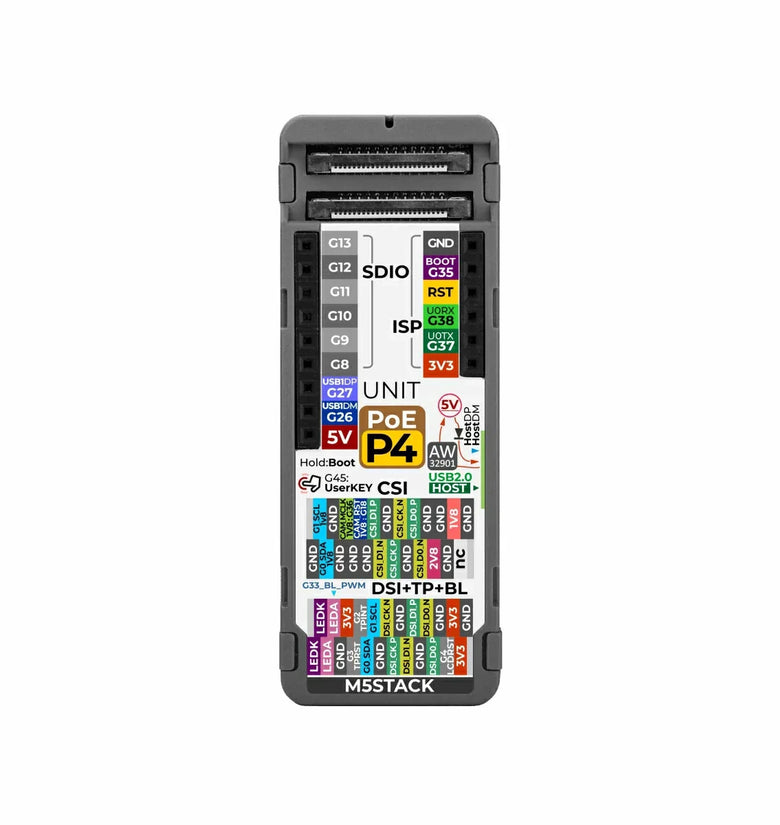

5. Offers rich connectivity with 1 x USB Type-C Host, 1 x USB Type-C firmware download / OTG, HY2.0-4P, Hat2-Bus 2.54-16P, SDIO-Bus 2.56-9P, and ISP-Bus 2.56-6P.

1 x Unit PoE-P4

1 x HY2.0-4P Grove Cable (20cm)
