Description:
ER11/ER16/ER20/ER25/ER32/ER40 Metric Spring Collet Chuck for CNC Milling Lathe Tools
Specifications:
Type |
Spring Collet Chuck |
Model |
ER11/ER16/ER20/ER25/ER32/ER40 |
Material |
Steel |
Quantity |
ER11-13pcs, ER16-10pcs, ER20-13pcs, ER25-16pcs, ER32-20pcs, ER40- 24pcs |
| Model | Quantity | Size |
| ER11 |
13pcs | 1/1.5/2/2.5/3/3.5/4/4.5/5/5.5/6/6.5/7mm |
| ER16 | 10pcs | 1/2/3/4/5/6/7/8/9/10mm |
| ER20 | 13pcs |
1/2/3/4/5/6/7/8/9/10/11/12/13mm |
| ER25 | 16pcs | 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16mm |
| ER32 | 20pcs | 1/2/3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20mm |
| ER40 | 24pcs |
3/4/5/6/7/8/9/10/11/12/13/14/15/16/17/18/19/20/21/22/23/24/25/26mm |
Features:

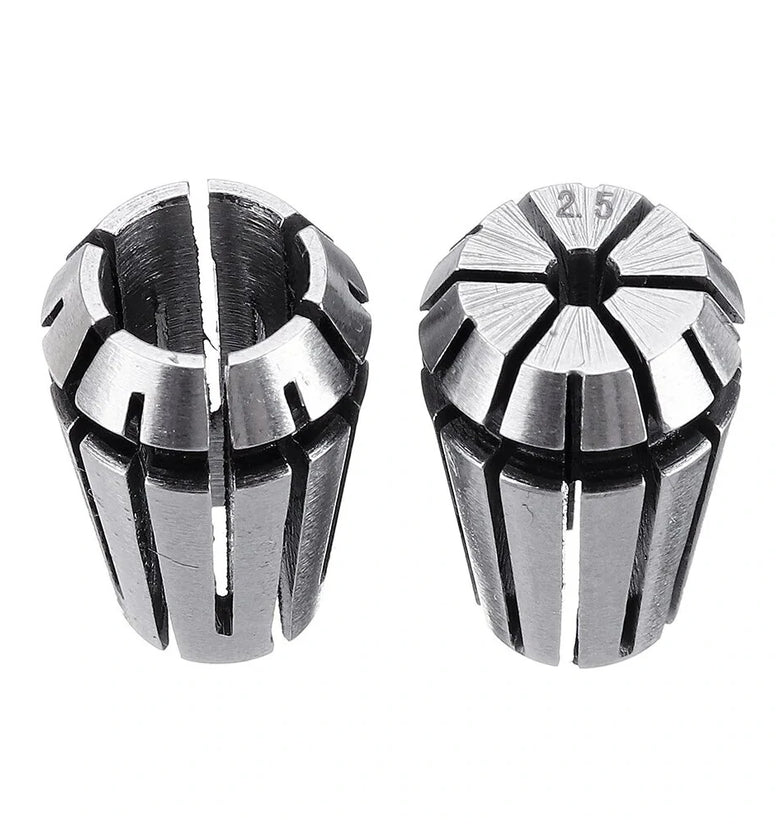

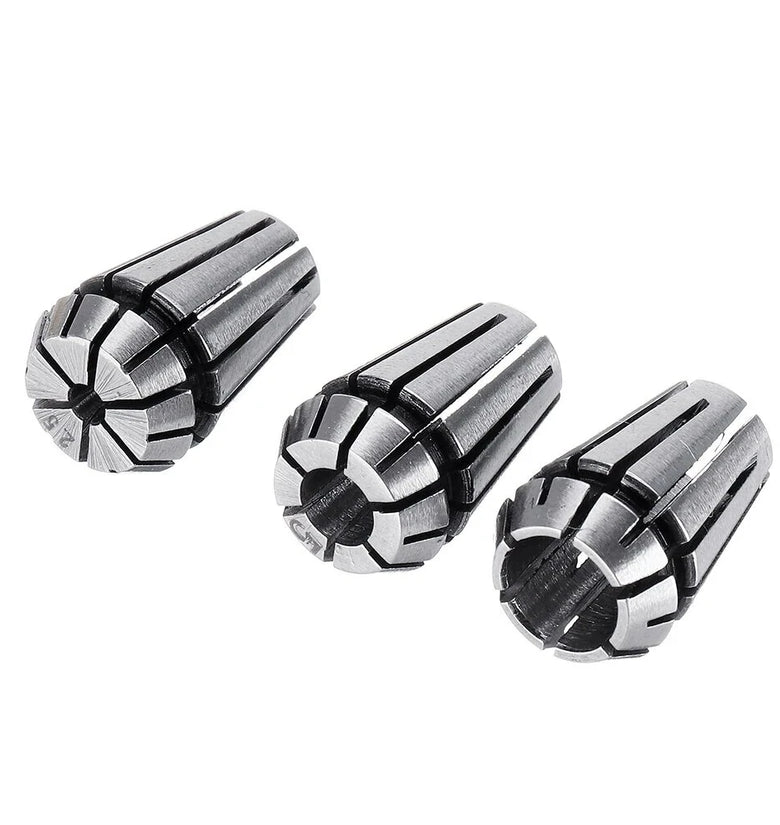

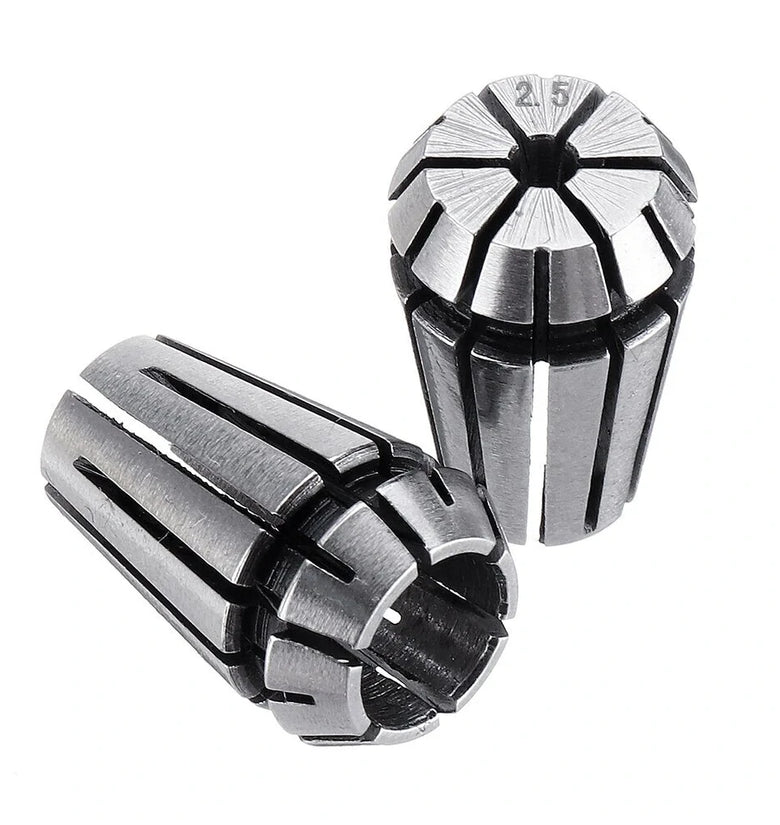

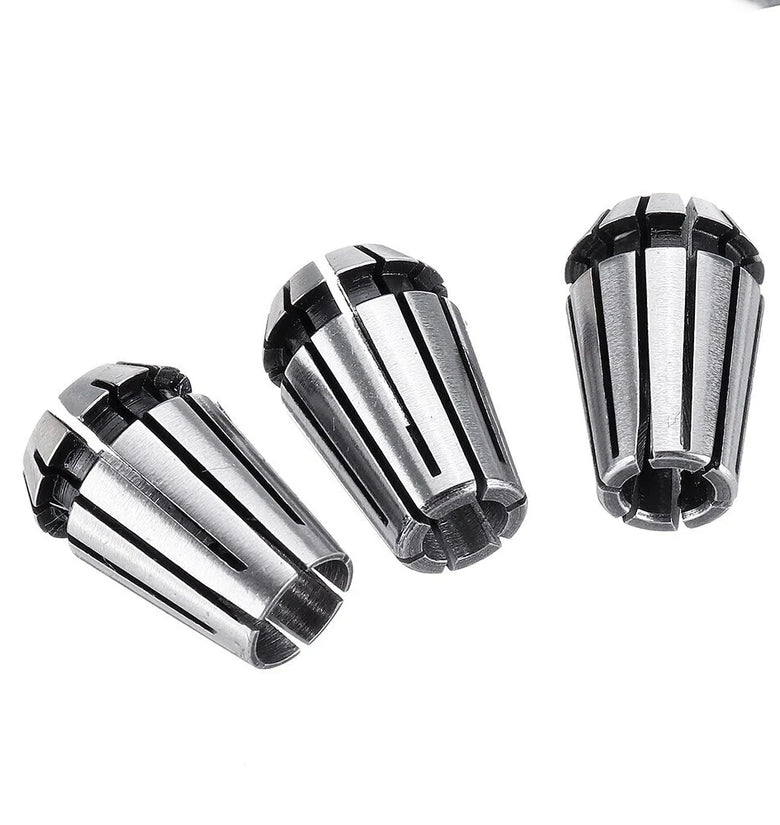

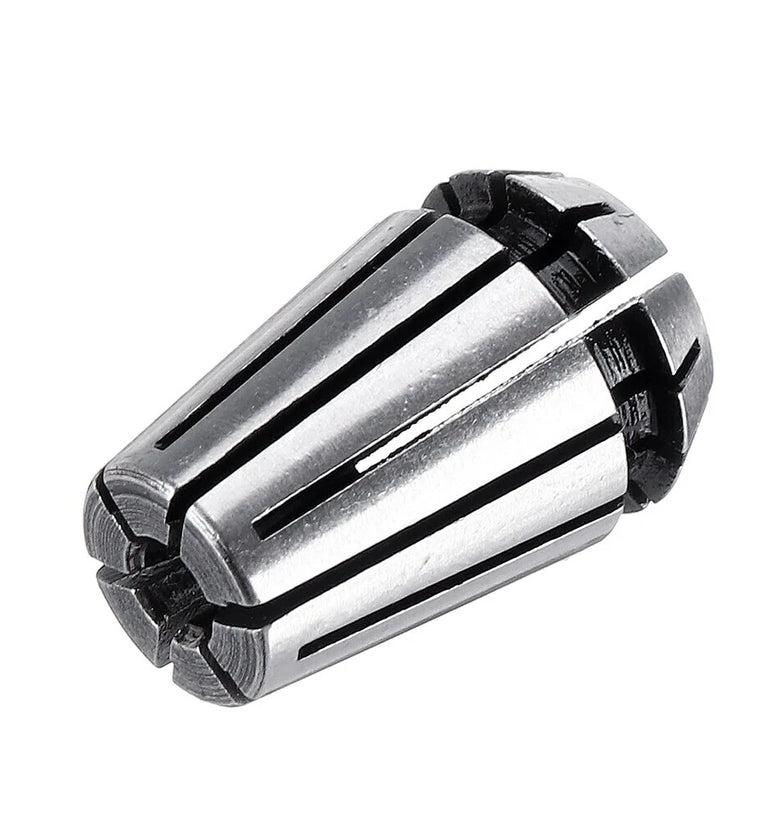

【ER Collet Chuck】It is a cylindrical fixture used to confine drilling and tapping tools or milling tools on the spindle of a drilling, tapping, milling machine or machining center. It can also be used to fix and reinforce the parts that need to be modified.
【Pratical & Practical】ER spring chuck has large clamping force, wide clamping range and good accuracy. Special angled slots increase rigidity. Protects tool holder from contaminants.
【Wide Application】Suitable for boring, milling, drilling, tapping, engraving, CNC, spindle machines, and other processing.
Package Included:(optional)
ER11 |
X 13 |
ER16 |
X 10 |
ER20 |
X 13 |
ER25 |
X 16 |
ER32 |
X 20 |
ER40 |
X 24 |
Note:
Please know that different model have different quantity, and you could choose the model according to your requirement.
Imperial ER11 ER16 ER20 ER25 ER32 Collet Chuck ID: 1885466
