Descriptions:

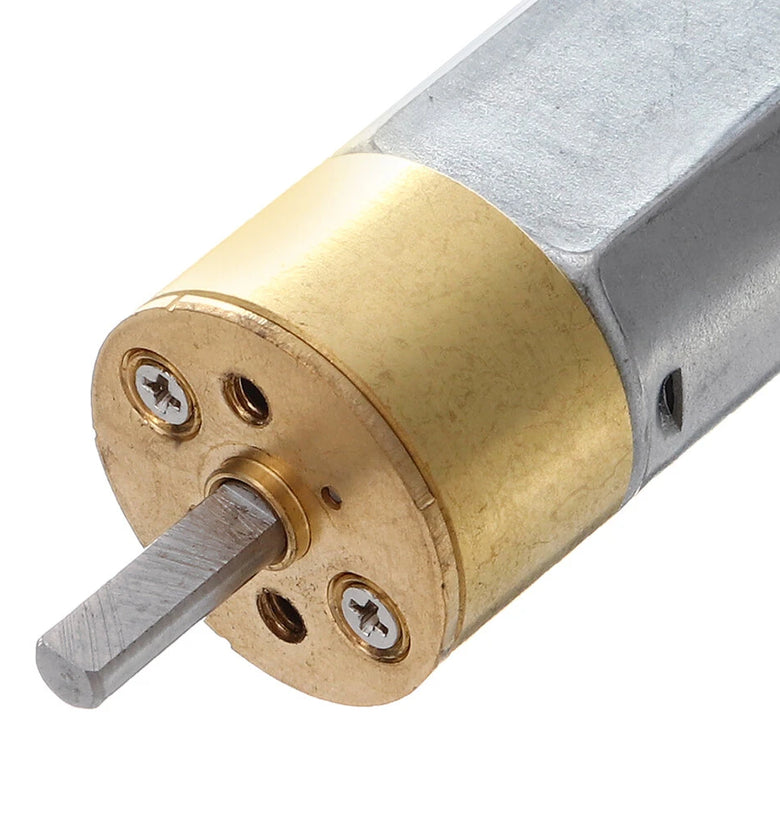

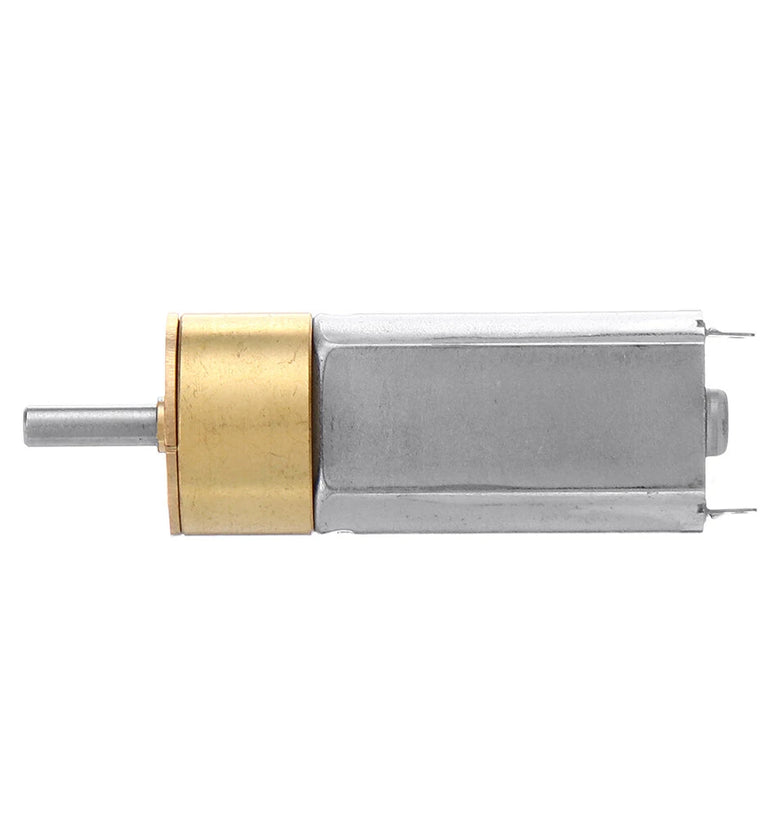

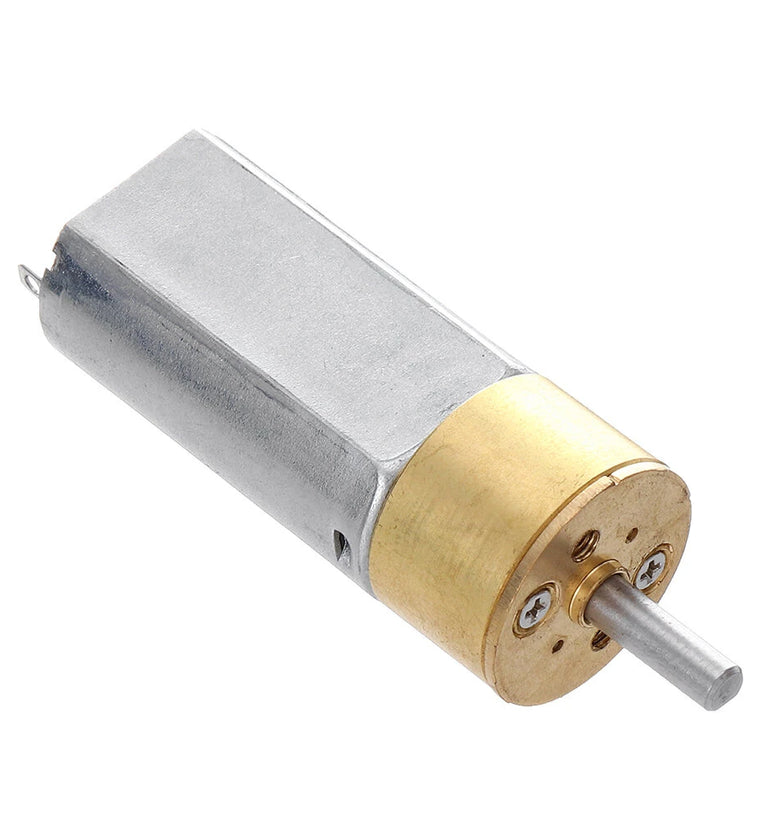

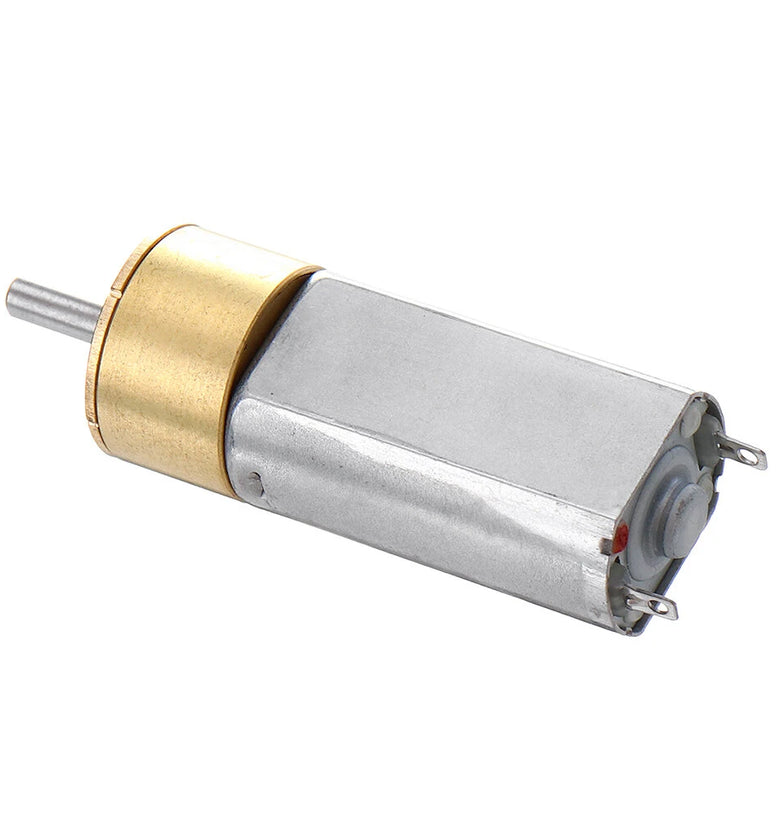

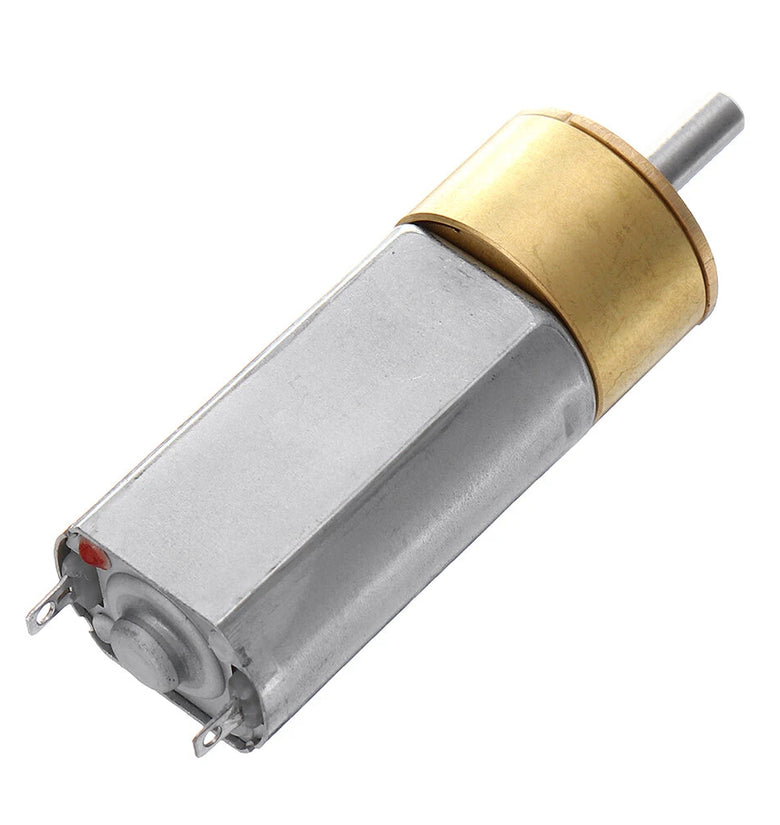

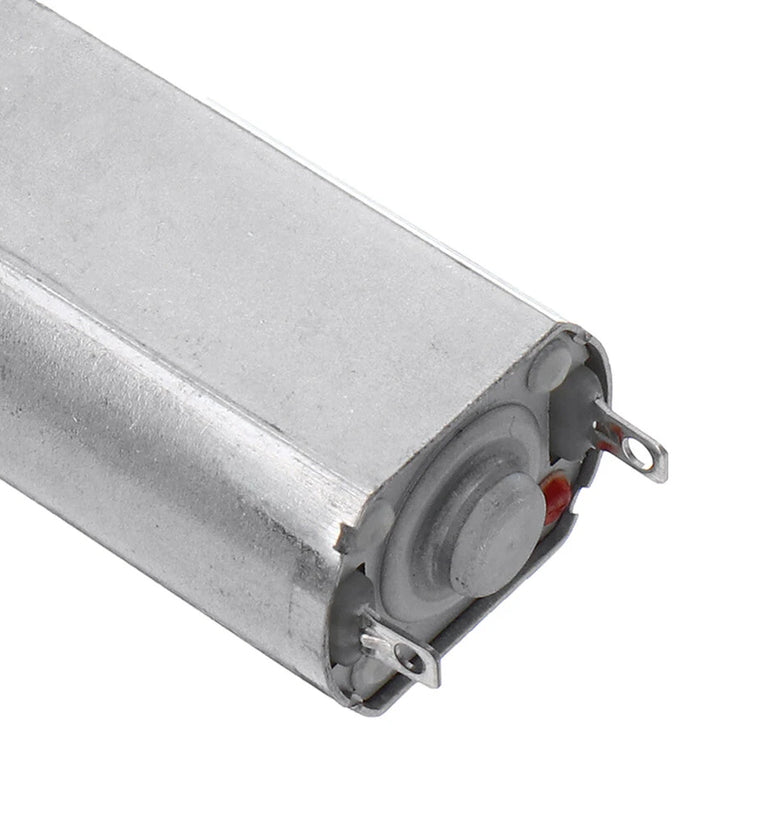

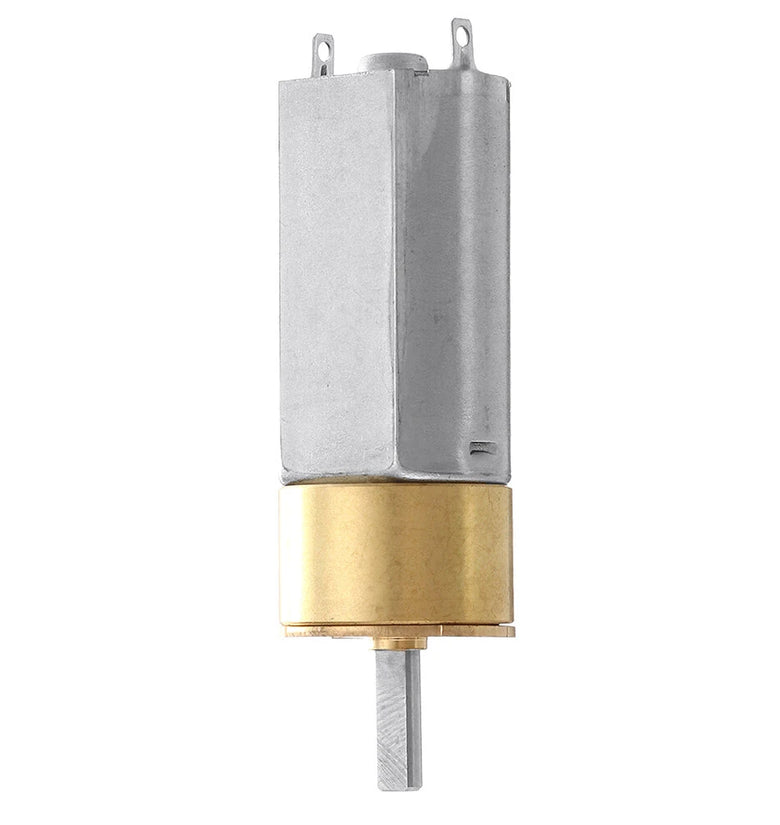

Machifit DC 12V 30-800rpm 16GA050 Reduction Gear Motor For Smart Door Locks Meters Security Cameras
Specifications:
| Product Name | Reduction Gear Motor |
| Model Number | 16GA050 |
| Material | 304 Stainless Steel |
| Color | Silver |
| Rated Voltage | DC 12V |
| Size | 16mm×16mm×40mm |
| Total Length | 47mm |
| Body Length | 40mm |
| Shaft Length | 10mm |
| Shaft Diameter | 3mm |
| Quantity | 1 Pc x Reduction Gear Motor |
| Voltage | Gear Ratio | No Land Speed | No Land Current | Load Torque Speed | Load Torque Current | Load Torque Torque | Stall Current | Stall Torque |
| 12V | 1:330 | 30RPM | ≤50MA | 27RPM | ≤70MA | 560g.cm | ≤1.1A | 7.4KG.CM |
| 12V |
1:150 |
60RPM | ≤70MA |
56RPM | ≤100MA | 480g.cm | ≤1.1A |
6.4KG.CM |
| 12V |
1:100 |
100RPM | ≤50MA |
83RPM | ≤85MA |
340g.cm | ≤1.1A |
5.0KG.CM |
| 12V |
1:80 |
150RPM | ≤50MA |
132RPM | ≤85MA |
320g.cm | ≤1.1A |
5.2KG.CM |
| 12V |
1:62.5 |
200RPM | ≤80MA |
165RPM | ≤105MA |
280g.cm | ≤1.1A |
4.65KG.CM |
| 12V |
1:40 |
300RPM | ≤50MA |
234RPM | ≤85MA |
210g.cm | ≤1.1A |
4.4KG.CM |
| 12V |
1:30 |
400RPM | ≤70MA |
322RPM | ≤145MA |
180g.cm | ≤1.1A |
3.85KG.CM |
| 12V |
1:24 |
500RPM | ≤90MA |
416RPM | ≤145MA |
165g.cm | ≤1.1A |
3.6KG.CM |
| 12V |
1:20 |
600RPM | ≤90MA |
505RPM | ≤145MA |
160g.cm | ≤1.1A |
3.6KG.CM |
| 12V |
1:16 |
800RPM | ≤90MA |
688RPM | ≤145MA |
145g.cm | ≤1.1A |
3.4KG.CM |
Features:
- It can be used in door locks, meters, security cameras, micro robots, medical equipment, etc.
- It has the characteristics of high efficiency, low noise, good sensitivity and long life.
- Equipped with a precision gear reducer, it can be called the preferred actuator in various automatic adjustment, drive and control servo systems.
- Stable operation, small speed fluctuation.
- It has outstanding energy saving, control and drag characteristics.
Package Included:
1/3/5/10 (optional) x Reduction Gear Motor
