Specifications:

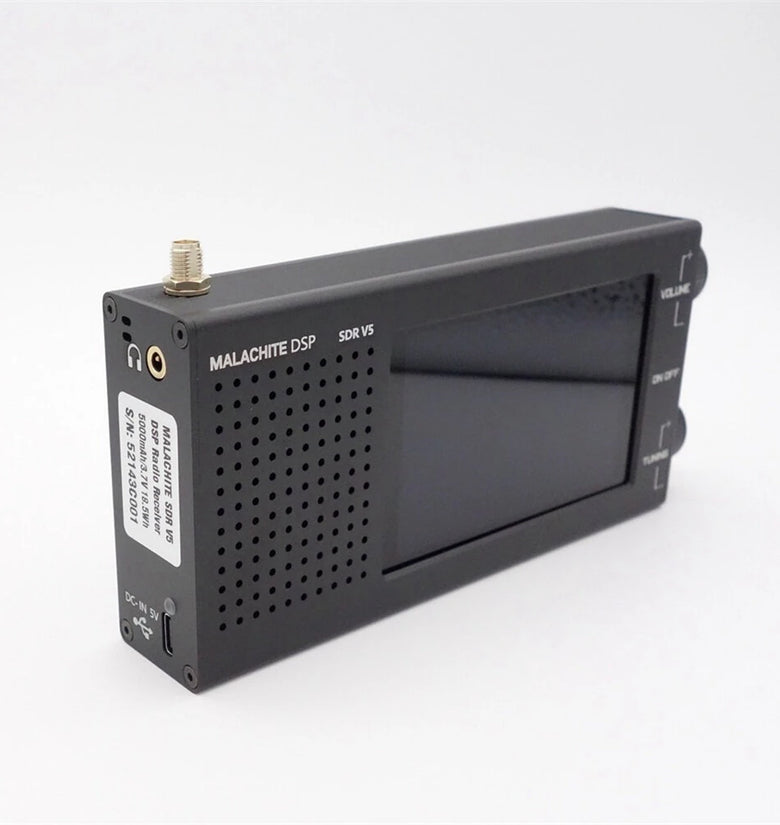

Model: Malachite DSP SDR Receiver V5

Frequency Range: 10kHz ~ 250MHz, 400MHz ~ 2GHz

Spectrum Width: 160kHz, 80kHz, 40kHz

Modulation Types: AM, SSB, DSB, CW, NFM, WFM (Stereo RDSs)

Sensitivity: 0.3uV up to 1GHz

Dynamic Range: 82 dB

Antenna Interface: Single SMA gold-plated female connector, supports 50ohm and high impedance modes, with built-in RF preamplifier and 0-30dB programmable RF attenuator

Battery Capacity: Built-in 3.7V 5000mAh lithium battery, up to 12 hours use per charge

DSP Software Functions: Variable filter width, adaptive noise reduction (NR), noise blanker (NB), automatic gain control (AGC), automatic notch filter (ANF), RDSs FM stereo support, analog stereo, equalizer

Hardware Features: 480MHz STM32H743 ARM CPU, MSi001 multi-band multi-mode tuner, 3.5-inch 480x320 LCD screen, capacitive touchscreen, two mechanical encoders

PC Connectivity: USB port for CAT, IQ, and audio data transmission

CNC Aluminum Housing: Anodized surface treatment

Dimensions: 162 x 74 x 29mm (L x W x H)

Weight: 350 grams

Features:

1.Enhanced DSP Capabilities: The Malachite DSP V5 comes with advanced digital signal processing (DSP) capabilities including variable filter width, adaptive noise reduction, and automatic gain control, ensuring crisp and clear reception. The built-in software features like noi
