Specifications:
MHP50-A5 (AL50 Hot Plate)
Mode: MHP50

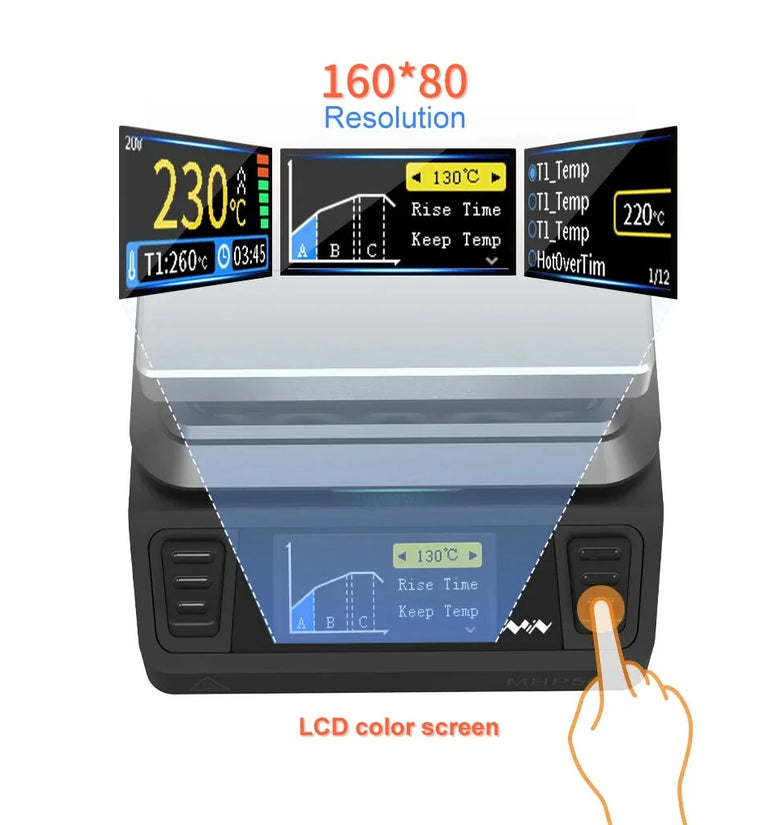

Screen: Color LCD (160×80 resolution)
Heating Area: 50 mm × 50 mm
Temperature Range: 100–350°C
Temperature Stability: ±3%
Power Interface: USB Type-C, DC 5525
Input Voltage: DC 19–24 V; PD 20 V (use only one input)
Max Power: DC 5525 up to 150 W; PD up to 100 W
Hot Plate Material: AL50 – Aluminum
Weight: Controller 78 g; Hot Plate (AL50) 60 g
Size: Controller L71.5 × W55.5 × H22.5 mm; Hot Plate L50 × W50 × H29 mm
MHP50-B5 (BS50 Hot Plate)
Mode: MHP50
Screen: Color LCD (160×80 resolution)
Heating Area: 50 mm × 50 mm
Temperature Range: 100–350°C
Temperature Stability: ±3%
Power Interface: USB Type-C, DC 5525
Input Voltage: DC 19–24 V; PD 20 V (use only one input)
Max Power: DC 5525 up to 150 W; PD up to 100 W
Hot Plate Material: BS50 – Brass with nano-ceramic coating
Weight: Controller 78 g; Hot Plate 78 g
Size: Controller L71.5 × W55.5 × H22.5 mm; Hot Plate L50 × W50 × H29 mm
Features:
1. 50×50 mm heating area and 3.7 cm height in a pocket-size design; ideal for mobile soldering.

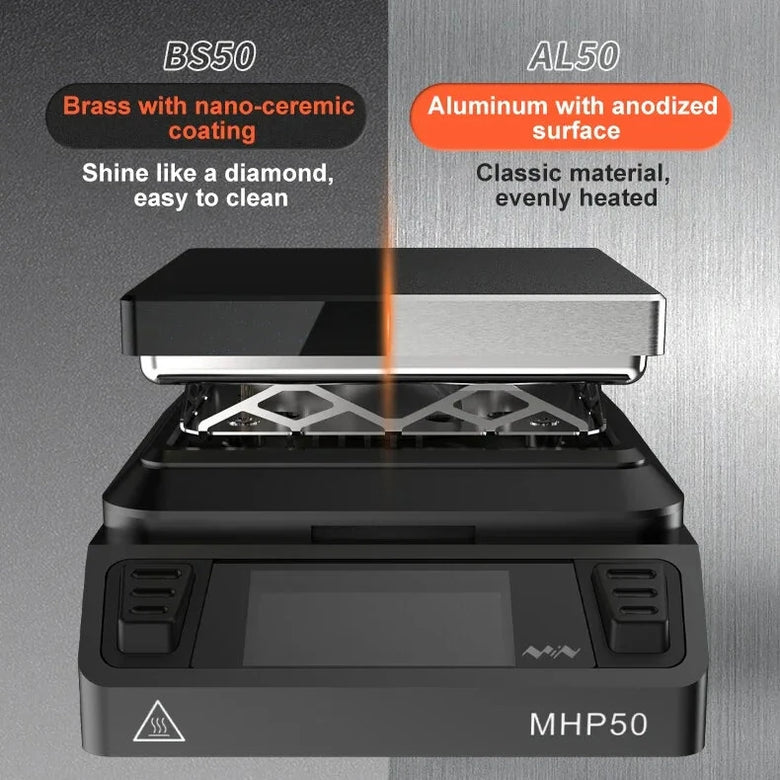

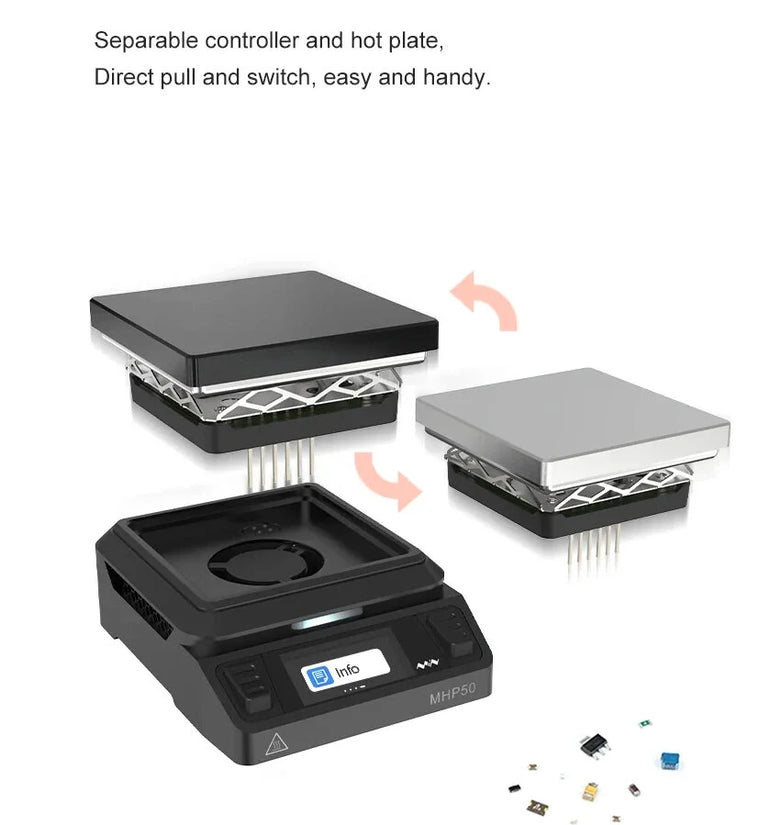

2. Separable controller and hot plate; choose AL50 aluminum or BS50 brass with nano-ceramic coating.

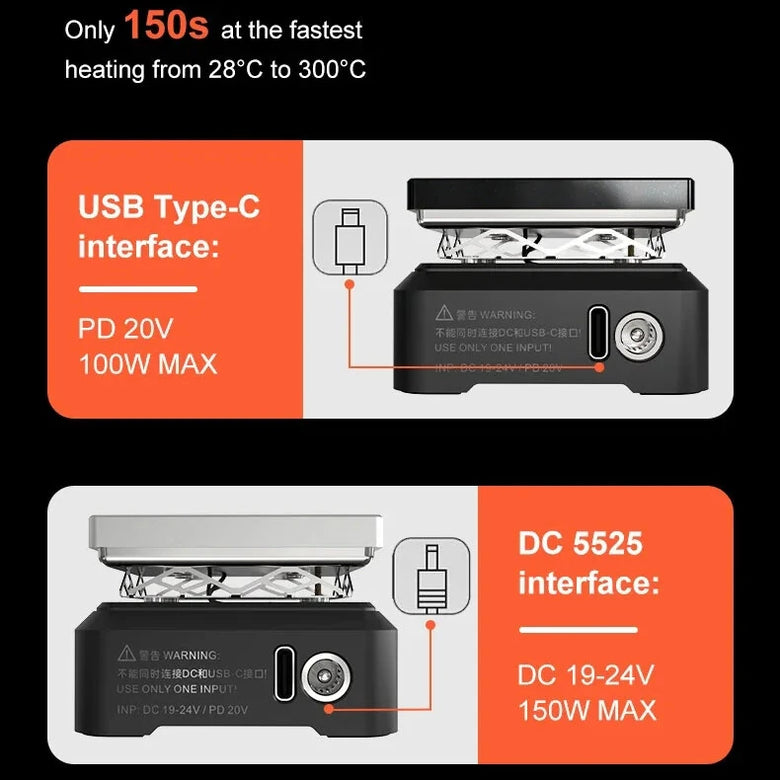

3. Dual power inputs: DC 19–24 V via DC 5525 up to 150 W, or PD 20 V up to 100 W.
4. Built-in high-speed cooling fan and air deflector reduce heat transfer to protect the controller.
5. Heating curve function for custom temperature/time sections; plus preset temperature, overturn protection, brightness adjustment, and firmware upgrade.
Package Included:
MHP50-A5:
1 x MHP50 Controller
1 x AL50 Hot Plate
1 x PD Cable (20V 5A)
1 x User Manual
MHP50-B5:
1 x MHP50 Controller
1 x BS50 Hot Plate
1 x PD Cable (20V 5A)
