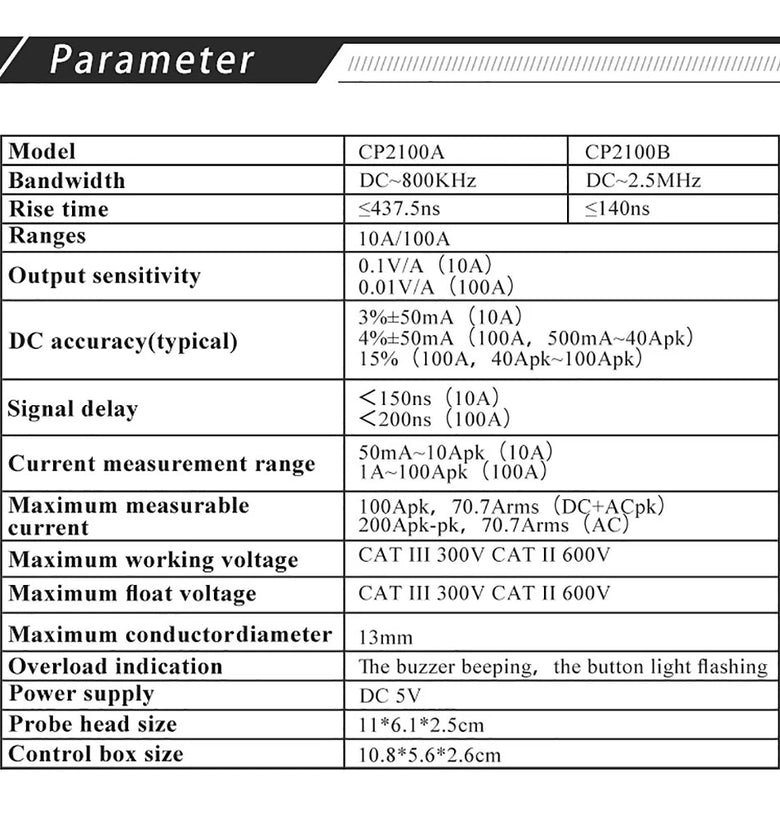

Specifications:

Model: CP2100A

Bandwidth: DC to 800KHz

Rise Time: <437.5ns

Current Ranges: 10A / 100A

Output Sensitivity: 0.1V/A (10A), 0.01V/A (100A)

DC Accuracy: (Typical)

10A: 3% ± 50mA

100A:

4% ± 50mA (500mA ~ 40Apk)

15% (40Apk ~ 100Apk)

Signal Delay:

<150ns (10A),

<200ns (100A)

Current Measurement Range:

50mA to 10Apk (10A)

1A to 100Apk (100A)

Maximum Measurable Current:

100Apk / 70.7Arms (10A)

200Apk / 70.7Arms (100A)

Maximum Working Voltage: CAT III 300V / CAT II 600V

Maximum Float Voltage: CAT III 300V / CAT II 600V

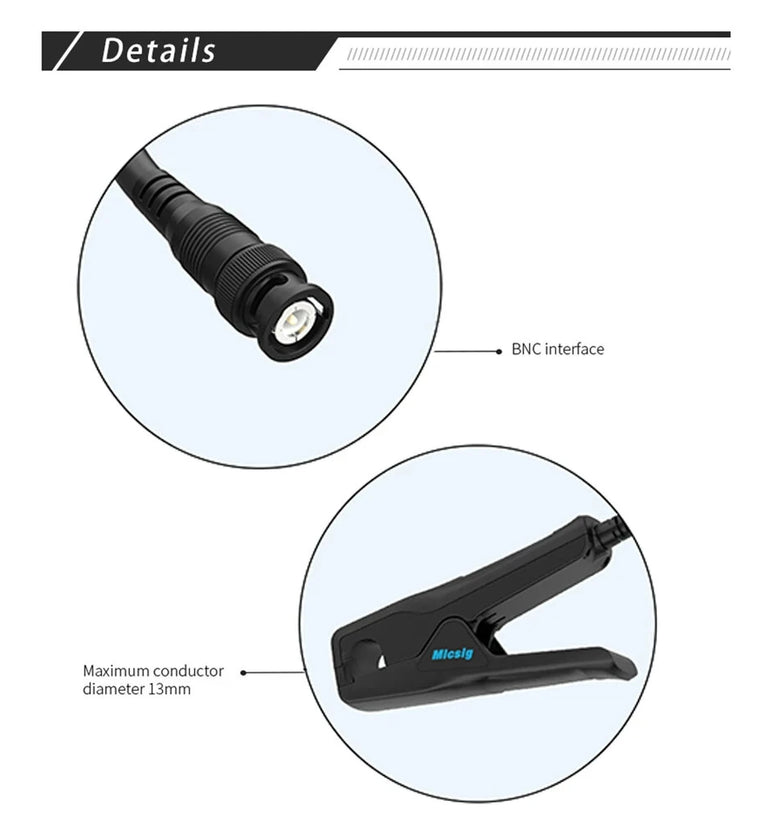

Maximum Conductor Diameter: 13mm

Overload Indication: Buzzer beeping and button light flashing

Power Supply: DC 5V

Probe Head Size: 11 x 6.1 x 2.5cm

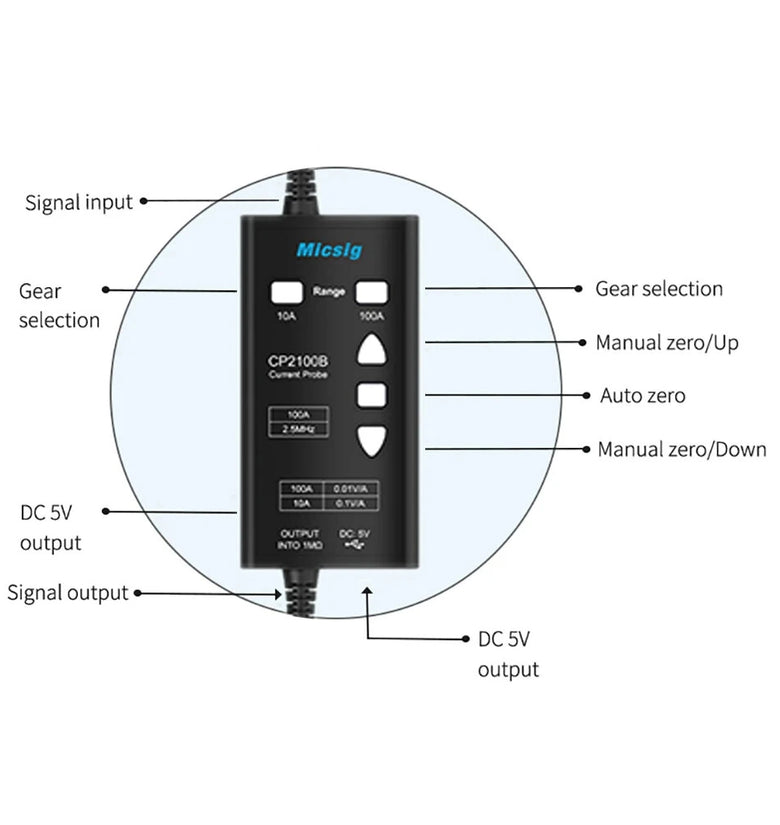

Control Box Size: 10.8 x 5.6 x 2.6cm

Features:

1.Wide Bandwidth Capacity: With a bandwidth range of DC to 800KHz, the CP2100A is tailored for accurate current measurement in low-frequency to high-frequency applications, meeting diverse testing needs.

2.High Precision: Delivers consistent performance with DC accuracy as low as ±3%, ensuring reliable data for technical and scientific applications even in demanding scenarios.
