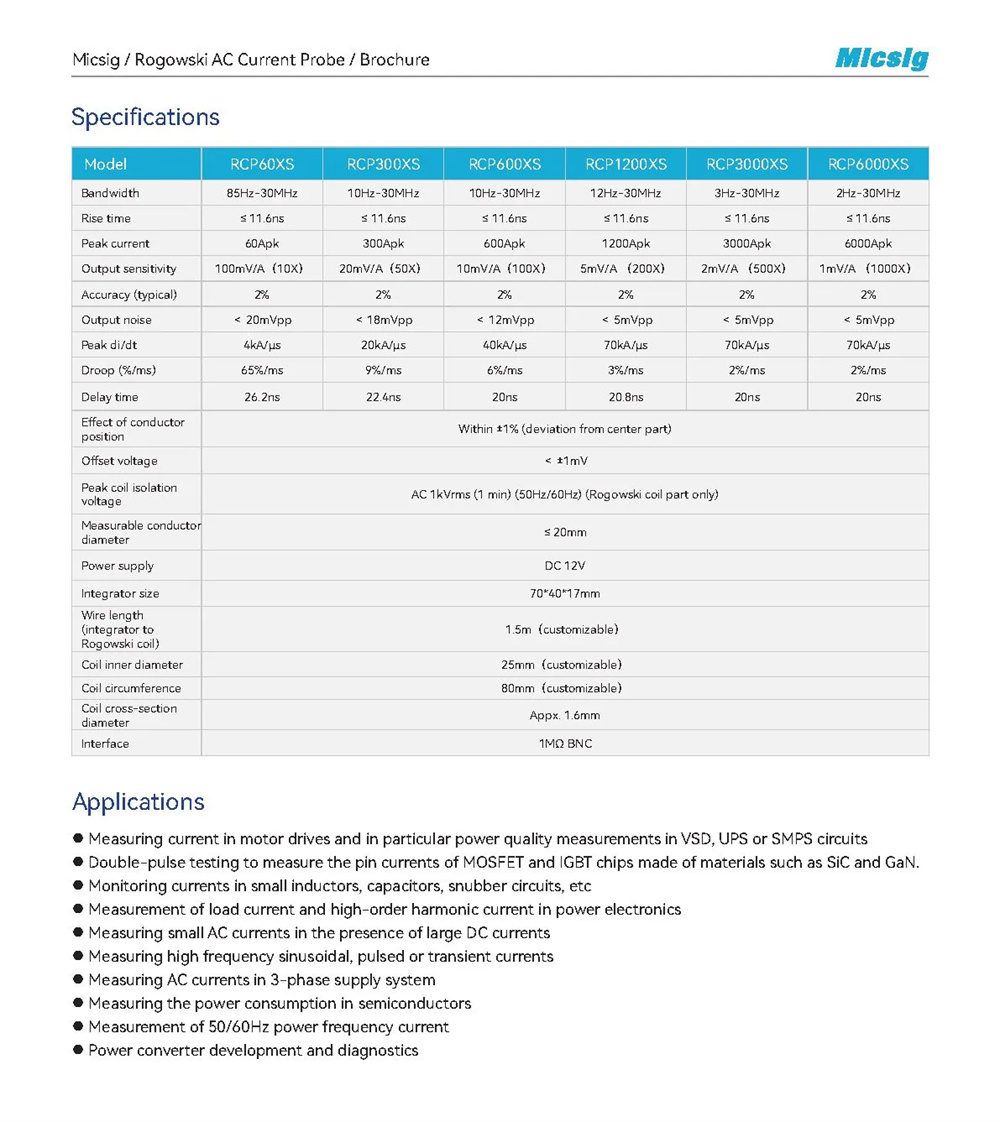

Specifications:

Model: RCP60XS, RCP300XS, RCP600XS, RCP1200XS, RCP3000XS, RCP6000XS

Bandwidth: 2 Hz – 30 MHz

Rise Time: ≤ 11.6 ns

Peak Current: Up to 6000 Apk

Output Sensitivity: 100 mV/A (10X) to 1 mV/A (1000X) depending on the model

Accuracy (Typical): 2%

Output Noise: < 5 mVpp (Depending on the model)

Peak dI/dt: Up to 70 kA/µs

Droop (%/ms): Up to 2%/ms

Delay Time: Up to 20 ns

Effect of Conductor Position: Within ± 1%

Offse Voltage: < ±1 mV

Peak Coil Isolation Voltage: AC 1 kVrms (1 min)

Measurable Conductor Diameter: ≤ 20 mm

Power Supply: DC 12V

Integrator Size: 70 × 40 × 17 mm

Wire Length (Integrator to Rogowski Coil): 1.5 m

Coil Inner Diameter: 25 mm

Coil Circumference: 80 mm

Coil Cross-Section Diameter: Approx. 1.6 mm

Interface: 1MΩ BNC

Features:

High Bandwidth Performance: Supports bandwidth from 2 Hz to 30 MHz, ensuring precise measurement of high-speed signals and rapid current changes.

Versatile Current Range: Capable of measuring up to 6000 Apk, perfect for capturing high current and high-frequency signals.

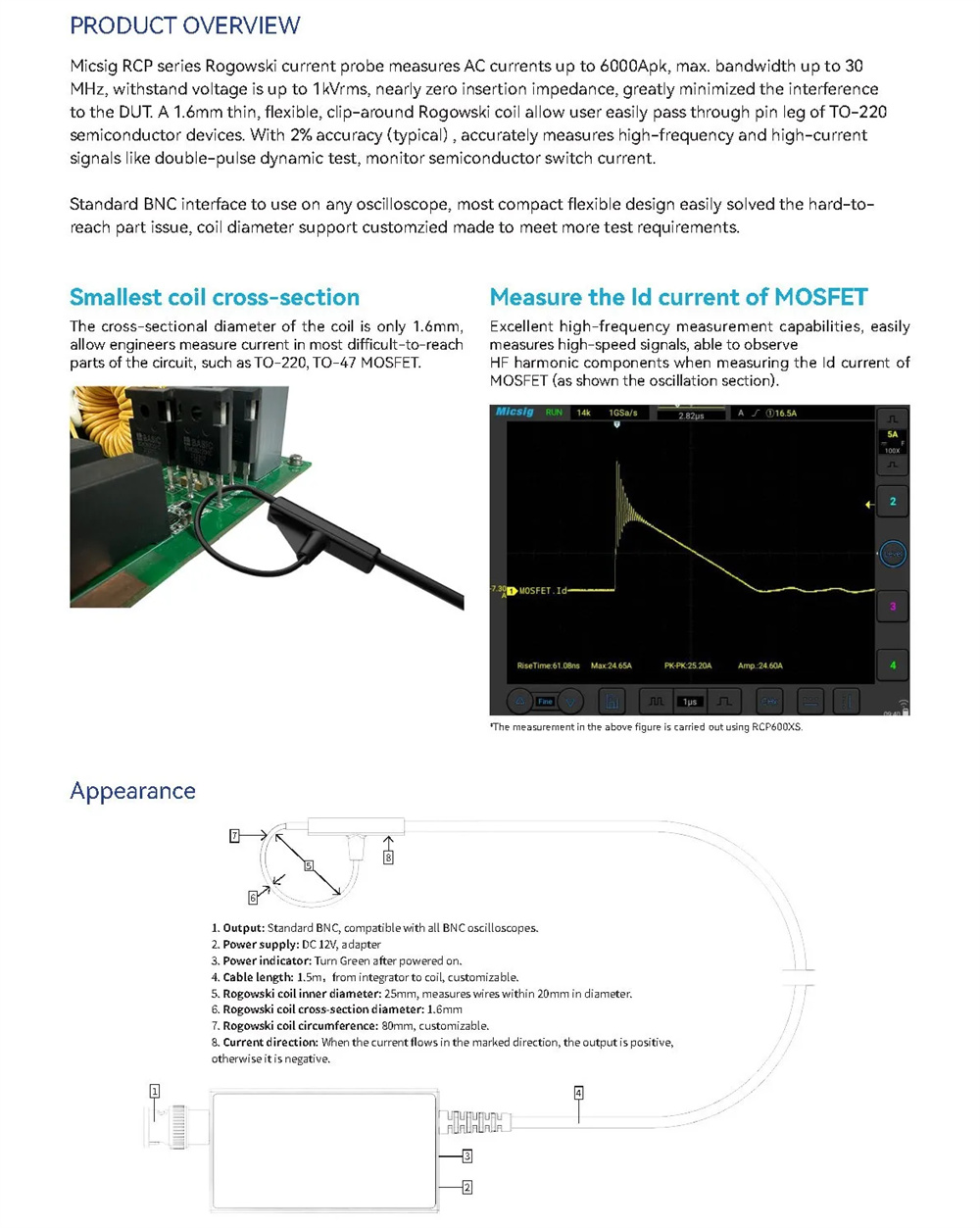

Compact and Flexible Design: Features a 1.6 mm thin, flexible coil suitable for narrow pin spacing devices like TO-220, enhancing accessibility.

High Accuracy: Provides 2% typical accuracy for precise measurement in semiconductor switching currents.

Wide Application Range: Ideal for various applications including motor drives, semiconductor power measurements, and power conversion diagnostics.

Package Included:

1 x Rogowski Current Probe (Model as your choice)

1 x Integrator

1 x Power Supply (DC 12V)

1 x BNC Cable

1 x User Manual
