Description:

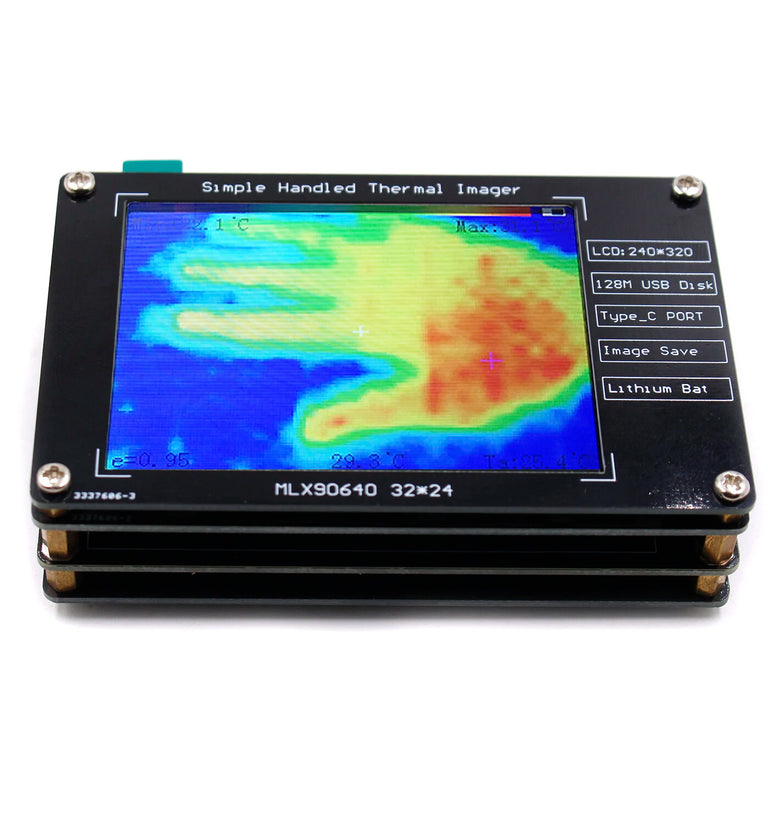

This handheld and multifunctional thermal imager features a compact size and is lightweight. Adopt infrared sensors, 32*24 pixel far infrared array, clearly imaging. 2.8inch large LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum temperature, minimum temperature, and the center point temperature. It can be used in various situations and is an indispensable tool for household and industrial use.

Features:

This product combines the functions of surface temperature measurement and real-time thermal imaging, suitable for both the human temperature detection function and the industry temperature detection function.

Compact, lightweight, and portable, it is easy to carry and does not take up too much space.

Its uses FR4 epoxy outershell material for better protecting internal component and has a long service lifespan.

Adopt infrared sensors, 32*24 pixel far infrared array, clearly imaging.

Real-time measurement, with -40℃ to +300℃ measurement ranges, and an 8Hz dynamic refresh rate.

2.8inch large LCD color screen, with 240*320 resolution, clearly displays and tracks the maximum temperature, the minimum temperature, and the center point temperature.

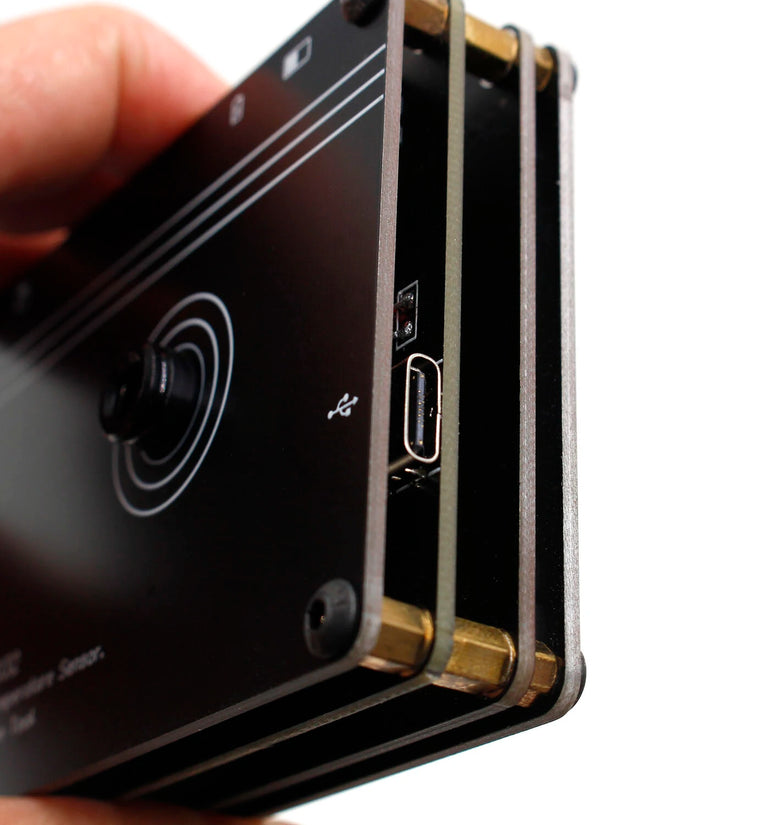

Built-in a lithium-ion battery, USB Type-C charging design, long battery lifespan, support charging while in use.

This thermal imager has a photo-taking and photo memory function within its built-in SPI flash chip, which can store up to 99 pictures.

With a data transmission interface, you can view and copy imagefiles by connecting computers or mobilephones with a data cable.

With integrated design, it can operate smoothly without external devices.

Wide Applications:

High-precise contactless temperature measurement and body temperature detection.

Intelligent ambient temperature measurement and control of buildings.

Car repairs and maintenance inspection, automotive parts temperature detection.

Microwave oven and oven temperature detection and control.

Temperature monitoring of industrial parts.

Visual temperature sensors.

Floor heating equipment side leakage and maintenance.

Thermal inspection of circuit board and component.

Specifications:

Name: Thermal Imager

Materials: epoxy sheet + printed circuit board

Battery: 3.7V 800mAh lithium-ion battery (included)

Infrared sensors: MLX90640ESF-BAB

Hardware resolution: 32*24 pixel far infrared array

Screen resolution: 320*240 pixels

Temperature measurement range: -40℃ to 300℃

Measurement accuracy: ±2℃

Working temperature: 0 to 50℃

Working humidity: ≤ 70%

Refresh rate: 8Hz

Field of view: horizontal 55° * 35° vertical

Emissivity: 0.95

Charging specification: USB Type-C5V/1A

Working time: ≥4 hours

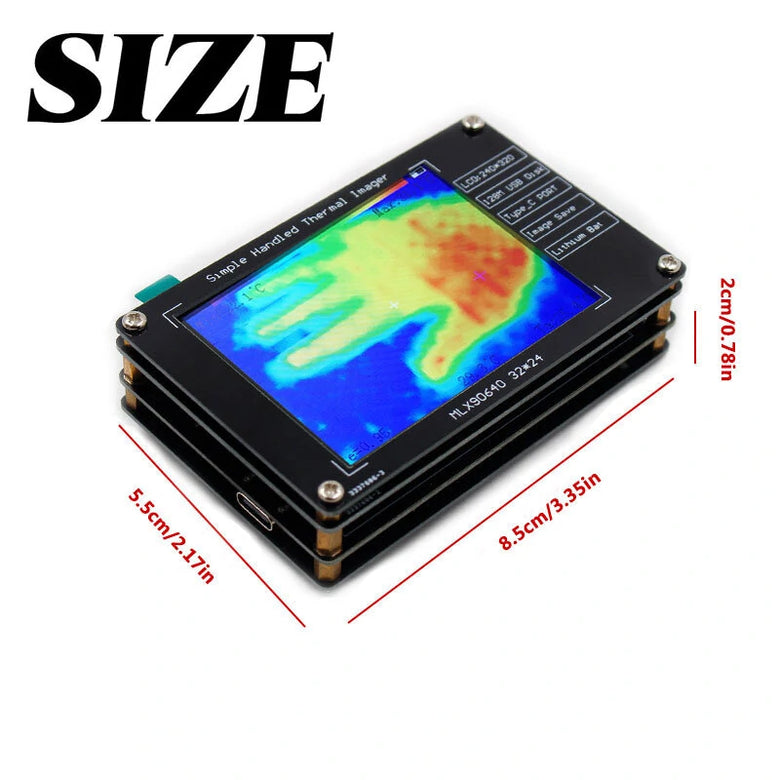

Item size: 85 * 55 * 30mm / 3.35 * 2.17 * 1.18in

Package size: 120 * 90 * 32mm / 4.72 * 3.54 * 1.26in

Package weight: 150g / 5.29ounce

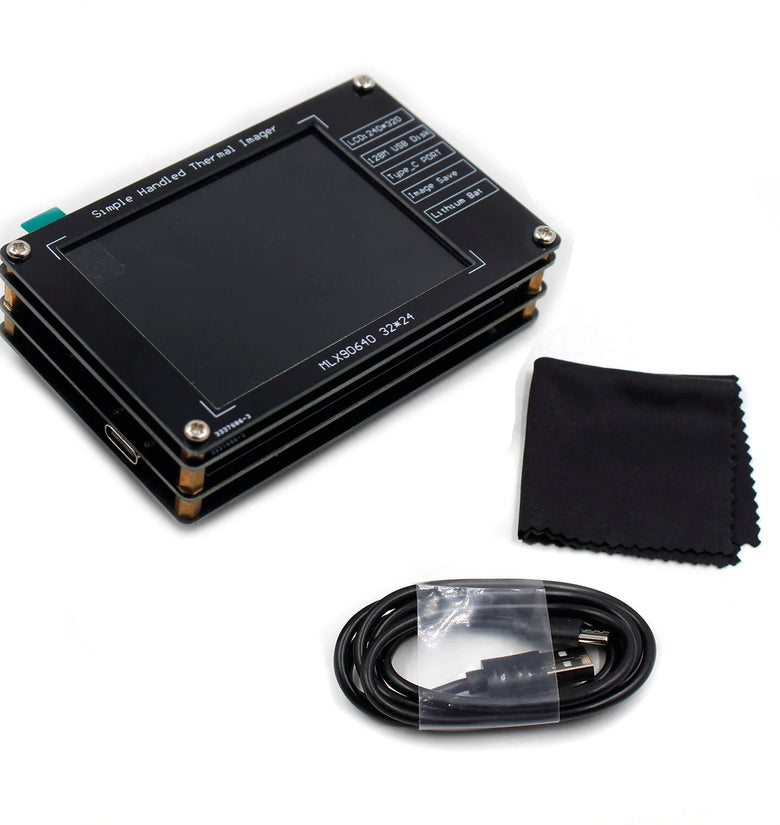

Packing includes:

1 x Thermal Imager

1 x USB Data Cable

1 x Wipe Rag
