Specifications:

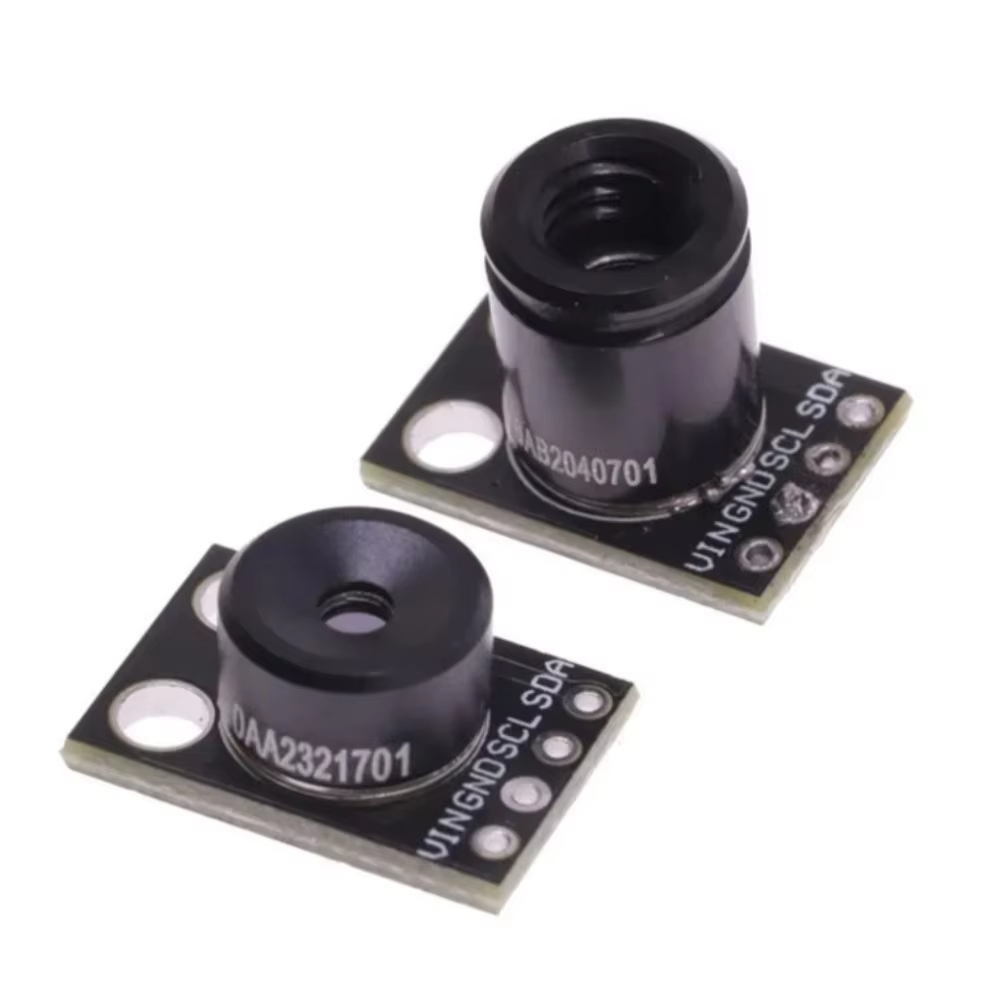

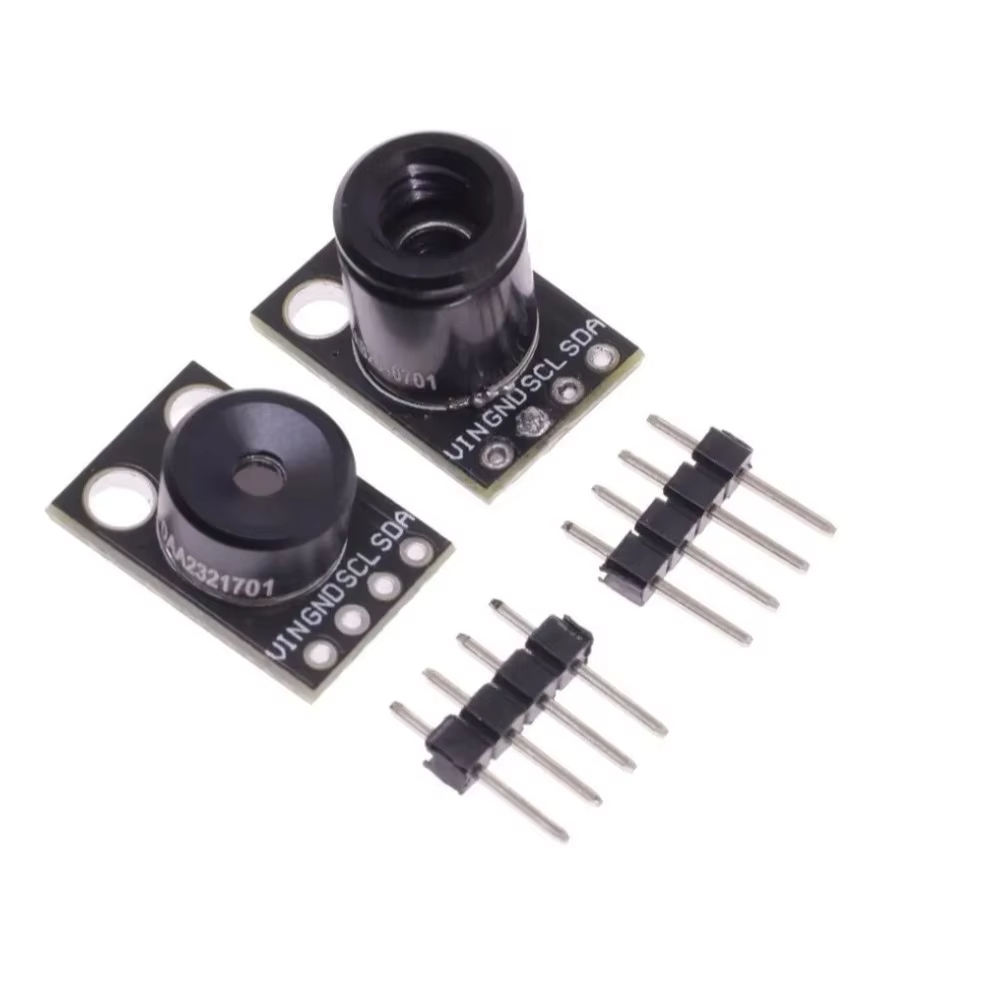

Model: MLX90640ESF-BAA, MLX90640ESF-BAB (optional)
Sensor Type: 32×24 pixel infrared array
Field of View (FOV):

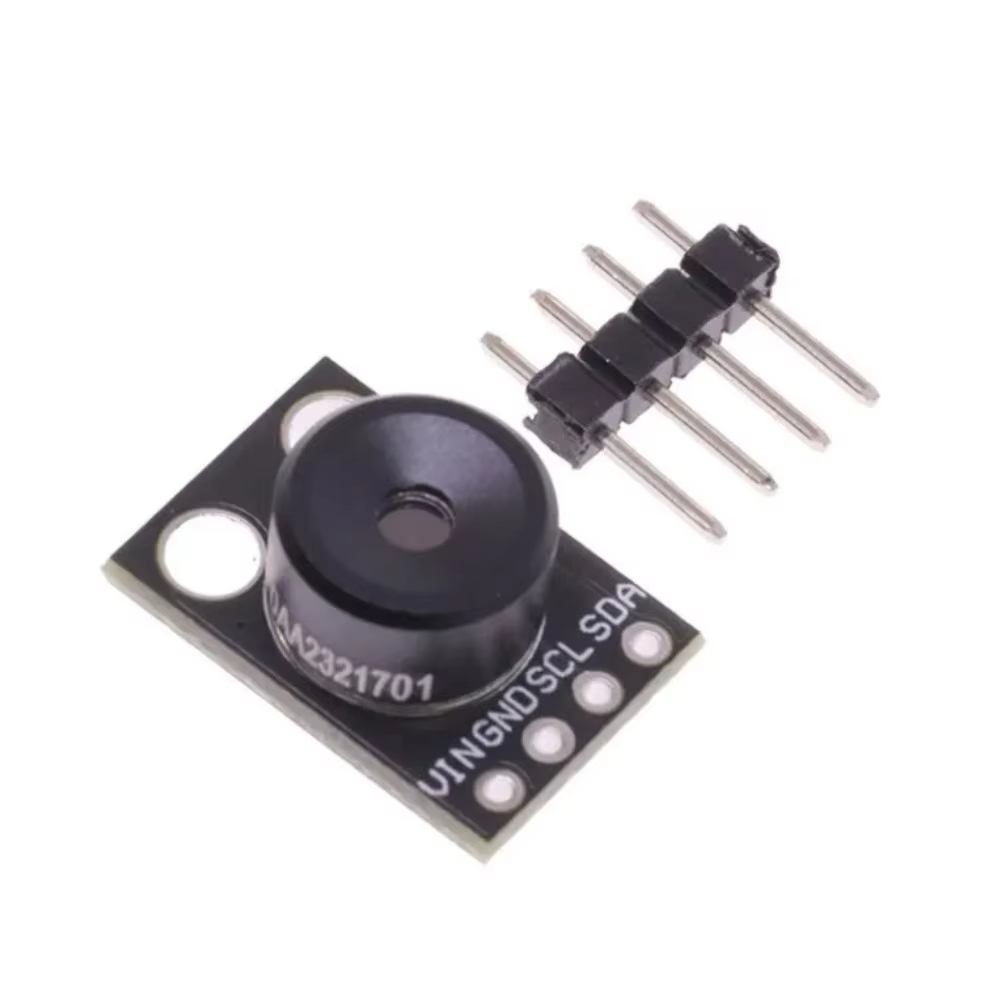

BAA: 110° × 75° (wide angle, suitable for close-range measurement)

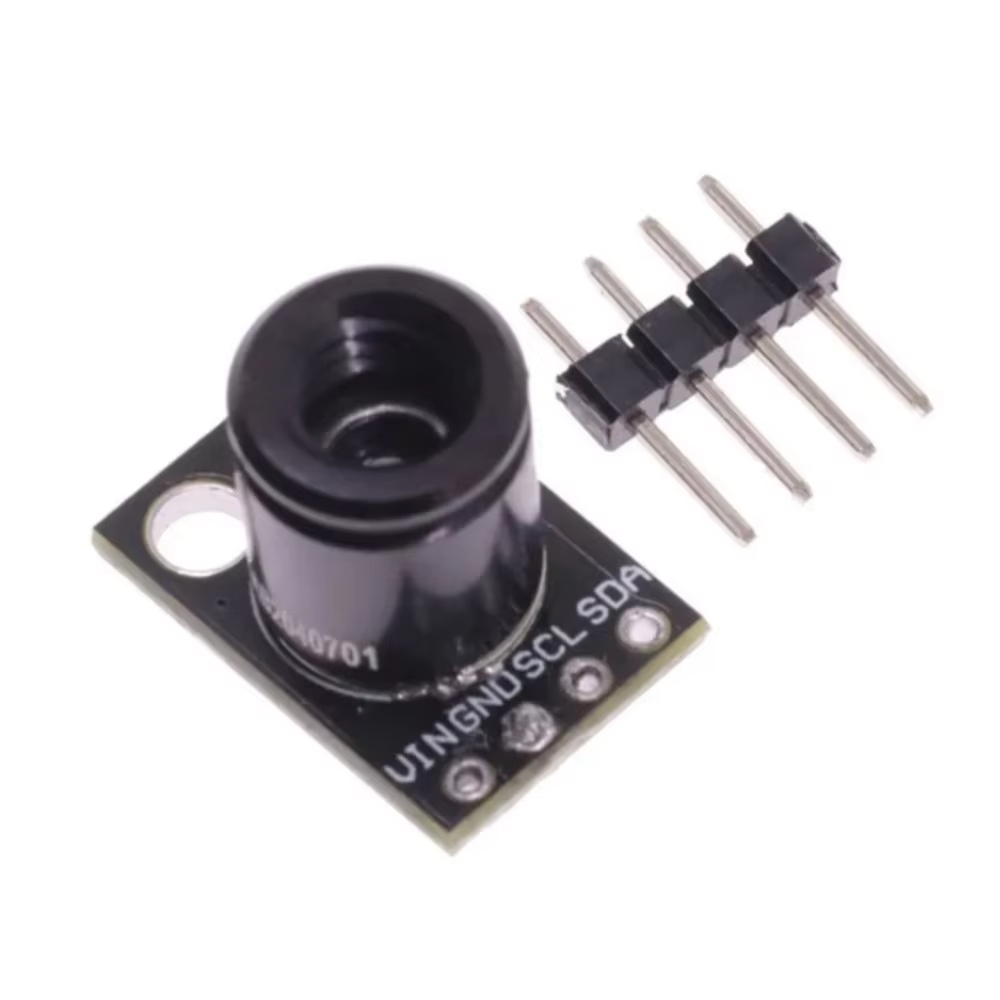

BAB: 55° × 35° (narrow angle, suitable for long-distance measurement)
Working Voltage: 3.3V / 5V
Operating Current: < 23mA
Operating Temperature: -40°C to 85°C
Target Temperature Measurement Range: -40°C to 300°C
Absolute Accuracy: ±2°C (at 0°C to 50°C room temperature)
Communication Interface: I2C (default address: 0x33)
Frame Rate: Programmable, from 0.5Hz–64Hz (or 0.25FPS–32FPS)
Noise Performance: 0.1K RMS@1Hz Refresh Rate (NETD)
Dimensions: 28mm × 16mm
Mounting Hole Size: 2.0mm
Features:
1. Compact Infrared Temperature Array: Small-size module equipped with high-precision 32×24 infrared pixels for capturing temperature distribution across surfaces.
2. Broad Temperature Range: Designed to measure target temperatures from -40°C to 300°C with high accuracy for diverse applications.
3. Fast Communication: Supports I2C interface up to 1MHz, ensuring quick data transfer for real-time applications.
4. Programmable Refresh Rate: Adjustable frame rate from 0.5Hz to 64Hz, enabling tailored operation for different use cases.
5. Wide Compatibility & Conversion Circuitry: Functions seamlessly with 3.3V and 5V working environments, ensuring integration versatility.
Package Included:

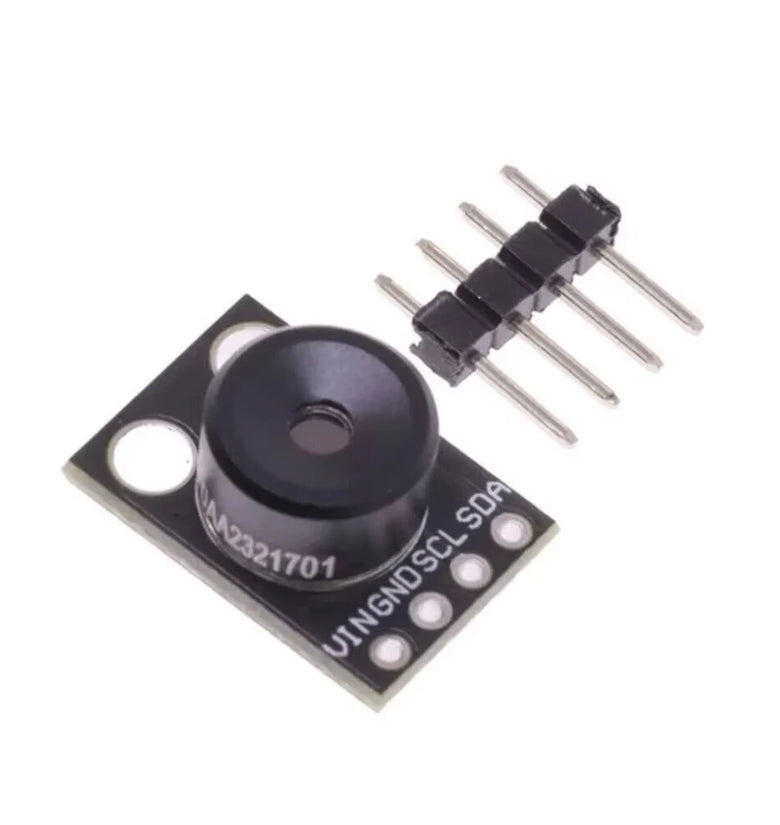

1 x Infrared Temperature Matrix Sensor Module
1 x Pin Header
