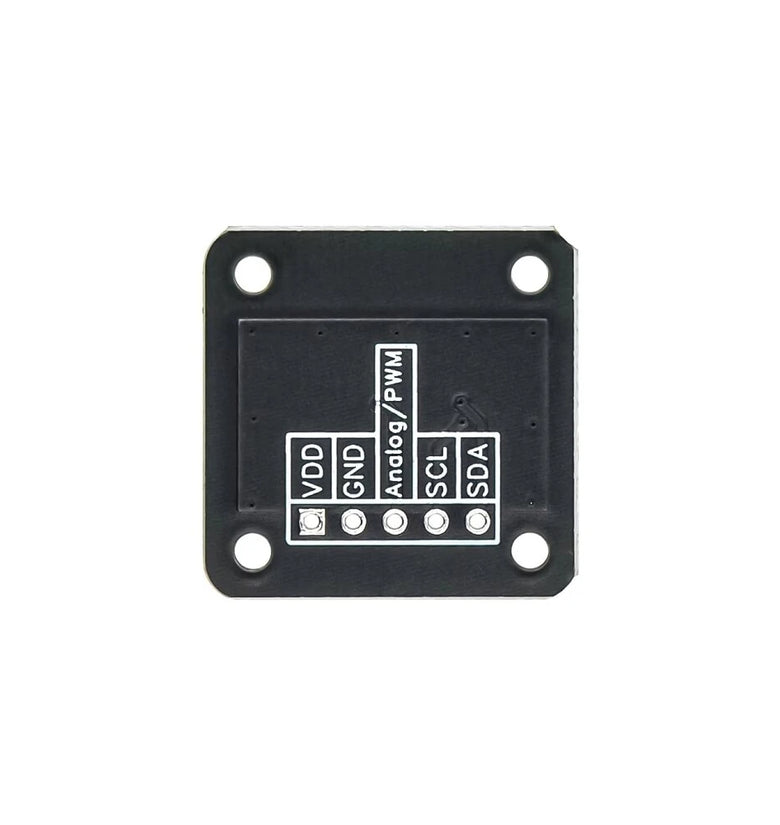

Specifications:
Model: MT6701
Type: Magnetic Encoder Module
Measurement Range: Magnetic Induction Angle (0°–360°)
Resolution: 14-bit digital high precision
Operating Voltage: 3.3V–5.0V

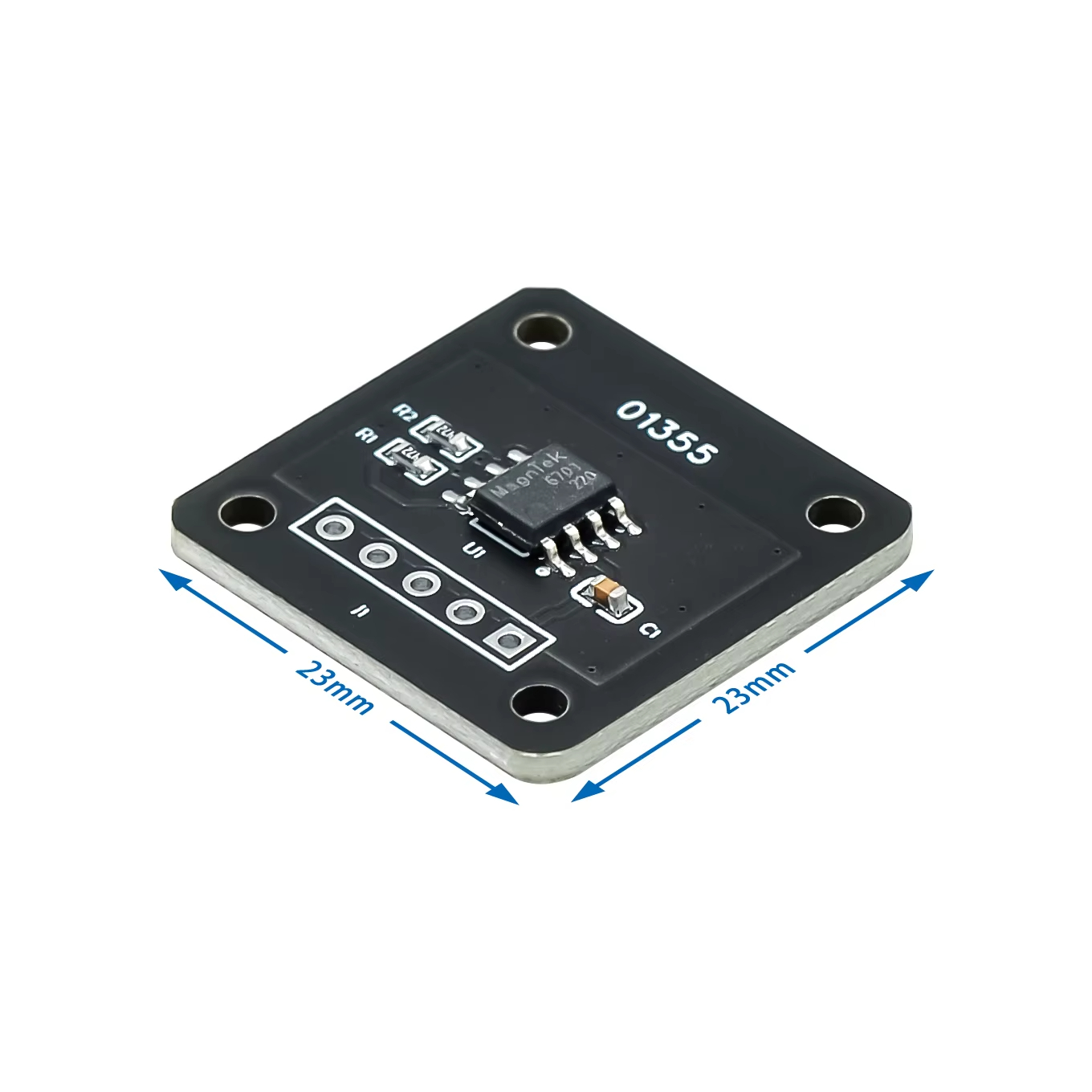

Dimensions: 23mm x 23mm

Features:
1. Supports 14-bit angle output via I2C/SSI communication interface.
2. Equipped with incremental ABZ output for position tracking applications.
3. Provides 12-bit PWM analog output for flexible integration.
4. Built-in EEPROM with over 1000 program cycles.
5. Low system latency of 5 microseconds, supporting speeds up to 55,000 RPM.
6. Compact design with mounting holes for easy installation.

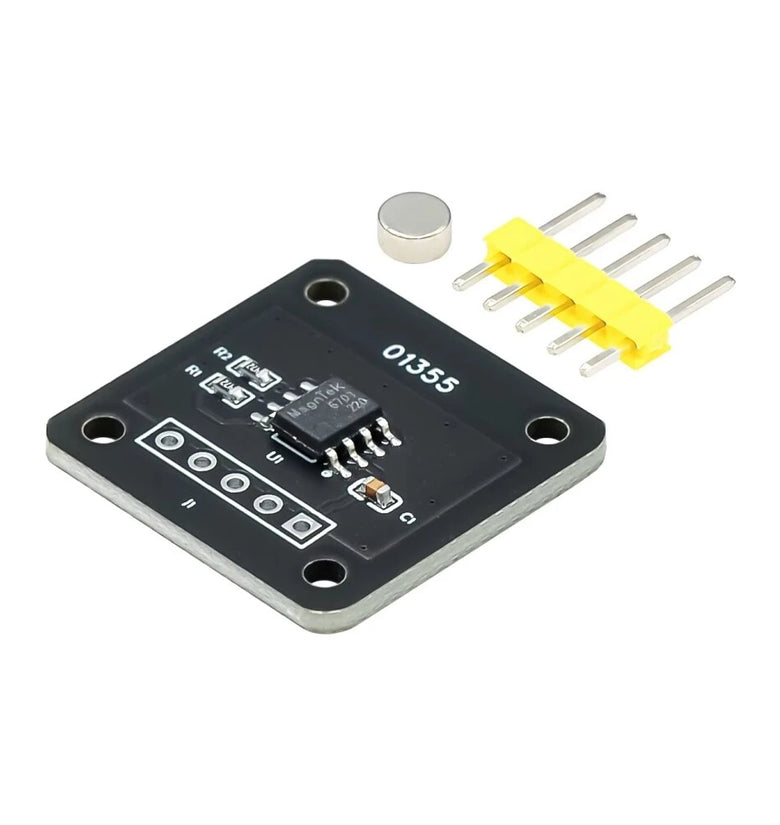

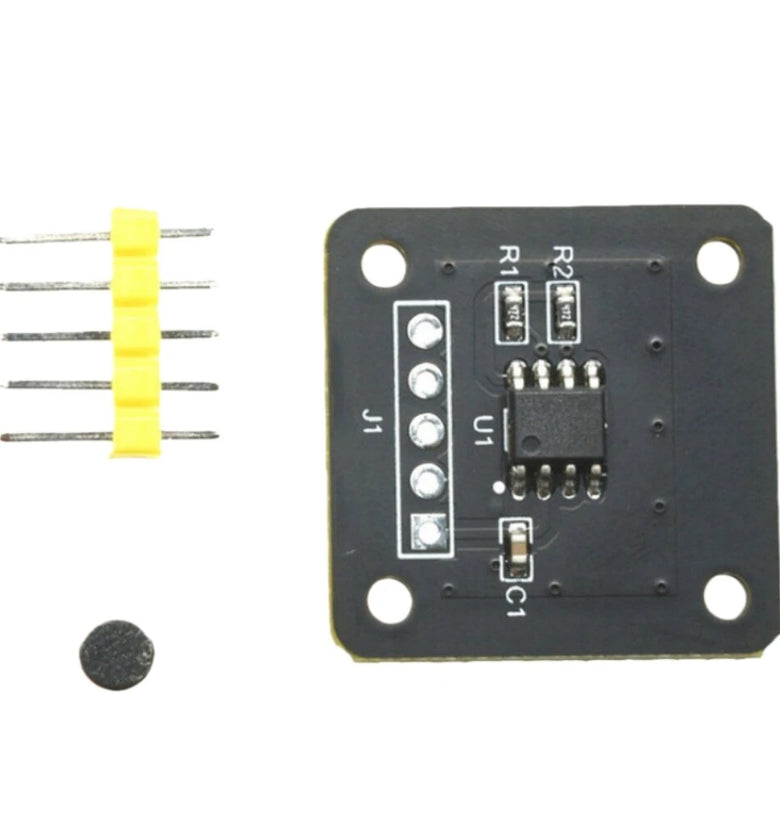

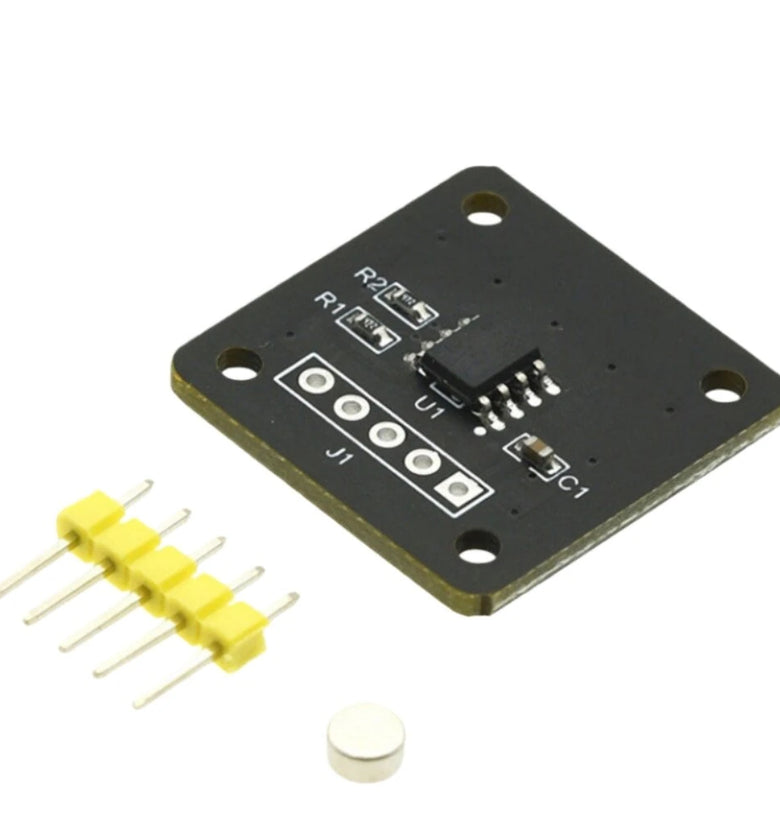

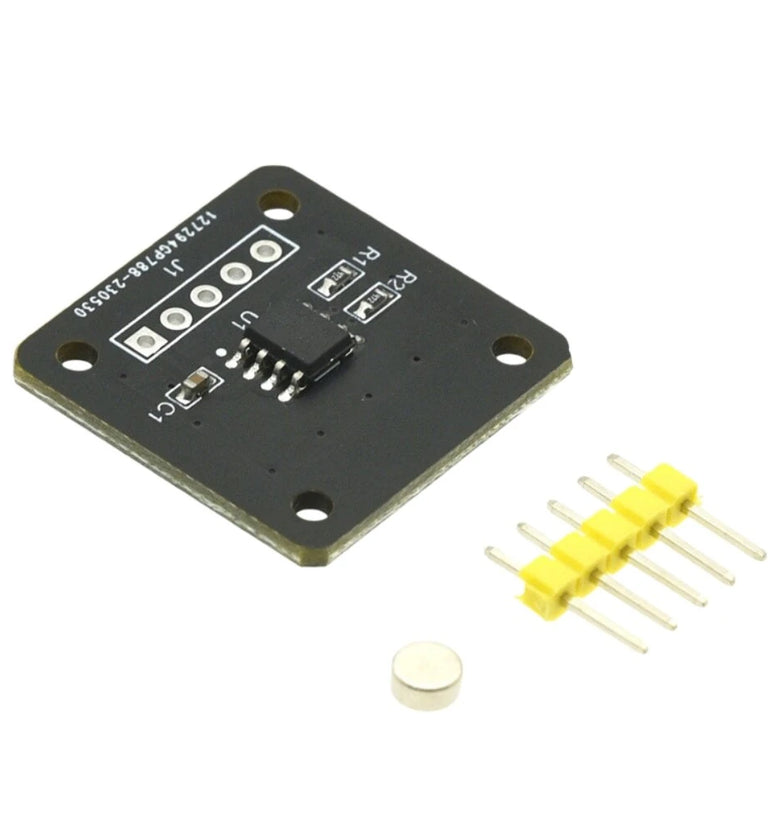

Package Includes:
1 x MT6701 Magnetic Encoder Module
