Specifications:

Model: MF9

Display: 1.8-inch TFT Color Screen

Battery: Built-in 300mAh 4.2V Lithium Rechargeable Battery

Capacitance Measurement Range: 25pF~100mF

Resistance Measurement Range: 0.01~50M Ω

Inductance Measurement Range: 0.01mH~20H

Battery Voltage Range: 0.1~4.5V

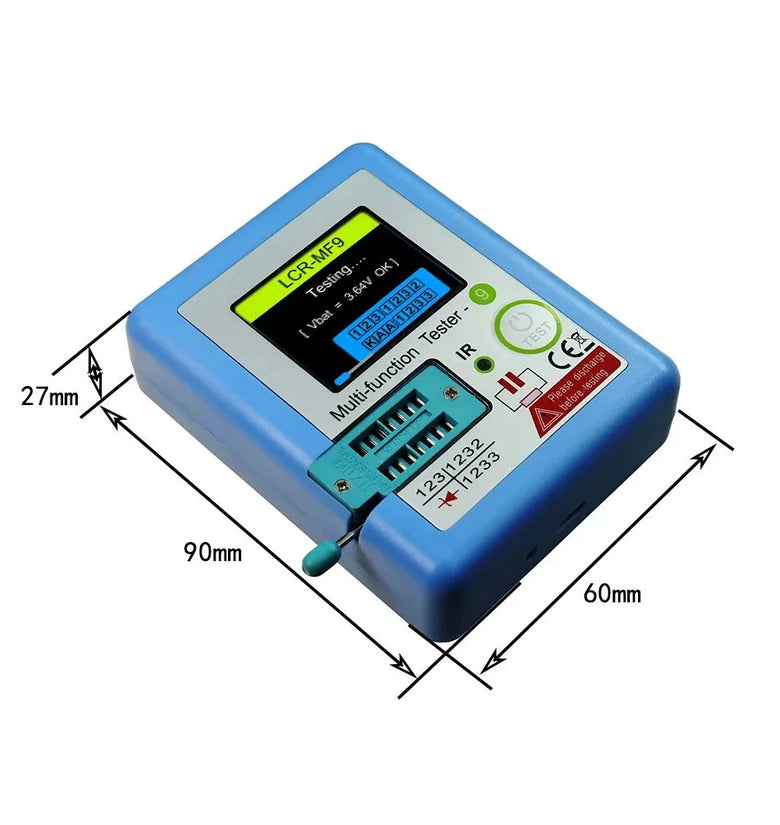

Product Size: 90 x 60 x 27mm

Power Consumption (Shutdown Mode): Less than 20 nA

Features:

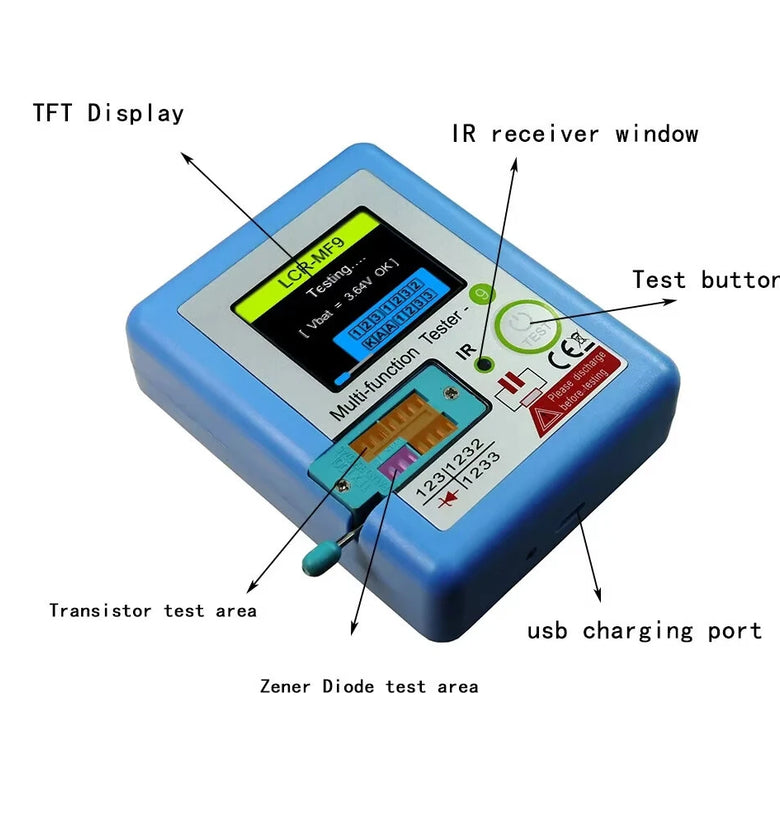

1.Versatile Component Detection: The MF9 Transistor Tester automatically detects a wide array of components including NPN and PNP transistors, N-channel and P-channel MOSFETs, IGBT diodes, thyristors, resistors, capacitors, and more. It graphically displays pin layouts and component parameters on a vibrant TFT color screen, making it an indispensable tool for electronic enthusiasts and professionals.

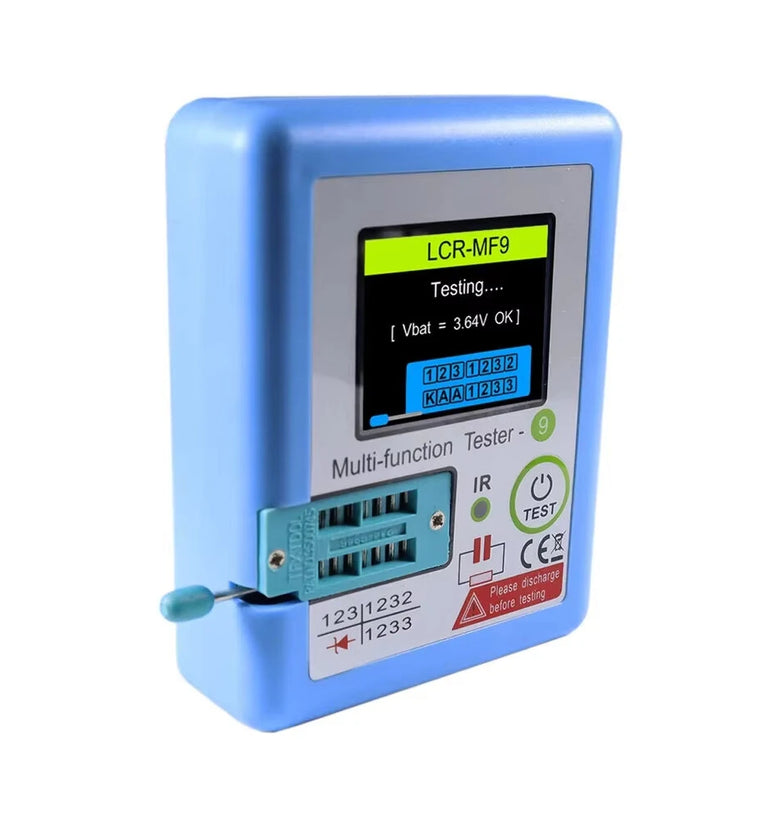

2.Graphical Display & User-friendly Operation: Featuring a 1.8-inch TFT color screen, the tester displays various parameters and pin configurations graphically, ensuring clear, easy-to-read information. Its one-click operation allows for immediate power-on testing, simplifying the testing process even for complex components, while the automatic shutdown function conserves battery life.

3.High Precision & Speed: Equipped with advanced testing capabilities, the MF9 provides rapid and accurate component testing within 2 seconds, except for larger capacitors that require longer. It supports resistance measurements with a resolution of 0.1 ohms and a maximum measurement range of 50M ohms, ensuring precise readings for a wide variety of components.

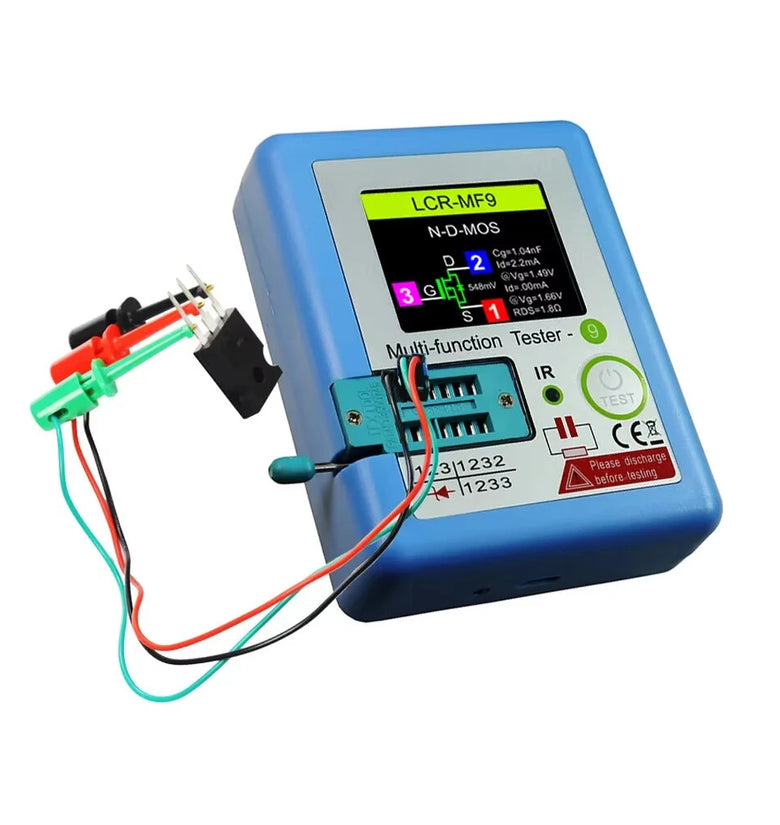

4.Enhanced Functionality for MOSFETs: The tester can distinguish between depletion type and enhancement type MOSFETs, measure gate threshold voltage, and gate capacitance. This specialized functionality is critical for diagnosing and working with advanced electronic components, giving you deeper insights into each element’s behavior.

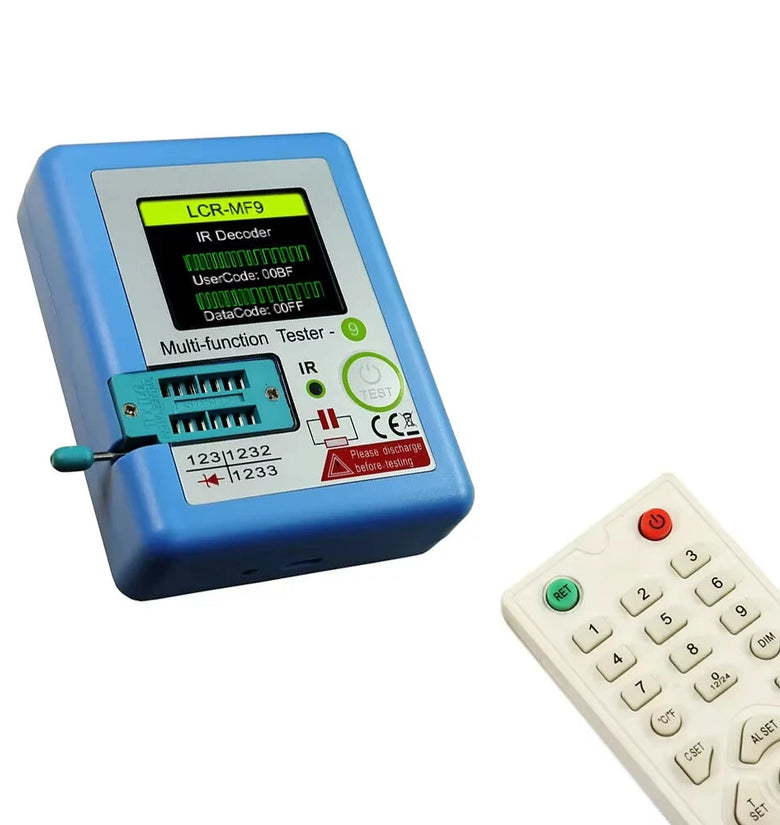

5.Infrared Encoding Detection: The MF9 supports the detection of infrared encoding, compatible with NEC format infrared remote controls. This feature adds another layer of versatility, enabling the device to work as a part of larger remote control systems, further extending its utility beyond basic component testing.

Package Included：

1 x MF9 Transistor Tester
