Specifications:
Voltage Measurement Range: ±50V
DC Voltage Analog Output Range: ±12V (with short circuit protection)
DC Current Analog Output Range: 0-24mA (can be short-circuited)
Current Measurement Range: ±50mA
PWM Pulse Output: Frequency adjustable 1-150kHz, amplitude 5V, current <20mA
Display Screen: 2.0-inch TFT color screen (320*240 pixels)
Power Supply Options: External 24VDC terminal/USB Type-C/Built-in lithium battery
Material: ABS
Color: Gray
Features:
1.Wide Adjustment Range: Configurable output adjustment options including 0-20mA, 4-20mA, 0-10V, and 0-5V with user-defined engineering display values.
2.Efficient PWM Output: Provides precisesquare wave PWM pulse output with adjustable frequency range from 1-150kHz at 5V amplitude.
3.High-Precision Screen: Equipped with a 2.0-inch TFT color display with 320x240 resolution for clear and concise parameter visibility.

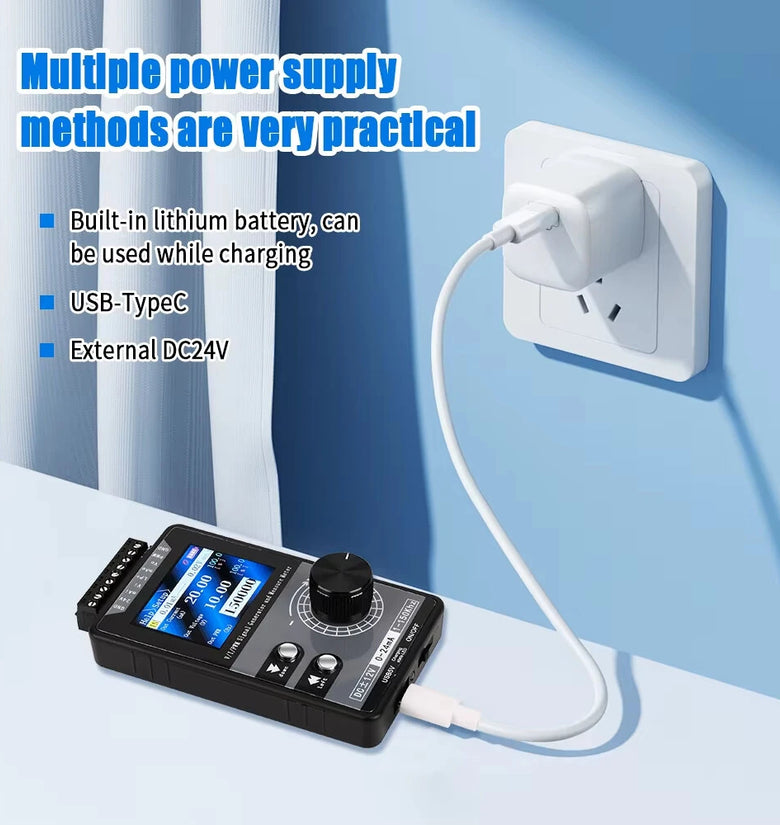

4.Three Power Supply Methods: Offers flexibility with external 24VDC terminal, USB Type-C connection, or built-in lithium battery for versatile usage.
5.User-Friendly Design: Features a large digital encoder knob for easy adjustment and interfaces available in both English and Chinese.
Package Included:
1 x PWM Pulse Signal Generator
1 x USB Cable
1 x Test Cable
