  • MUSTOOL X1 Pocket 6000 Counts True RMS Clamp Meter AC/DC Voltage&Current Digital Multimeter Automatic Digital Meter With Square Wave Output /V/A/Diode/Frequency/Continuity Test

SKU:

MUSTOOL X1 Pocket 6000 Counts True RMS Clamp Meter AC/DC Voltage&Current Digital Multimeter Automatic Digital Meter With Square Wave Output /V/A/Diode/Frequency/Continuity Test

R 764.70



Product type: Tools

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Support DC current , AC Current , DC Voltage , AC Voltage Test

    Overview:

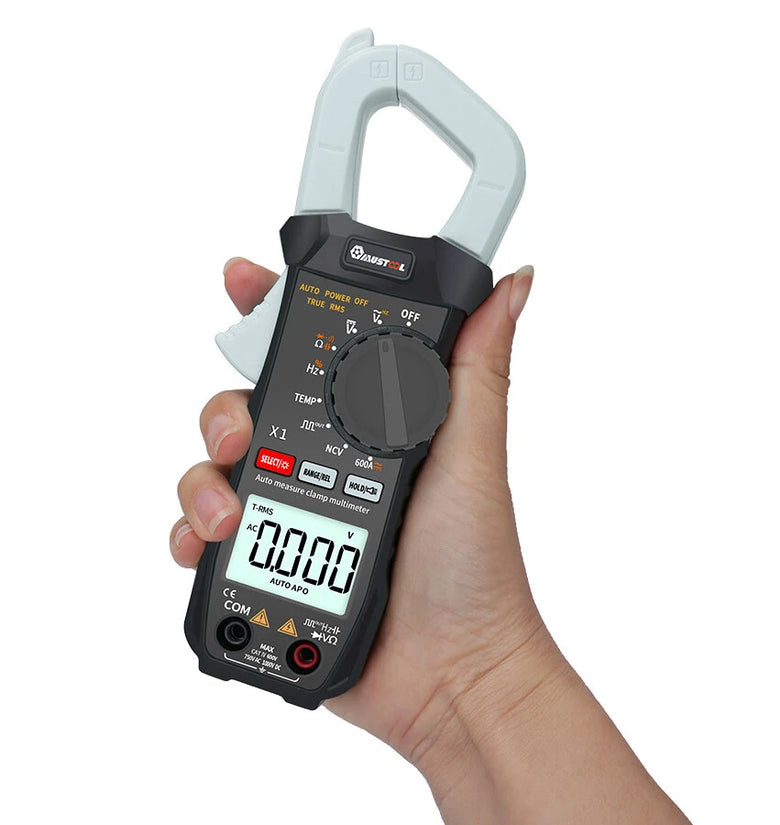

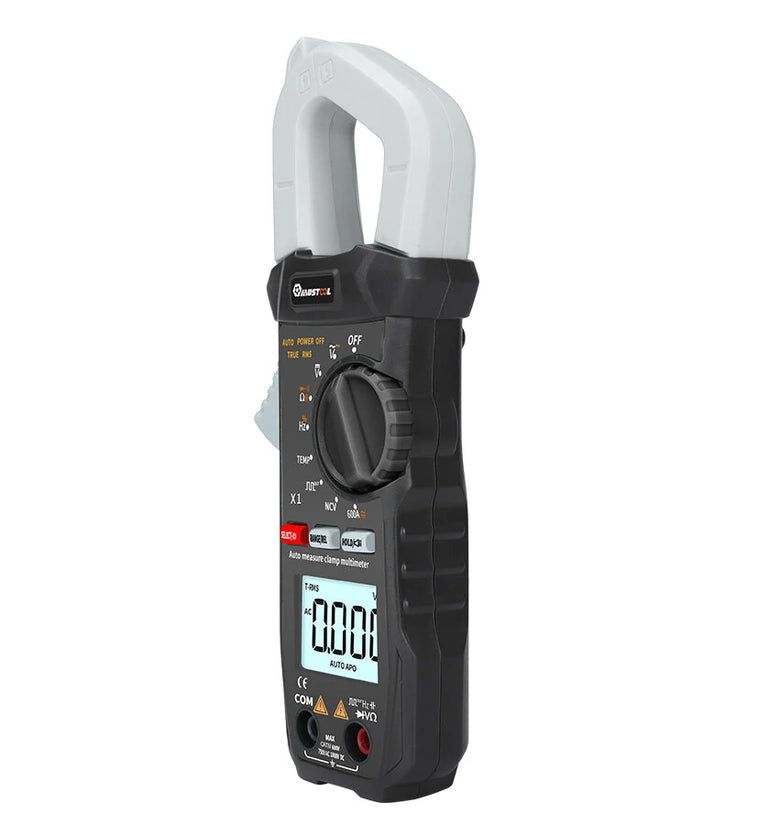

    This is a pocket-sized 3 5/6-digit automatic digital meter.
    It has stable performance, high precision, high reliability, clear reading and overload protection.

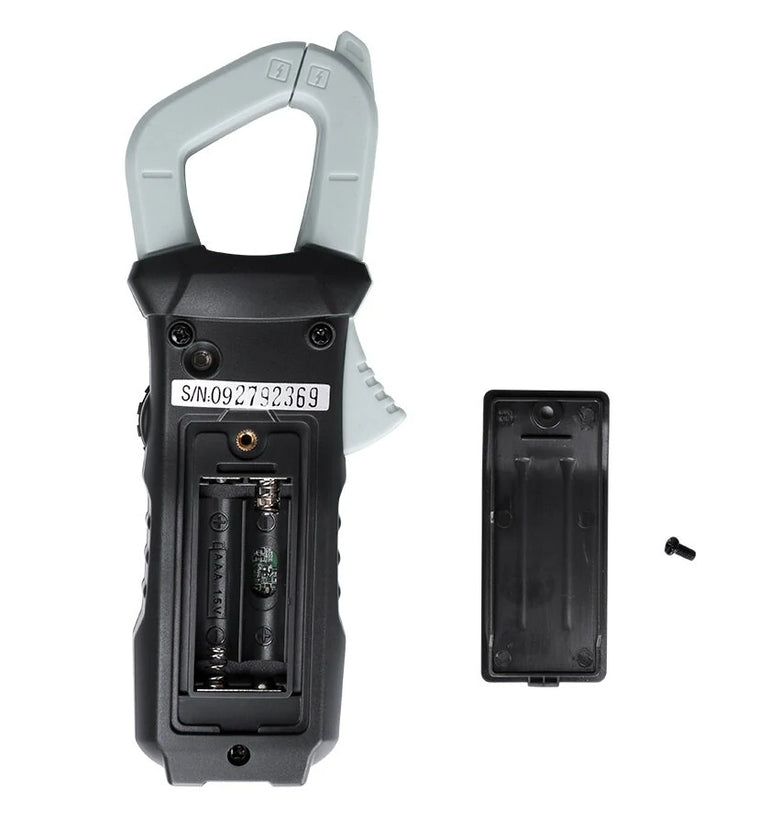

    Driven by AAA 1.5V battery, the instrument adopts large screen LCD display and adopts boost power supply.

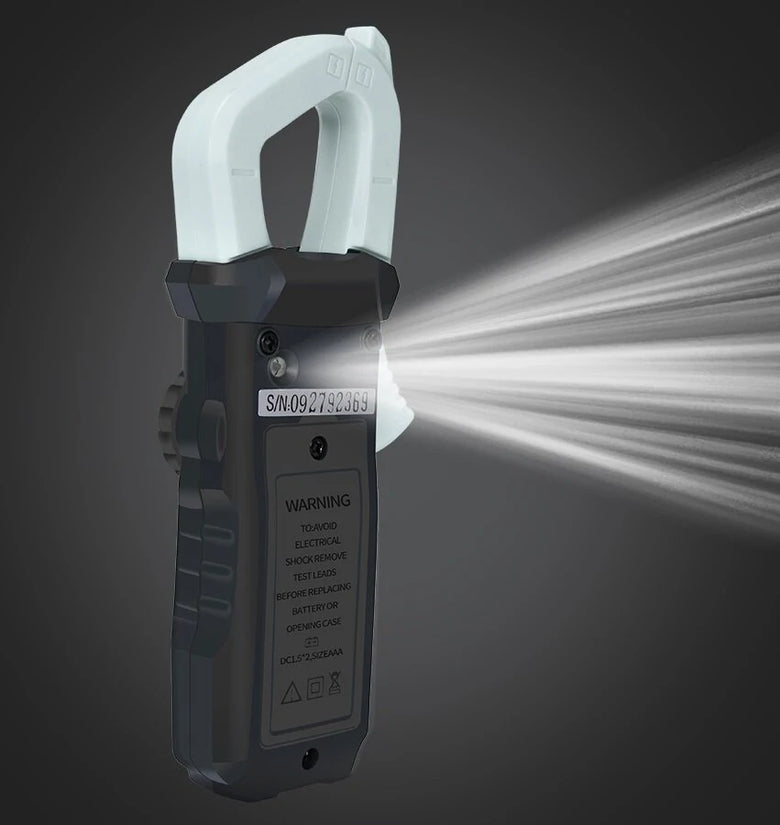

    Even at the edge of 2.3V low battery, it can ensure the high brightness of backlight and flashlight.
    The meter is easy to carry and is very popular among users.
    The instrument's backlight can be turned on and off automatically after 15 seconds.
    This series of instruments can be used to measure DC voltage and AC voltage, AC and DC current 600A, resistance, capacitance, diode, temperature, continuity test, square wave output, frequency measurement and true RMS.
    It is a superior tool and an ideal tool for laboratories, factories, radio enthusiasts and families.

    Features:

               Function
    DC voltage  DCV    √
    AC voltage  ACV    √
    DC current  DCA    √
    AC current  ACA    √
    Resistor / Diode / On-Off Test / Capacitor    √
    Frequency F    √
    Square wave output    √
    NCV    √
    Full unit symbol    √
    Backlight manual/Auto off    √
    True RMS measurement    √
    Temperature(℃/℉)    √
    Flashlight lighting    √


    Specifications:

    1.DC voltage (DCV)
            Accuracy
     Range    		            6000counts             Resolution
    6V          ±(0.5%+3) 0.001V
    60V 0.01V
    600V 0.1V
    1000V          ±(0.8%+10) 1V

    2.AC voltage(ACV)
            Accuracy
    Range    		                 6000counts                Resolution
    6V               ±(0.8%+3) 0.001V
    60V 0.01V
    600V 0.1V
    750V              ±(1.2%+10) 1V

    3.DC current (DC A)
            Accuracy
    Range    		              6000counts Resolution
    60A             ±(2%+30) 0.01A
    600A 0.1A

    4.AC current(AC A)
            Accuracy
    Range    		              6000counts Resolution
    60A   0.01A
    600A 0.1A

    5.Resistance (Ω)
          Accuracy
    Range    		              6000counts                Resolution
     600Ω ±(0.8%+5) 0.1Ω
    6kΩ ±(0.8%+3) 1Ω
    60kΩ 10Ω
    600kΩ 100Ω
    6MΩ 1kΩ
    40MΩ ±(2.5%+3) 10kΩ

    6.Diode and continuity test
     Range display value     test condition
    Diode forward voltage drop Forward DC current is about 1mA, open circuit voltage is about 3V
    The buzzer sounds long and the resistance of the test is less than (50±20) Ω. Open circuit voltage is about 3V, press 'SELECT' for two-speed function switching

    7.Capacitance(C)
              Accuracy
    Range    		              6000counts                 Resolution
    60nF ±(3.5%+20) 10pF
    600nF 100pF
    6uF 1nF
    60uF 10nF
    600uF 100nF
    6mF ±(5%+3) 1uF
    30mF 10uF

    8.Frequency measurement
              Accuracy
    Range    		               6000counts                 Resolution
    10Hz ±(0.1%+3) 0.01Hz
    100Hz 0.1Hz
    1kHz 1Hz
    10kHZ 10Hz
    100kHz 100Hz
    1MHz 1kHz
    10MHz 10kHz

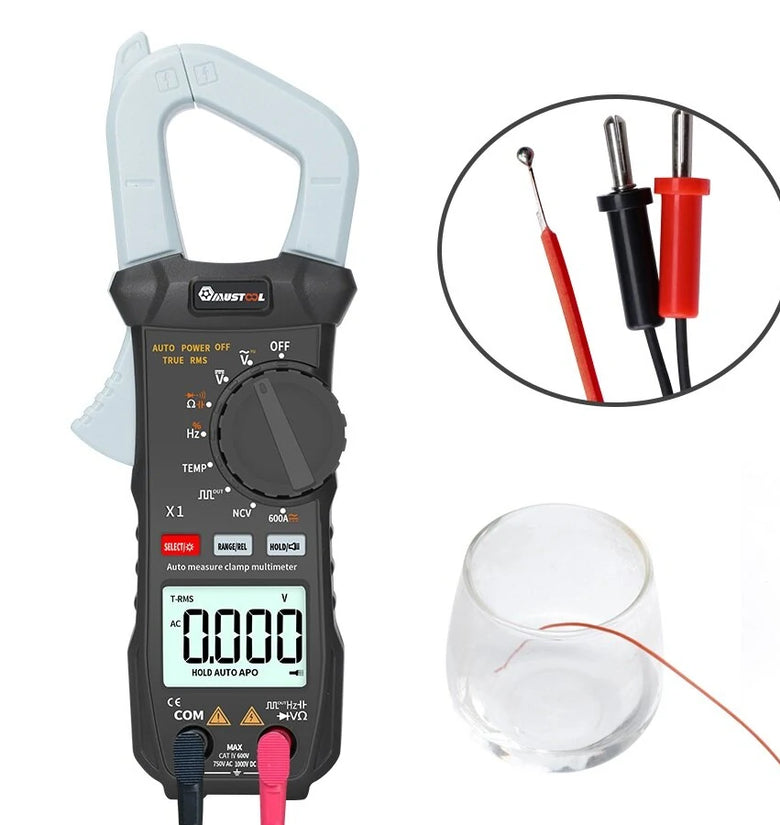

    9.Temperature measurement ( °C/°F)
                Accuracy
    Range    		                    6000counts
