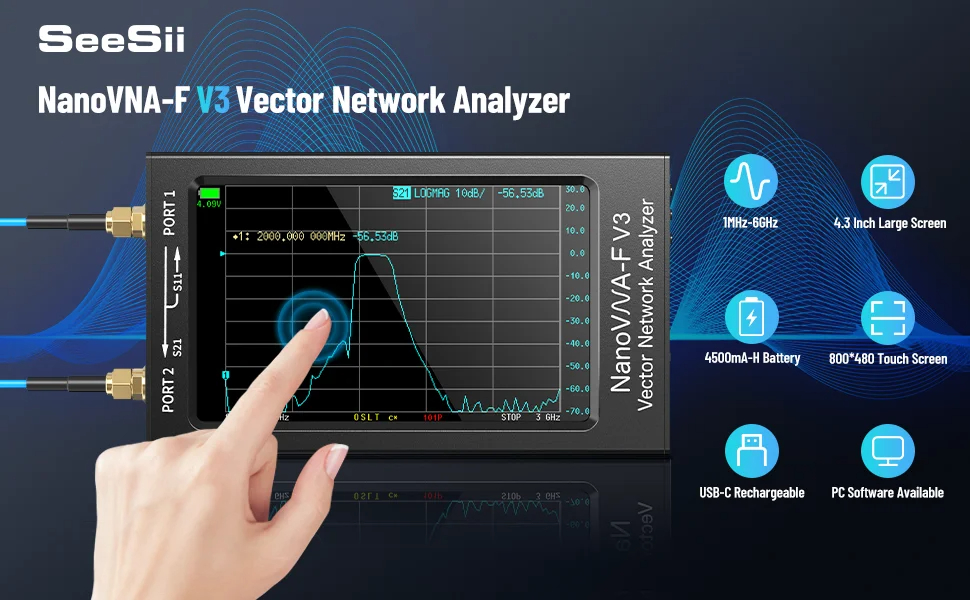

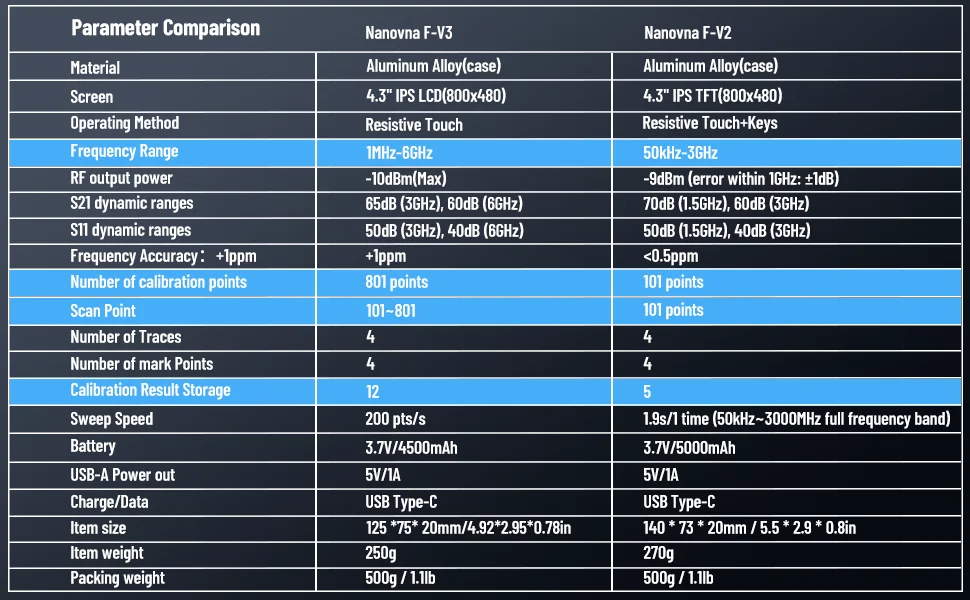

Specifications:

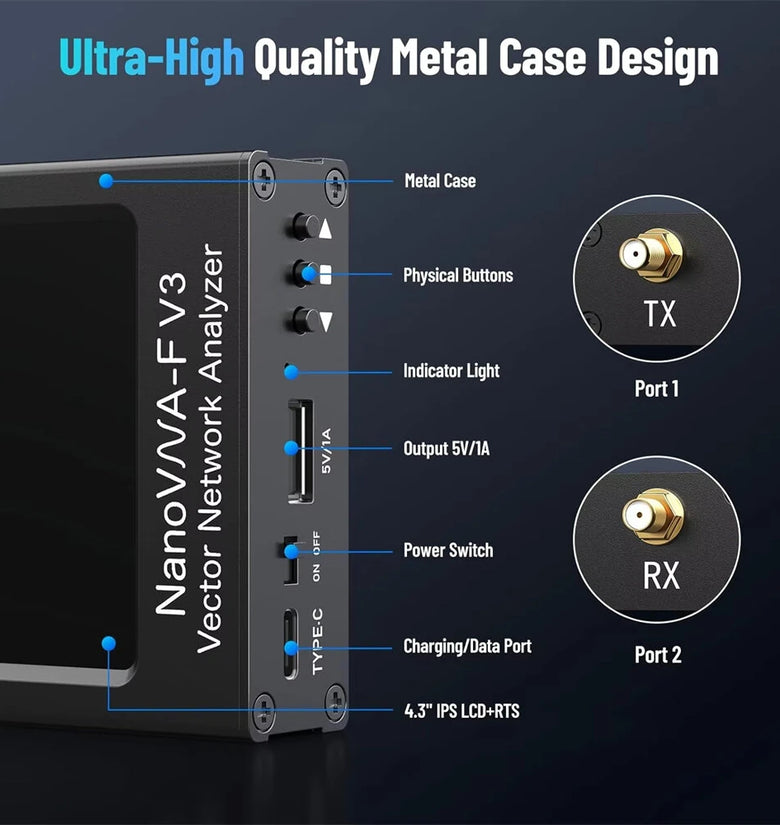

Material: Aluminum Alloy (case)
Screen: 4.3 inch IPS LCD (800x480), Resistive Touch
Frequency Range: 1MHz-6GHz
RF Output Power: -10dBm (Max)

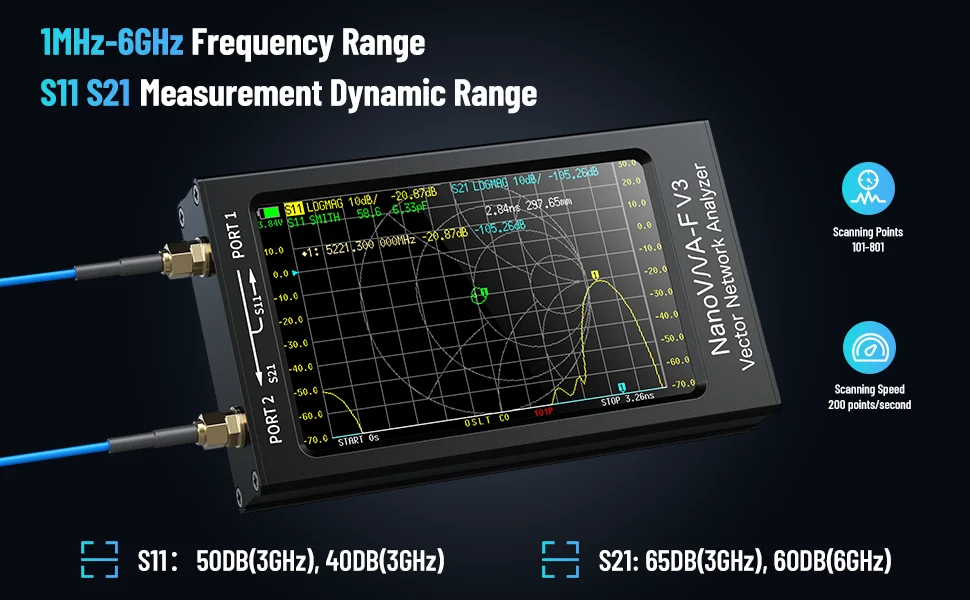

S21 Dynamic Range: 65dB (3GHz), 60dB (6GHz)
S11 Dynamic Range: 50dB (3GHz), 40dB (6GHz)
Frequency Accuracy: ±1ppm
Number of Calibration Points: 801 points
Scan Point: 101-801
Number of Traces: 4
Number of Mark Points: 4
Calibration Result Storage: 12 slots
Sweep Speed: Up to 200 points/second

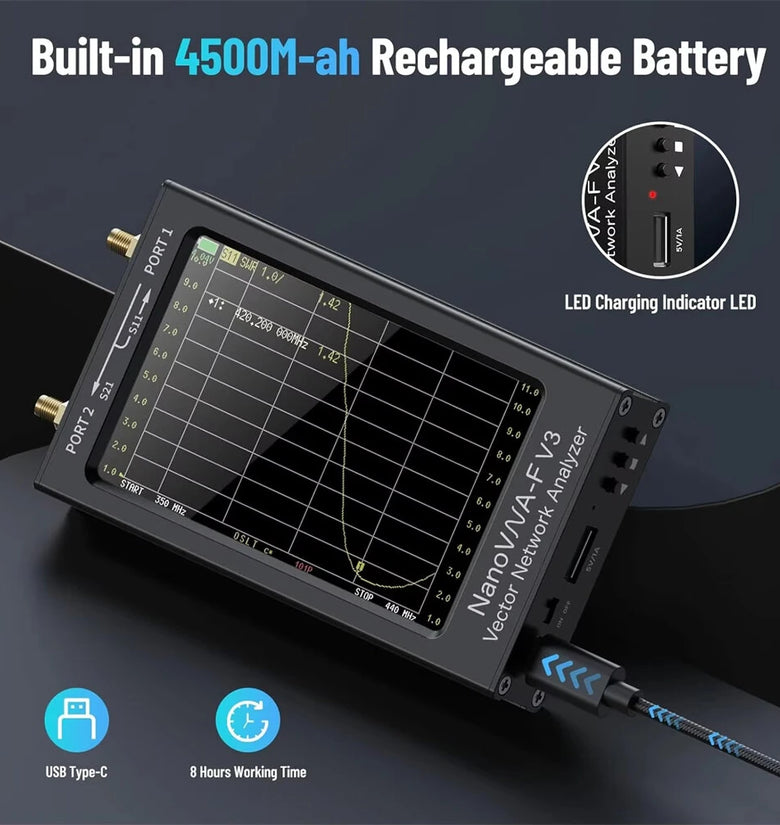

Battery: 3.7V/4500mAh
USB-A Power Output: 5V/1A
Charge/Data Interface: USB Type-C
Item Dimensions: 125 x 75 x 20mm / 4.92” x 2.95” x 0.78”
Item Weight: 250g (0.55lb)
Features:

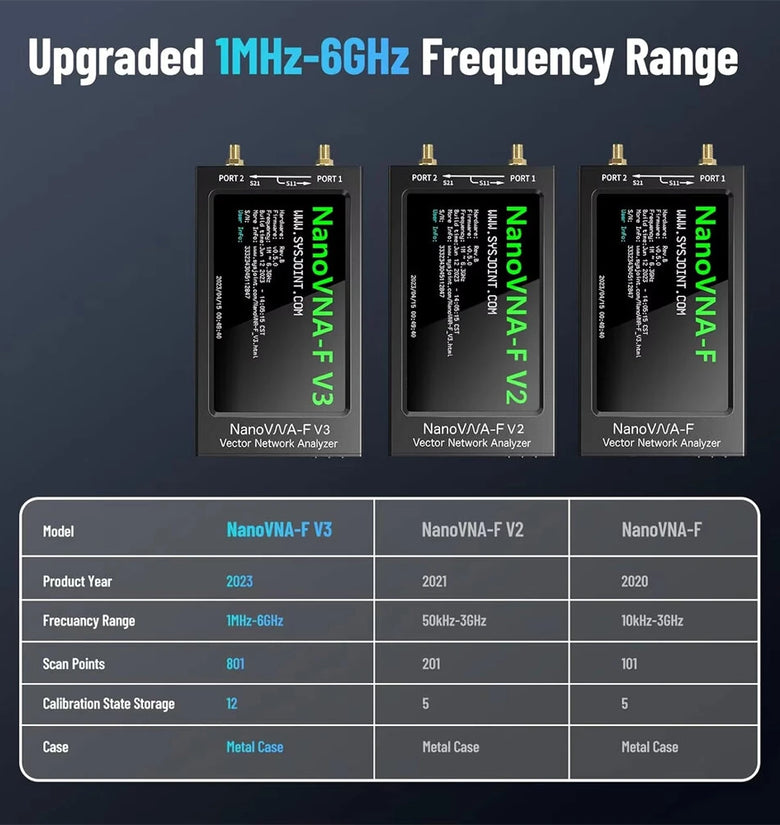

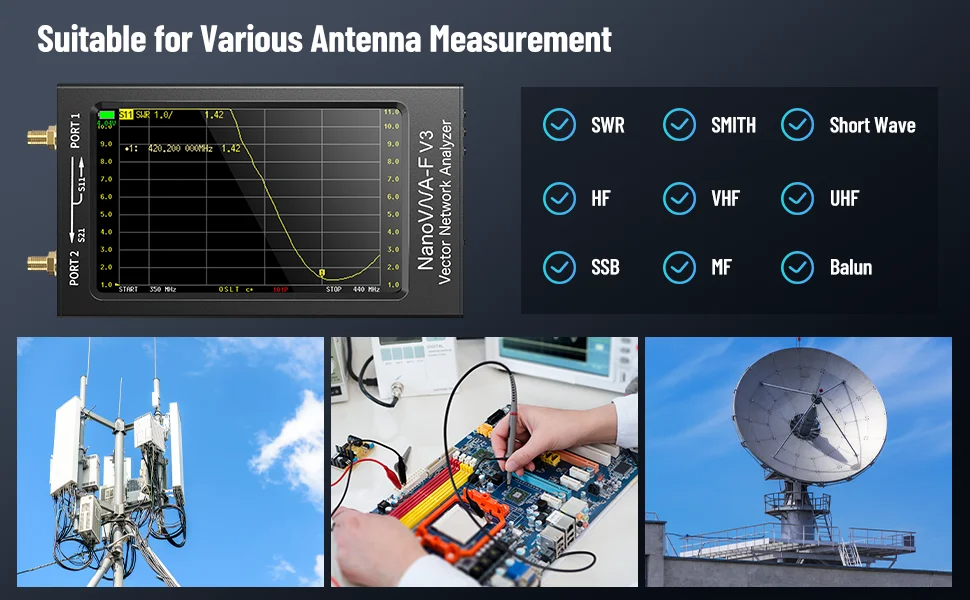

1. Wide Frequency Measurement Range: Covers an extensive frequency range from 1MHz to 6GHz, making it highly versatile for HF, VHF, UHF bandwidth testing and analyses.

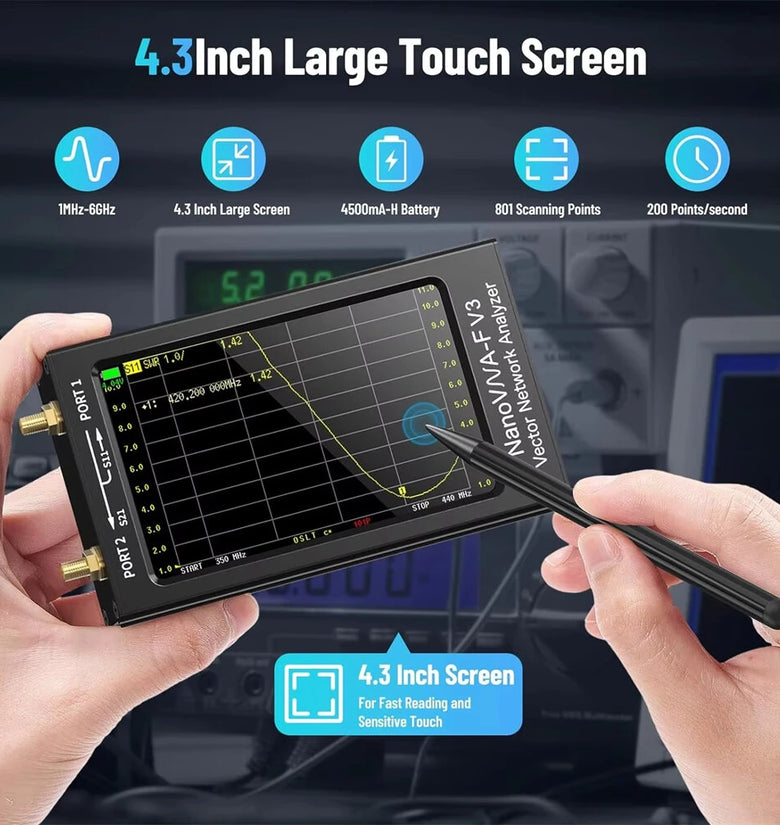

2. High-Resolution 4.3-Inch Touchscreen: Equipped with a 4.3” IPS LCD display boasting 800x480 pixels resolution for clear visualization of results and convenient operation.
3. Precise Calibration and High Accuracy: Features ±1ppm frequency accuracy and supports up to 801 calibration points, ensuring reliable and accurate readings for various applications.
4. TDR Functionality: Enables Time Domain Reflectometry (TDR) measurements, perfect for cable length analysis and performance diagnostics.
5. Fast Sweep Speed and Large Scanning Capacity: Achieves rapid scanning at 200 points/second and supports up to 801 scanning points, allowing for quick and detailed signal analysis.
Package Included:
1 x NanoVNA-F V3
1 x Gold-Plated SMA Calibration Kit (LOAD, OPEN, SHORT)
1 x SMA Female to SMA Female Connector
1 x SMA Male to SMA Male Connector
1 x SMA JKW Connector
2 x 20cm/7.9inch RG405 Cable
1 x USB Type-C Data Cable
