Features:
Made of fine quality material, has a long service life.
Stable performance, high accuracy, high sensitivity.

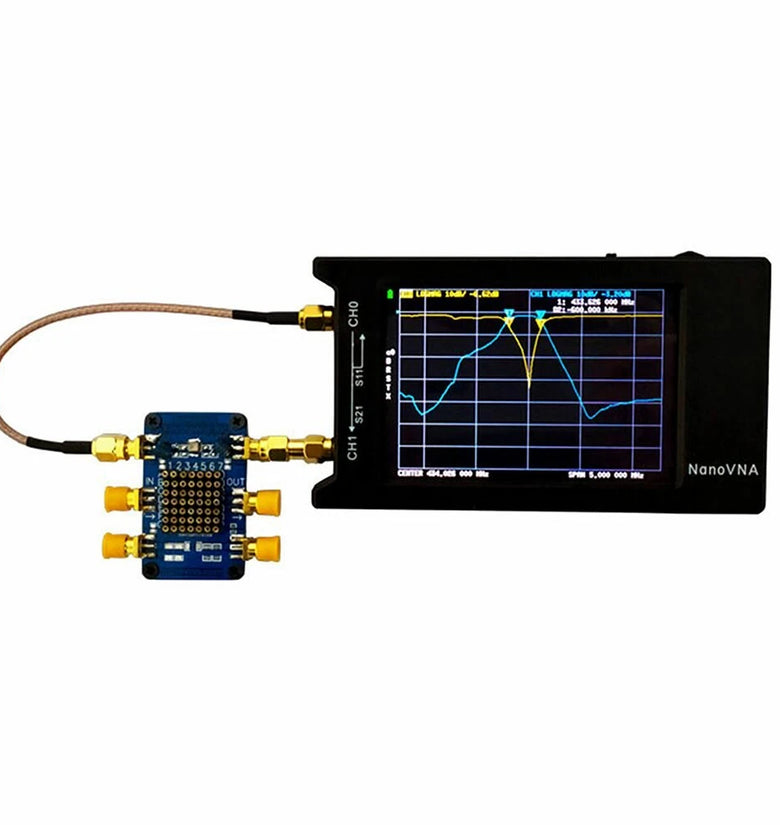

This test board kit is used for NanoVNA or other vector network analyzer user-friendly measurement DIP and SMT devices.

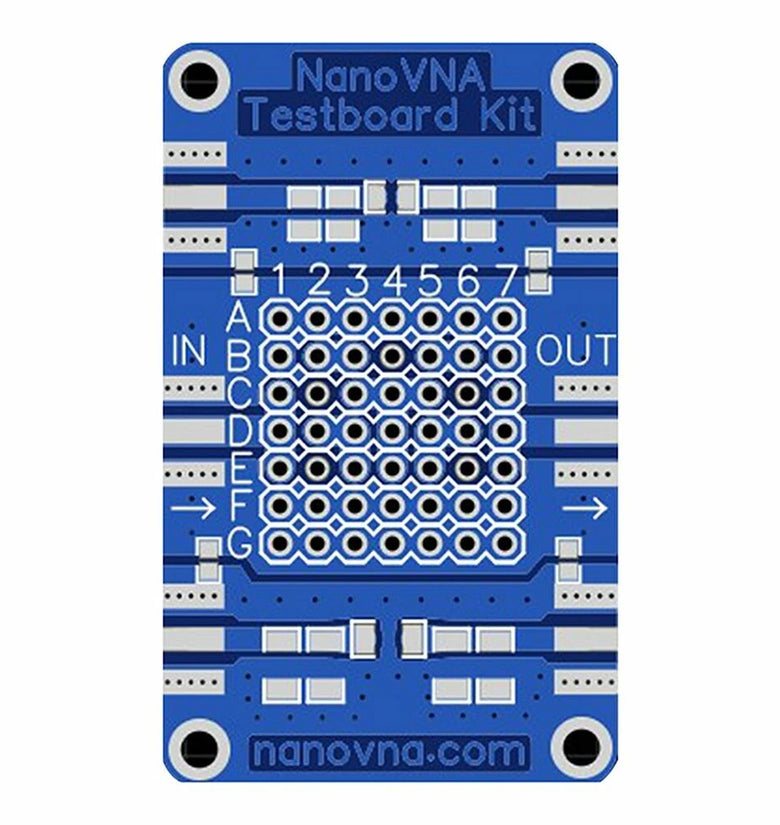

This test board contains a DIP test circuit compatible with VNWA Testboard, and a set of 0805 and 1206 patch test circuits are added.
Note:
1.The SMT circuit cannot fully consider various test conditions. Some parts of test may need to be cut over. Please ensure that you have enough hands-on ability.
2.The circuit board is not soldered before delivery, please bring your own welding tools, please build a test circuit according to your test needs.

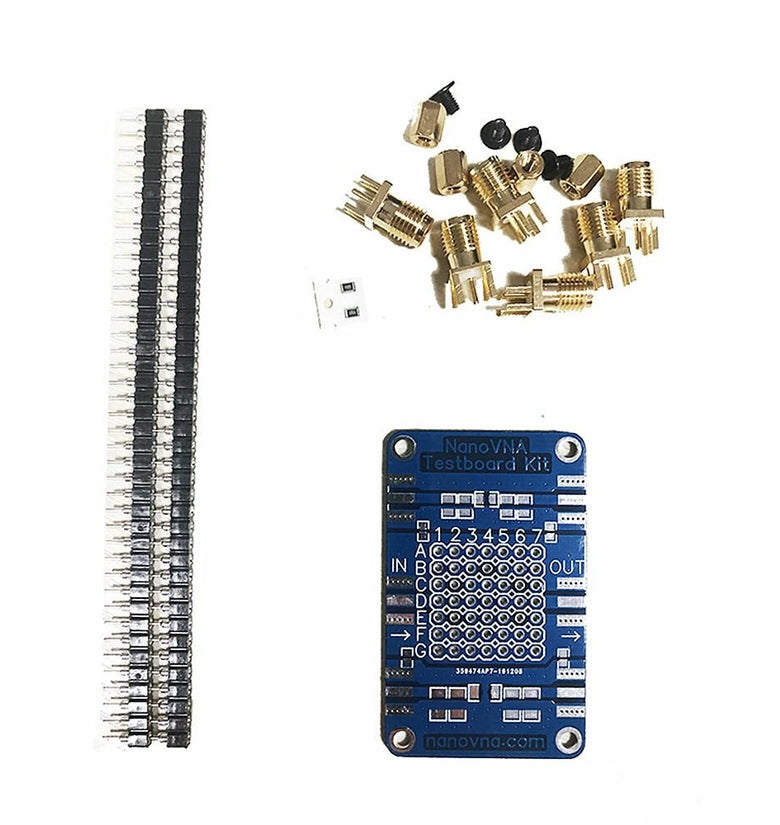

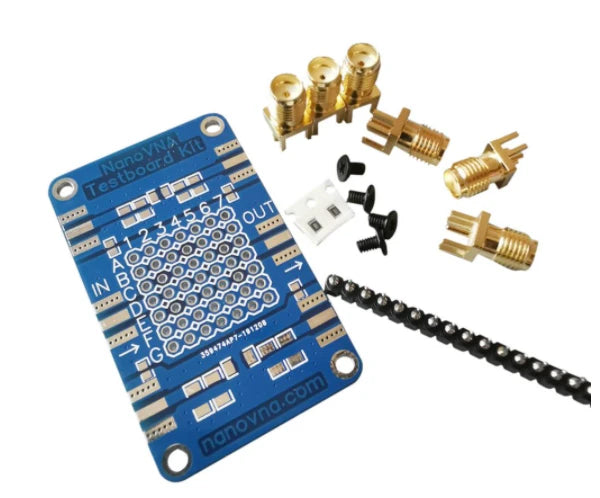

Package Included:
1 x Testboard Main Board
6 x SMA Female Head
4 x 6mm Copper Stud
4 x M2.5 Screw
2 x 40pin Round Row Seat
2 x 0805 49R9 Calibration Resistance
