Specifications:
Frequency range: 50KHz - 3000MHz
RF output power: -9dBm (error ±1dB within 1GHz)
Frequency accuracy: <0.5ppm
S21 dynamic range: 70dB (1.5GHz), 60dB (3GHz)
S11 dynamic range: 50dB (1.5GHz), 40dB (3GHz)
Two-port return loss: 20dB typ (1.5GHz), 13dB min (3GHz)
USB interface: USB Type-C with CDC serial communication
Calibration points: 101 points
Scan points: 101 points
Traces displayed: 4 traces
Marker points: 4 markers
Display: 4.3-inch IPS LCD screen with 800x480 resolution and wide viewing angle
Material: Aluminum alloy casing for shielding interference
RF connector: SMA
Battery: 5000mAh lithium battery with up to 7 hours of usage per charge
Charging IC: High-current 2A
Dimensions: 125mm x 75mm x 20mm
Features:

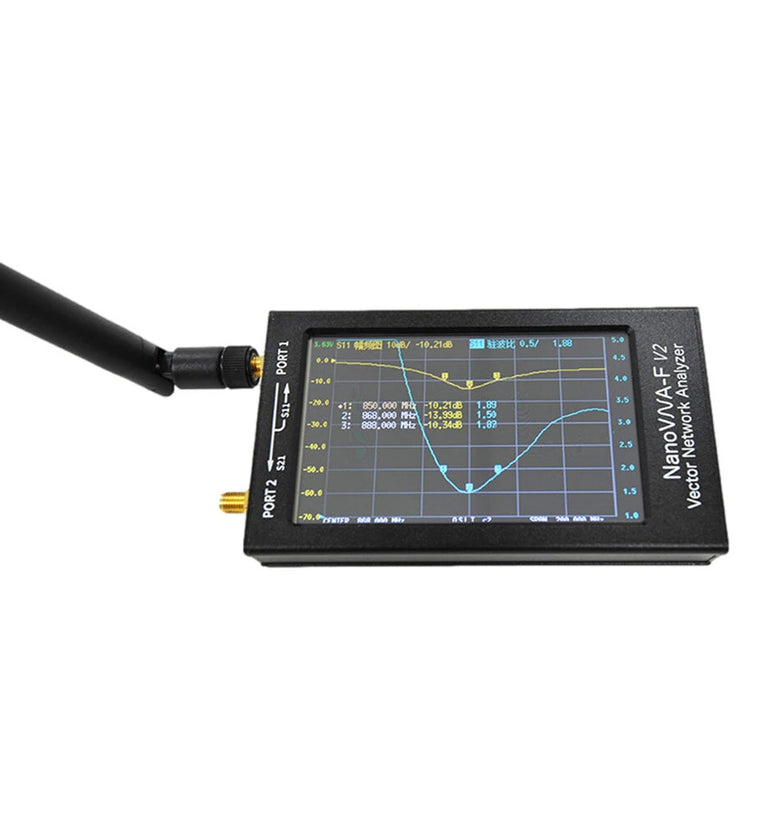

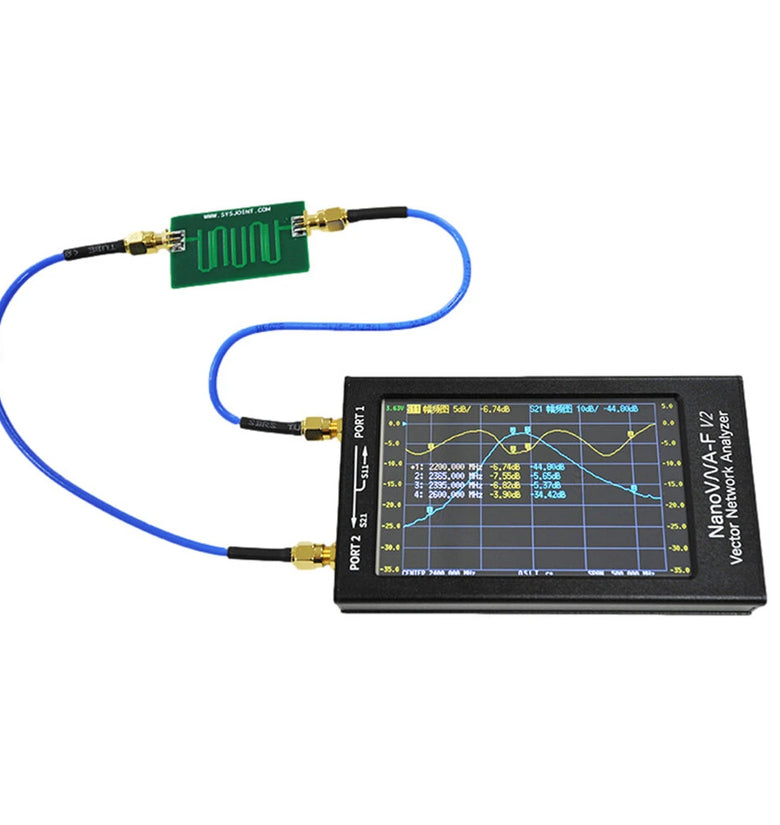

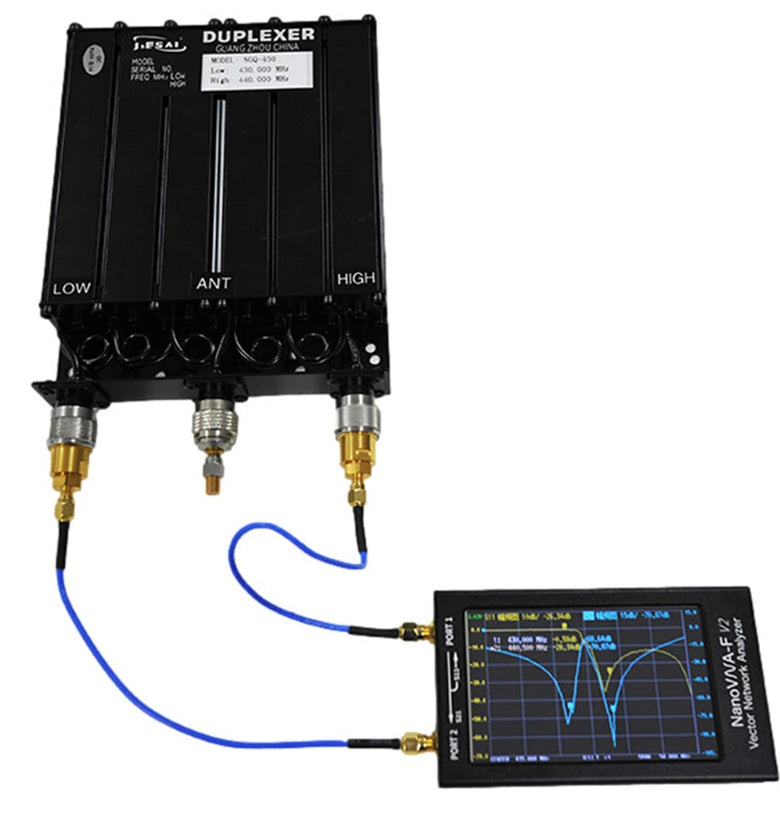

1. Wide frequency range: Covers from 50KHz to 3000MHz, ensuring compatibility with a variety of applications including antenna tuning, cable testing, and duplexer debugging.
2. High dynamic range: Outstanding S21 and S11 dynamic range delivers precise measurements across different frequencies, enhancing the accuracy and reliability of results.
3. Compact and portable design: Lightweight, with dimensions of 125mm x 75mm x 20mm, making it convenient for outdoor or on-site testing tasks.
4. User-friendly interface: Full touchscreen operation complemented by three physical side buttons, providing quick and efficient navigation.

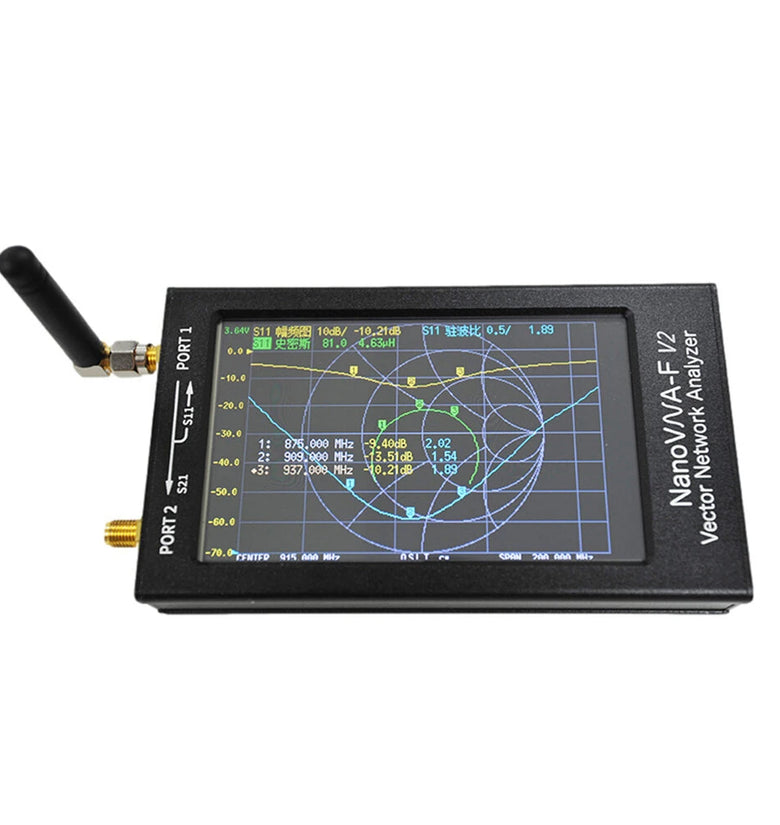

5. Functional versatility: Capable of measuring S-parameters, group delay, phase, SWR, cable attenuation and length, and amplifier gain, among others — all in one device.
Package Included:
1 x NanoVNA-V2 Main Unit
2 x SMA-JJ RG405 Cable (20cm)
1 x Calibration Kit (including 50Ω load, open calibration piece, and short calibration piece)
1 x SMA-F Adapter (double pass female connectors)
1 x SMA Right Angle Adapter (outer screw with inner hole to inner screw with inner pin)
1 x Type-C Data Cable
1 x Stylus
