Features:
- Mini short-wave automatic antenna tuner.
- TYPE-C charging interface, M connector.
- With a 0.91-inch OLED display.
- This antenna tuner is automatically tuned and does not require any control wires, suitable for most radio stations.
- The device contains a set of 7 capacitors and 7 inductors, which allows it (with the largest configuration) to work effectively in a wide frequency band, overlapping 1.8-30MHz amateur radio HF band.
Specifications:
- Power supply voltage: USB charge and discharge
- Maximum current consumption: 400ma
- Maximum working throughput: 100W
- Maximum possible measurement power: 150W
- Minimum power required to start tuning: 5W
- Minimum possible measurement power: 0.1W
- Measurement steps for power up to 10W: 0.1W
- Measurement steps for power higher than 10W: 1W
- Power measurement accuracy: 10%
- Maximum installation inductance: 8.53uH
- Minimum installation inductance step size: 0.05uH
- Maximum installation capacitance: 1869pF
- Minimum installation capacitance step: 10pF
- 4pcs panel buttons: POW, BYP, AUTO and BOT function
- Display: 0.91' OLED
Package included:
- 1 x Automatic Antenna Tuner
Note:
It is assembled and ready to use.
- The device does not consider its own efficiency.
- Supply voltage is 5V standard voltage.
-This Tuner can install battery inside,if you need battery,please choose the one with battery

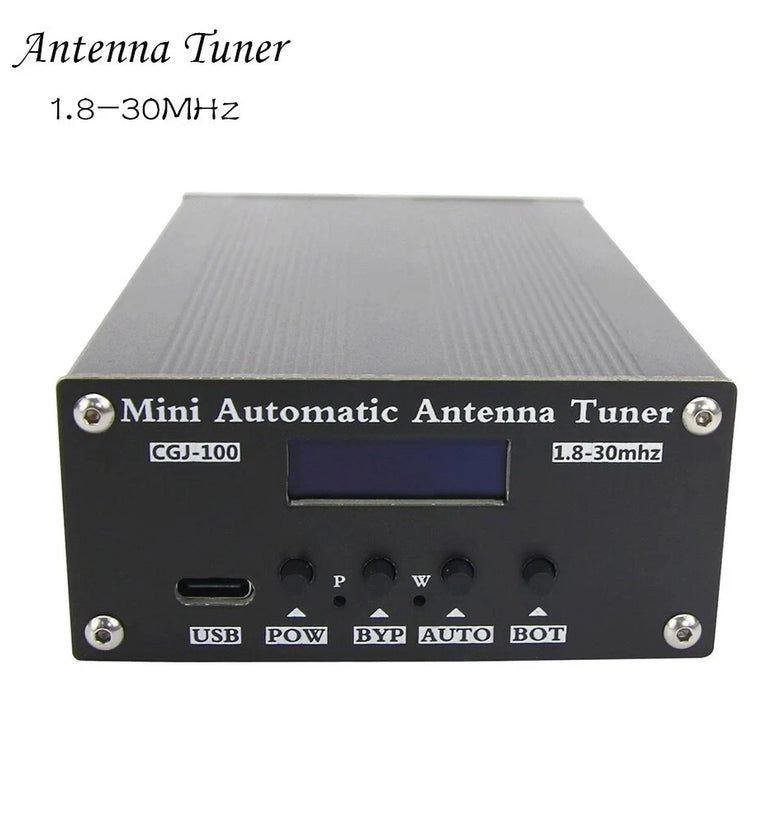

- CGJ-100 1.8-30MHz Mini Automatic Antenna Tuner 0.91' OLED Display For 5-100W Shortwave Radio Stations
- CGJ-100: For high-power shortwave radio stations using 5-100W.

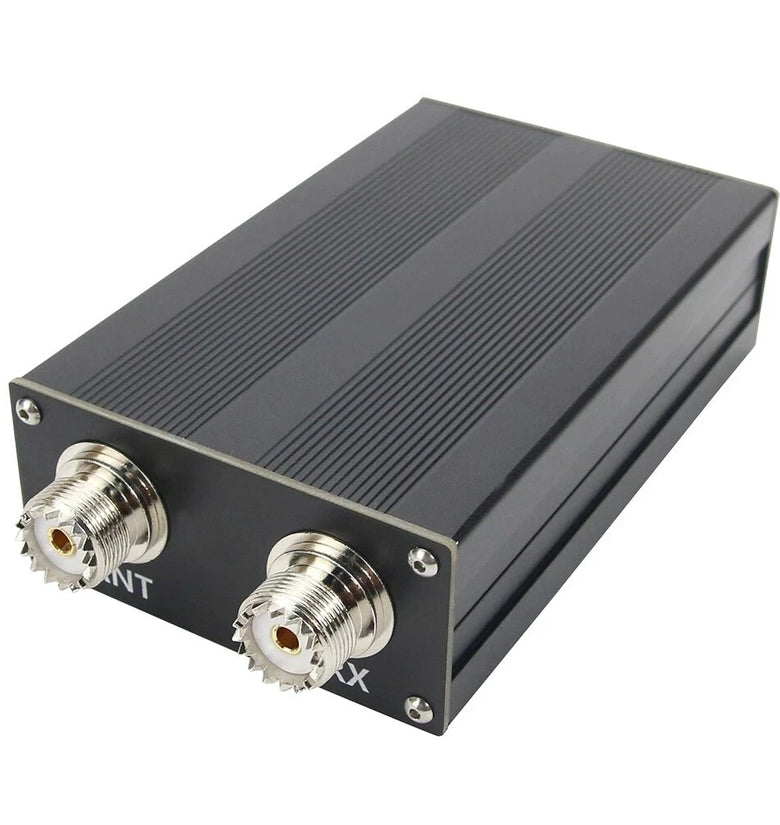

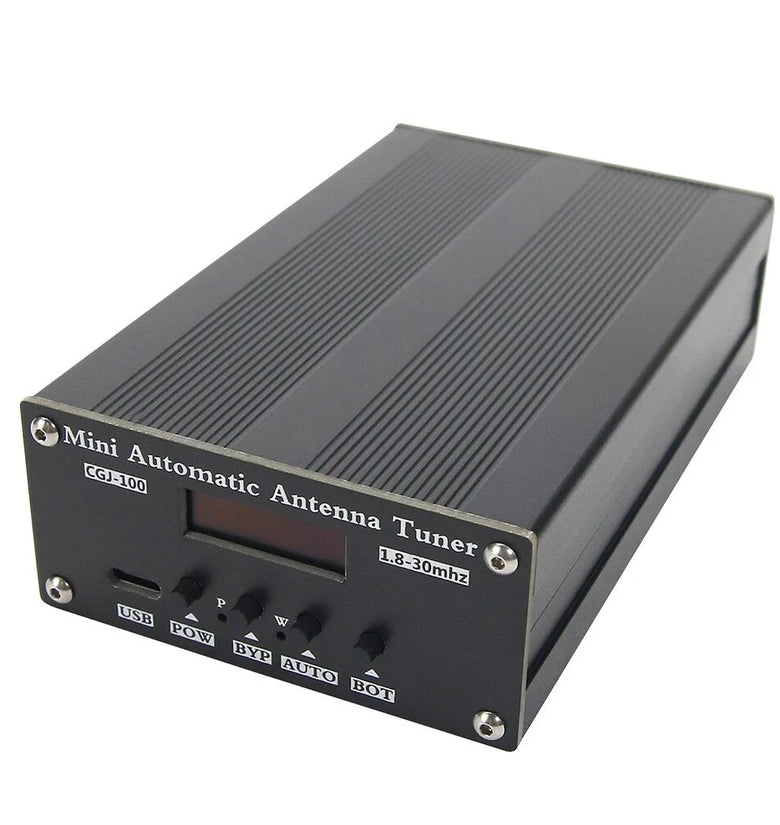

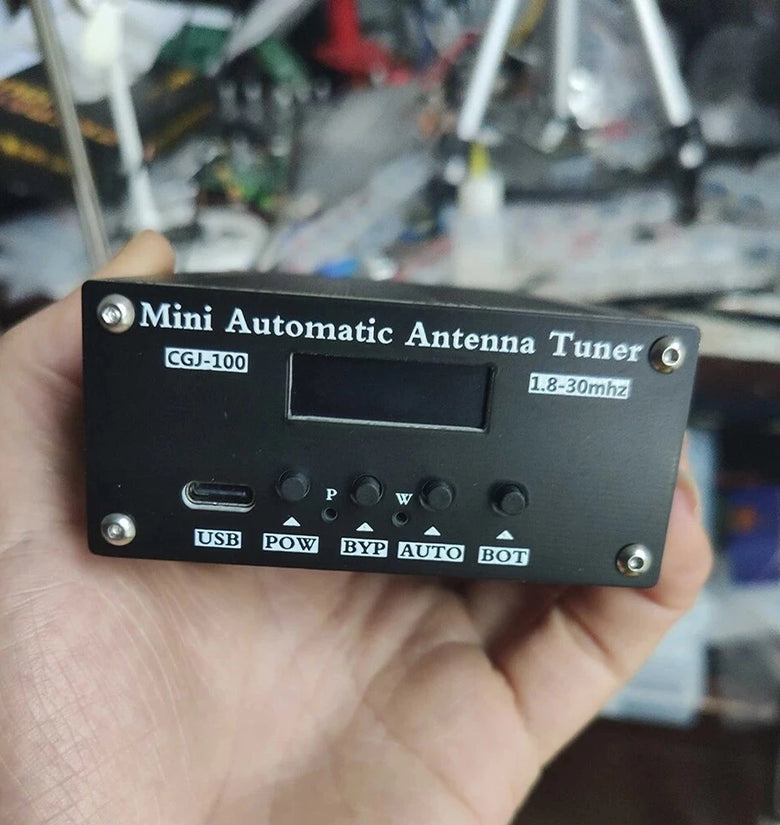

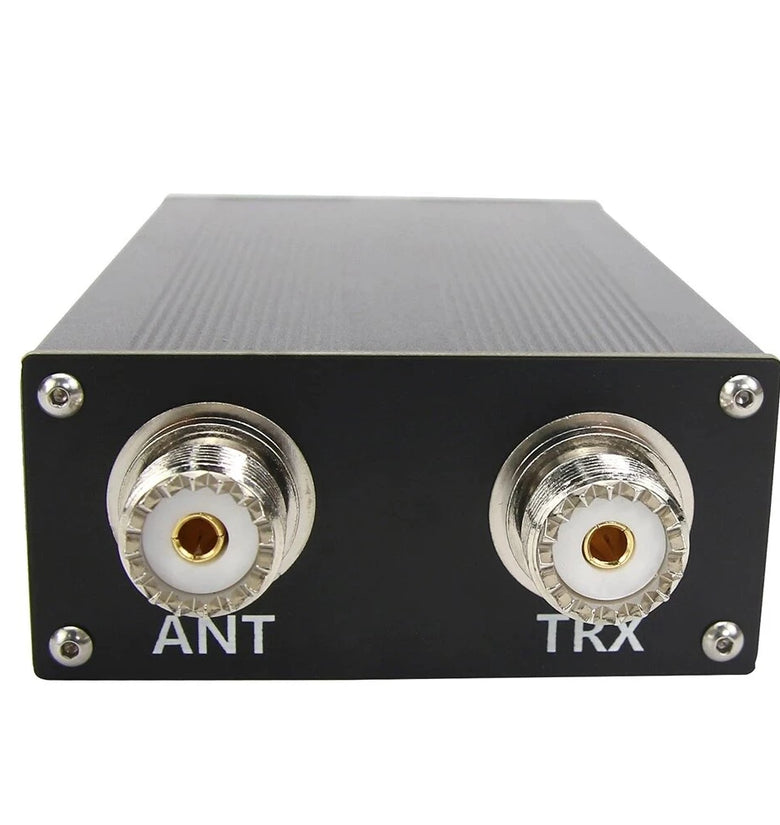

Details picture:
