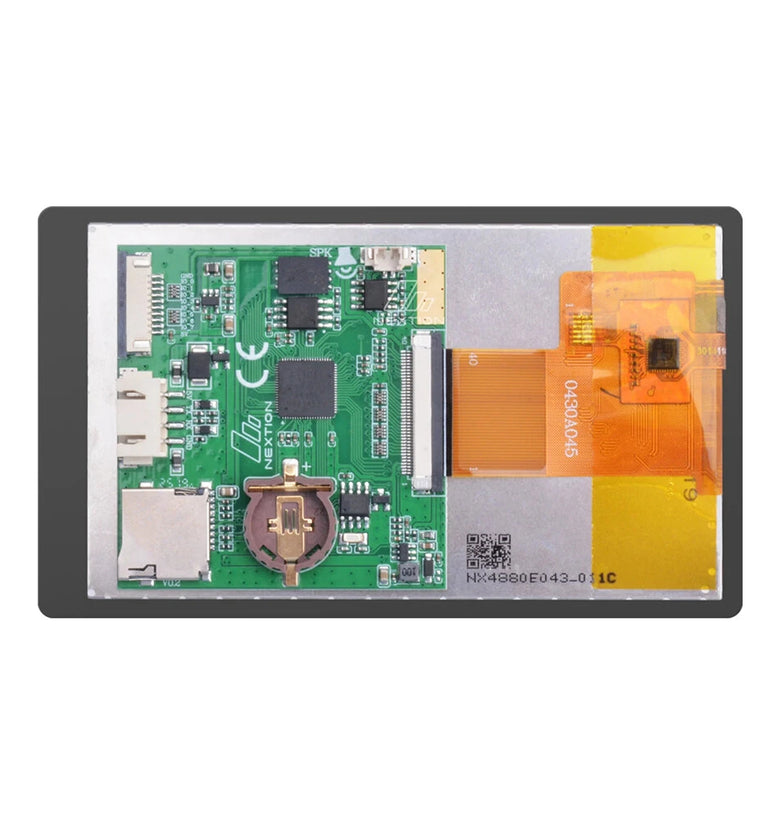

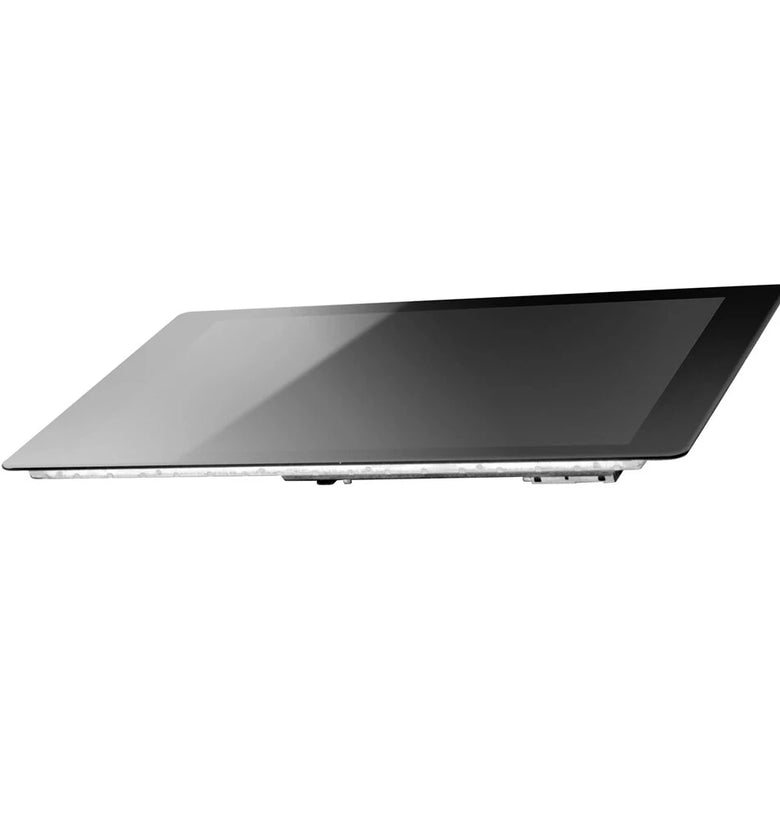

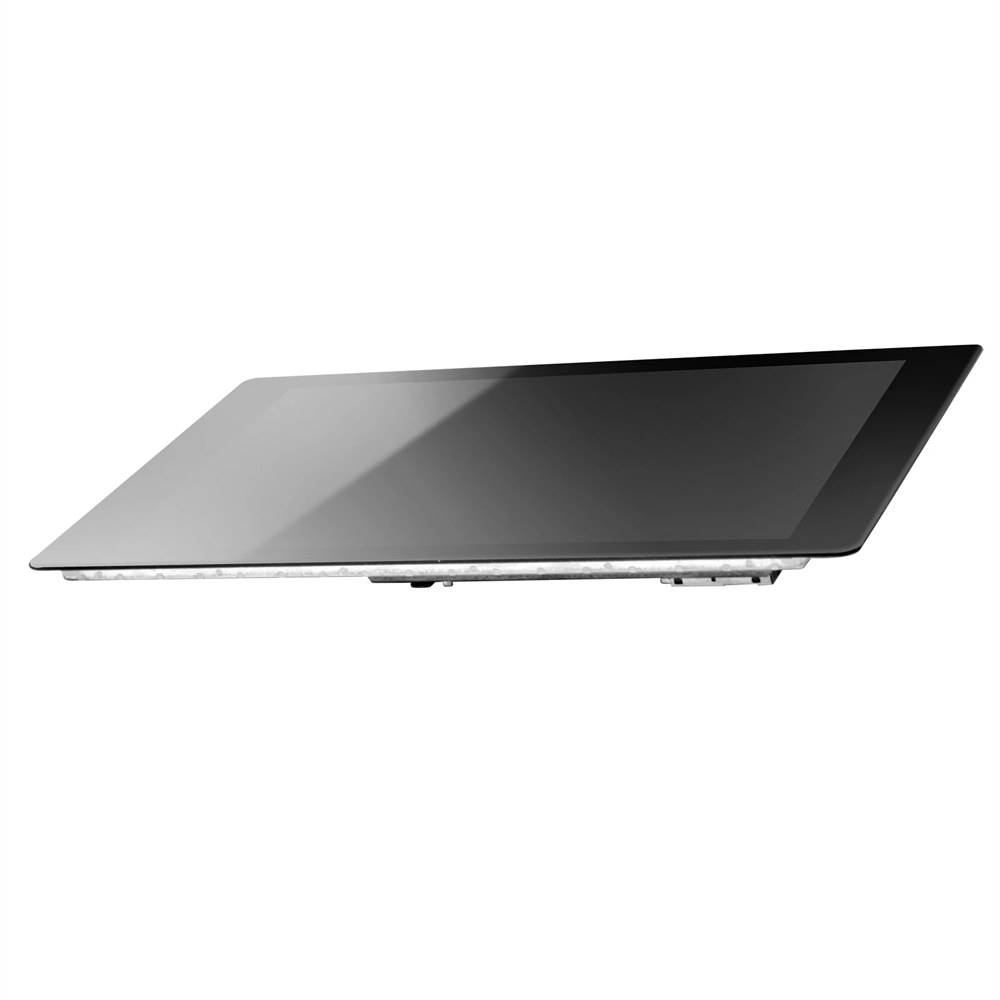

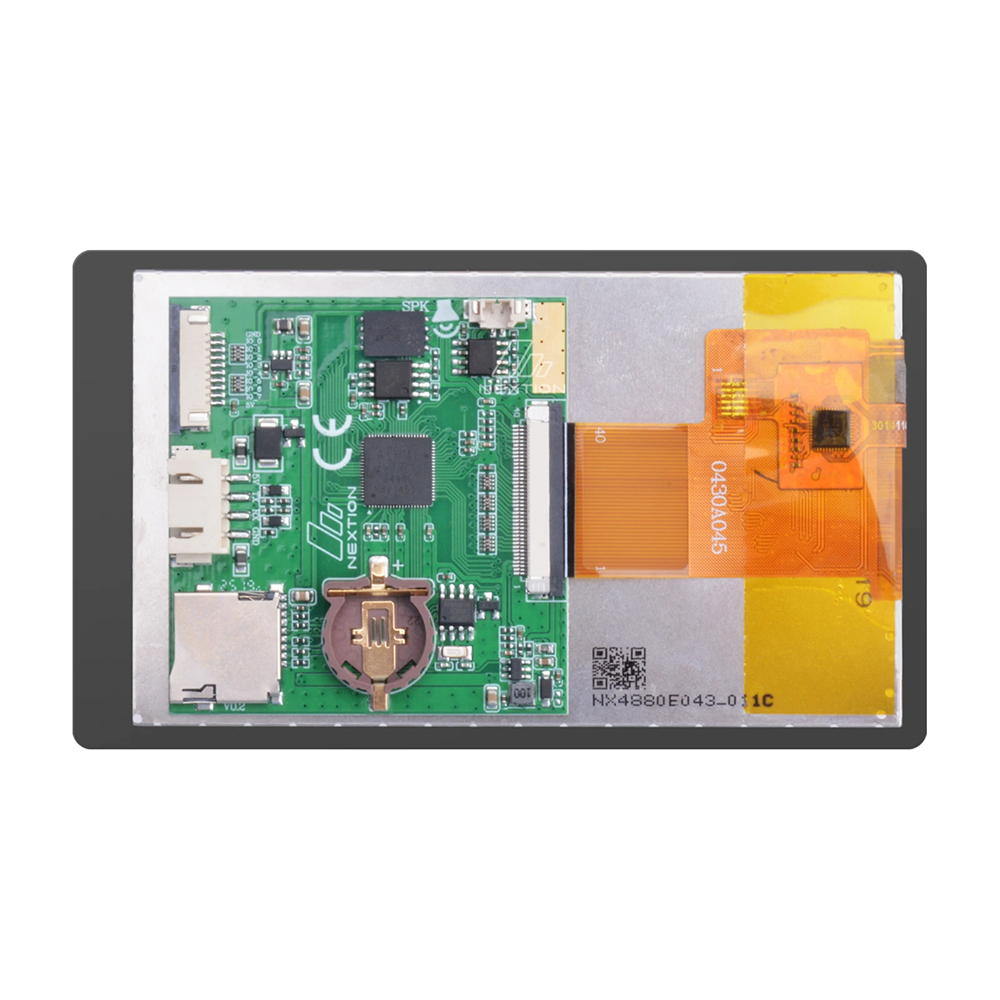

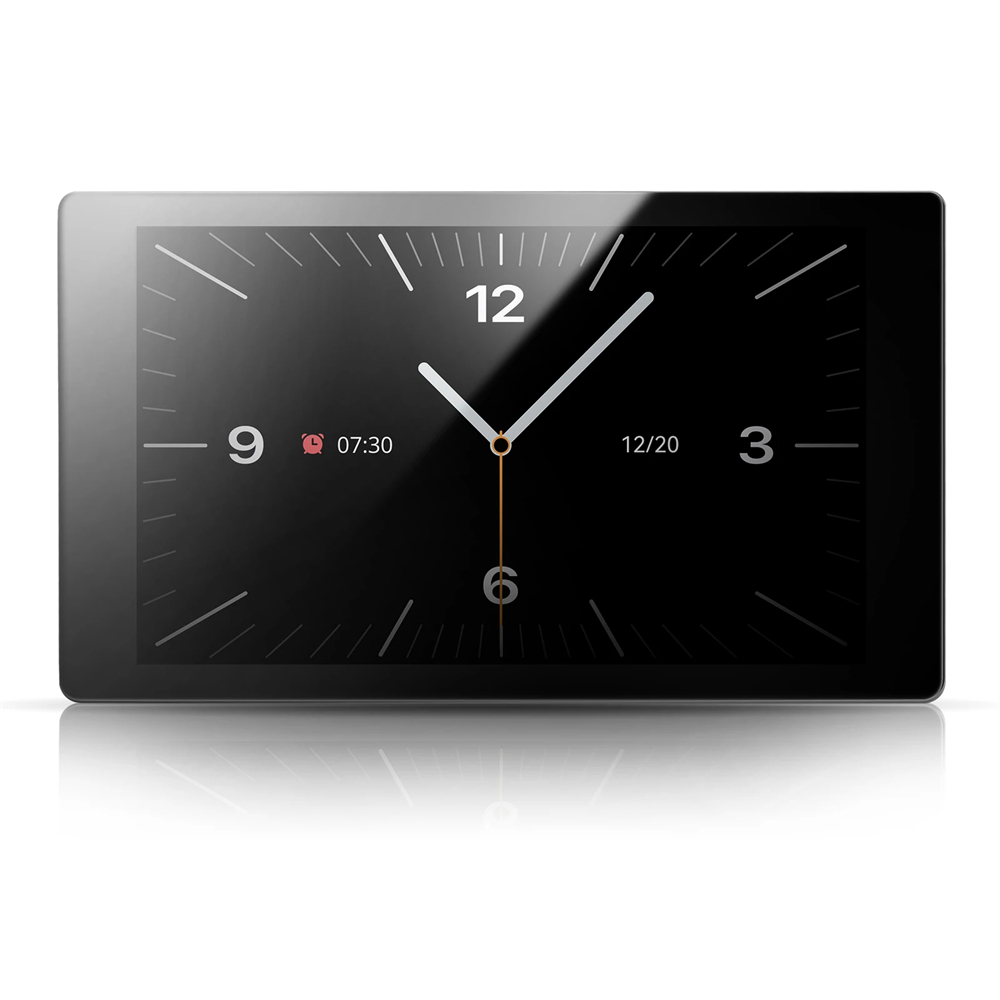

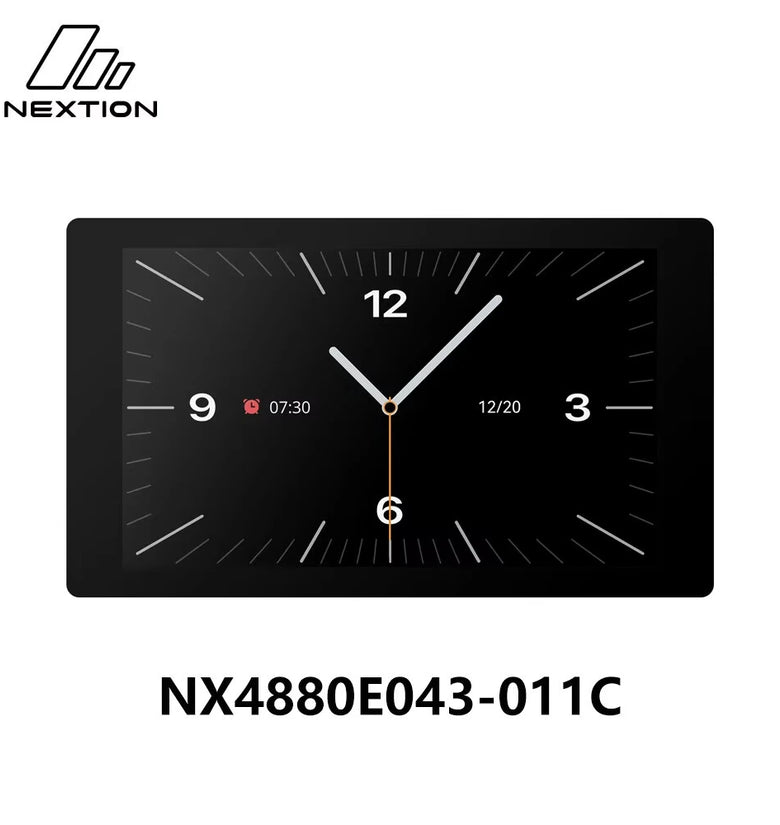

Nextion NX4880E043-011C 4.3 inch HMI Touchscreen Display Capacitive LCD-TFT Panel 480x800 Resolution 128MB Flash Built-in RTC 200MHz MCU

R 1,968.72



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy

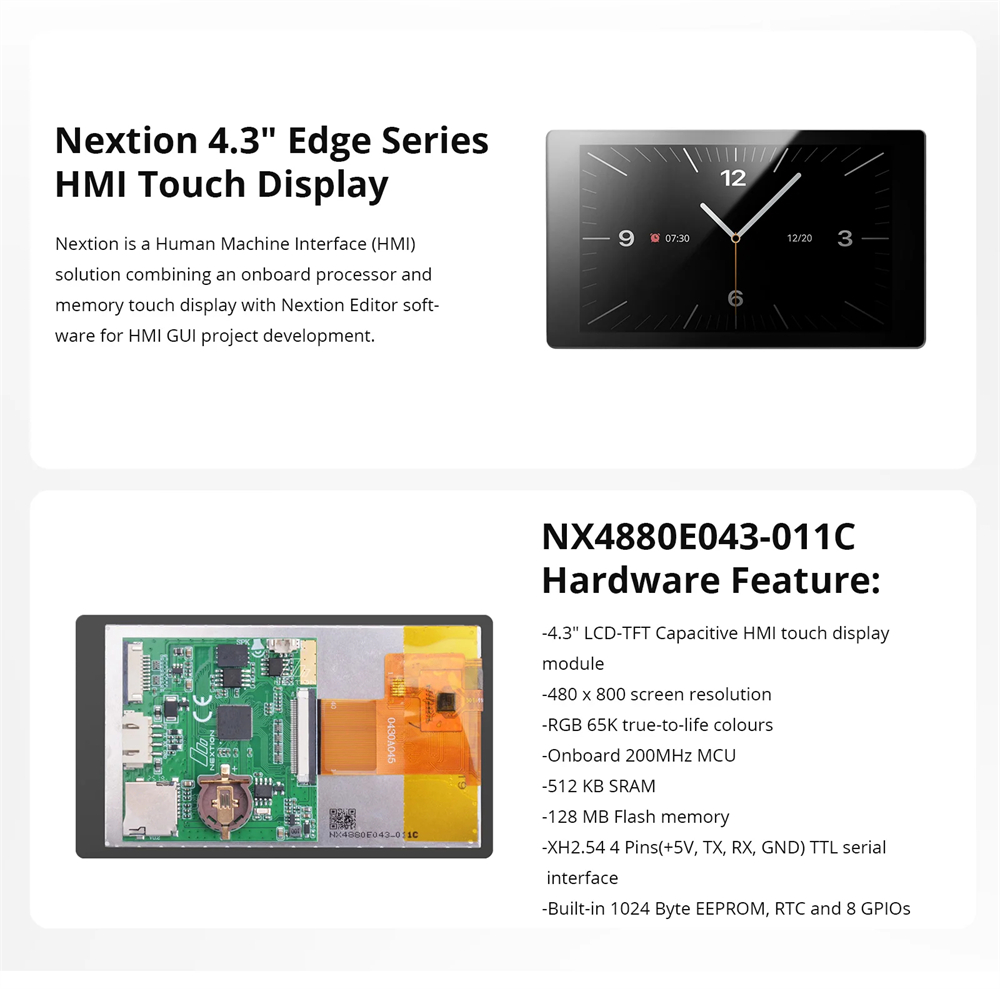

    Specifications:
    Model Name: NX4880E043-011C
    Display Size: 4.3'
    Resolution: 480 x 800
    Touch Panel: Capacitive Touch Panel (CTP)
    MCU: 200 MHz
    Flash Memory: 128 MB
    SRAM: 512 KB
    EEPROM: 1024 Byte
    GPIOs: 8
    RTC: Yes

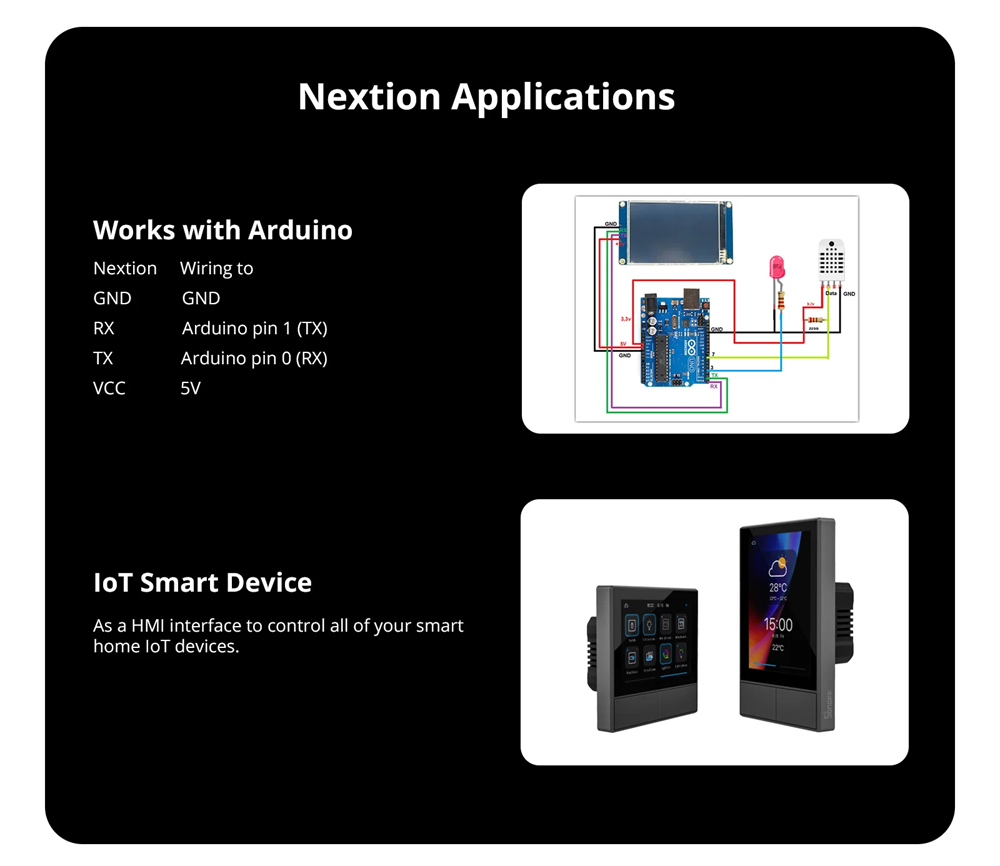

    Interface: XH2.54 4 Pins (5V, TX, RX, GND) TTL Serial

    Features:
    1. Capacitive Touch Panel and Sleek Design: Enjoy precise touch feedback with an ultra-slim and modern form factor, perfectly crafted for custom integration.
    2. High-Resolution Display: The 4.3' LCD-TFT screen with 480x800 resolution delivers crisp and vibrant graphics with RGB 65K true-to-life colors.
    3. Multimedia Capability: Supports video/audio playback and animations, making dynamic user interfaces and presentations effortless.
    4. Advanced Memory Options: Equipped with 128 MB flash memory and 512 KB SRAM to manage complex HMI projects with ease.
    5. Built-in RTC and GPIO: Real-Time Clock and 8 GPIOs provide enhanced functionality, ideal for versatile applications and control systems.

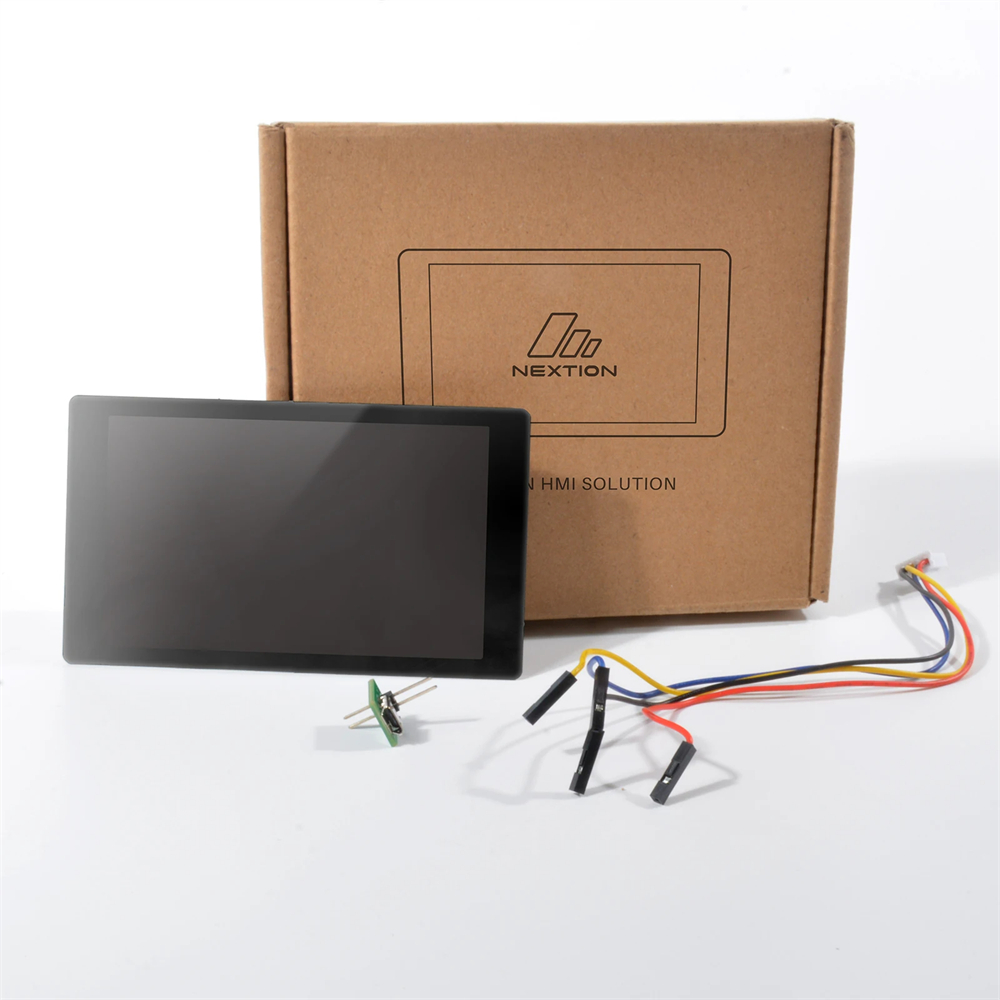

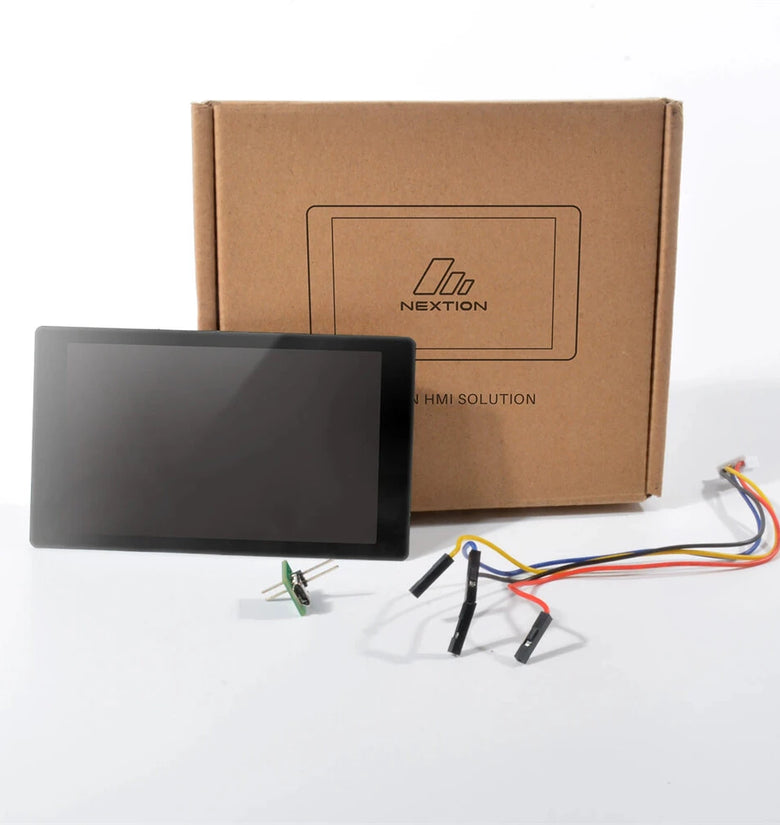

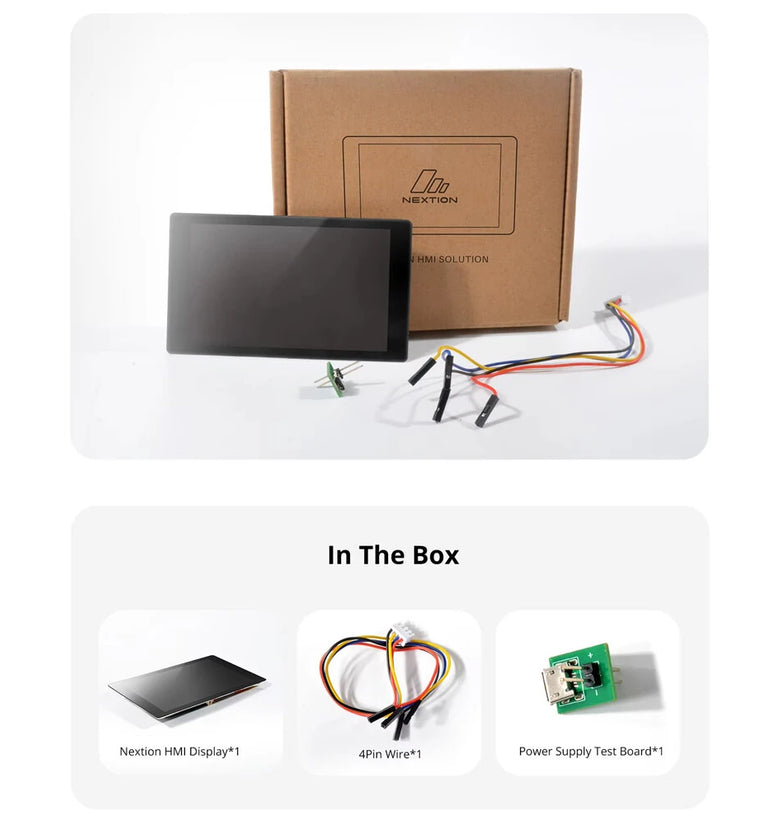

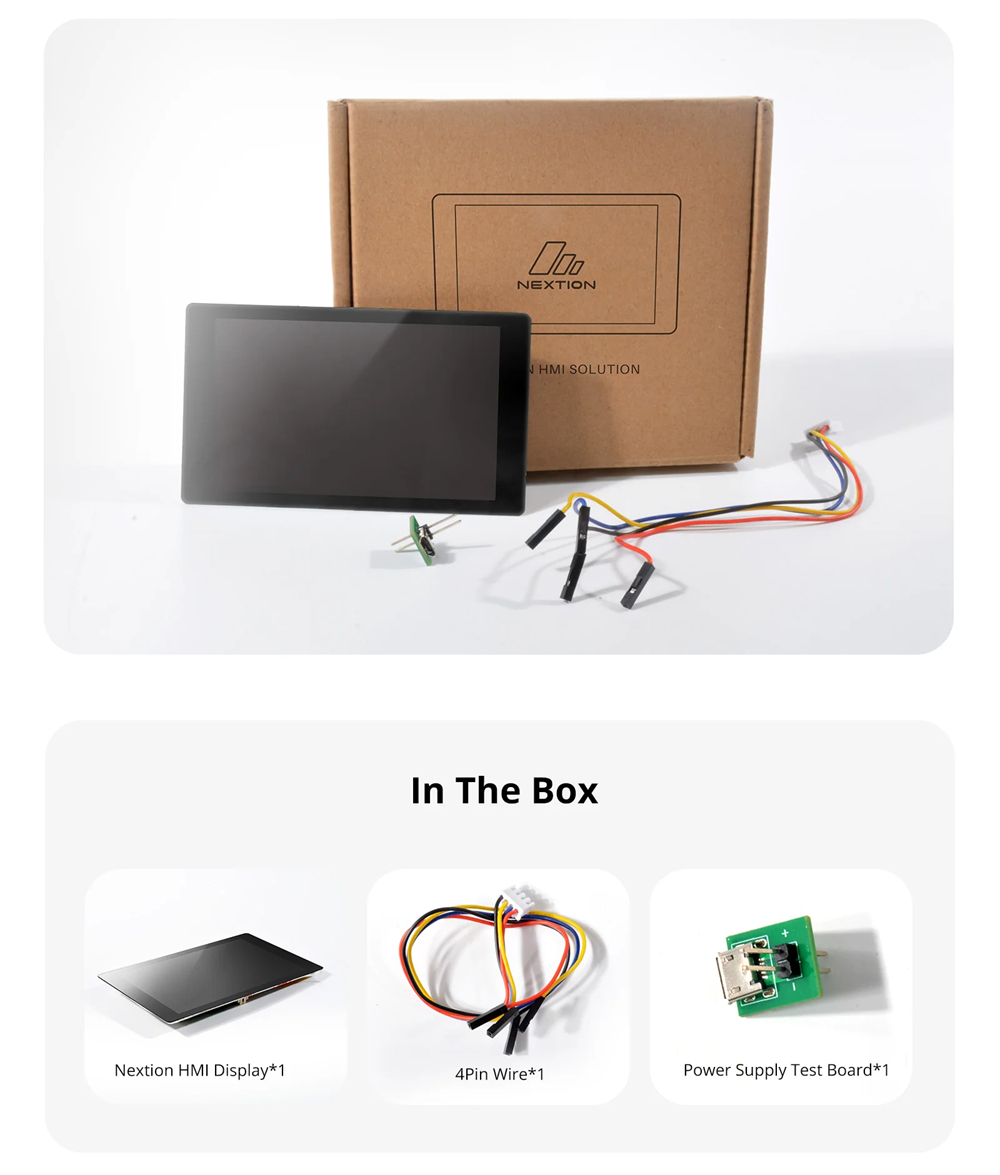

    Package Included:
    1 x Nextion NX4880E043-011C HMI Display
    1 x 4-Pin Wire
    1 x Power Supply Test Board
