Description:

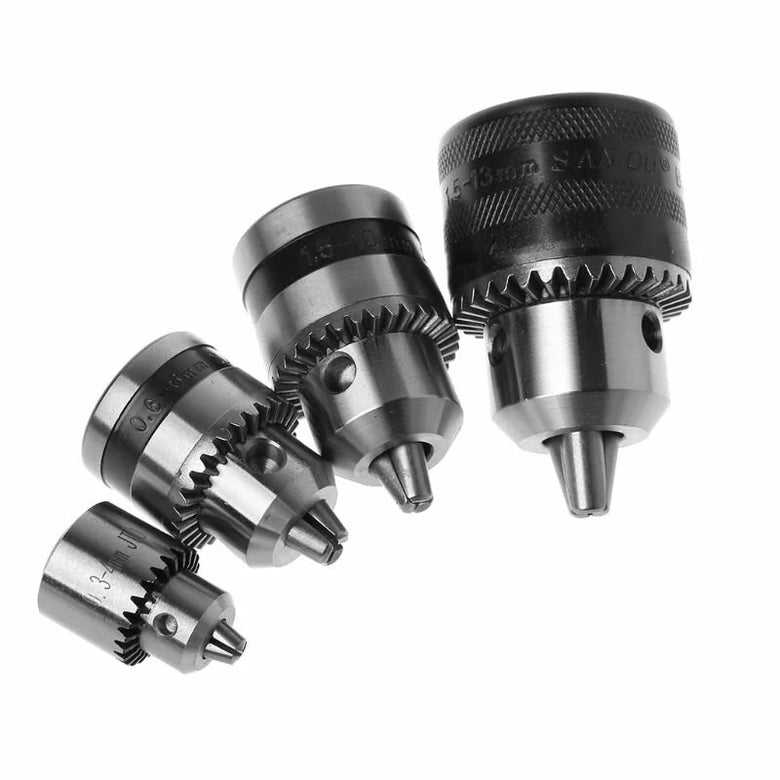

No Power Spindle Assembly Small Lathe Accessories Trimming Belt JTO/B10/B12/B16 Drill Chuck Set
Specification:
| Product Name |
Drill Chuck Set |
| Type |
B10 Drill Chuck JTO Drill Chuck B16 Drill Chuck B12 Drill Chuck JTO Drill Chuck Connecting Rod B10 Drill Chuck Connecting Rod XL10T 5mm Hole Synchronization Wheel |
| Cutting ability | Unpowered spindle |
| Cutting depth | 10 (mm) |
| Saw blade size/diameter | 90 * 10 (mm) |
| No load speed | 10000 (RPM) |
| Scope of application | Making small saw |
| Power type | No power |
| Quantity | 1 Set x Drill Chuck Set |
Features:
- The shipper and the synchronous wheel are equipped with the gasket isolation of 1mm to lock tightly.
- The rotation is smooth and without phase grinding, and the accuracy is good.
- No power spindle, precision machining by grinding machine, precision of 0.005mm, that is, a high-precision spindle with less than one wire.
- DIY bench drill, bench mill, table saw and so on.
- Through the connecting rod, the shaft sleeve link is eliminated, and the drill clamp is installed directly, so the accuracy is higher.
- The non-powered spindle (Mohs drill chuck connecting rod) is precision machined with a grinding machine with an accuracy of 0.005MM. Can be used to make bench drills, bench mills, table saws, etc.
Installation tips:
1. Pay attention to the mounting direction of the bearing, and carefully look at the description diagram or video.
2. Do not damage the bearing blindly. Patience and carefulness are the key points of mechanical work.
3. Various methods: to activate the brain and complete the assembly.
4. The sliding block and the contact surface of the synchronous wheel shall be separated by gasket to prevent phase grinding.The gasket is small. Don't lose it.
Package Included:
| Type | Quantity |

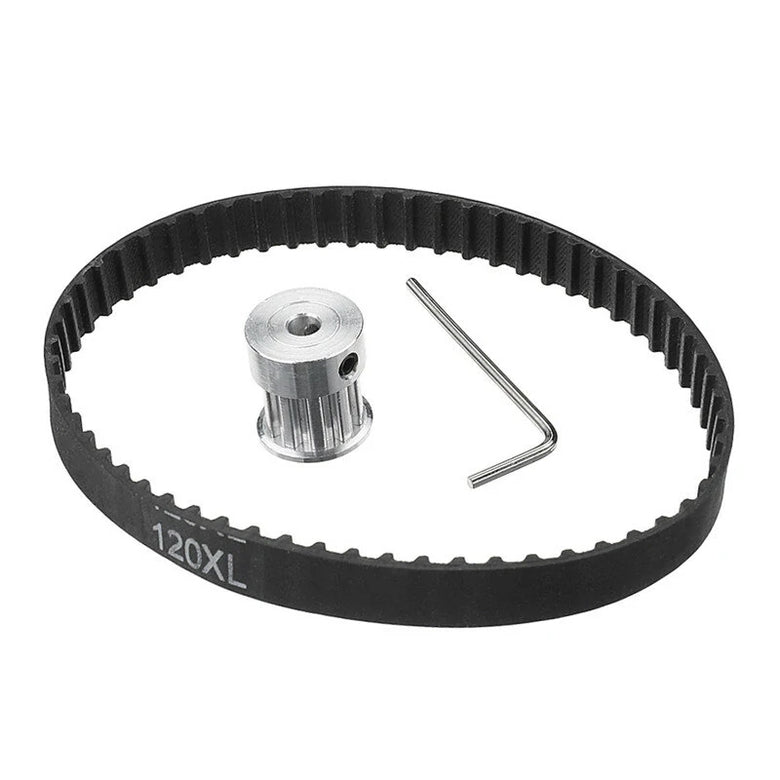

| XL10T 5mm Hole Synchronization Wheel |
1 Pc x XL10T 5mm hole synchronization wheel 1 Pc x 120XL Timing belt 1 Pc x Wrench |

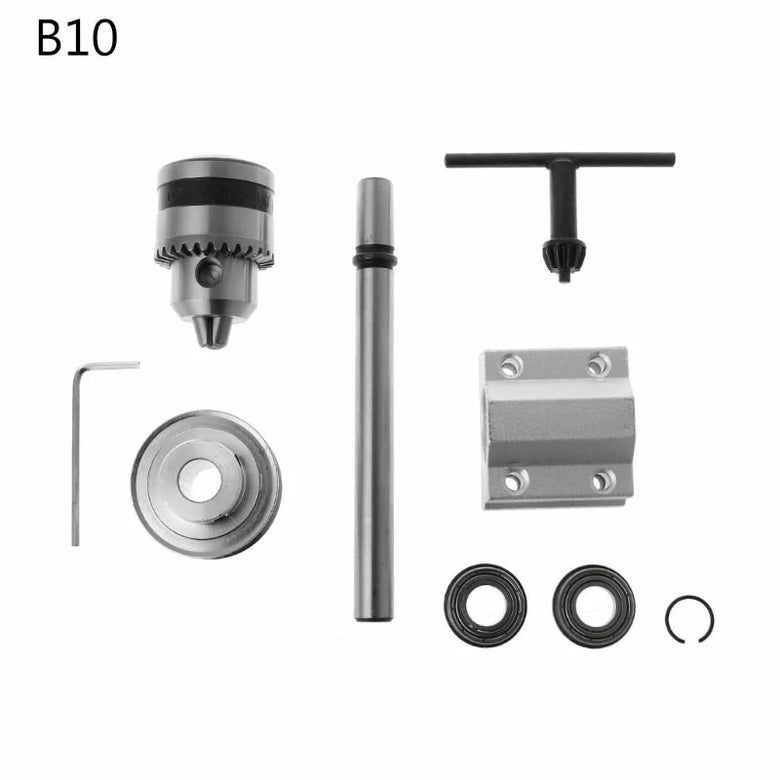

| B10 Drill Chuck |
1 Pc x Drill chuck connecting rod 1 Pc x XL20T 10mm hole synchronization wheel 1 Pc x 10mm hole slider (including 2 bearings) 1 Pc x 0.6-6mm B10 Drill Chuck 1 Pc x M10 Shaft sleeve (Including shaft socket wrench, synchronous wheel wrench, drill clamp key) |

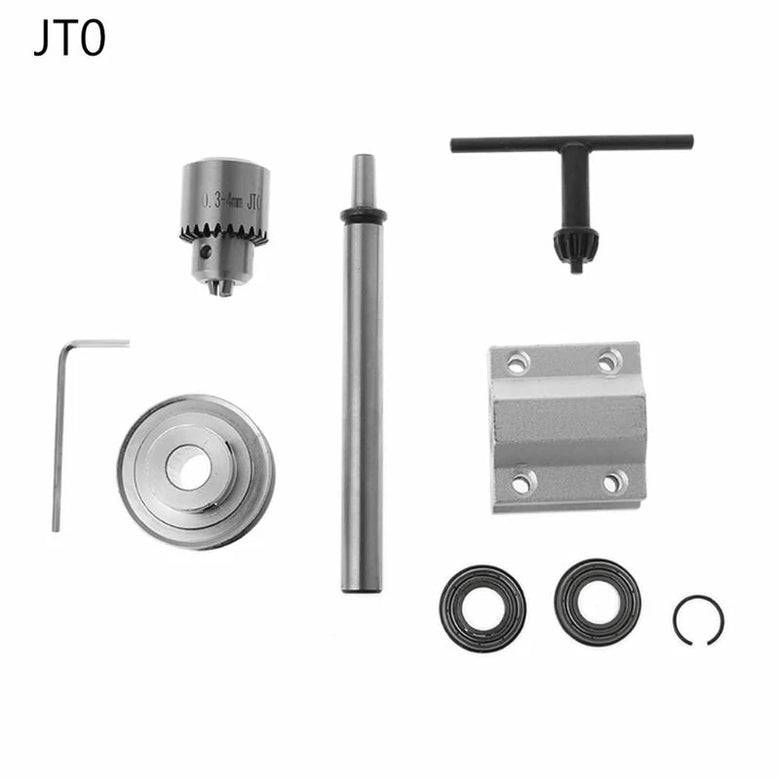

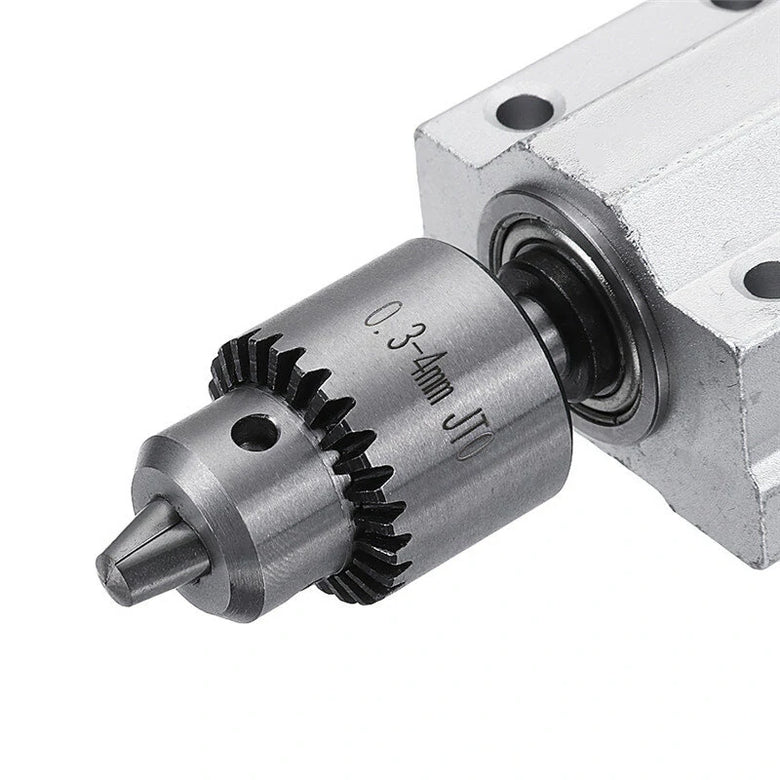

| JTO Drill Chuck |
1 Pc x Drill chuck connecting rod 1 Pc x XL20T 10mm hole synchronization wheel 1 Pc x 10mm hole slider (including 2 bearings) 1 Pc x 0.3-4mm JTO Drill Chuck 1 Pc x M10 Shaft sleeve (including shaft socket wrench, synchronous wheel wrench, drill clamp key) |
| JTO Drill Chuck Connecting Rod | 1 Pc x The JTO shank |
| B10 Drill Chuck Connecting Rod | 1 Pc x The B10 shank |

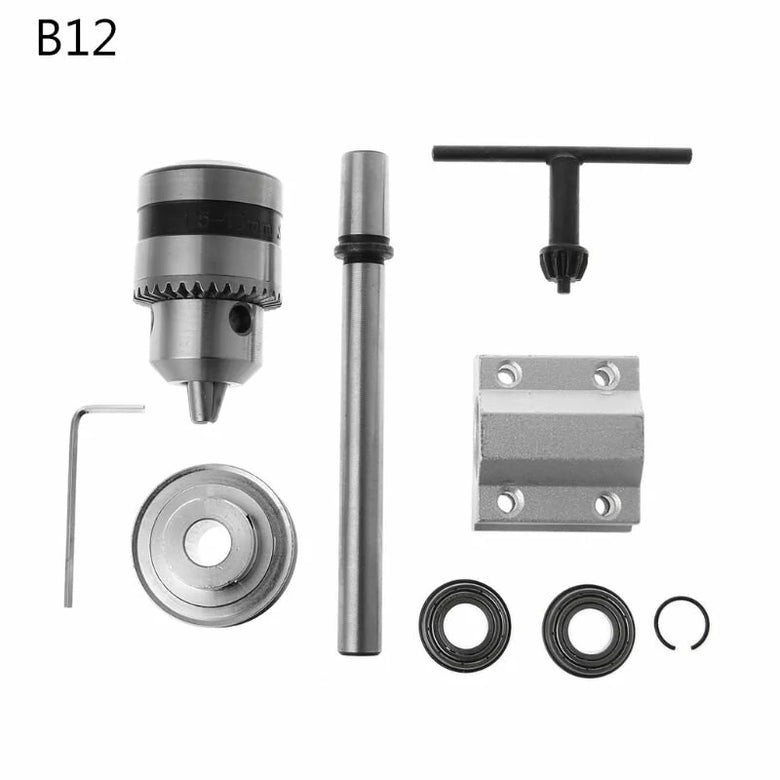

| B12 Drill Chuck |
1 Pc x Drill chuck connecting rod 1 Pc x XL20T 10mm hole synchronization wheel 1 Pc x 10mm hole slider (including 2 bearings) 1 Pc x 1.5-10mm B12 Drill Chuck 1 Pc x M10 Shaft sleeve (including shaft socket wrench, synchronous wheel wrench, drill clamp key) |

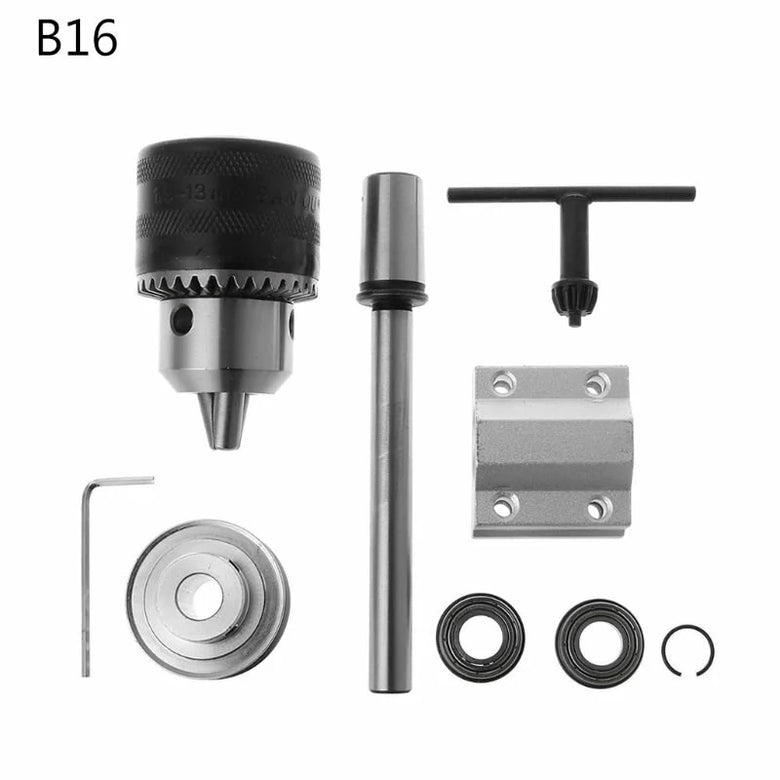

| B16 Drill Chuck |
1 Pc x Drill chuck connecting rod 1 Pc x XL20T 10mm hole synchronization wheel 1 Pc x 10mm hole slider (including 2 bearings) 1 Pc x 1.5-13mm B16 Drill Chuck 1 Pc x M10 Shaft sleeve (including shaft socket wrench, synchronous wheel wrench, drill clamp key) |
More Details:
