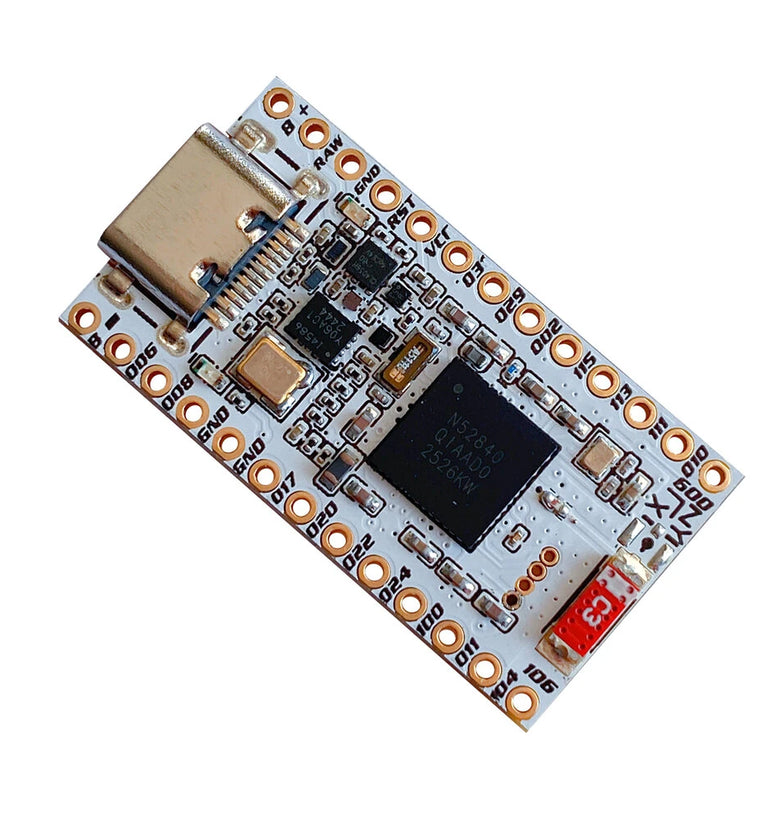

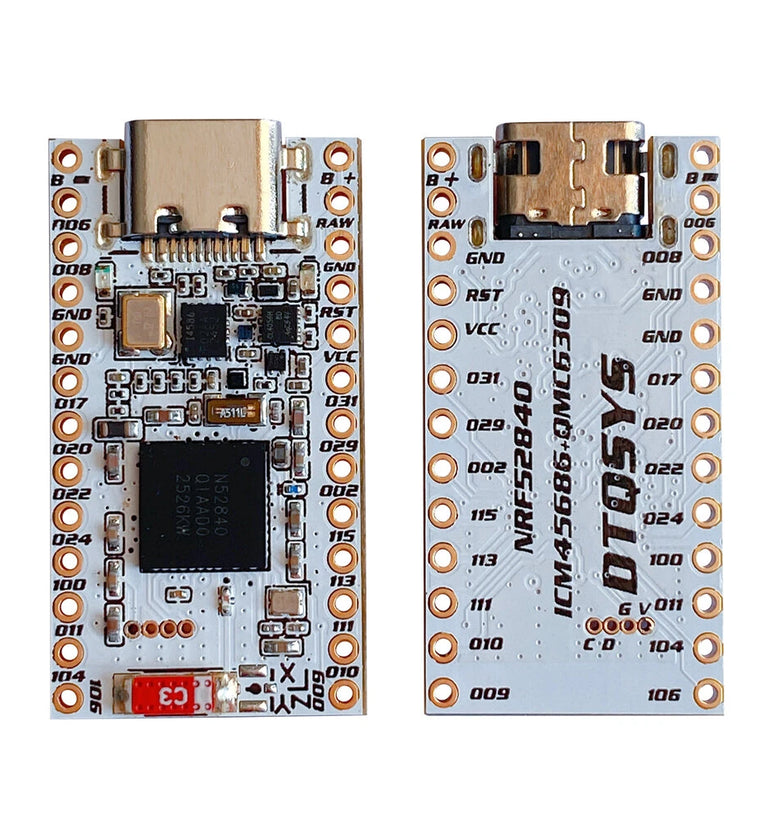

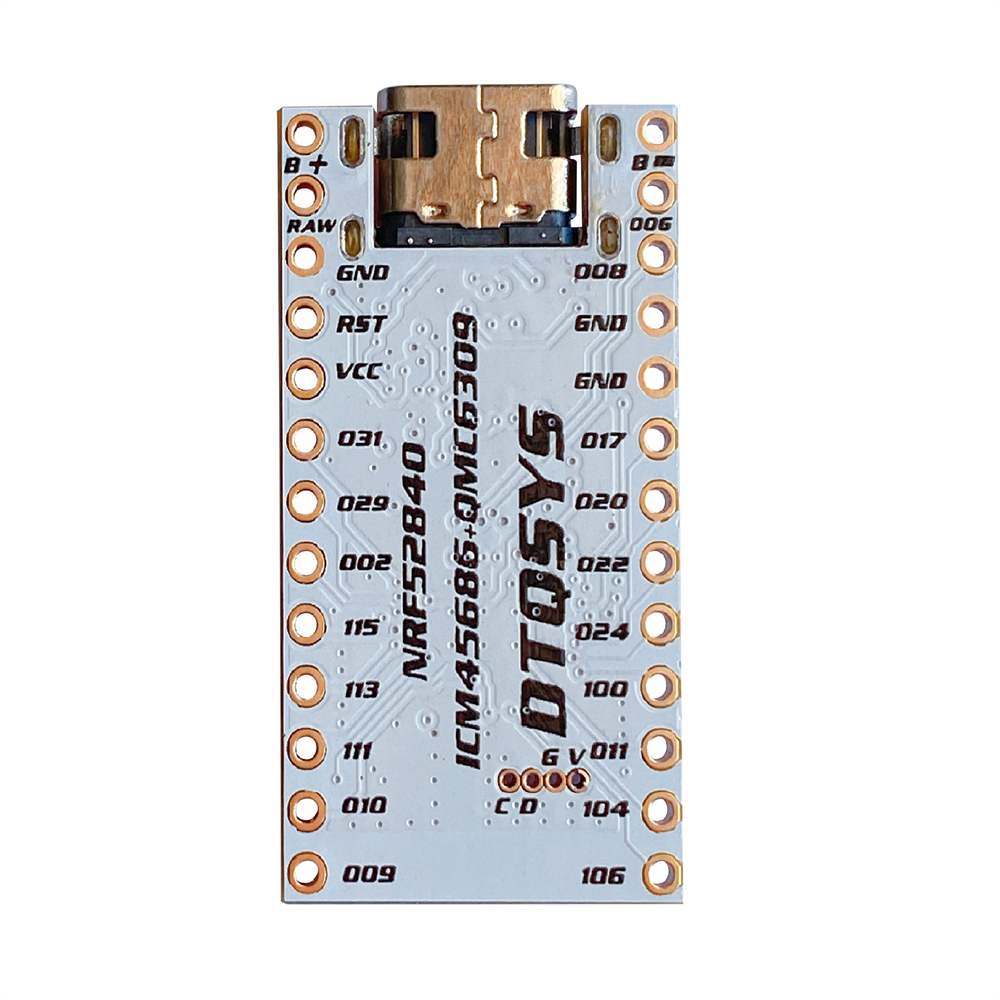

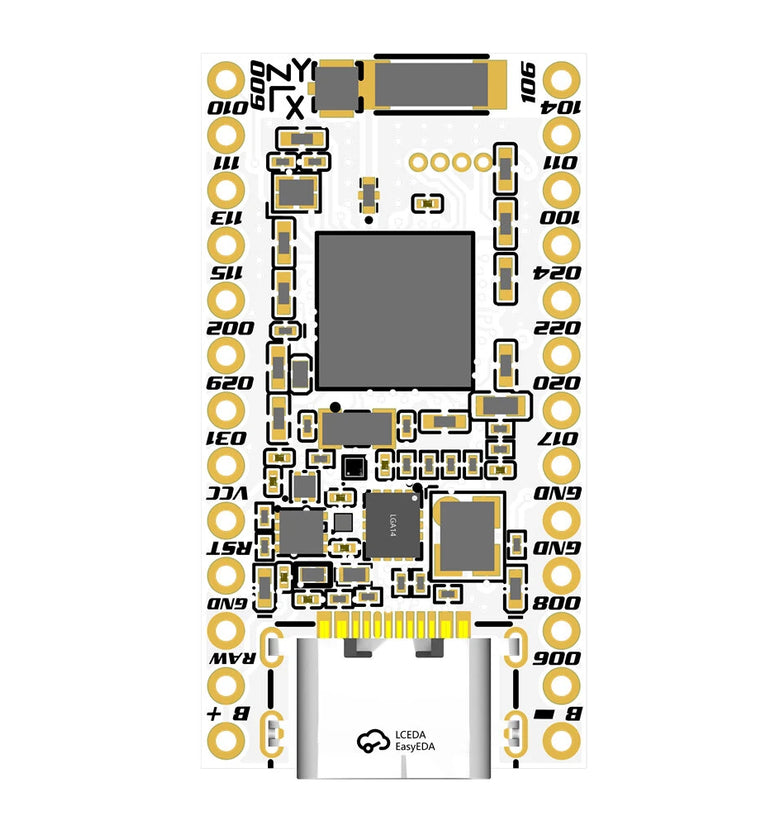

NRF52840 Module ICM45686 QMC6309 Motion Tracking Board 3 Axis Gyroscope Magnetometer SPI I2C Compatible with Keyboard Projects and SlimeVR Trackers

R 669.69



Product type: Electronic Components & Supplies

Weight:

Isaiah 55:8-9 John 3:16 Philippians 4:19
Trust_Badges
Payment_Icons
Buyer Protection and Guarantees Privacy Policy




Specifications:

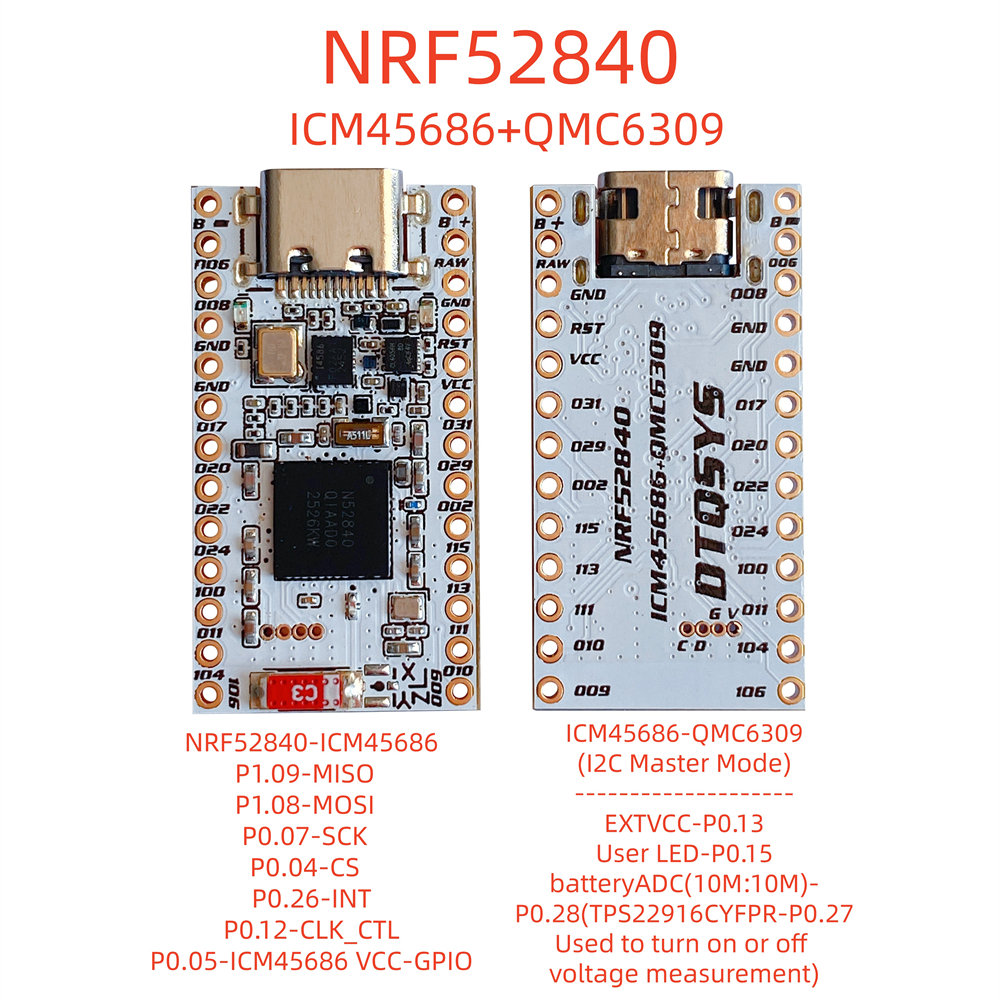

Microcontroller: nRF52840, multiprotocol support with full protocol concurrency
Accelerometer/Gyroscope: 3-axis accelerometer/gyroscope (TDKs InvenSense ICM-45686, SPI mode)
Magnetometer: 3-axis magnetometer (QMC6309, I2C master mode)
Load Switch: Single-channel load switch (TPS22916CYFPR), enabling precise battery voltage control
Voltage Output: External 3.3V LDO for stable power supply

Features:
1. Integrated Dual Sensors: Built-in ICM-45686 accelerometer/gyroscope and QMC6309 magnetometer ensure precise and robust motion tracking for advanced applications.
2. Wide Compatibility: Fully compatible with Nice Nano, Superbini, and Pro Micro modules, suitable for wearables or custom keyboard builds.
3. Low Power Design: Optimized for energy efficiency, making it ideal for portable and battery-powered devices.
4. Smart Power Control: Includes a load switch for convenient battery voltage management and improved functionality.
5. Multipurpose Functionality: Designed for SlimeVR trackers but versatile enough for DIY electronics projects and custom device construction.

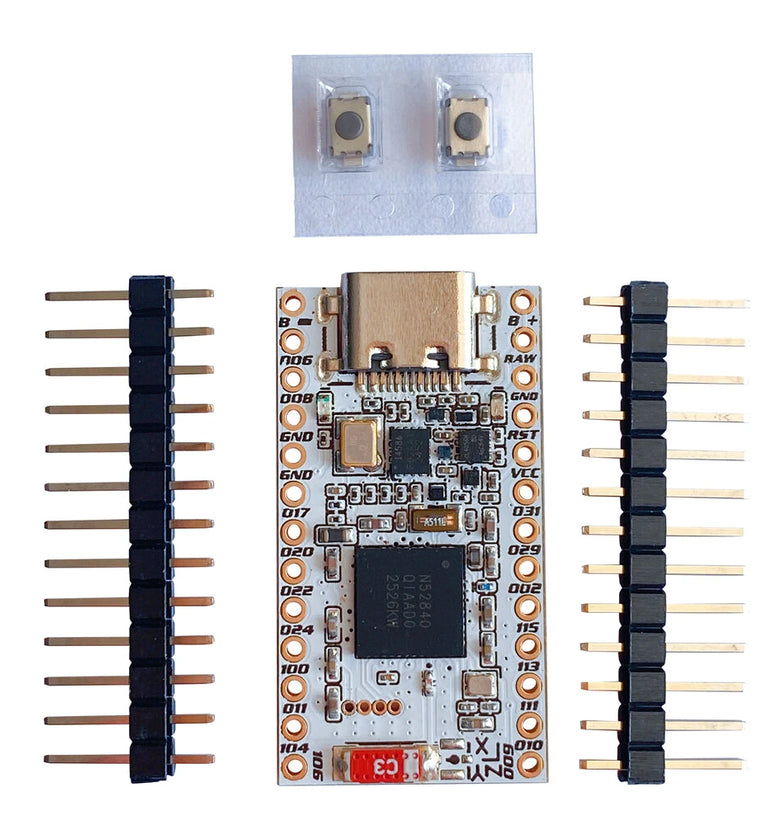

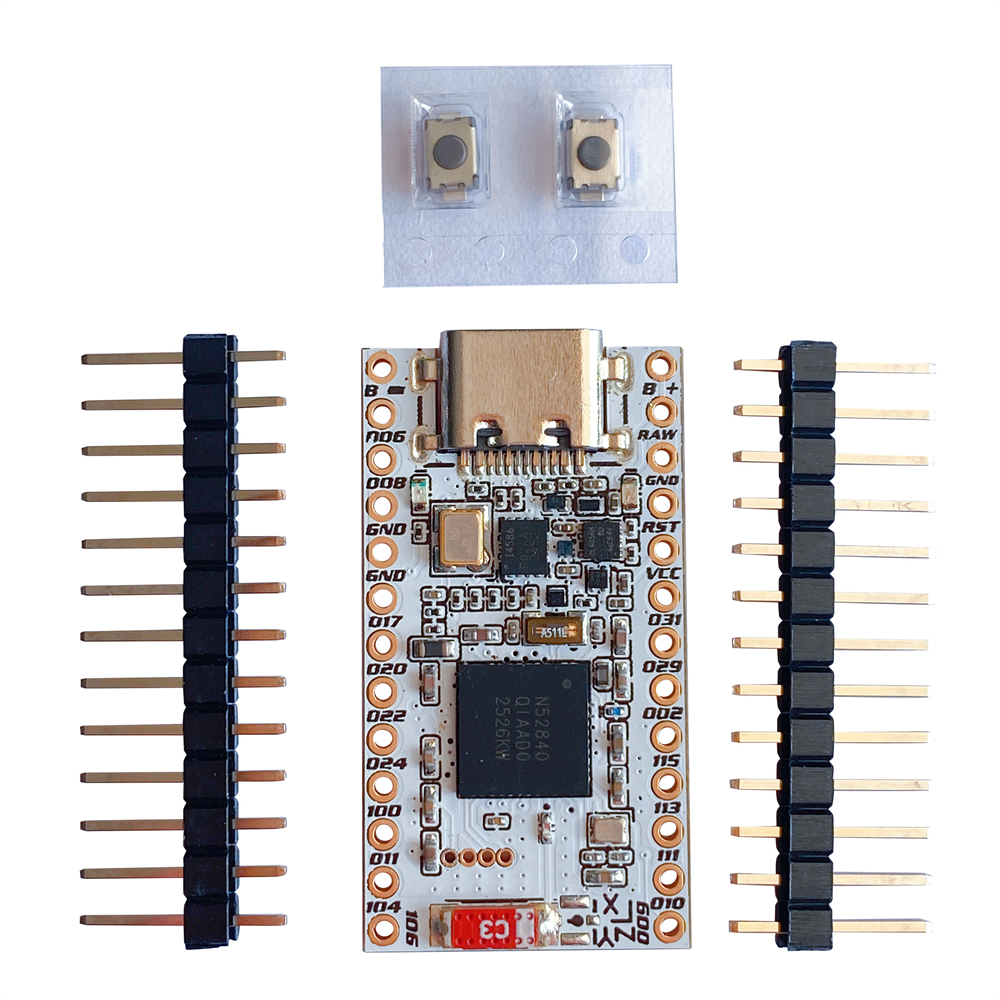

Package Included:
1 x PCBA
2 x 2.54 13P Pin Header
2 x SMT Button
