Features:

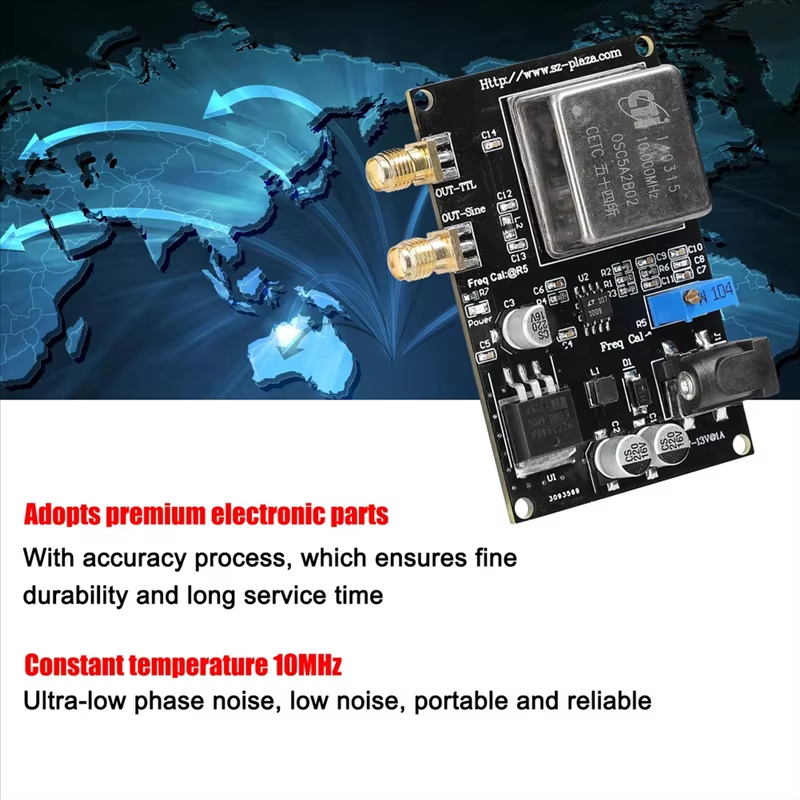

1) Adopts premium electronic parts, with accuracy process, which ensures fine durability and long service time.

2) Constant temperature 10MHz, ultra-low phase noise, low noise, portable and reliable.

3) This product adopts 10MHz frequency standard, and which is provided by OCXO oven controlled crystal oscillator.

4) Constant temperature crystal oscillator means that this product uses a constant temperature bath to keep the temperature of a crystal oscillator or a quartz crystal oscillator constant, so that the change in the output frequency of the oscillator caused by changes in the surrounding temperature is reduced to a minimum, which makes it has higher accuracy, ±0.01Hz.

5) Equipped with SMA outer screw inner hole interface. Wide applications, which can be used for instrument benchmarks such as audio systems, decoders, shortwave radios, frequency meters, signal sources, etc.

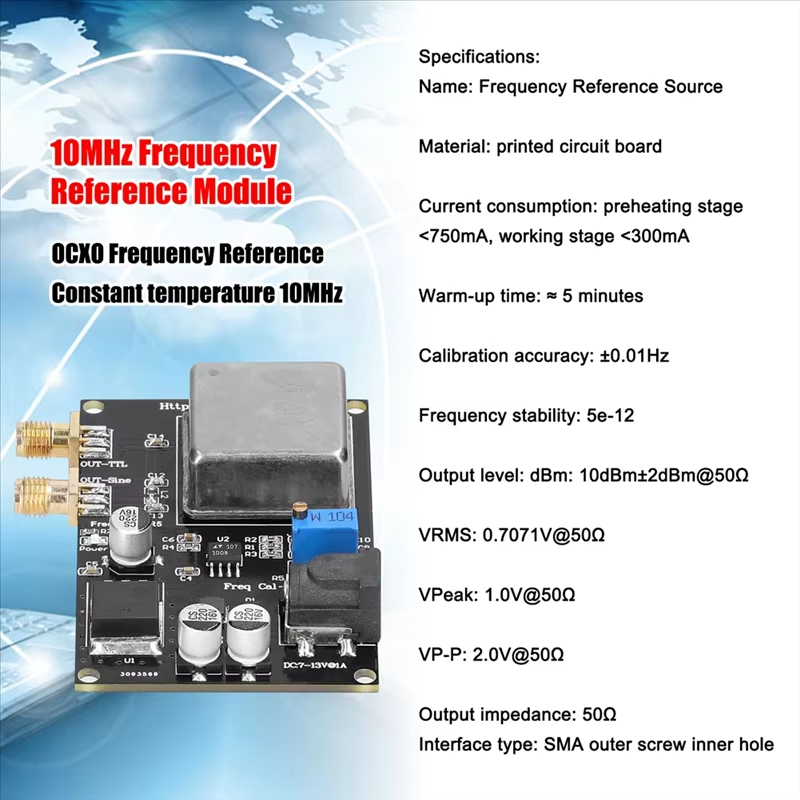

Specification:

Name: Frequency Reference Source

Current consumption: preheating stage Less than 750mA, working stage Less than 300mA

Warm-up time: ≈ 5 minutes

Calibration accuracy: ±0.01Hz

Frequency stability: 5e-12

Output level: dBm: 10dBm±2dBm@50Ω

VRMS: 0.7071V@50Ω

VPeak: 1.0V@50Ω

VP-P: 2.0V@50Ω

Output impedance: 50Ω

Interface type: SMA outer screw inner hole

Item size: 67 x 58 x 14mm / 2.64 x 2.28 x 0.55inch

Item weight: 40g / 1.41ounce

DIY Supplies:ELECTRICAL

Model Number:OCXO-10MHz

color:Black

Material:plastic

Package Included:

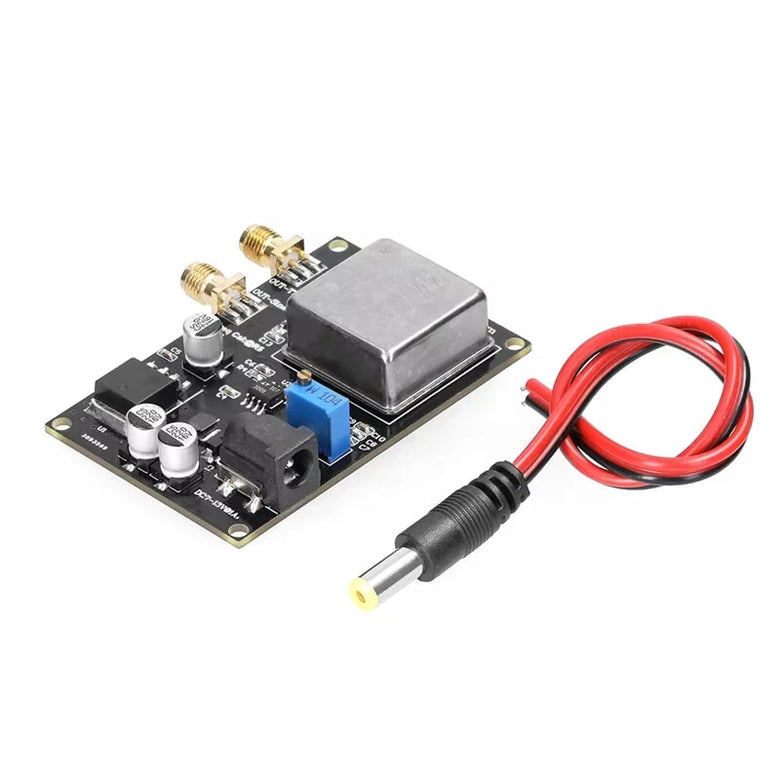

1 x Frequency Reference Source

1 x Cable

Only the above package content, other products are not included.
