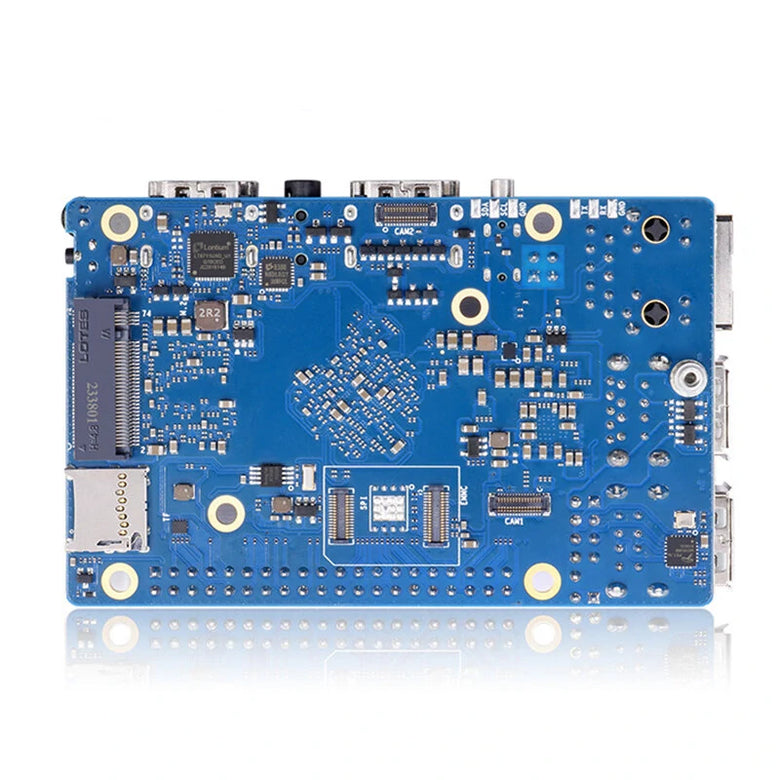

Orange Pi 5 Pro 16GB Ram Single Board Computer RK3588S LPDDR5 WiFi 5.0-BT5 Development Board M2.0 Support SSD Orange Pi 5Pro

R 4,355.75



Product type: Electronic Components & Supplies

Weight:

  • Courier Delivery
    •
  • In Stock
    •

    Isaiah 55:8-9 John 3:16 Philippians 4:19
    Trust_Badges
    Payment_Icons
    Buyer Protection and Guarantees Privacy Policy




    Specifications:


    Master Chip Rockchip RK3588S(8nm LP process)
    CPU ●8-core 64-bit processor
    ●big.LITTLE Architecture: 4-core Cortex-A76 and
    4-core Cortex-A55, big core cluster is 2.4GHz, and lttle
    core cluster is 1.8GHz frequency.
    GPU ●Arm Mali-G610
    ●Built-in 3D GPU
    ●Compatible with OpenGL ES1.1/2.0/3.2, OpenCL2.2
    and Vulkan 1.2
    NPU Embedded NPU supports INT4/INT8/INT16 mixed
    operation, with up to 6TOPS computing power
    PMU: RK806-1
    RAM: LPDDR5 496PIN: 16GB
    Memory ●eMMC socket: supports eMMC module (optional)
    ●SPI Flash (default empty)
    ●MicroSD (TF) slot
    ●M.2 M-KEY slot: NVMe SSD or SATA SSD
    Note:either eMMC socket or on-board SPI Flash is preferred.
    USB USB3.1 Gen1*1; USB2.0*1;
    USB HUB: USB2.0*2 (Type A) + USB2.0*2 row of pins
    expansion interface
    Video Output ●HDMI2.1 up to 8K @60Hz
    ●HDMI2.0, up to 4K @60Hz
    ●MIPI DSI 4 Lane, up to 4K @60Hz
    Camera ●2*MIPI CSI 4 Lane
    Audio CODEC:ES8388
    ●3.5mm headphone jack audio input/output
    ●Input: onboard MIC
    ●HDMI 2.1 eARC
    Ethernet 10/100/1000Mbps Ethernet with PoE+ support (PoE+
    HAT required)
    Wi-Fi+BT Module Onboard Wi-Fi5+BT 5.0/BLE module: AP6256
    PCle M.2 M-KEY Socket M.2 M-Key slot supports access to NVMe SSD or SATA SSD
    Expansion Port ●Dual-row pin: 2.54mm 40Pin
    ●Supports DC 5V and 3.3V power outputs
    ●Can configure functional interfaces such as UART, PWM,
    I2C, SPI, CAN, GPIO, etc
    Button 1* MaskROM, 1*RESET, 1 * POWER
    Power Source Supports Type-C power supply, 5V @ 5A
    LED RGB LED tri-color indicator
    FAN 5V 2PIN 1.25mm socket
    RTC 3V 2PIN 1.25mm socket
    Debugging Debug serial port UART included in 40PIN expansion port
    Supported OS Orangepi OS(Droid), Orangepi OS(Arch), Ubuntu, Debian, Android12


    Features:

    1. Equipped with an 8-core 64-bit processor for powerful performance.
    2. Comes with 16GB LPDDR5 RAM for smooth and efficient operation.
    3. Integrated with Wi-Fi 5+BT5.0 with BLE support for seamless wireless connectivity.
    4. Features M.2 M-KEY slot for NVMe SSD or SATA SSD ensuring enhanced storage options.
    5. Offers an extensive range of video outputs: HDMI2.1 up to 8K @60Hz and HDMI2.0, up to 4K @60Hz.


    Package Include:

    1x Module Board
